Data Sheet
RP015xxWBLC

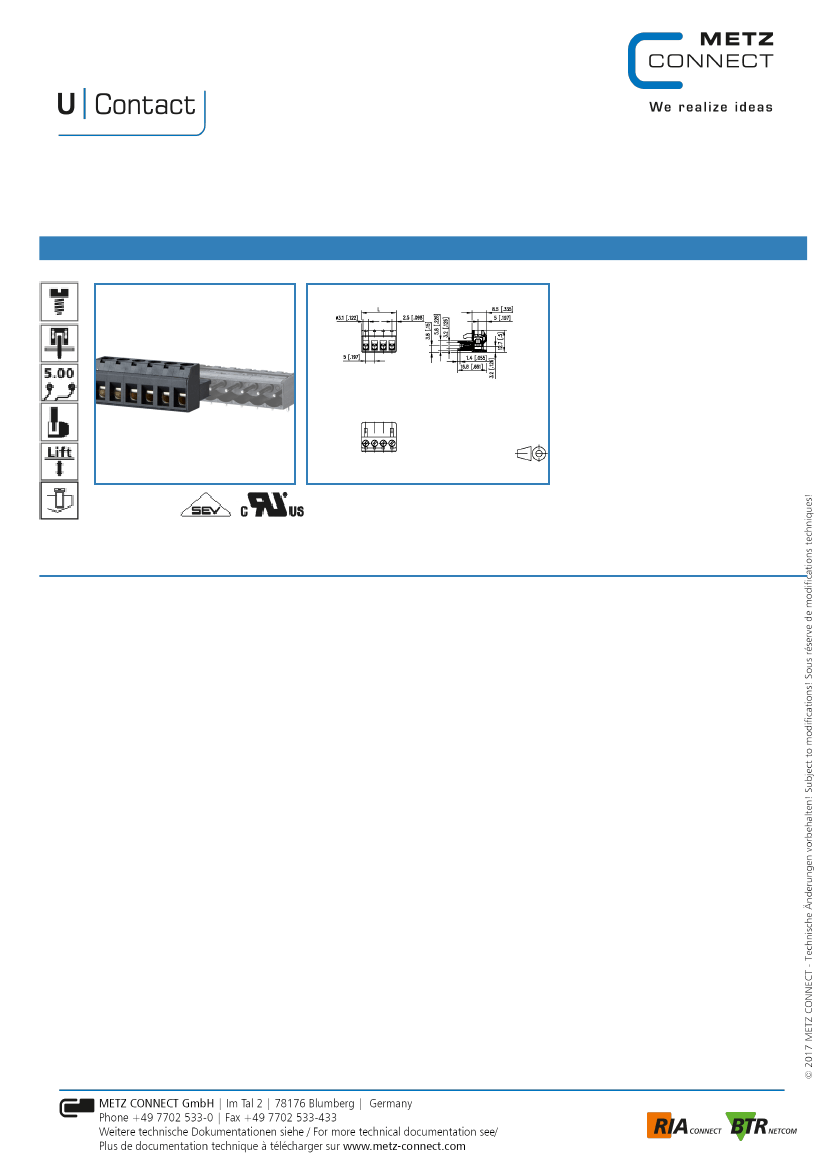

Illustration
Page 1/5
P/N
310491xx
xx=number of poles
2017/05/04
see enlarged drawing at the end of the document
Product specification
• screw type terminal block, pluggable
• centerline 5.00 mm, direction of connection vertical 0°
• lift system, fittable without loss of poles
• color black
• wire entry uncodeable side parallel to plug direction, lamella
Data Sheet
RP015xxWBLC
Technical Data
General Data
Tightening torque SEV
Tightening torque UL
min. number of poles
max. number of poles
Insulating material class
clearance/creepage dist.
protection category
Overvoltage category
Pollution degree
Rated voltage
Rated test voltage
0.5 Nm
7 lb-in
2
24
CTI 600
4.7 mm
IP 20
III
3
160.0 V
2.5 kV
III
2
400.0 V
2.5 kV
II
2
400.0 V
2.5 kV
Page 2/5
P/N
310491xx
xx=number of poles
2017/05/04
Connection data
Rated wiring solid wire
Rated wiring stranded wire
0.33 - 2.5 mm² / AWG 22 - 12
0.33 - 2.5 mm² / AWG 22 - 12
Approvals
V / A / AWG
300 / 15 / 22 - 12
13.5 A / 320 V / 4 kV / 3 / IEC 61984 /
0.08 - 2.5 mm²
Material
insulating material
flammability class
contact material
Glow-Wire Flammability GWFI
Glow-Wire Flammability GWIT
contact surface
terminal body material
terminal body surface
screw surface
wire protector material
PA66
V0
CuBe
960
775
Ni + Ag
CuZn
Ni
Zn Cr(VI)-frei/free
CuNiZn
Data Sheet
RP015xxWBLC
screw thread
M3
Page 3/5
P/N
310491xx
xx=number of poles
2017/05/04
Climatic properties
upper limit temperature
lower limit temperature
105 °C
-40 °C
General
Tolerance
ISO 2768 -mH
Data Sheet
RP015xxWBLC
Matching Part
P/N
310191
310201
310291
310301
310311
310321 (on request)
310341 (on request)
Product name
PT045xxVBEC Typ 019
PT045xxVBBN Typ 020
PT045xxHBEC Typ 029
PT045xxHBBN Typ 030
PT045xxHBVC Typ 031
PT045xxHBVN Typ 032
PT045xxHBON Typ 034
Page 4/5
P/N
310491xx
xx=number of poles
2017/05/04
Accessories
P/N
716906
Product name
716906
Data Sheet
RP015xxWBLC
Illustration
Drawing
Page 5/5
P/N
310491xx
xx=number of poles
2017/05/04

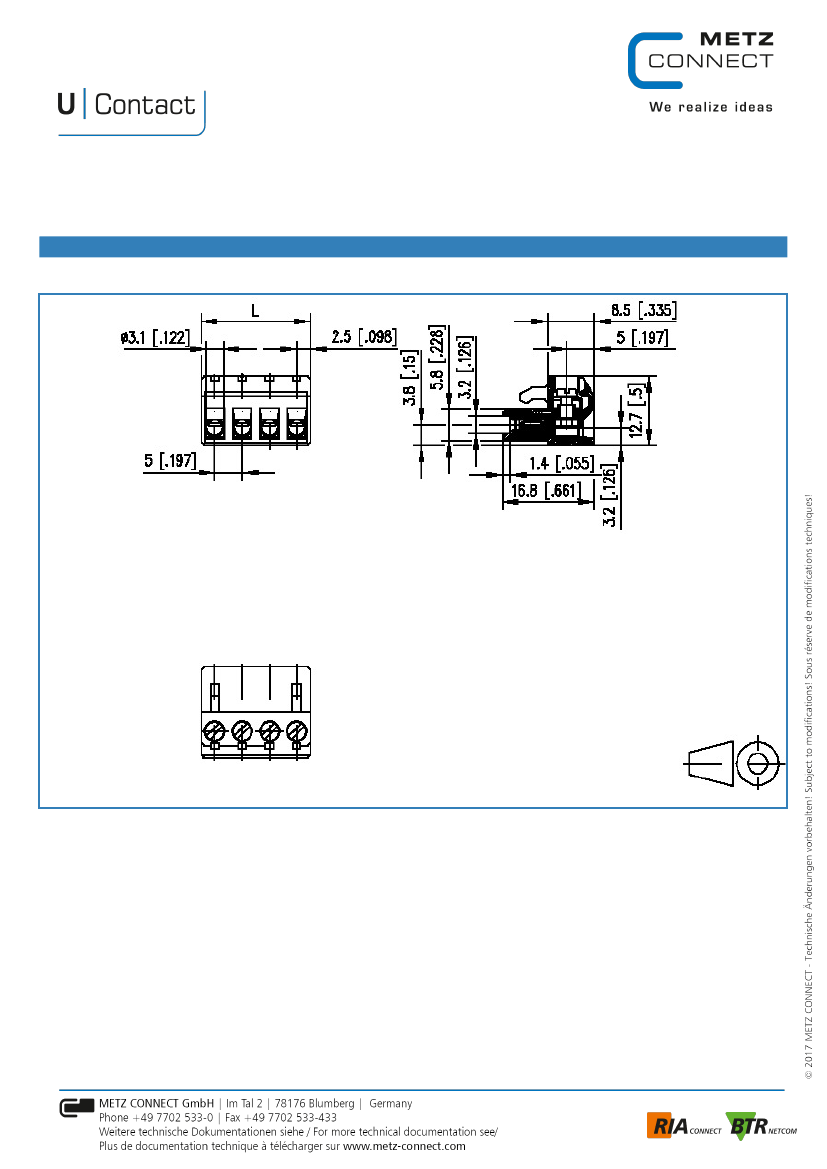

L=(pole size - 1) x centerline + 5 [0.197]
