50010-5009LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 50010-5009LF

50010-5009LF: DescriptionBoard Connector, 9 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size257KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

50010-5009LF Overview

Board Connector, 9 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

50010-5009LF Parametric

Parameter Name	Attribute value
Objectid	1808541572
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.85
Other features	FIRST MAKE LAST BREAK
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

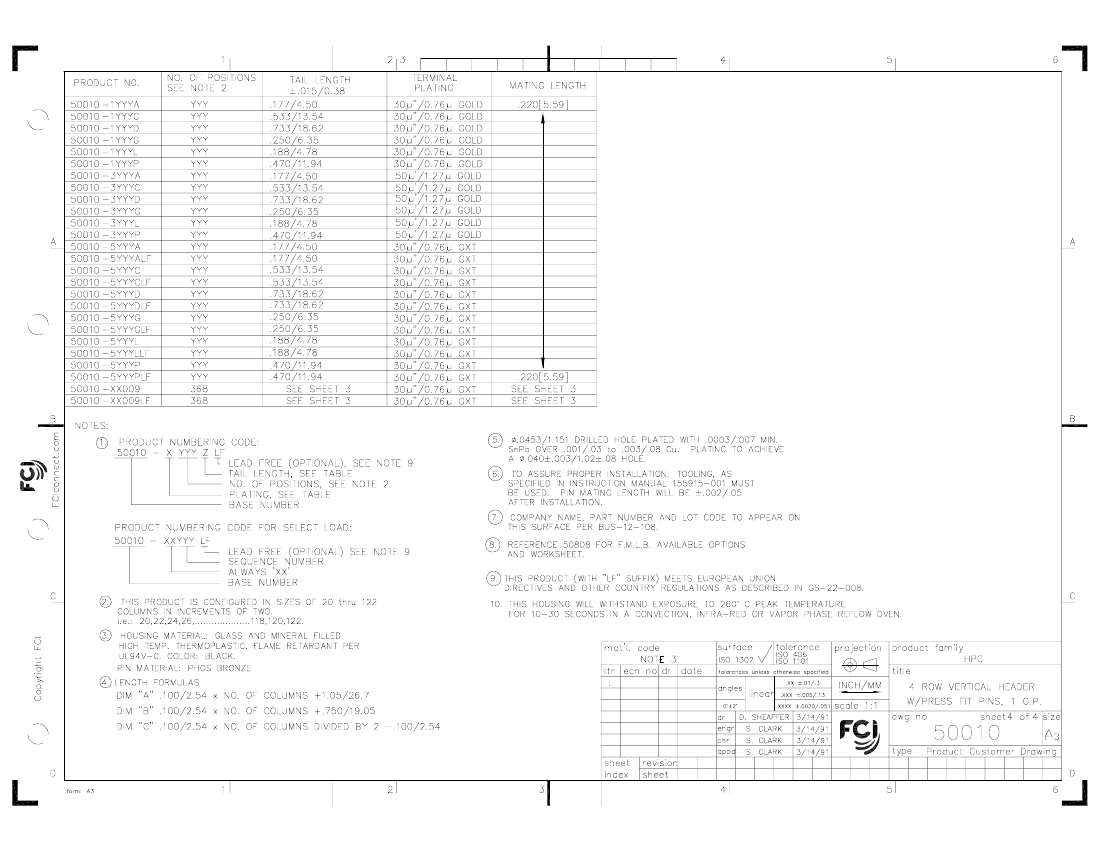

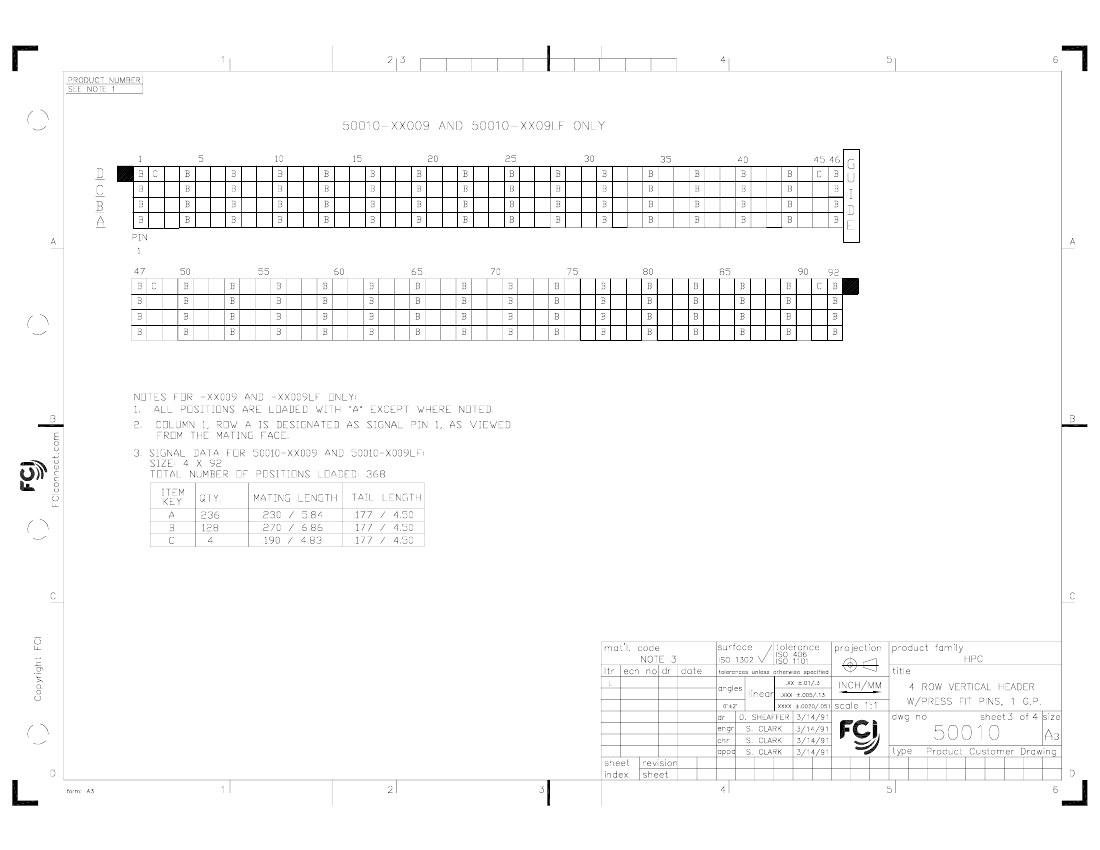

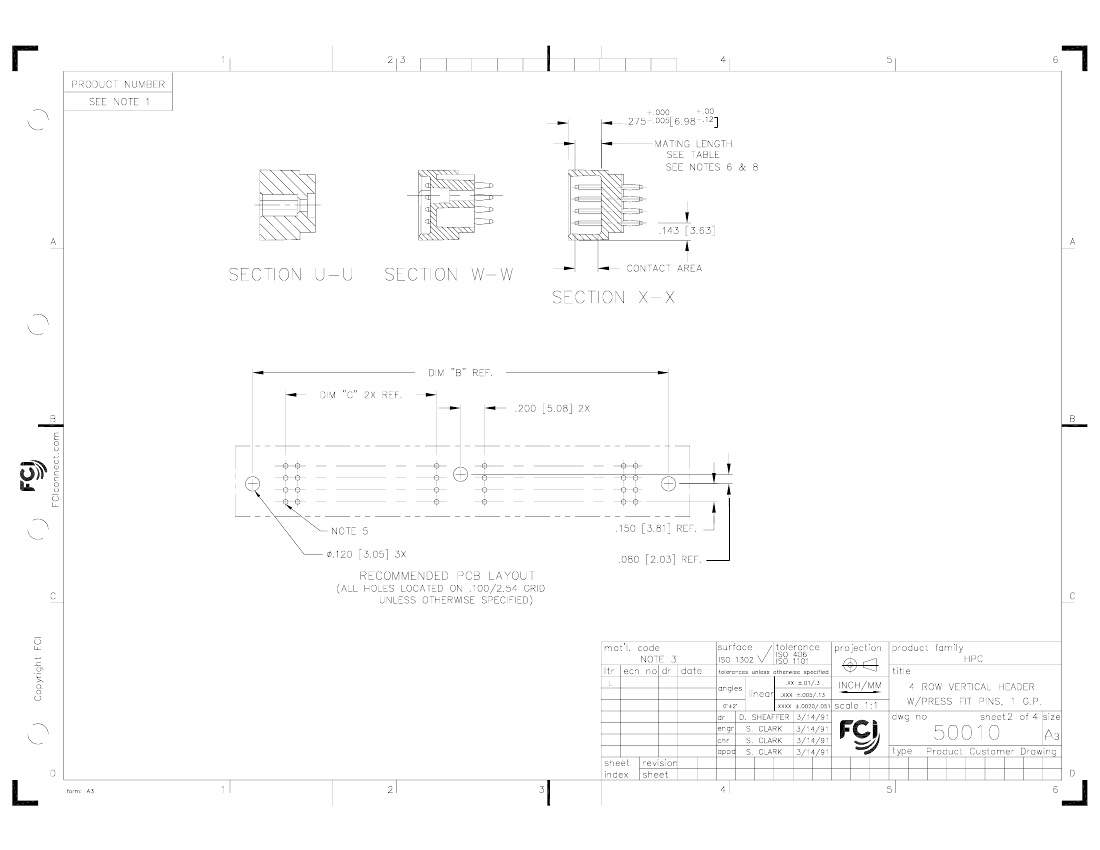

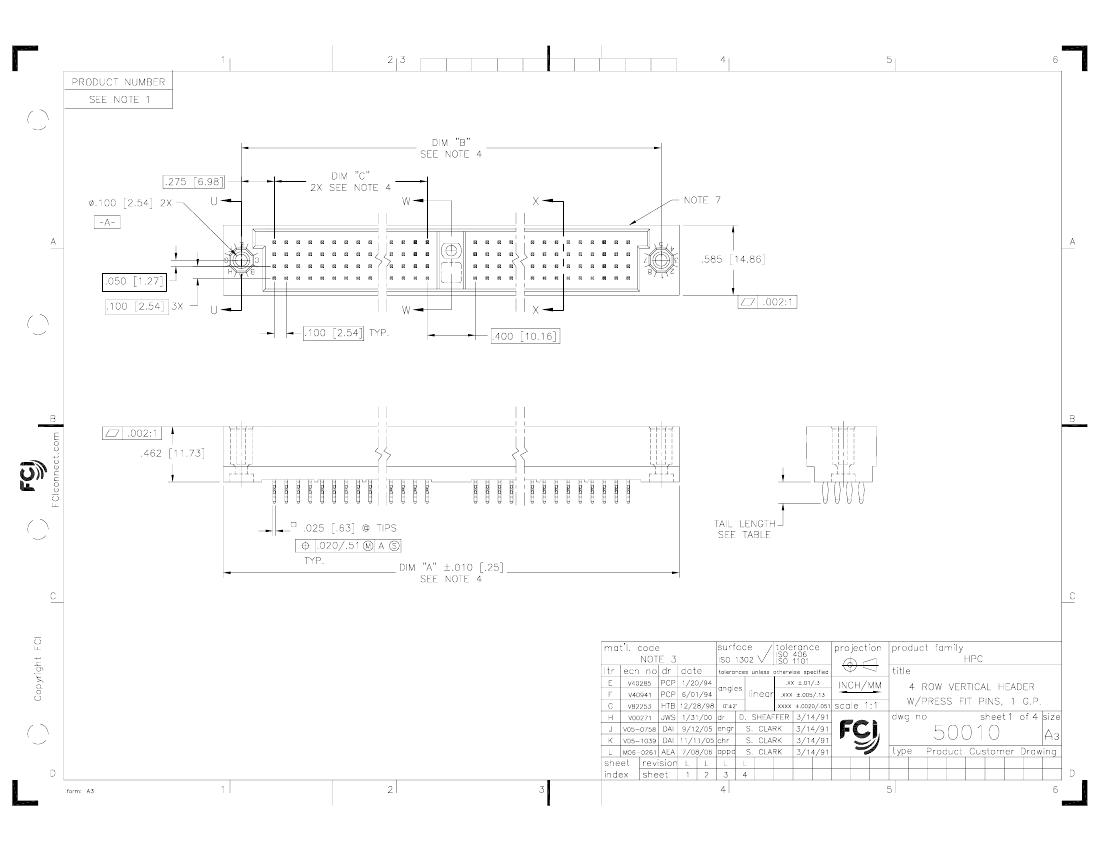

PDM: Rev:L

STATUS:

Released

Printed: May 13, 2008

50010-5009LF Related Products

	50010-5009LF	50010-5009	50010-1009LF	50010-3009LF	50010-3009	50010-1009
Description	Board Connector, 9 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 9 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 9 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 9 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 9 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 9 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	FIRST MAKE LAST BREAK	FIRST MAKE LAST BREAK	FIRST MAKE LAST BREAK	FIRST MAKE LAST BREAK	FIRST MAKE LAST BREAK	FIRST MAKE LAST BREAK
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	9	9	9	9	9	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Manufacturer's serial number	-	50010	50010	50010	50010	50010
