20021221-10088C4LF datasheet, PDF

20021221-10088C4LF: DescriptionBoard Connector, 88 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size211KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

20021221-10088C4LF Overview

Board Connector, 88 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1340249678
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.4
body width	0.209 inch
subject depth	0.22 inch
body length	2.325 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
maximum insertion force	2.1962 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
Manufacturer's serial number	20021221
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.8862 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	88
Evacuation force-minimum value	.1946 N

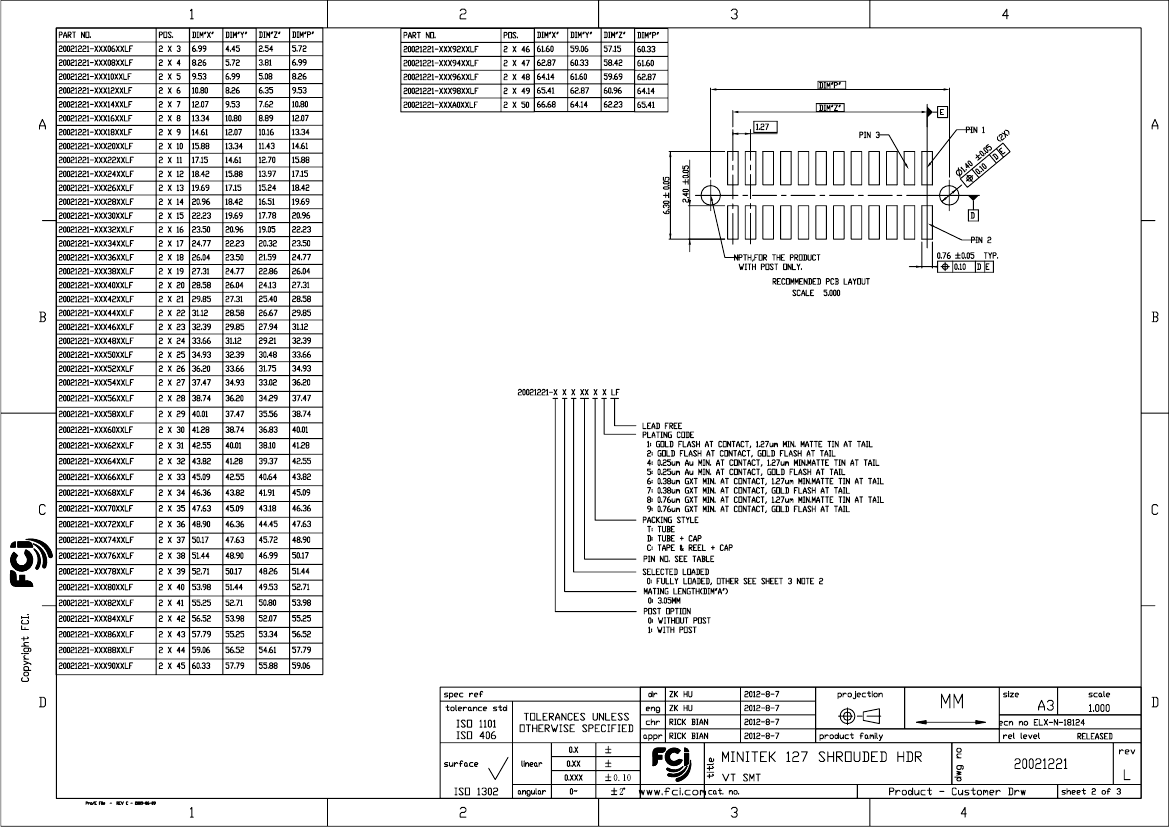

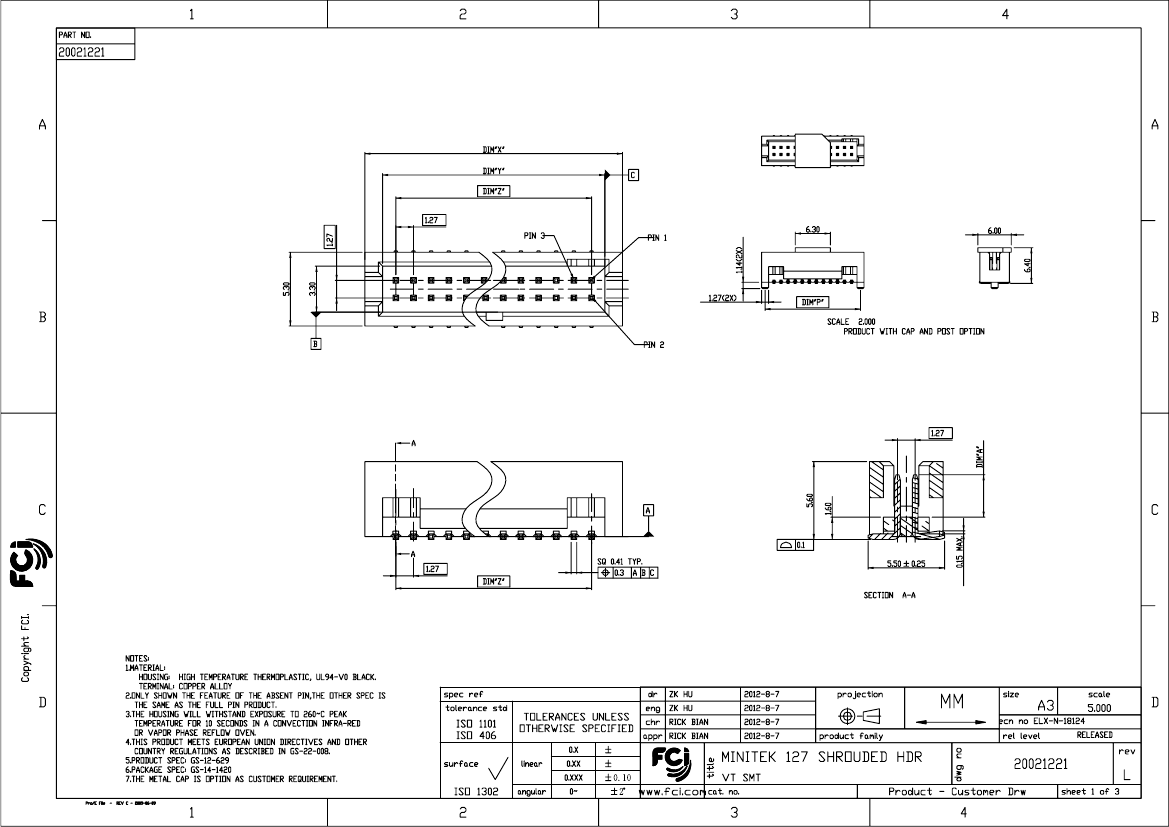

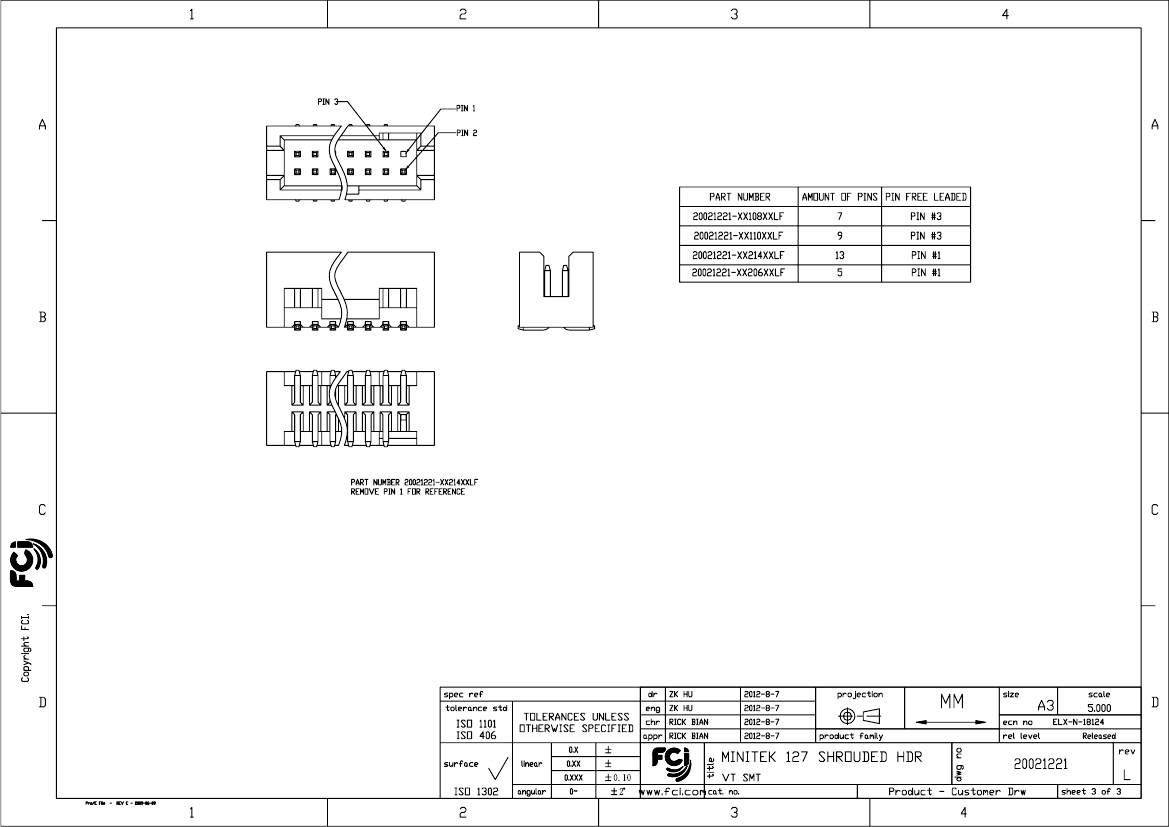

0.30

0.20

PDS: Rev :L

STATUS:Released

Printed: Jul 01, 2014
