China Electronics Technology Group Corporation
No.26 Research Institute
99.2MHz SAW Filter
25MHz Bandwidth
Part Number: LBN09901
www.sipatsaw.com
SIPAT Co., Ltd.
Features
For IF SAW filter
Single-ended operation
Ceramic Surface Mount Package
Small size
RoHS compliant (2002/95/EC), Pb-free
Specifications
Parameter
Center Frequency
Insertion Loss
1.2 dB Bandwidth
3 dB Bandwidth
10 dB Bandwidth
20 dB Bandwidth
35 dB Bandwidth
Passband Variation
Absolute Delay
Ultimate Rejection(f0±20MHz)
Material Temperature coefficient
Substrate Material
Ambient Temperature
Operating Temperature Range
Storage Temperature Range
DC Voltage
Input Power
ESD Class
Package Size
Notes:
1.
2.
All specifications are based on the test circuit shown;
In production, all specifications are measured by Agilent Network analyzer and full 2 port calibration at room
temperature;
3.
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances;
4.
This is the optimum impedance in order to achieve the performance show.
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
dB
usec
dB
KHz/°C
-
°C
°C
°C
V
dBm
-
Minimum
99.05
-
24.8
25
-
-
-
-
-
40
Typical
99.2
21
25.24
26.22
27.96
29.2
30.31
0.7
0.92
41
-8.13
128LN
25
Maximum
99.35
25
-
-
-
-
31
1.2
1.5
-
-40
-45
-
-
0
+85
+105
-
-
1A
10
SMD13.3*6.5C
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBN09901
2008-07-21
1.0
Page
1/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
99.2MHz SAW Filter
25MHz Bandwidth
Part Number: LBN09901
www.sipatsaw.com
SIPAT Co., Ltd.

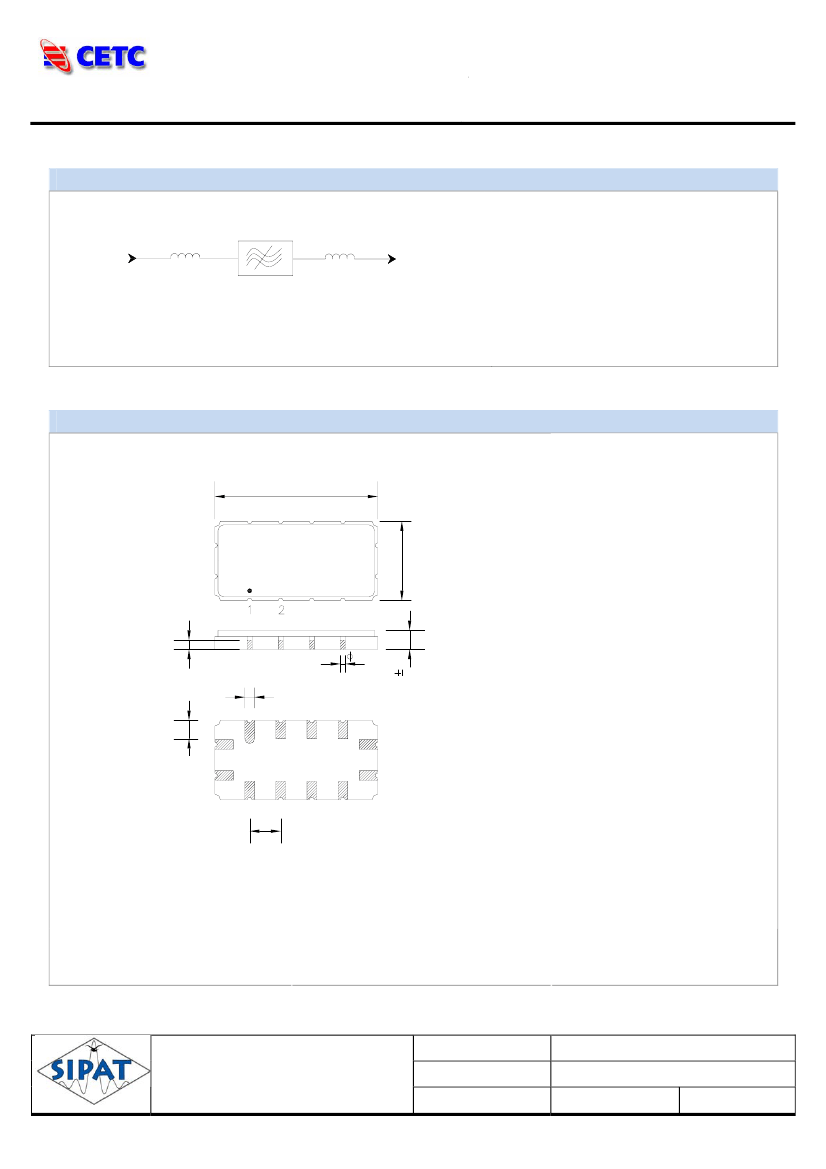

Matching Configuration
L1=22nH
INPUT
50
Ω
L1
L2
OUTPUT
50
Ω
L2=68nH
Source/Load Impedance=50 ohm
Notes - Component values may change depending
on board layout.
Package Dimension
+0.2
13.3-0.1
Pad Configuration:
7
+0.2
6.5-0.1
10
11
12
9
8
Input:
6
5
11
SIPAT
LBN09901
XXYYZZ
3
4
Output: 5
Ground: All Others
Marking Configuration:
1.56 0.1
0.76
0.4
0.79
1) •: Pad Number 1 Index
2) SIPAT: Manufacturer Name
3) LBN09901: Part Number
4) XXYY: Date(Year/month)
1
1.5
2
3
4
5
6
12
11
10
2.54
5) ZZ: Identified Code
9
8
7
Package: SMD13.3*6.5C
Unit: mm
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBN09901
2008-07-21
1.0
Page
2/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
99.2MHz SAW Filter
25MHz Bandwidth
Part Number: LBN09901
www.sipatsaw.com
SIPAT Co., Ltd.

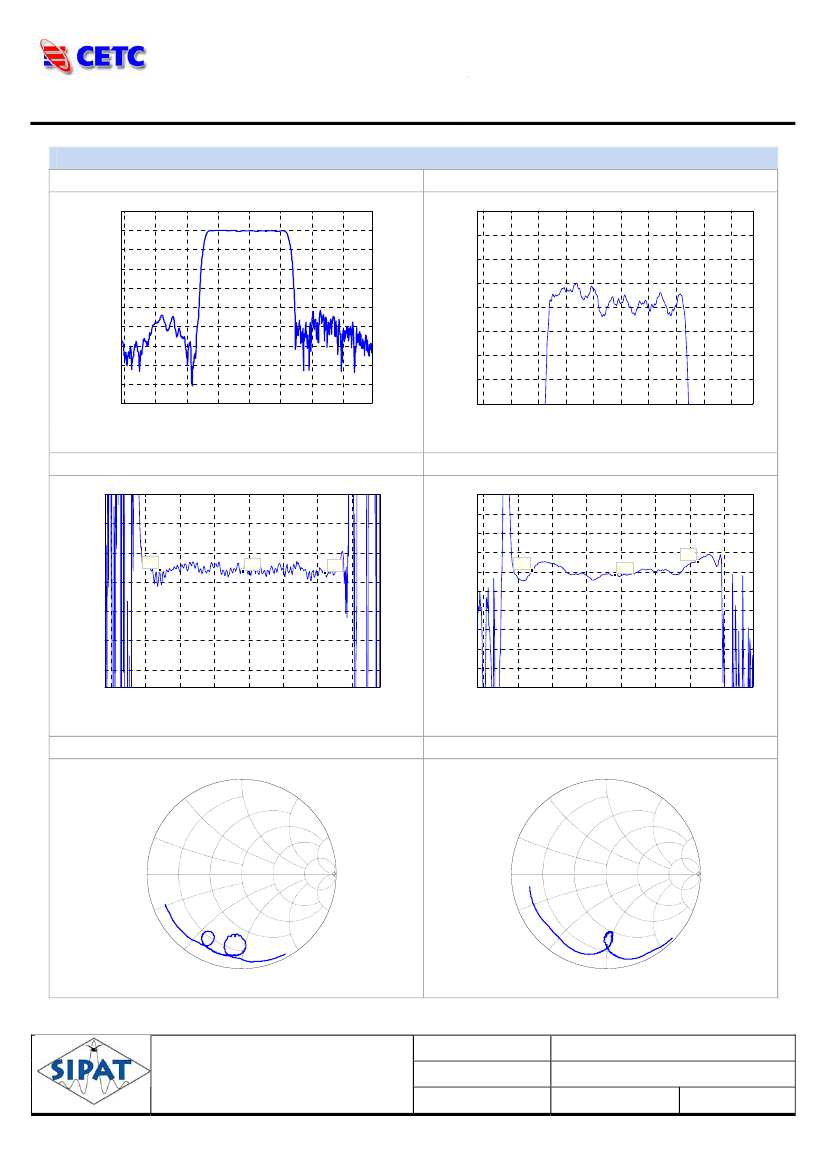

Typical Performance
Frequency Respond
Type Performance
-10.9144
-20.9144
-30.9144
-20.4144
-19.4144
Passband Respond
Type Performance
-19.9144
-40.9144
Magnitude(dB)
Amplitude ripple(dB)
-50.9144
-60.9144
-70.9144
-80.9144
-20.9144
-21.4144
-21.9144
-22.4144
-90.9144
-100.9144
-110.9144
-22.9144
-23.4144
60
70
80
90
100
110
Frequency(MHz)
120
130
75
80
85
90
95
100
Frequency(MHz)
105
110
115
120
Horizontal: 10MHz/Div
Vertical: 10dB/Div
Horizontal: 5MHz/Div
Vertical: 0.5dB/Div
Group Delay Variation(f0±22MHz)
Type Performance
1050
40
Phase Linearity(f0±22MHz)
Type Performance
30
1000
20
950
X: 87.1
Y: 921.1
X: 99.1
Y: 918.5
X: 111.1
Y: 915.5
10
X: 87.1
Y: 0.5027
X: 99.1
Y: -1.903
X: 111.1
Y: 5.265
Group Delay Time(ns)
0
900
Degree(deg)
80
85
90
95
100
Frequency(MHz)
105
110
115
-10
850
-20
-30
800
-40
750
-50
-60
80
85
90
95
100
Frequency(MHz)
105
110
115
Horizontal: 5MHz/Div
Vertical: 50ns/Div
Horizontal: 5MHz/Div
Vertical: 10deg/Div
Smith Chart S11
+j1.0
+j0.5
+j2.0
Smith Chart S22
+j1.0
+j0.5
+j2.0
+j0.2
+j5.0
+j0.2
+j5.0
0.2
0.5
1.0
2.0
5.0
0.2
0.5
1.0
2.0
0.0
∞
5.0
0.0
∞
-j0.2
-j5.0
-j0.2
-j5.0
-j0.5
-j1.0
-j2.0
-j0.5
-j1.0
-j2.0
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBN09901
2008-07-21
1.0
Page
3/3
Fax: +86-23-62808382
www.sipatsaw.com / sawmkt@sipat.com
