5962-9168703HZX datasheet, PDF

5962-9168703HZX: DescriptionMil-Std-1553 Controller, 2 Channel(s), CMOS, GA-69; CategoryThe embedded processor and controller Microcontrollers and processors; File Size56KB，2 Pages; ManufacturerNational Hybrid Incorporated

Download Datasheet Parametric View All

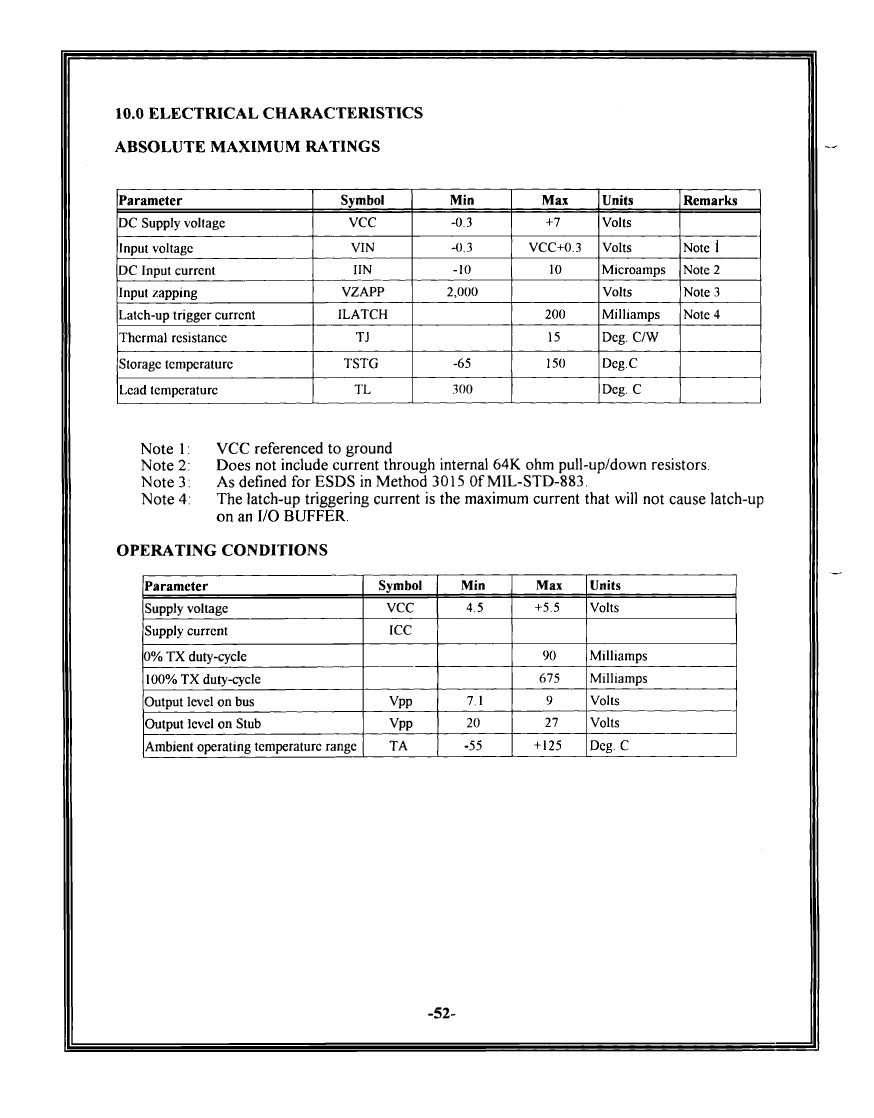

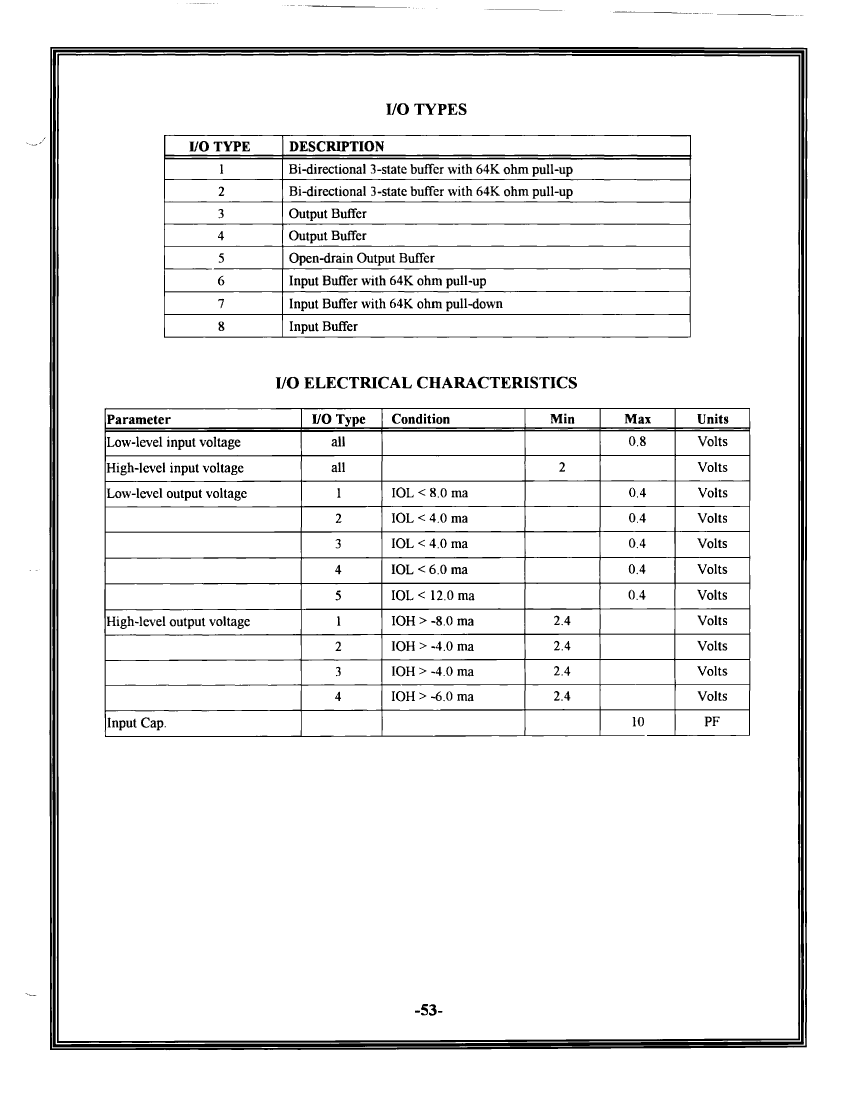

5962-9168703HZX Overview

Mil-Std-1553 Controller, 2 Channel(s), CMOS, GA-69

Parameter Name	Attribute value
Parts packaging code	PGA
package instruction	PGA,
Contacts	69
Reach Compliance Code	unknown
Address bus width	12
boundary scan	NO
letter of agreement	MIL-STD-1553
Data encoding/decoding methods	NRZ
External data bus width	16
JESD-30 code	S-XPGA-P69
length	27.94 mm
low power mode	NO
Number of serial I/Os	2
Number of terminals	69
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	3.81 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	27.94 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1
