Surge arrester
2-electrode arrester
B88069X8801****
G31-A200X
Features
Small size
Fast response time
Stable performance over life
Low capacitance
High insulation resistance
RoHS-compatible
Applications
Ethernet, PoE, xDSL
Cable modem, splitter, line cards
CCTV
Applications with limited space
Electrical specifications
DC spark-over voltage
1) 2)
Tolerance
Min.
Max.
Impulse spark-over voltage
at 100 V/µs - for 99% of measured values
- typical values of distribution
at 1 kV/µs
- for 99% of measured values
- typical values of distribution
Service life
3)
300 operations
10 operations
[5× (+) & 5× (–)]
1 operation
400 operations
Insulation resistance at 100 V
DC
Capacitance at 1 MHz
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Operation and storage temperature
Climatic category (IEC 60068-1)
Marking
Certification
1)
2)
200
±20
160
240
< 500
< 450
< 700
< 650
100
1
2
500
>1
< 0.5
~ 10
< 1.0
~ 60
~ 0.2
40
... +125
40/125/21
without
UL 1449 (E319264)
V
%
V
V
V
V
V
V
A
kA
kA
A
G
pF
V
A
V
g
°C
8/20 µs
8/20 µs
8/20 µs
contact discharge
4)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
3)
Tests according to ITU-T Rec. K. 12 and UL 1449
4)
Contact discharge parameters: 1500 pF, 10 kV, 20
Terms in accordance with ITU-T Rec. K.12; IEC 61663-2 and IEC 61643-311.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 7
Version: 09 / 2017-08-10
Surge arrester
2-electrode arrester
B88069X8801****
G31-A200X

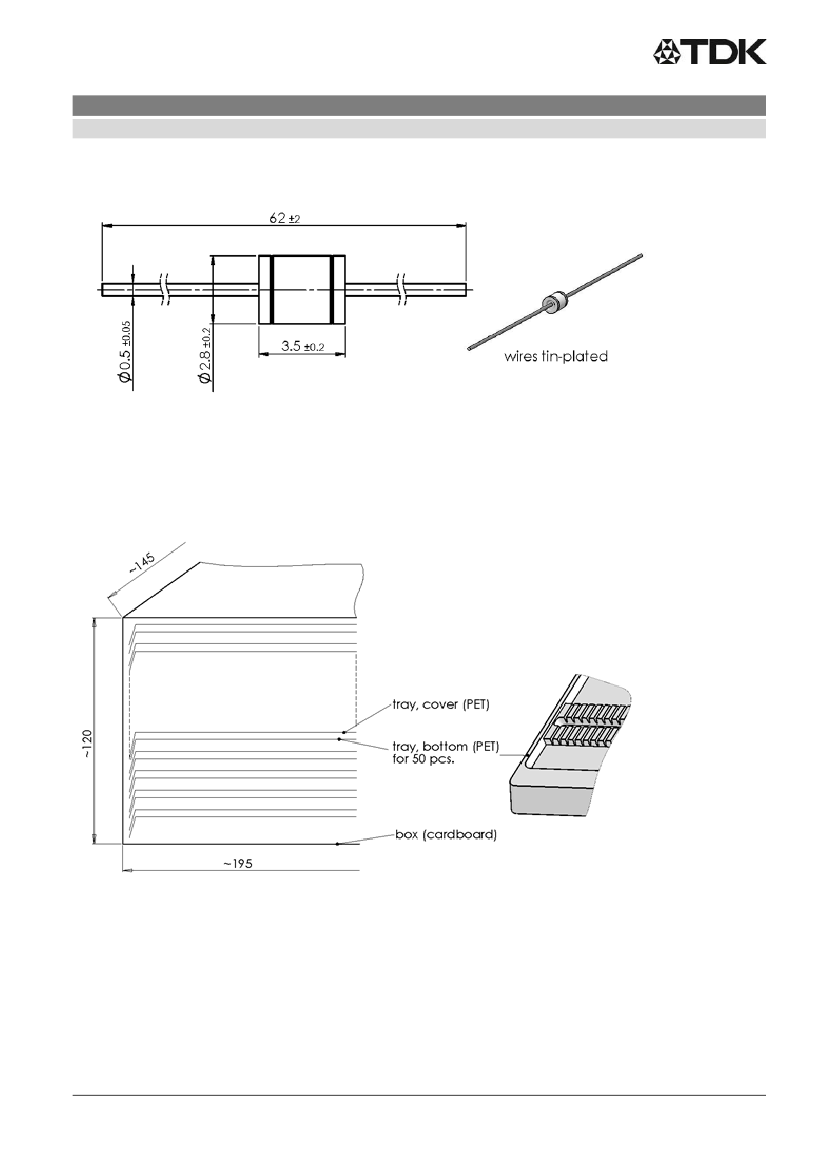

Dimensional drawing in mm
Ordering codes and packing advices
B88069X8801B502 = 500 pcs. on trays (50 pcs. per tray)
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 7
Version: 09 / 2017-08-10
Surge arrester
2-electrode arrester
B88069X8801****
G31-A200X

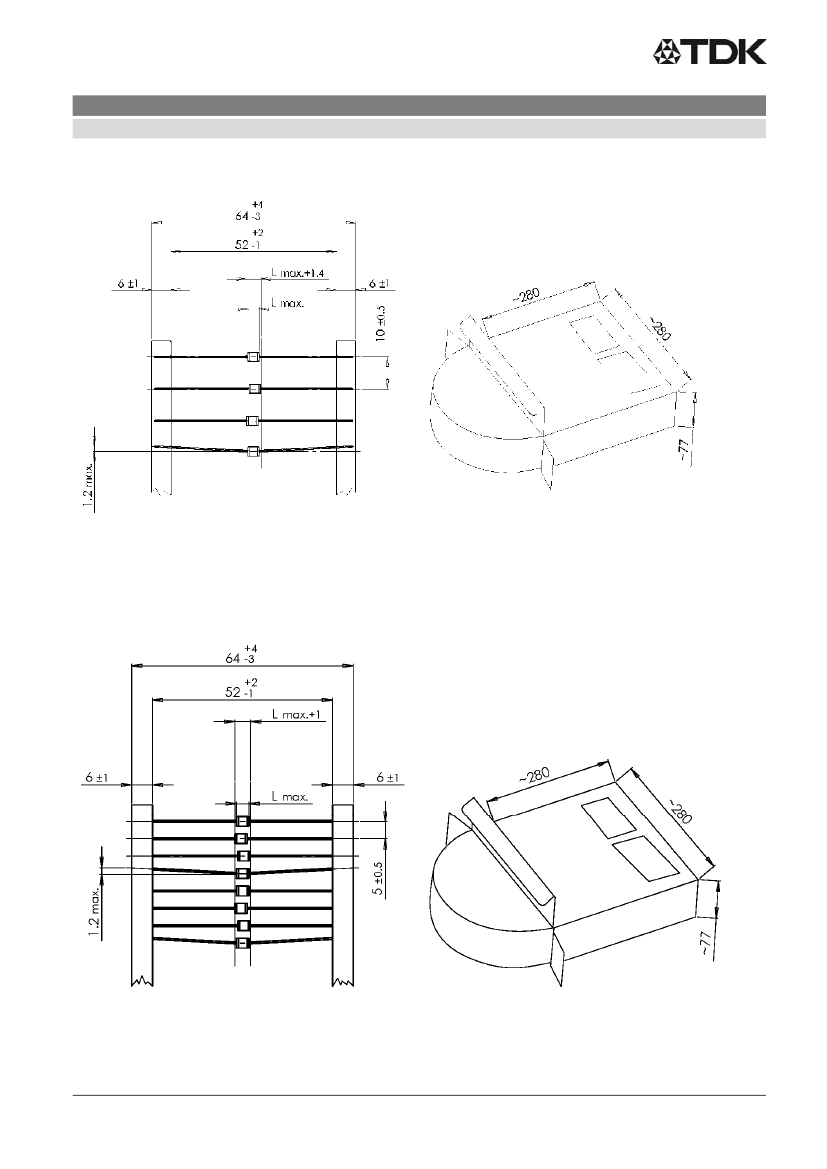

B88069X8801T103 =1000 pcs. on tape and reel
B88069X8801K103 =1000 pcs. on tape and reel
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 7
Version: 09 / 2017-08-10
Surge arrester
2-electrode arrester
B88069X8801****
G31-A200X

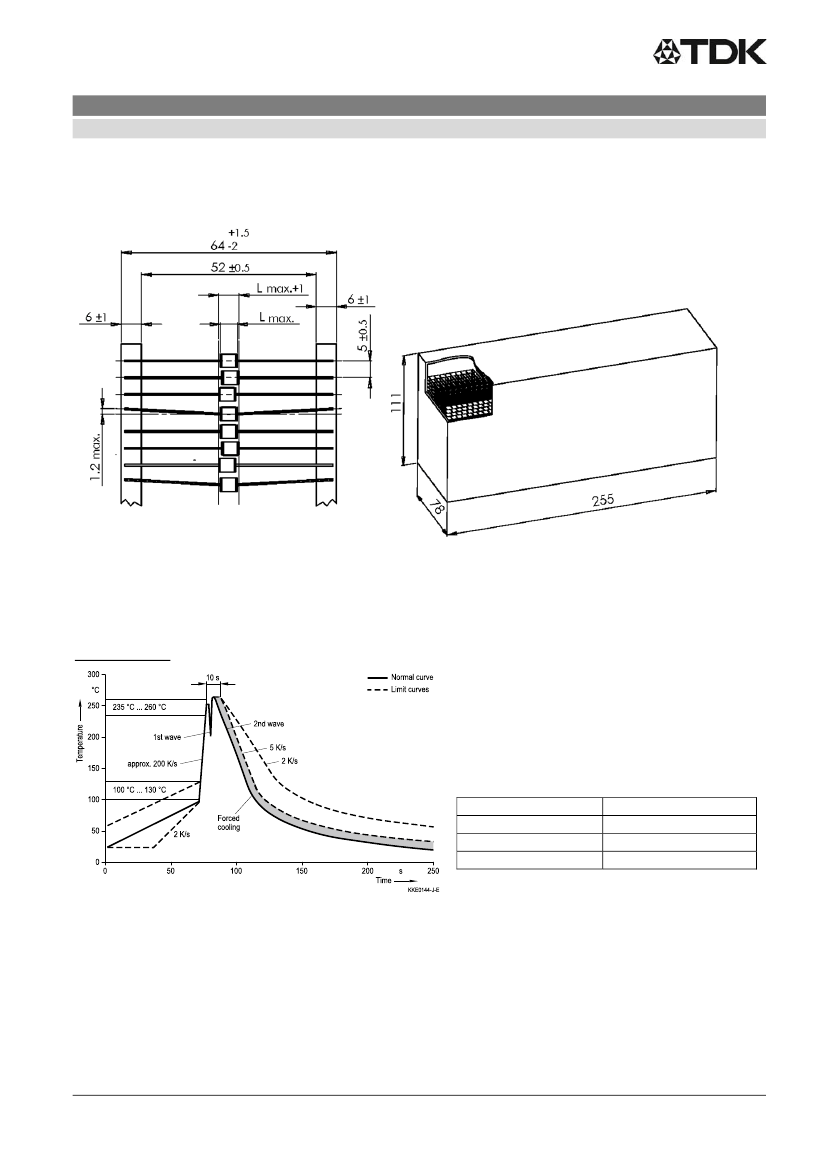

B88069X8801P103 =1000 pcs. on tape and ammo pack
Soldering parameter
Wave soldering
Wave profile features
Solder
Solder bath temperature
Dwell time
Pb-free assembly
Sn 95.5 / Ag 3.8 / Cu 0.7
263 (±3) °C
<3s
Soldering profile applied to a single soldering process.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 7
Version: 09 / 2017-08-10
