LANEW2415R3 Overview

3 Watt DC/DC Converter Single and Dual Outputs 2:1 Wide Input Voltage Range

Preview

Download Datasheet

View All

LANEW3 Series

3 Watt DC/DC Converter

Single and Dual Outputs

2:1 Wide Input Voltage Range

FEATURES

●

Low Ripple & Noise

●

3 Watts Output Power

●

Single and Dual Output

●

External ON/OFF Control

●

RoHS Directive Compliant

●

2:1 Wide Input Voltage Range

●

UL94-V0 Case Potting Materials

●

Continuous Short Circuit Protection

●

Input to Output Isolation up to 1KVDC

●

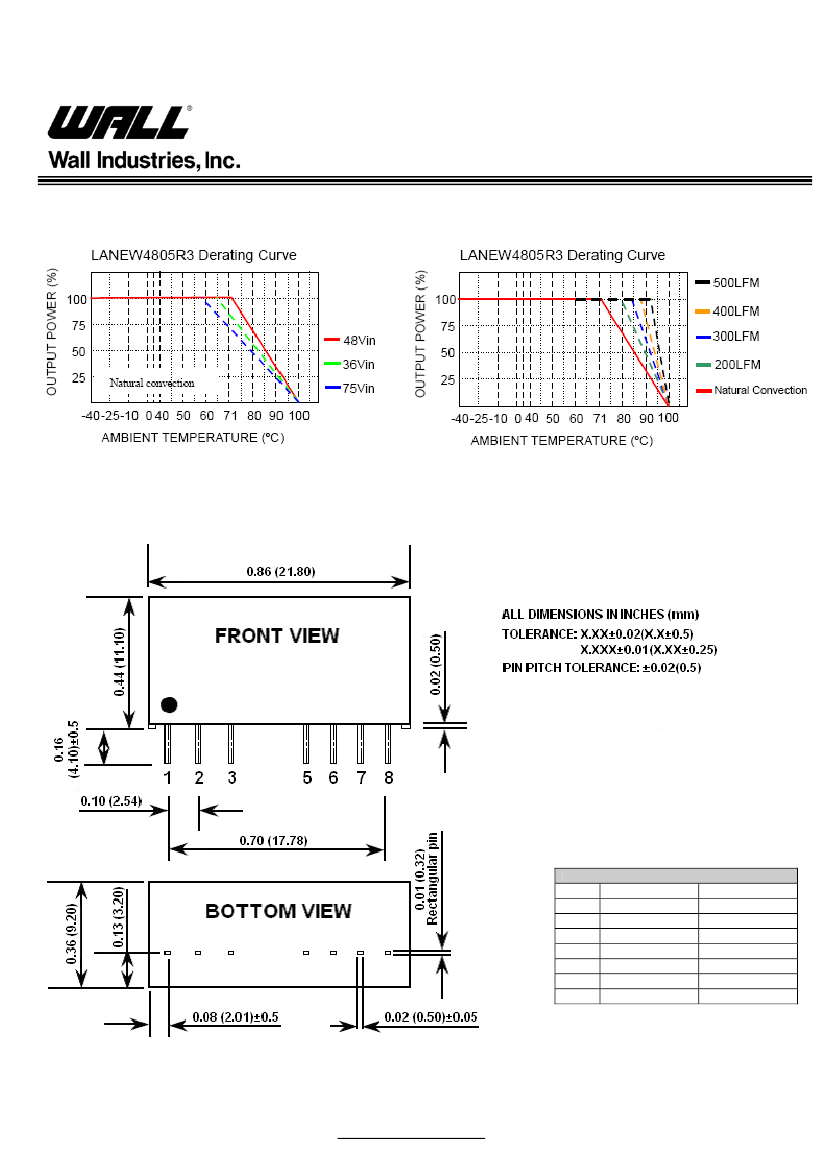

SIP Package: 0.86 x 0.36 x 0.44 Inches

SPECIFICATIONS:

LANEW3 Series

TUV

CE MARK

(Pending)

All specifications are based on 25 C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.

We reserve the right to change specifications based on technological advances.

INPUT SPECIFICATIONS

5V nominal input

12V nominal input

Input Voltage Range

24V nominal input

48V nominal input

Input Current

Input Filter

Input Voltage Variation

Input Surge Voltage (100ms max)

dv/dt

5V nominal input

12V nominal input

24V nominal input

48V nominal input

5V nominal input

12V nominal input

24V nominal input

48V nominal input

Power Up

Remote ON/OFF

DC-DC ON

DC-DC OFF

Remote OFF Input Current (nominal input)

Application Circuit

Remote ON/OFF

Input Reflected Ripple Current

Start Up Time

(Nominal Vin and constant resistive Load)

4.5 – 9 VDC

9 – 18 VDC

18 – 36 VDC

36 – 75 VDC

See Table

Capacitor Type

5V/ms, max

(Complies with ETS300 132 part 4.4)

15 VDC

36 VDC

50 VDC

100 VDC

400mAp-p

150mAp-p

380mVp-p

170mVp-p

1ms typ

Open or high impedance

Control pin applied current

4 ~ 8mA max (via 1KΩ)

1mA max

OUTPUT SPECIFICATIONS

Output Voltage

Voltage Accuracy (Full load and nominal Vin)

Line Regulation (Low line to high line at full load)

Load Regulation

Cross Regulation (Dual)

Minimum Load (See Note 3)

Single Output (min. load to 100% load)

Dual Output (balanced on all outputs)

Asymmetrical load 25% / 100% FL

See Table

±1%

±0.2%

±0.5%

±1%

±5%

See Table

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833

603-778-2300 www.wallindustries.com Fax 603-778-9797
