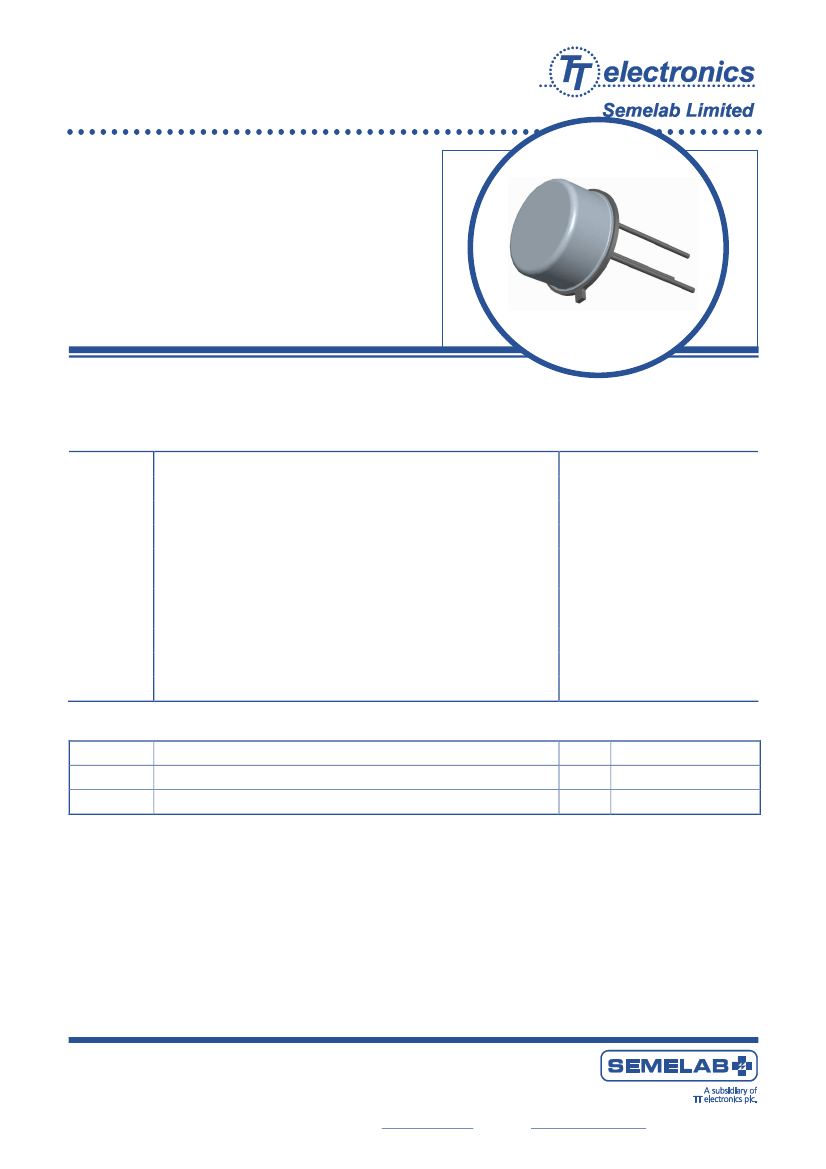

DUAL SCHOTTKY RECTIFIER
1N6492-DA
1N6492-DC
•
•
•
•
•
•
•
Dual Rectifier in One Package
Common Anode or Cathode Option
Extremely Low V
F
and I
R
High Surge Capability
Low Recovery Charge
Low Profile TO-39 Hermetic Package
High-Reliability Screening Options Available
ABSOLUTE MAXIMUM RATINGS
(Per diode unless otherwise stated, TA = 25°C unless otherwise stated)
VRRM
VRWM
VR
VRSM
IF(av)
IF(av)
IFSM
TJ
Tstg
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Non-Repetitive Peak Reverse Voltage
Average Forward Current
TA = 25°C
(50% Duty Cycle)
TCASE = 100°C
Average Forward Current
TVRM = 45V
(50% Duty Cycle)
Non-Repetitive Peak Surge Current
8.3ms, Half Sine Wave
45V
45V
45V
54V
1.2A
4.0A
80.0A
-65 to +175°C
-65 to +175°C
Junction Temperature Range
Storage Temperature Range
THERMAL PROPERTIES
Symbols
R
θJA
R
θJC
Parameters
Thermal Resistance, Junction To Ambient
Thermal Resistance, Junction To Case
Max.
175
12
Units
°C/W
°C/W
Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.
Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However
Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to
verify that datasheets are current before placing orders.
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Document Number 8810
Issue 1
Page 1 of 3
Website:
http://www.semelab-tt.com
DUAL SCHOTTKY RECTIFIER
1N6492-DA,1N6492-DC
SCREENING OPTIONS
Space Level (JQRS/ESA) and High Reliability options are
available in accordance with the
High Reliability and
Screening Options Handbook
available for download from
the from the TT electronics Semelab web site.
ESA Quality Level Products are based on the testing
procedures specified in the generic ESCC 5000 and in the
corresponding part detail specifications.
Semelabs QR216 and QR217 processing specifications
(JQRS), in conjunction with the companies ISO 9001:2000
approval present a viable alternative to the American MIL-
PRF-19500 space level processing.
QR217 (Space Level Quality Conformance) is based on the
quality conformance inspection requirements of MIL-PRF-
19500 groups A (table V), B (table VIa), C (table VII) and
also ESA / ESCC 5000 (chart F4) lot validation tests.
QR216 (Space Level Screening) is based on the screening
requirements of MIL-PRF-19500 (table IV) and also ESA
/ESCC 5000 (chart F3).
JQRS parts are processed to the device data sheet and
screened to QR216 with conformance testing to Q217
groups A and B in accordance with MIL-STD-750 methods
and procedures.
Additional conformance options are available, for example
Pre-Cap Visual Inspection, Buy-Off Visit or Data Packs.
These are chargeable and must be specified at the order
stage (See Ordering Information). Minimum order
quantities may apply.
Alternative or additional customer specific conformance or
screening requirements would be considered. Contact
Semelab sales with enquires.
ORDERING INFORMATION
Part number is built from part and screening level. The part
number can be extended to include the additional options
as shown below.
Type – See Electrical Stability Characteristics Table
Package Variant – See Mechanical Data
Screening Level – See Screening Options (ESA / JQRS)
Additional Options:
Customer Pre-Cap Visual Inspection
Customer Buy-Off visit
Data Pack
Solderability Samples
Scanning Electron Microscopy
Radiography (X-ray)
Total Dose Radiation Test
MIL-PRF-19500 (QR217)
Group B charge
Group B destructive mechanical samples
Group C charge
Group C destructive electrical samples
Group C destructive mechanical samples
ESA/ESCC
Lot Validation Testing (subgroup 1) charge
LVT1 destructive samples (environmental)
LVT1 destructive samples (mechanical)
Lot Validation Testing (subgroup 2) charge
LVT2 endurance samples (electrical)
Lot Validation Testing (subgroup 3) charge
LVT3 destructive samples (mechanical)
.CVP
.CVB
.DA
.SS
.SEM
.XRAY
.RAD
.GRPB
.GBDM (12 pieces)
.GRPC
.GCDE (12 pieces)
.GCDM (6 pieces)
.LVT1
.L1DE (15 pieces)
.L1DM (15 pieces)
.LVT2
.L2D (15 pieces)
.LVT3
.L3D (5 pieces)
Additional Option Notes:
1) All ‘Additional Options’ are chargeable and must be specified at order stage.
2) When Group B,C or LVT is required, additional electrical and mechanical destructive
samples must be ordered
3) All destructive samples are marked the same as other production parts unless
otherwise requested.
MARKING DETAILS
Screened parts are typically marked with specification
number, serial number & week of seal.
Customer specific marking requirements can be arranged at
time of order
Example ordering information:
The following example is for the part with, JQRS screening,
additional Group C conformance testing and a Data pack.
Part Numbers:
1N6492-DA-JQRS
(Include quantity for flight parts)
1N6492-DA-JQRS.GRPC
(chargeable conformance option)
1N6492-DA-JQRS.GCDE
(charge for destructive parts)
1N6492-DA-JQRS.GCDM
(charge for destructive parts)
1N6492-DA-JQRS.DA
(charge for Data pack)
Customers with any specific requirements (e.g. marking,
package or screening) may be supplied with a similar
alternative part number. Contact Semelab sales with all
enquiries
High Reliability and Screening Options Handbook link:
http://www.semelab.co.uk/pdf/misc/documents/hirel_and_screening_options.pdf
