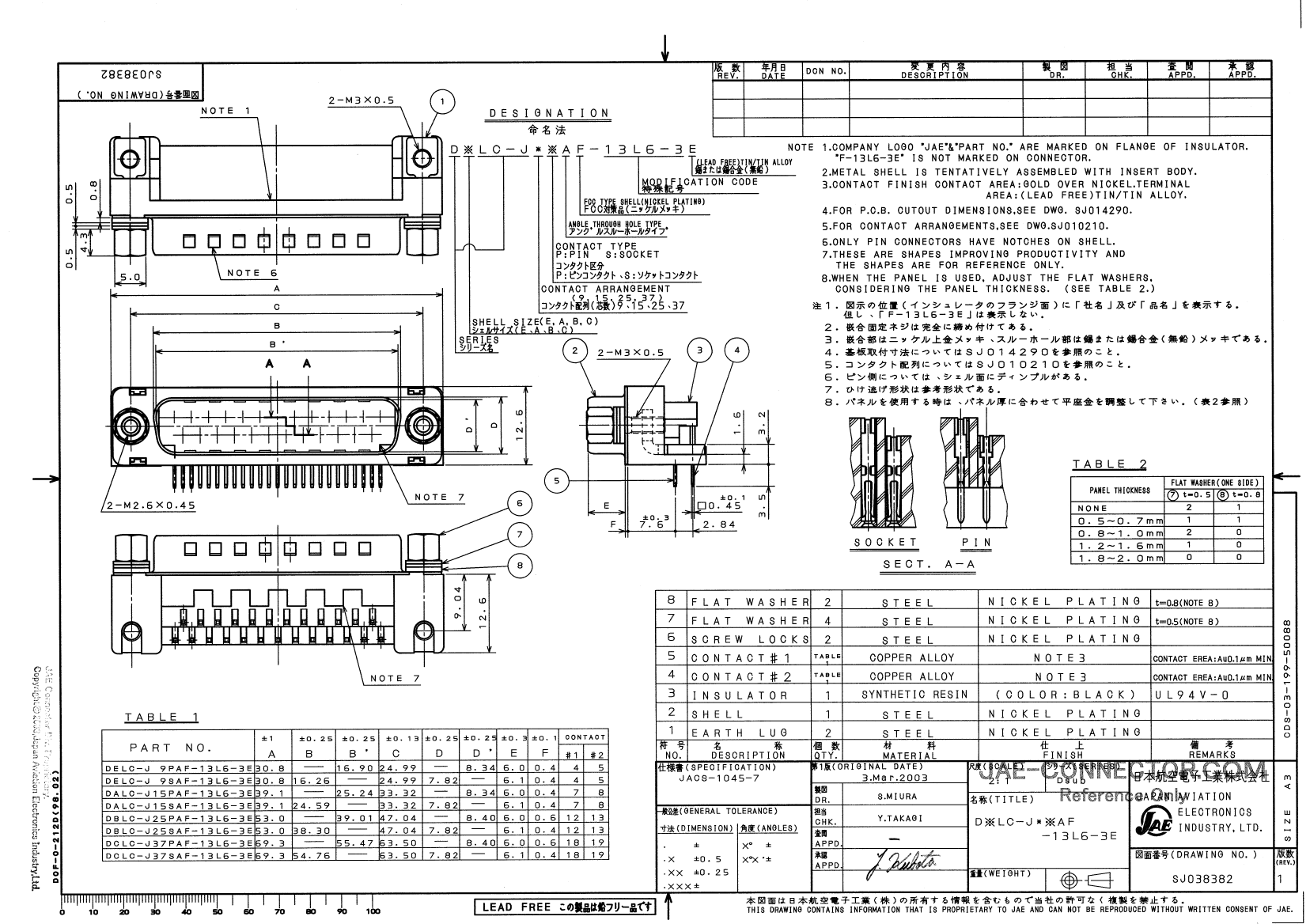

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Locking, LEAD FREE
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| package instruction | LEAD FREE |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| body width | 0.496 inch |
| subject depth | 0.496 inch |
| body length | 1.539 inch |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 13 mΩ |
| DIN compliance | NO |
| Dielectric withstand voltage | 1700VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | SYNTHETIC RESIN |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD AND PANEL |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Plating thickness | 4u inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | STEEL |
| Housing size | 2/A |
| Terminal length | 0.137 inch |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| DALC-J15SAF-13L6-3E | DALC-J15PAF-13L6-3E | DELC-J9SAF-13L6-3E | DBLC-J25SAF-13L6-3E | DELC-J9PAF-13L6-3E | DBLC-J25PAF-13L6-3E | DCLC-J37PAF-13L6-3E | DCLC-J37SAF-13L6-3E | |
|---|---|---|---|---|---|---|---|---|
| Description | D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Locking, LEAD FREE | D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, Locking, LEAD FREE | D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Locking, LEAD FREE | D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Locking, LEAD FREE | D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, Locking, LEAD FREE | D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, Locking, LEAD FREE | D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, Locking, LEAD FREE | D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Locking, LEAD FREE |
| package instruction | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| body width | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch |
| subject depth | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch |
| body length | 1.539 inch | 1.539 inch | 1.212 inch | 2.086 inch | 1.212 inch | 2.086 inch | 2.72 inch | 2.72 inch |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | AU | AU | AU | NOT SPECIFIED | AU | AU | AU |
| Contact point gender | FEMALE | MALE | FEMALE | FEMALE | MALE | MALE | MALE | FEMALE |
| Contact material | NOT SPECIFIED | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | NOT SPECIFIED | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 13 mΩ | 13 mΩ | 13 mΩ | 13 mΩ | 13 mΩ | 13 mΩ | 13 mΩ | 13 mΩ |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1700VAC V | 1700VAC V | 1700VAC V | 1700VAC V | 1700VAC V | 1700VAC V | 1700VAC V | 1700VAC V |
| empty shell | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | SYNTHETIC RESIN | SYNTHETIC RESIN | SYNTHETIC RESIN | SYNTHETIC RESIN | SYNTHETIC RESIN | SYNTHETIC RESIN | SYNTHETIC RESIN | SYNTHETIC RESIN |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD AND PANEL | BOARD AND PANEL | BOARD AND PANEL | BOARD AND PANEL | BOARD AND PANEL | BOARD AND PANEL | BOARD AND PANEL | BOARD AND PANEL |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Plating thickness | 4u inch | 4u inch | 4u inch | 4u inch | 4u inch | 4u inch | 4u inch | 4u inch |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | NICKEL | NICKEL | NICKEL | NICKEL | NICKEL | NICKEL | NICKEL | NICKEL |
| Shell material | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL |
| Housing size | 2/A | 2/A | 1/E | 3/B | 1/E | 3/B | 4/C | 4/C |
| Terminal length | 0.137 inch | 0.137 inch | 0.137 inch | 0.137 inch | 0.137 inch | 0.137 inch | 0.137 inch | 0.137 inch |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 15 | 15 | 9 | 25 | 9 | 25 | 37 | 37 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 | - | - |
| Manufacturer's serial number | - | D | D | D | - | D | D | D |
