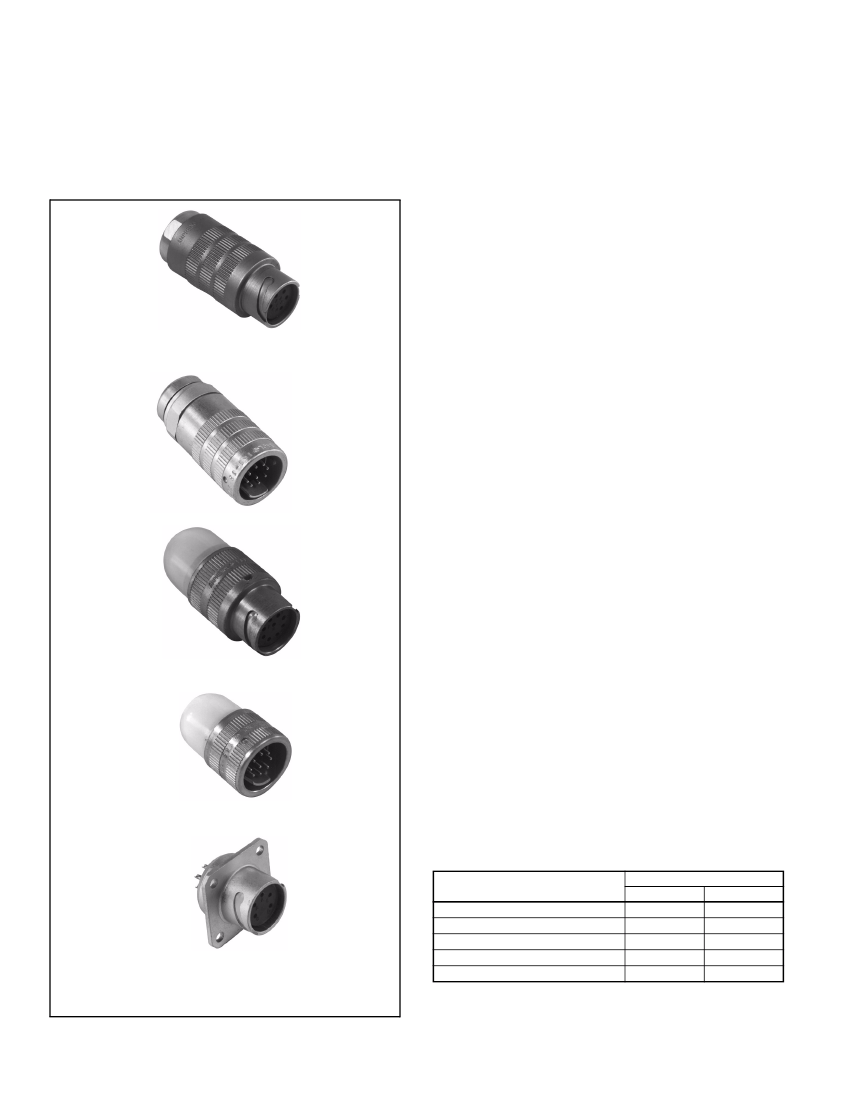

Amphenol 165 Series
miniaturized standard connectors
DESIGN CHARACTERISTICS
• Approximately one-third the size and weight of
standard MIL-C-5015 connectors
• Quick, positive, bayonet coupling
• O-ring seals in both plugs and receptacles make
connectors pressure proof and water protected
when mated
• Meets pressure seal requirements of MIL-C-5015,
Class C construction
• UL approved recognition file E115497
CUSTOMER OPTIONS
• Five shell styles in two sizes - large and small
• Seven insert configurations
Shell components are fabricated from high grade aluminum
with gray anodize finish. Contacts are copper alloy gold over
nickel plate. Inserts are diallyl phthalate, providing high arc
and insulation resistance under both humidity and thermal
stress conditions. Connectors using female inserts feature a
sandwich construction with the insert spun into a cartridge.
Connectors are factory sealed to prevent leakage.
Amphenol
®
165 Series connectors are ideal for applications
that demand a lightweight connector that meets MIL-C-5015
requirements.
Cable Receptacle
for Potting
For additional information on Amphenol
®
165 Series con-
nectors, or for special application requirements, contact your
local sales office, authorized distributor, or
Amphenol Corporation
Amphenol Aerospace
40-60 Delaware Avenue
Sidney, New York 13838-1395
Phone: 607-563-5011
Fax: 607-563-5157
®
Cable Receptacle
for Jacketed Cable
Plug
for Jacketed Cable
Plug
for Potting
Connector Weights
Style
Weight (pounds)
Small
Large
Square Flange
Receptacle
Cable receptacle for potting
Cable receptacle
Panel receptacle
Plug
Plug for potting
0.0415
0.0600
0.0264
0.0659
0.0302
0.0599
0.0945
0.0439
0.0975
0.0490
Amphenol Aerospace is a certified ISO 9001 manufacturer.
6

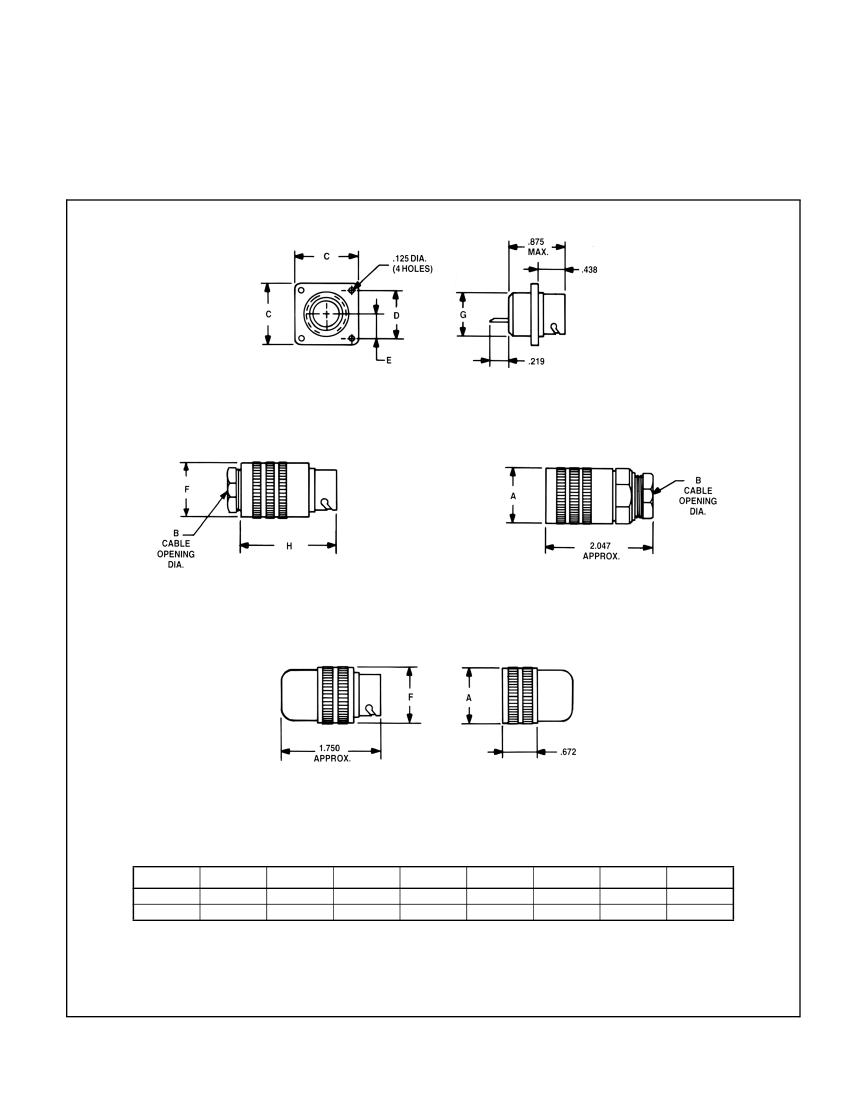

165 Series

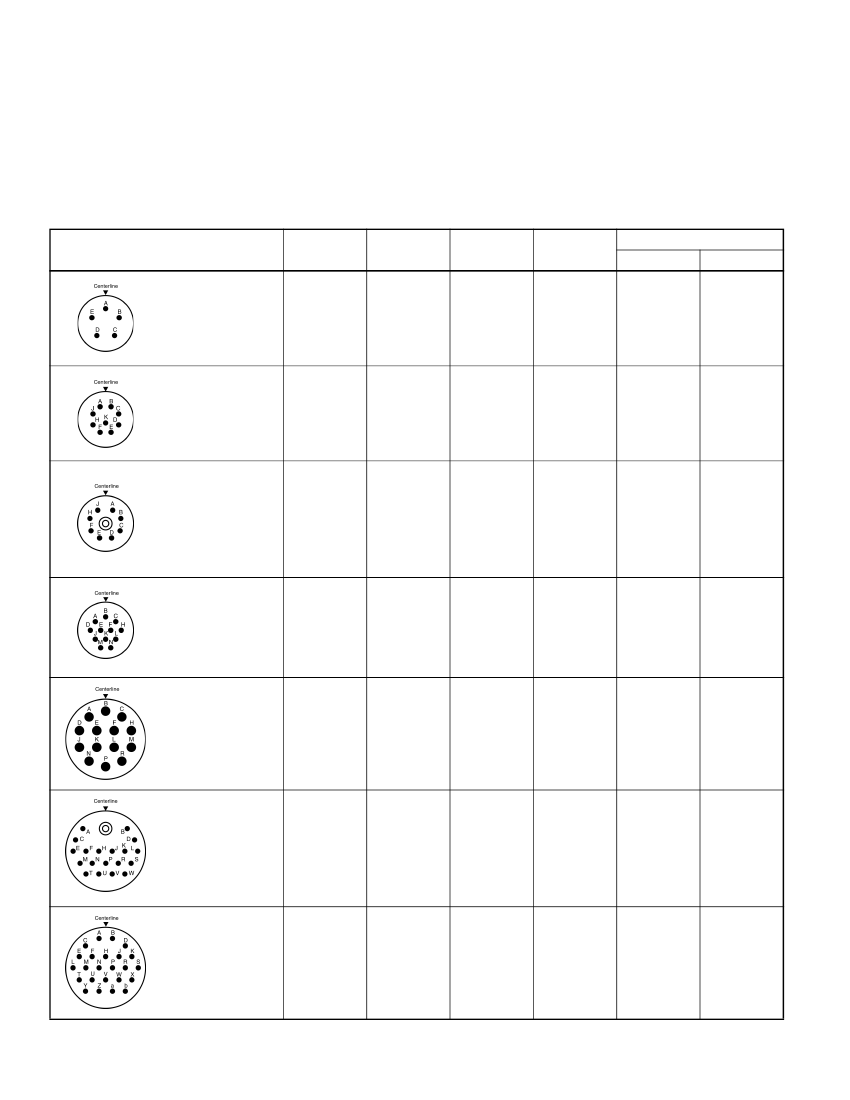

insert arrangements, order information
front face of insert illustrated
The following chart provides ordering information. For example, to
order a 165 Series plug with pin contacts use part number 165-33.
Insert
Arrangements
Insert
Style
Plug
Receptacle
Sq. Flange
Cable
Receptacle
Potting Constructions
Plug
165-33-1000
Receptacle
165-35-1000
5 #20 contacts
Current Rating
(Amperes) 7.5
Voltage rating
(Volts RMS at
sea level) 600
9 #20 contacts
Current Rating
(Amperes) 7.5
Voltage rating
(Volts RMS at
sea level) 500
8 #20 contacts,
1 Shielded contact
Current Rating
(Amperes) 10.0
Voltage rating
(Volts RMS at
sea level) 500
12 #20 contacts
Current Rating
(Amperes) 7.5
Voltage rating
(Volts RMS at
sea level) 500
14 #16 contacts
Current Rating
(Amperes) 17.0
Voltage rating
(Volts RMS at
sea level) 500
19 #20 contacts,
1 Shielded contact
Current Rating
(Amperes) 10.0
Voltage rating
(Volts RMS at
sea level) 500
24 #20 contacts
Current Rating
(Amperes) 7.5
Voltage rating
(Volts RMS at
sea level) 500
Pin
165-33
165-35
165-35-1002
Socket
165-34
165-36
165-36-1003
165-34-1000
165-36-1000
Pin
165-13
165-15
165-15-1002
165-13-1000
165-15-1000
Socket
165-14
165-16
165-16-1003
165-14-1000
165-16-1000
Pin
165-82
165-73
165-73-1001
165-82-1000
165-73-1000
Socket
165-61-1008
165-83
165-83-1001
165-61
165-83-1000
Pin
165-9
165-11
165-11-1002
165-9-1000
165-11-1000
Socket
165-10
165-12
165-12-1002
165-10-1000
165-12-1000
Pin
165-29
165-31
165-31-1003
165-29-1000
165-31-1000
Socket
165-30
165-32
165-32-1006
165-30-1000
165-32-1000
Pin
165-86
165-84
165-84-1001
165-86-1000
165-84-1000
Socket
165-62-1007
165-85
165-85-1001
165-62
165-85-1000
Pin
165-25
165-27
165-27-1005
165-25-1000
165-27-1000
Socket
165-26
165-28
165-28-1003
165-26-1000
165-28-1000
