10076266-120TLF datasheet, PDF

10076266-120TLF: DescriptionCard Edge Connector, 36 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size545KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

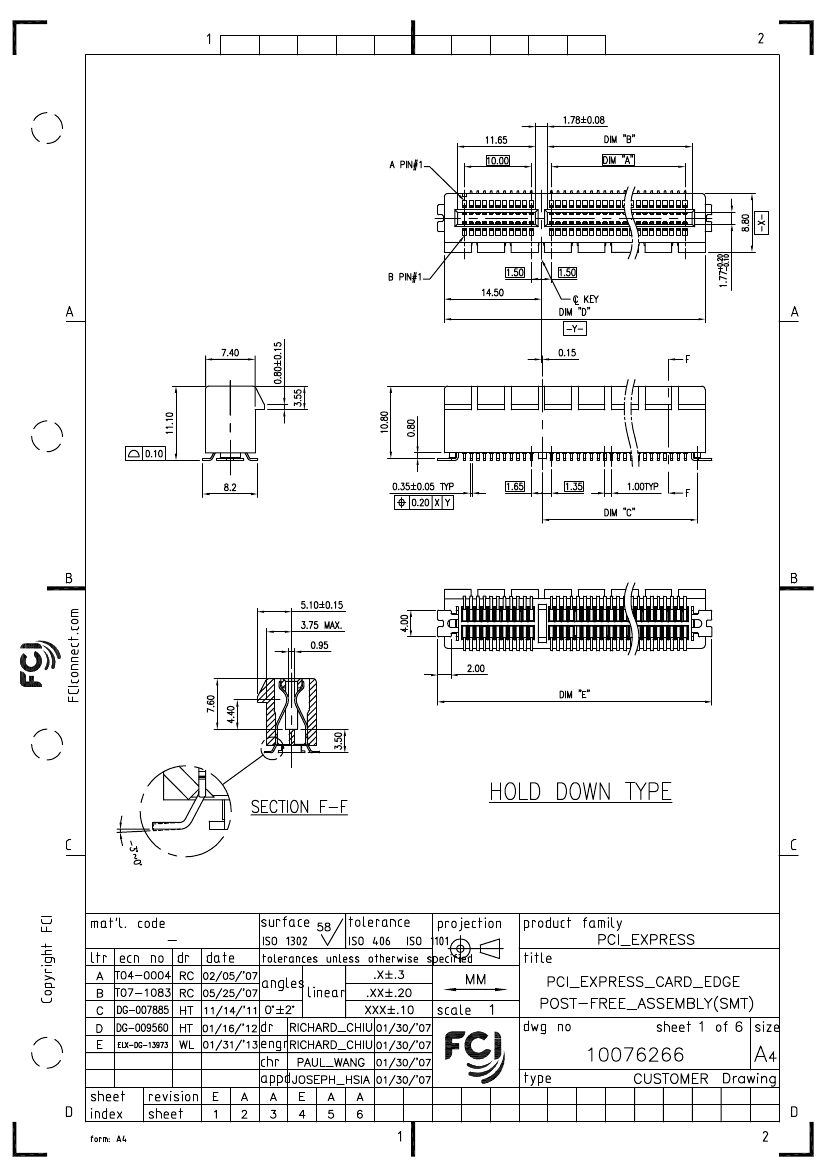

10076266-120TLF Overview

Card Edge Connector, 36 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to

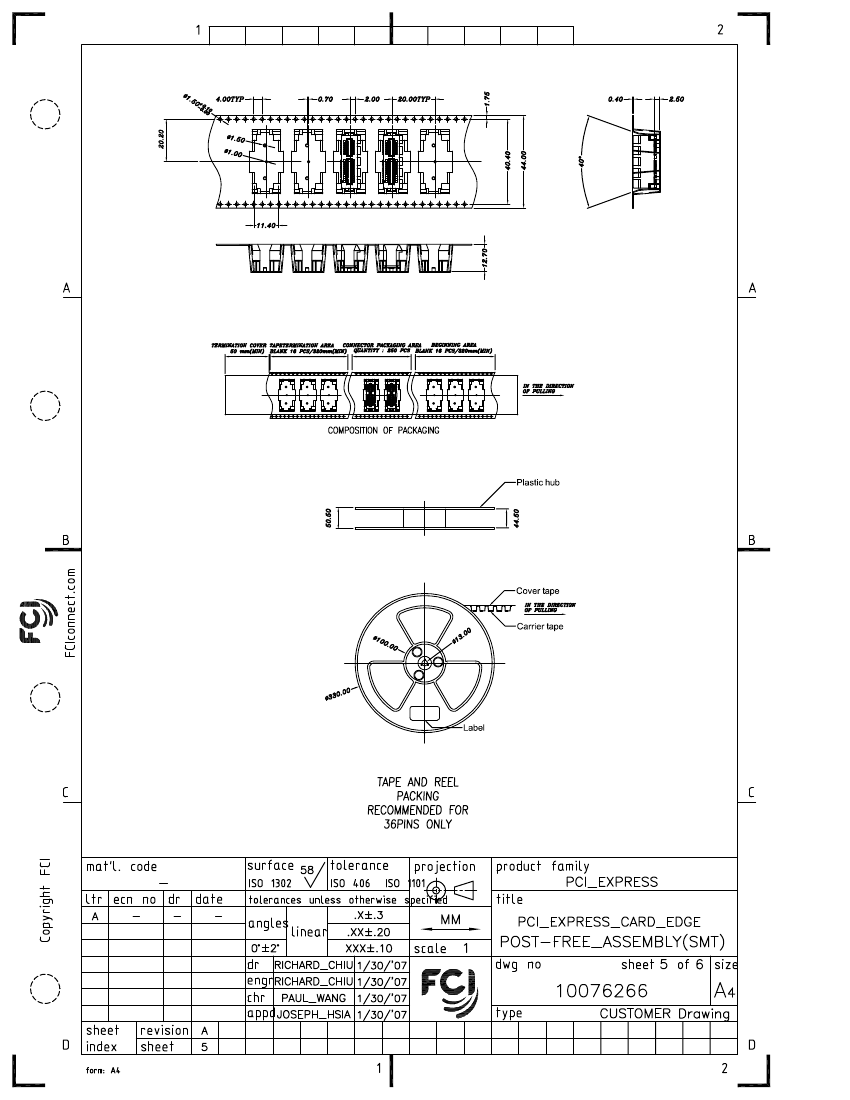

package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	PANEL MOUNT
Connector type	CARD EDGE CONNECTOR

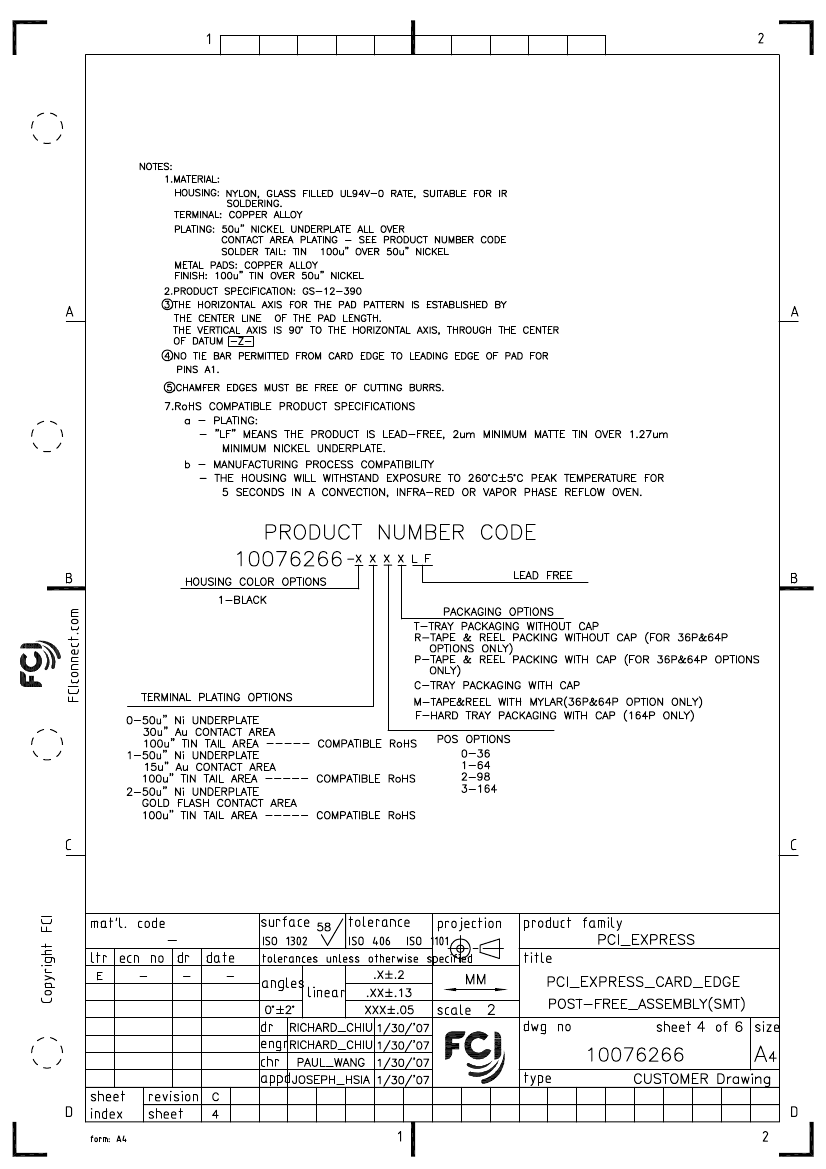

Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	10076266
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE

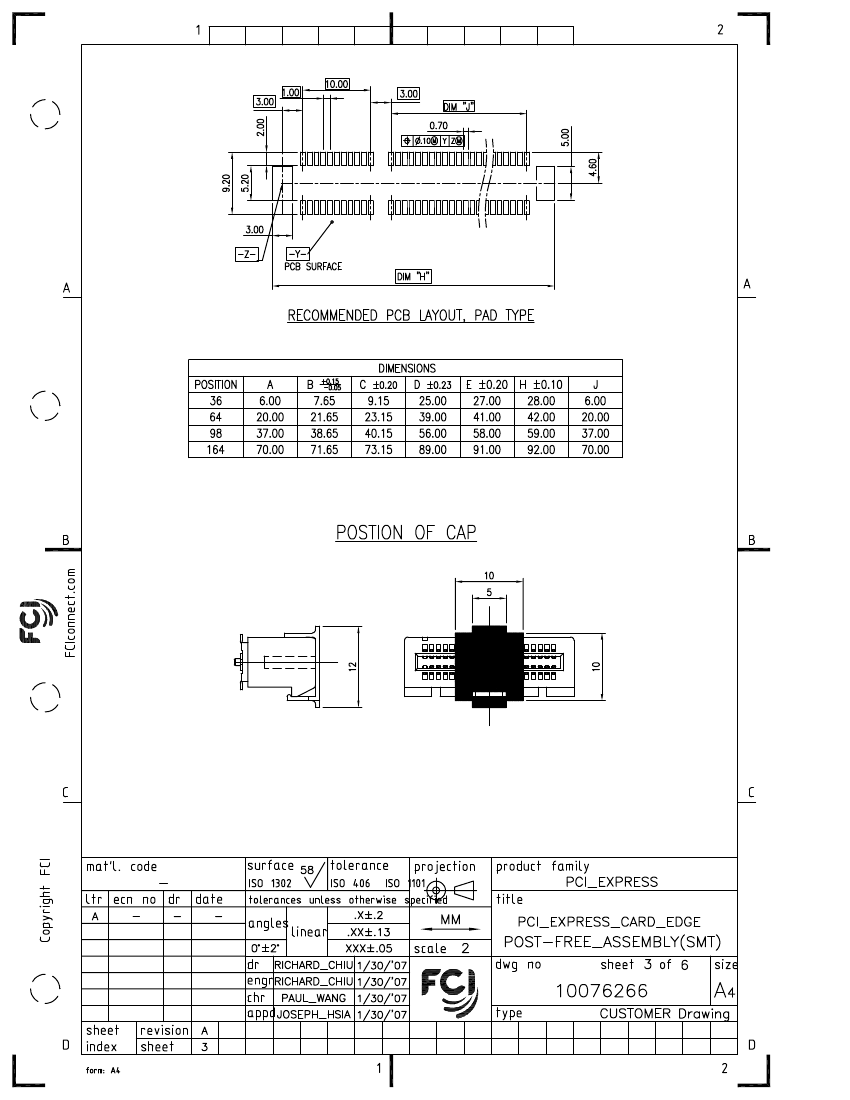

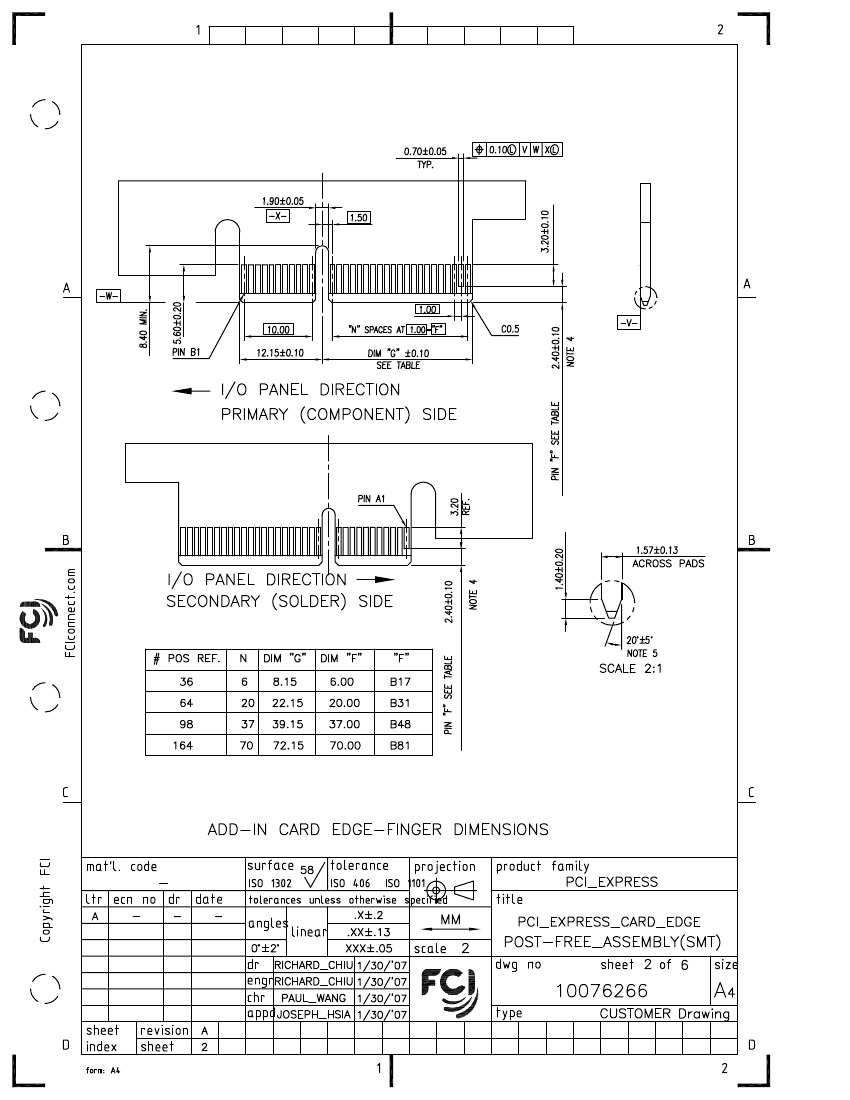

Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

PDS: Rev :E

STATUS:Released

Printed: Mar 13, 2013
