31-33485-7: DescriptionRF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size178KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-33485-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-33485-7	-	-	View	Buy Now

31-33485-7 Overview

RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug

31-33485-7 Parametric

Parameter Name	Attribute value
Objectid	316132212
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Connector type	RF BNC CONNECTOR
Contact point gender	MALE
Contact style	COAX
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	31
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	0.5 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1

Preview

Download Datasheet

View All

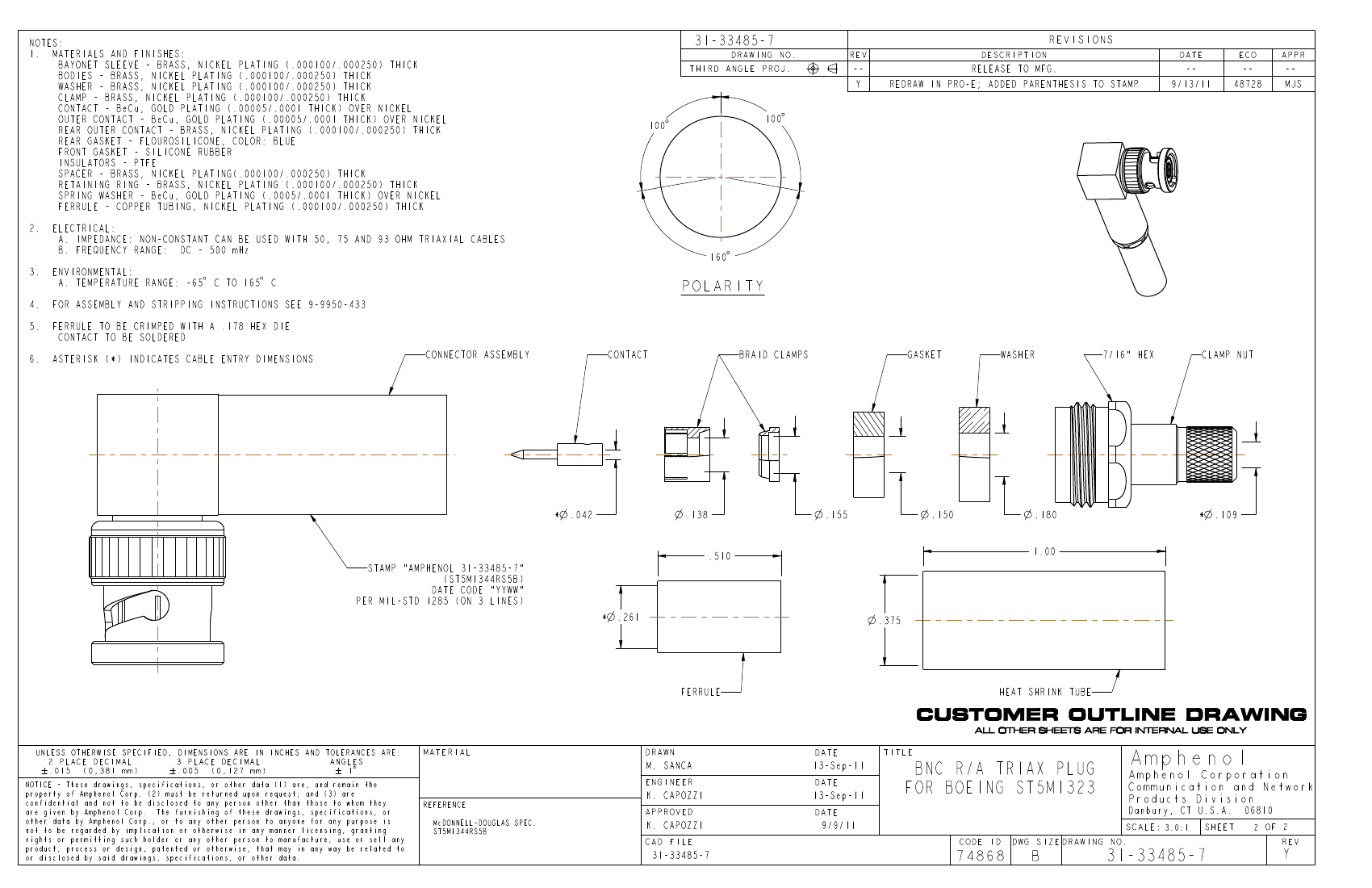

NOTES:

1. MATERIALS AND FINISHES:

BAYONET SLEEVE - BRASS, NICKEL PLATING (.000100/.000250) THICK

BODIES - BRASS, NICKEL PLATING (.000100/.000250) THICK

WASHER - BRASS, NICKEL PLATING (.000100/.000250) THICK

CLAMP - BRASS, NICKEL PLATING (.000100/.000250) THICK

CONTACT - BeCu, GOLD PLATING (.00005/.0001 THICK) OVER NICKEL

OUTER CONTACT - BeCu, GOLD PLATING (.00005/.0001 THICK) OVER NICKEL

REAR OUTER CONTACT - BRASS, NICKEL PLATING (.000100/.000250) THICK

REAR GASKET - FLOUROSILICONE, COLOR: BLUE

FRONT GASKET - SILICONE RUBBER

INSULATORS - PTFE

SPACER - BRASS, NICKEL PLATING(.000100/.000250) THICK

RETAINING RING - BRASS, NICKEL PLATING (.000100/.000250) THICK

SPRING WASHER - BeCu, GOLD PLATING (.0005/.0001 THICK) OVER NICKEL

FERRULE - COPPER TUBING, NICKEL PLATING (.000100/.000250) THICK

ELECTRICAL:

A. IMPEDANCE: NON-CONSTANT CAN BE USED WITH 50, 75 AND 93 OHM TRIAXIAL

B. FREQUENCY RANGE: DC - 500 mHz

ENVIRONMENTAL:

A. TEMPERATURE RANGE: -65

$C TO 165 $C

CABLES

31-33485-7

REVISIONS

REV

DRAWING NO.

THIRD ANGLE PROJ.

REDRAW IN PRO-E; ADDED PARENTHESIS TO STAMP

RELEASE TO MFG.

DESCRIPTION

DATE

9/13/11

ECO

48728

APPR

MJS

100 $

160 $

FOR ASSEMBLY AND STRIPPING INSTRUCTIONS SEE 9-9950-433

FERRULE TO BE CRIMPED WITH A .178 HEX DIE

CONTACT TO BE SOLDERED

ASTERISK (*) INDICATES CABLE ENTRY DIMENSIONS

CONNECTOR ASSEMBLY

CONTACT

POLARITY

BRAID CLAMPS

GASKET

WASHER

7/16" HEX

CLAMP NUT

.042

.138

.155

.150

.180

1.00

.109

STAMP "AMPHENOL 31-33485-7"

(ST5M1344RS5B)

DATE CODE "YYWW"

PER MIL-STD 1285 (ON 3 LINES)

.261

.510

.375

FERRULE

HEAT SHRINK TUBE

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

M. SANCA

13-Sep-11

DATE

TITLE

ENGINEER

REFERENCE

McDONNELL-DOUGLAS SPEC.

ST5M1344RS5B

K. CAPOZZI

31-33485-7

BNC R/A TRIAX PLUG

FOR BOEING ST5M1323

CODE ID

DWG SIZE DRAWING NO.

APPROVED

CAD FILE

Amphenol Corporation

Communication and Network

Products Division

Danbury, CT U.S.A.

SCALE: 3.0:1

Amphenol

SHEET

9/9/11

06810

2 OF 2

REV

74868

31-33485-7
