10076579-001C-TRLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 10076579-001C-TRLF

10076579-001C-TRLF: DescriptionTelecom and Datacom Connector, 29 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size233KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

10076579-001C-TRLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10076579-001C-TRLF	-	-	View	Buy Now

10076579-001C-TRLF Overview

Telecom and Datacom Connector, 29 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Receptacle, LEAD FREE

10076579-001C-TRLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
body width	0.334 inch
subject depth	0.387 inch
body length	1.682 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact arrangement	S7P15
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	10076579
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Termination type	SURFACE MOUNT
Total number of contacts	29
UL Flammability Code	94V-0
Base Number Matches	1

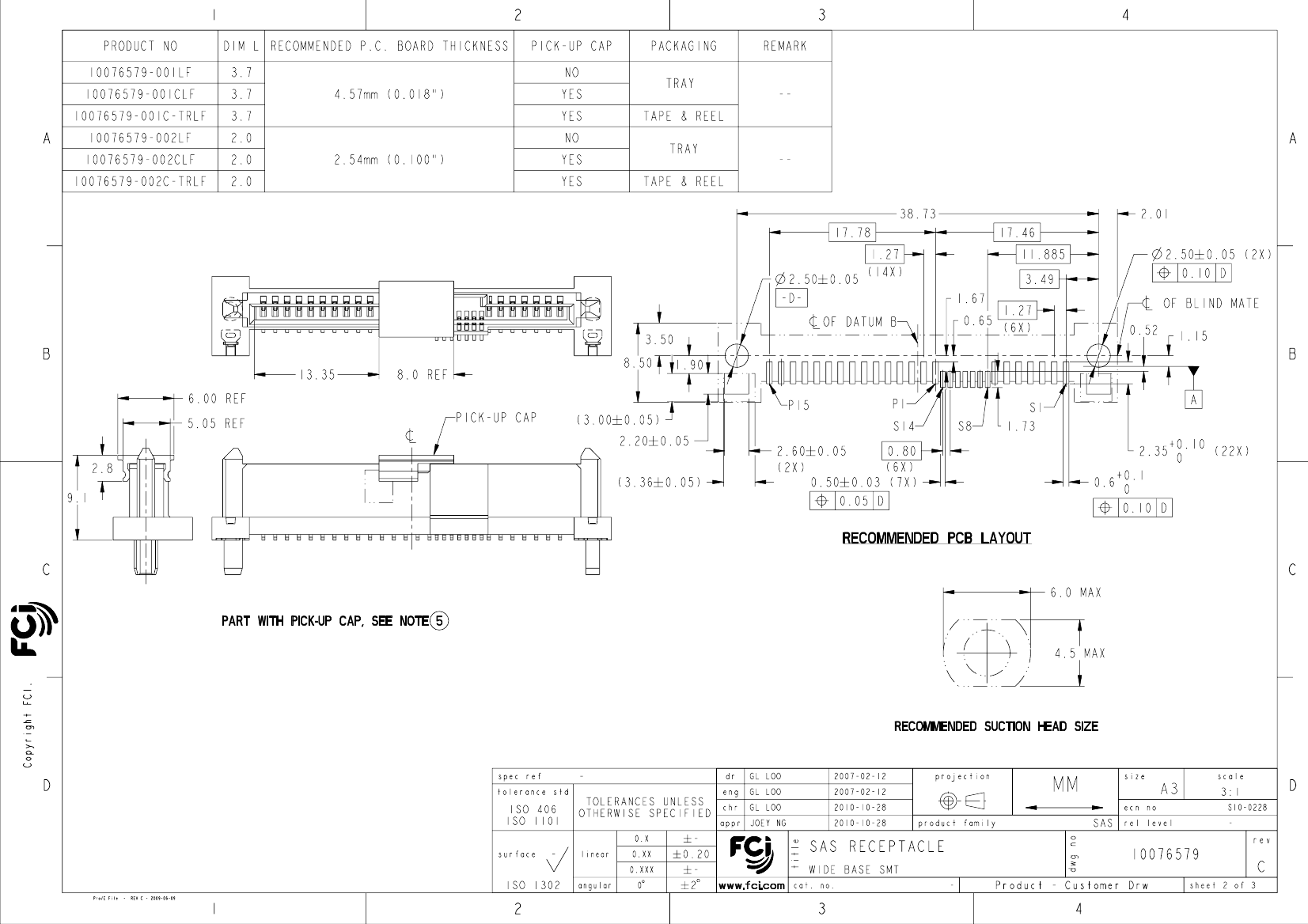

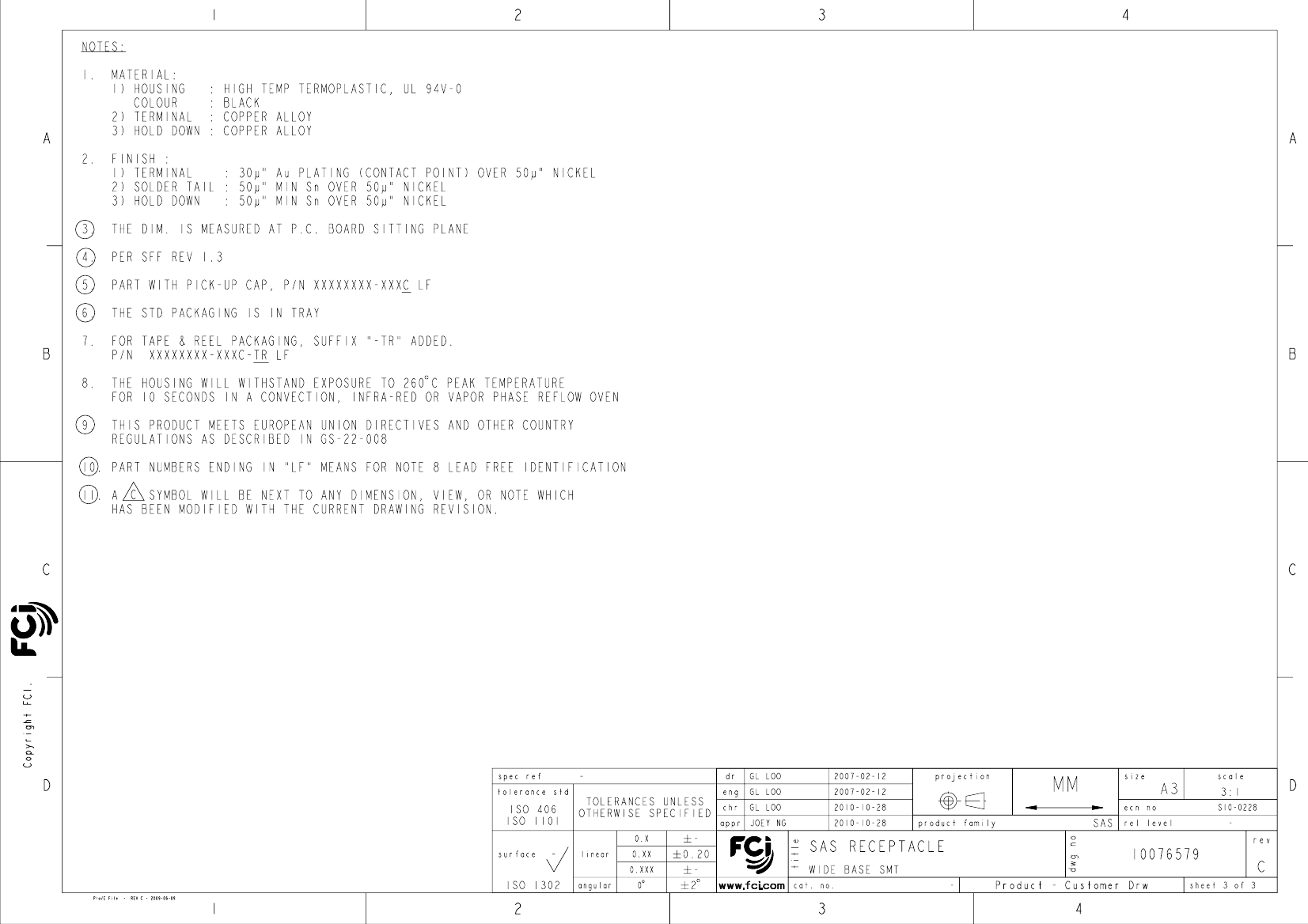

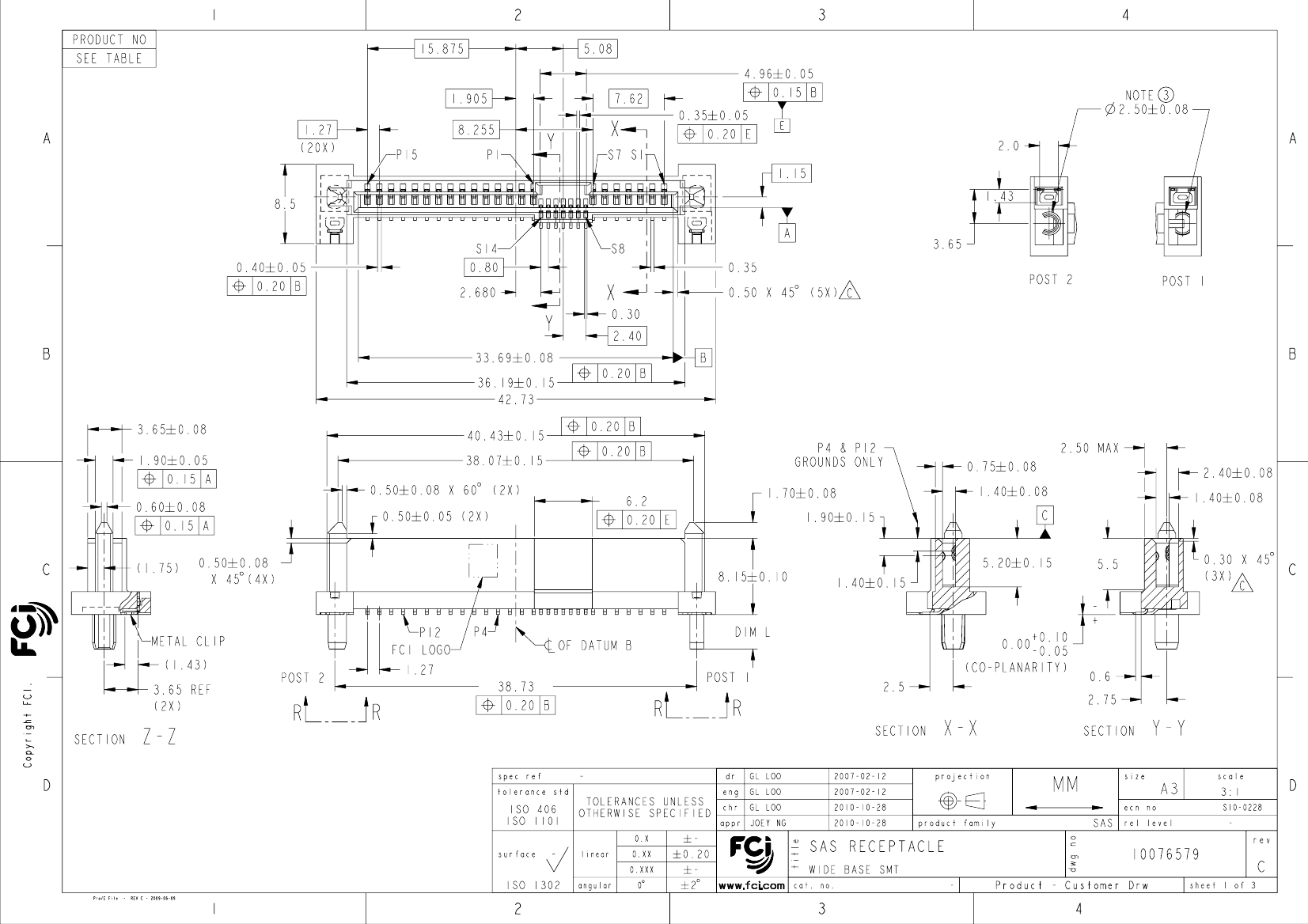

Preview

Download Datasheet

View All

PDS: Rev :C

STATUS:Released

Printed: Nov 01, 2011
