10039845-001C-TRLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 10039845-001C-TRLF

10039845-001C-TRLF: DescriptionBoard Connector, 29 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size195KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

10039845-001C-TRLF Overview

Board Connector, 29 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

10039845-001C-TRLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.335 inch
subject depth	0.388 inch
body length	1.682 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (50) OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	10039845
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	29
UL Flammability Code	94V-0
Base Number Matches	1

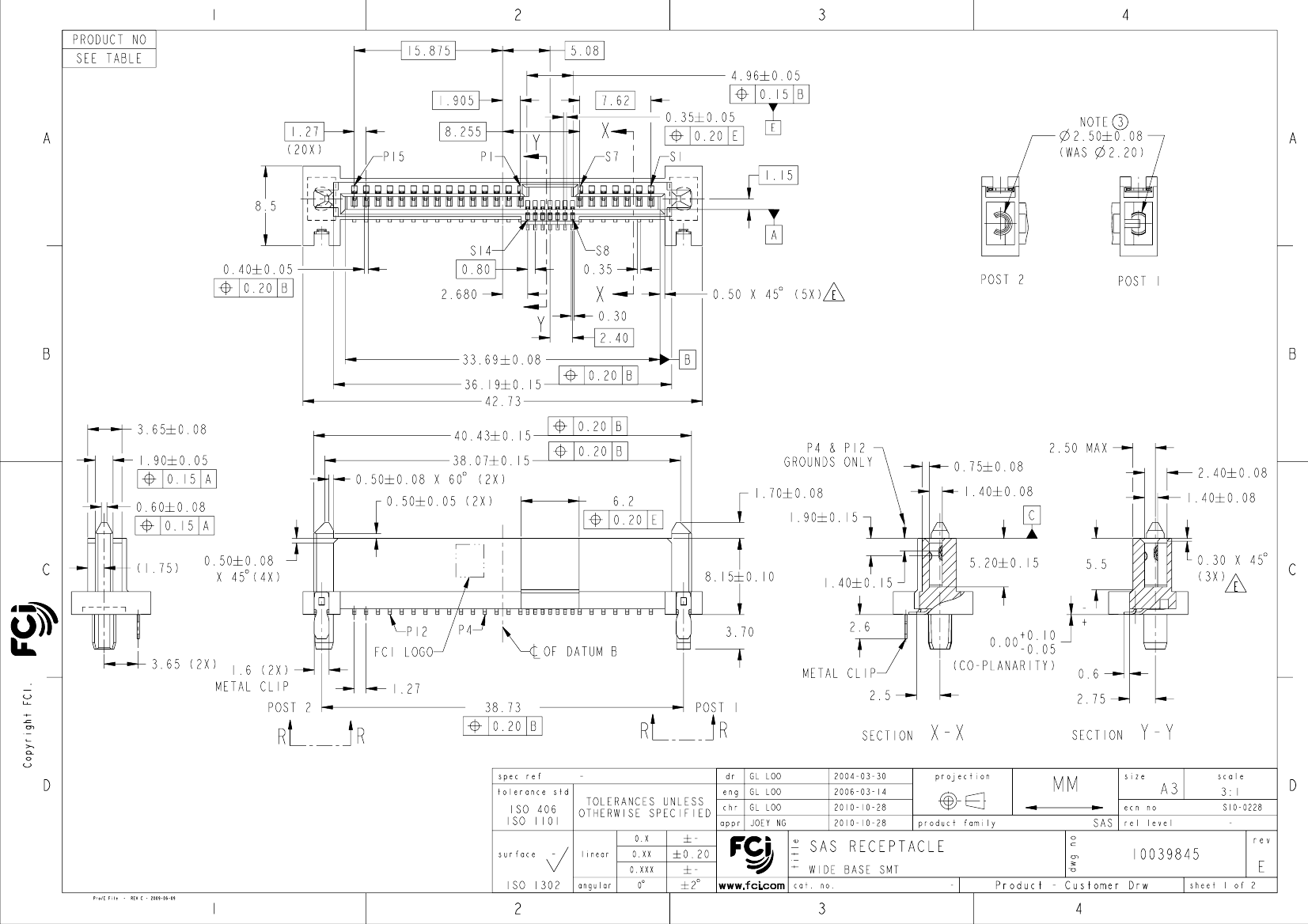

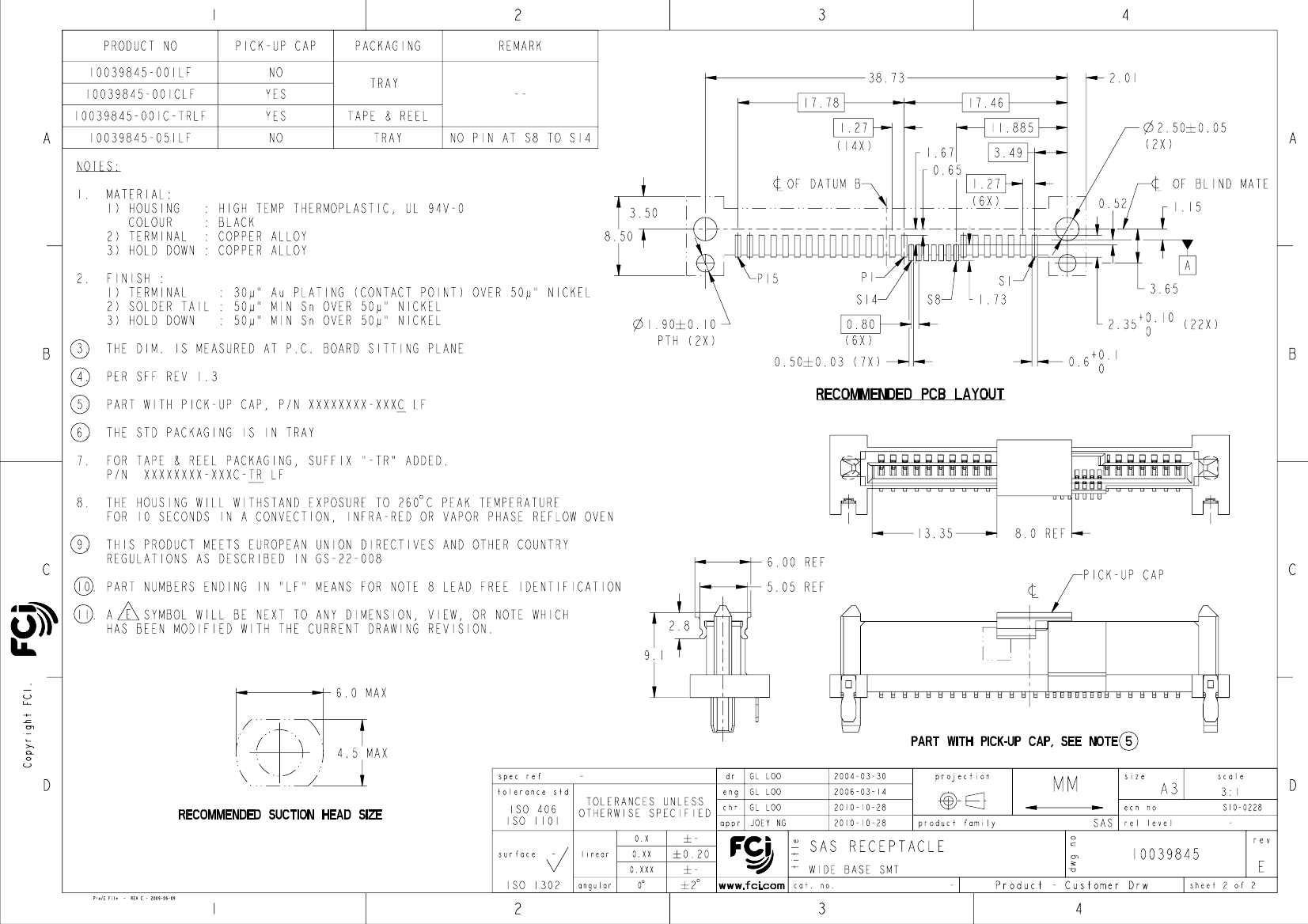

Preview

Download Datasheet

View All

PDS: Rev :E

STATUS:Released

Printed: Nov 01, 2011

10039845-001C-TRLF Related Products

	10039845-001C-TRLF	10039845-001CLF	10039845-001LF
Description	Board Connector, 29 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 29 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 29 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle, LEAD FREE
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (50) OVER NICKEL	TIN (50) OVER NICKEL	TIN (50) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Manufacturer's serial number	10039845	10039845	10039845
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	29	29	29
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
Other features	ROHS COMPLIANT	ROHS COMPLIANT	-
Board mount options	PEG	PEG	-
body width	0.335 inch	0.335 inch	-
subject depth	0.388 inch	0.388 inch	-
body length	1.682 inch	1.682 inch	-
contact mode	RECTANGULAR	RECTANGULAR	-
Contact resistance	15 mΩ	15 mΩ	-
Durability	500 Cycles	500 Cycles	-
Insulation resistance	1000000000 Ω	1000000000 Ω	-
Insulator color	BLACK	BLACK	-
insulator material	THERMOPLASTIC	THERMOPLASTIC	-
Plug contact pitch	0.05 inch	0.05 inch	-
Installation option 1	LOCKING	LOCKING	-
Number of connectors	ONE	ONE	-
PCB row number	1	1	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
Plating thickness	30u inch	30u inch	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-
Rated current (signal)	1.5 A	1.5 A	-
Guideline	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	-
