10007123-501 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 10007123-501

10007123-501: DescriptionBoard Connector, 270 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size360KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

10007123-501 Overview

Board Connector, 270 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

10007123-501 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	10007123
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	270
UL Flammability Code	94V-0
Base Number Matches	1

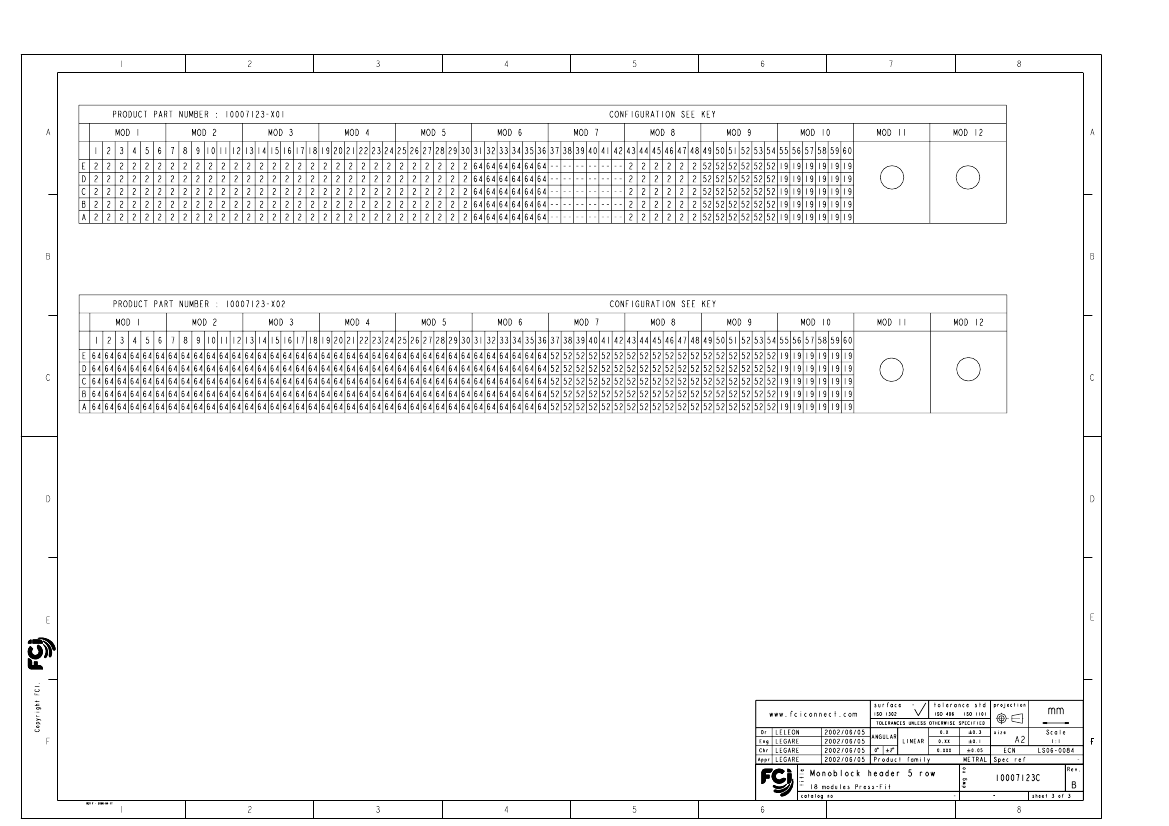

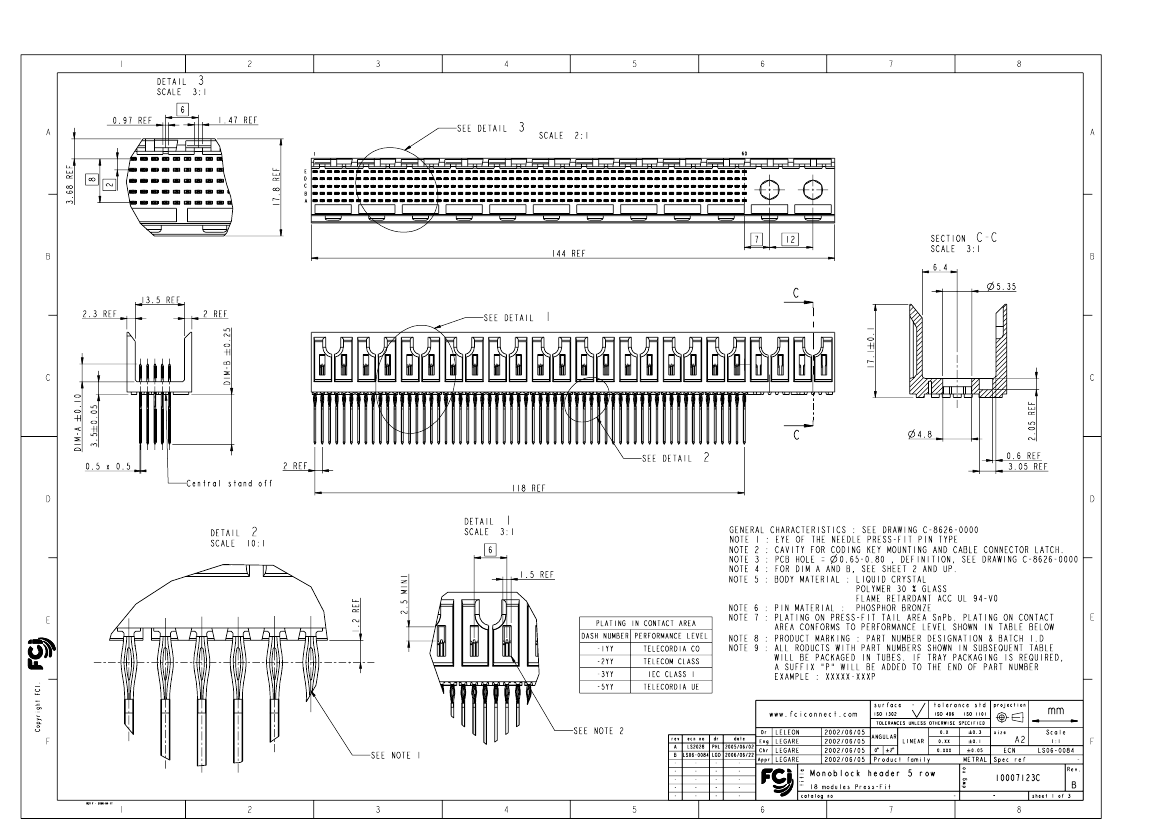

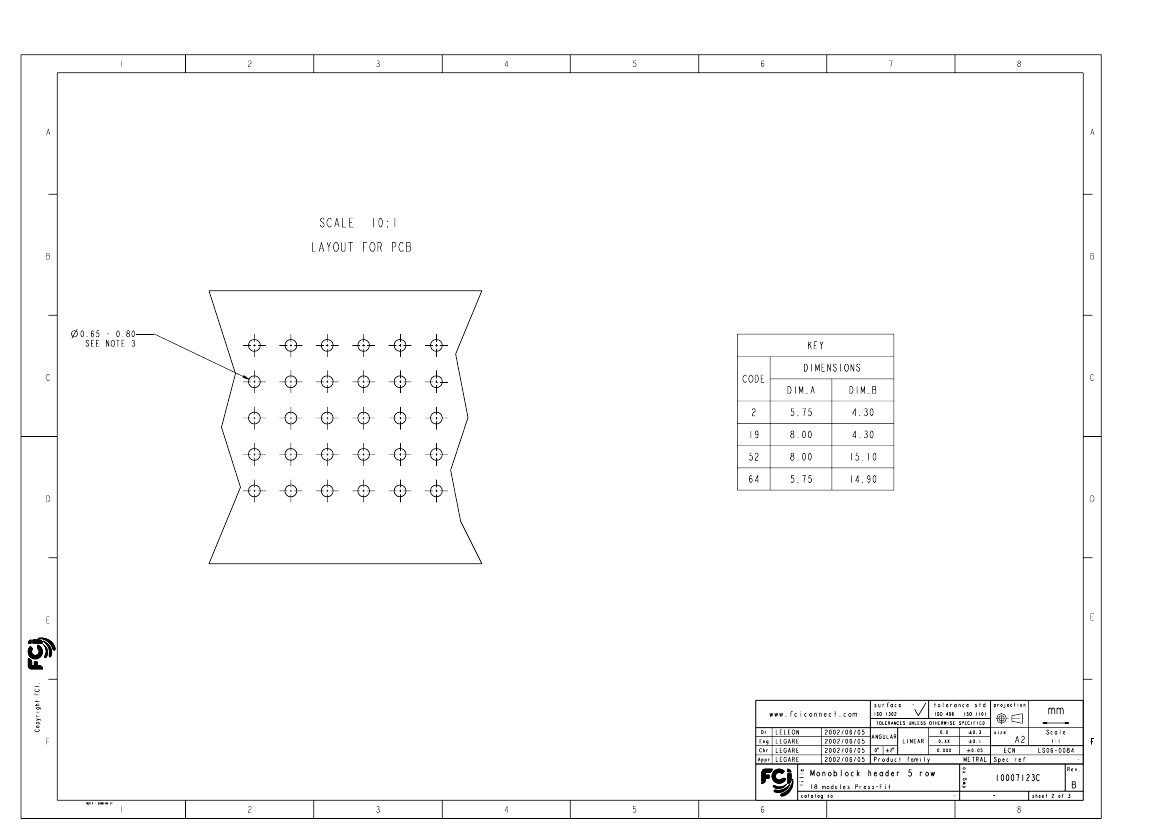

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Sep 29, 2009

10007123-501 Related Products

	10007123-501	QO2105237	10007123-102	10007123-201	10007123-202	10007123-301	10007123-302	10007123-502
Description	Board Connector, 270 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Mini CB, QO, 10 A, 2P, 120/240 V, 10 kA, Plug in	Board Connector, 300 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 270 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 300 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 270 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 300 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 300 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant
Other features	POLARIZED	-	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	MALE	-	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	-	NO	NO	NO	NO	NO	NO
Filter function	NO	-	NO	NO	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0
MIL compliance	NO	-	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	10007123	-	10007123	10007123	10007123	10007123	10007123	10007123
Mixed contacts	NO	-	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	-	5	5	5	5	5	5
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	-	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	-	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	270	-	300	270	300	270	300	300
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	-	1	1	1	1	1	1
