KGEA BFCWX
Emitter Antenna 103x20x9mm Housing
plastic base-potted and outside connector
unsealed&sealed
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas. Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
info@grupopremo.com
Web
http://www.grupopremo.com

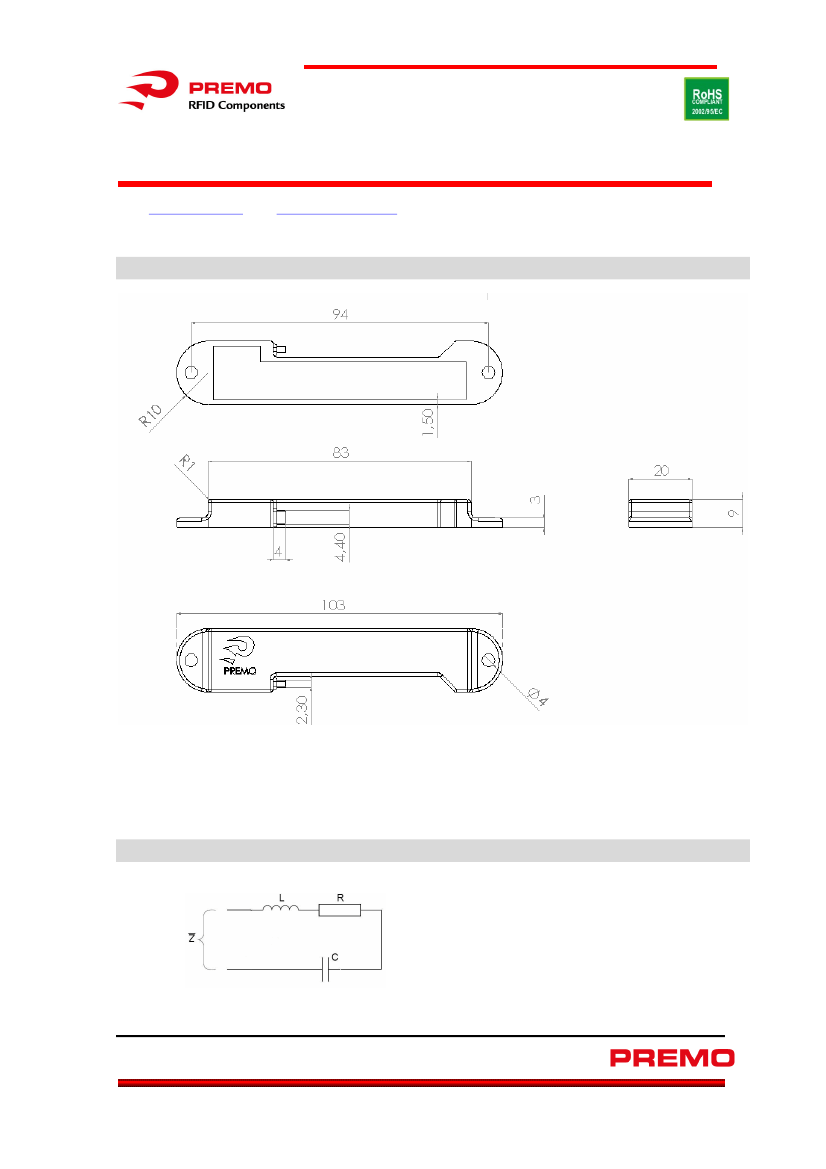

1. Dimensions
All Dimensions in mm
General Tolerances ±0.1mm
2. Schematic Diagram
L: Ferrite core coil inductance
R: Copper resistance and connection
C: Tunning internal capacitor NPO
Z: External impedance
1
Emitter Antennas LF
All rights reserved. Share, use or communication of the contents of this document not permitted without written authorisation.
KGEA BFCWX
Emitter Antenna 103x20x9mm Housing
plastic base-potted and outside connector
unsealed&sealed
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas. Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
info@grupopremo.com
Web
http://www.grupopremo.com

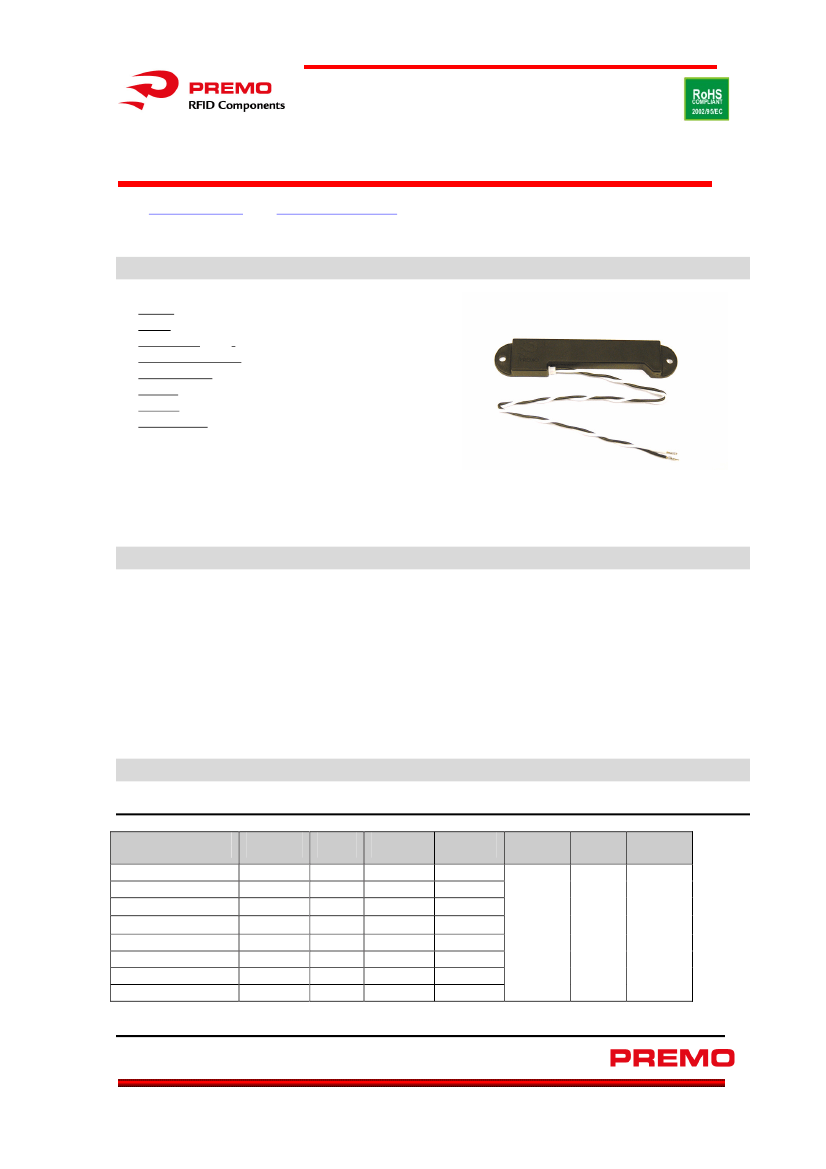

3. Materials
Core:
Ferrite Core
Wire:
Enamelled and Selfbonding copper wire
Capacitor:
NPO Polypropylene film
External housing:
material PA66
Wall busing:
material silicone.
Resin:
material epoxy (part fills resin potting)
Cable:
CSA high temperature automotive sector
Connector:
Optional Unsealed & Sealed
Remark : Products comply with RoHS requirements
4. Applications and Reliability Tests
Typical Operating Frequency 125KHz ± 5% [-40ºC to 85ºC].
Storage Temperature -40 ºC
→
+85 ºC
Operating Temperature -40 ºC
→
+85 ºC
This part is according to AEC-Q200 Revision C.
5. Electrical Characteristics
KGEA-BFC
KGEA-BFCWX
Code
KGEA-BFCWX-A-0161J
KGEA-BFCWX-A-0422J
KGEA-BFCWX-B-0108J
KGEA-BFCWX-B-0240J
KGEA-BFCWX-B-0345J
KGEA-BFCWX-B-0500J
KGEA-BFCWX-C-0207J
KGEA-BFCWX-C-0426J
L (mH)
0.161
0.422
0.108
0.240
0.345
0.500
0.207
0.426
Q min
45
55
90
100
115
115
100
100
Freq (KHz)
21.85
21.85
125
125
125
125
134,2
134,2
SRF (Mhz)
>1
>1
>3
>3
>3
>3
>3
>3
Length
(mm)
Width
(mm)
Height
(mm)
103
20
9
2
Emitter Antennas LF
All rights reserved. Share, use or communication of the contents of this document not permitted without written authorisation.
KGEA BFCWX
Emitter Antenna 103x20x9mm Housing
plastic base-potted and outside connector
unsealed&sealed
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas. Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
info@grupopremo.com
Web
http://www.grupopremo.com

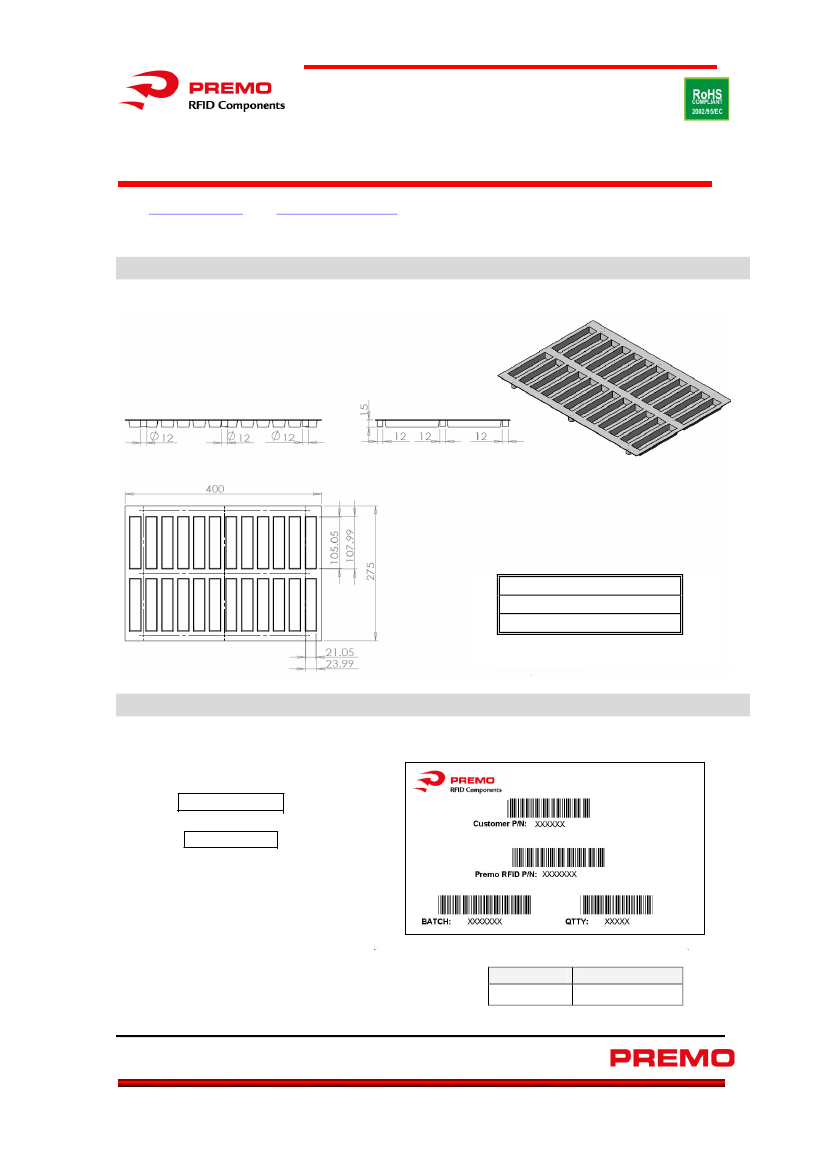

6. Packaging Information
BLISTER SPECIFICATION
Material PET or similar.
Parts per blister: 24pcs
Package: 8 blister
All Dimensions in mm
7.- Printing and Labelling
PART PRINTING
PACKAGE LABELLING
PART NUMBER
BATCH/DATE
Edition
1
Revision Date
13/05/09
3
Emitter Antennas LF
All rights reserved. Share, use or communication of the contents of this document not permitted without written authorisation.
