KBP50-08S

Description
50 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE
Categorysemiconductor    Discrete semiconductor
File Size146KB，4 Pages
ManufacturerTAITRON Components
Websitehttp://www.taitroncomponents.com/
Download Datasheet Compare View All

KBP50-08S Overview

50 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE

Preview

Download Datasheet

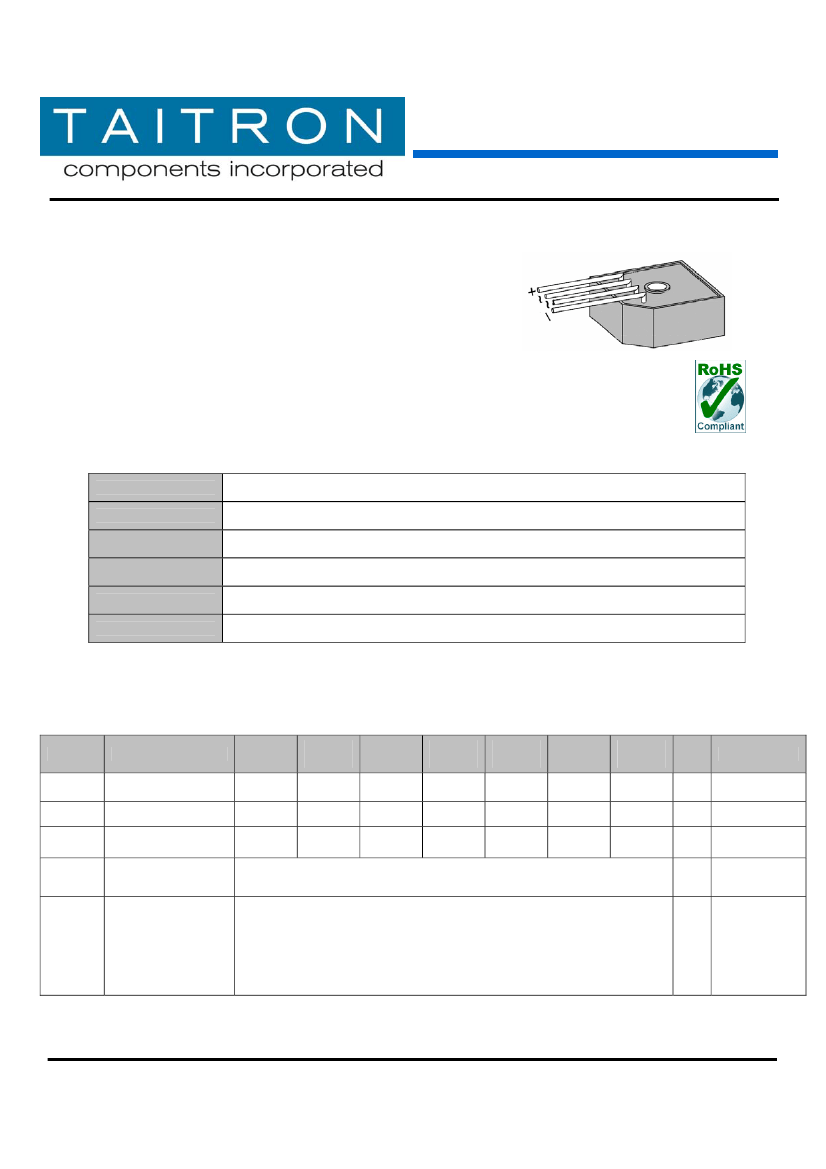

50A Single-Phase in-line
Bridge Rectifier
KBPC50-005S
–
KBPC50-10S
50A Single-Phase in-line Bridge Rectifier
Features
•
•
•
•
Low Forward Voltage Drop
High Current Capability, High Reliablity
High Surge Current Capability
Designed for Saving Mounting Space
KBPCS
(Plastic Case with Metal Heat Sink)
•
RoHS Compliant
Mechanical Data
Case:
Terminals:
Polarity:
Mounting:
Mounting Torque:
Weight:
KBPCS, molded plastic with heatsink internally mounted in the bridge encapsulation
Plated leads solderable per MIL-STD-202, method 208
As marked on body
Through hole with #10 screw
23 cm-kg (20 in-lbs) Max.
21grams
Maximum Ratings And Electrical Characteristics
(T
amb
=25˚C)
Symbol
Description
Max. Repetitive Peak
Reverse Voltage
Max. RMS Voltage
Max. DC blocking
voltage
Average Rectified
Output Current
KBPC50
-005S
50
35
50
KBPC50
-01S
100
70
100
KBPC50
-02S
200
140
200
KBPC50
-04S
400
280
400
50
KBPC50
-06S
600
420
600
KBP50
-08S
800
560
800
KBPC50
-10S
1000
700
1000
Unit
V
V
V
A
Conditions
V
RRM
V
RMS
V
DC
I
O
T
A
=60
˚C
8.3ms single
half
sine-wave
superimposed
on rated load
(JEDEC
method)
I
FSM
Non-Repetitive Peak
Forward Surge Current
450
A
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. A/DX 2007-06-09
Page 1 of 4

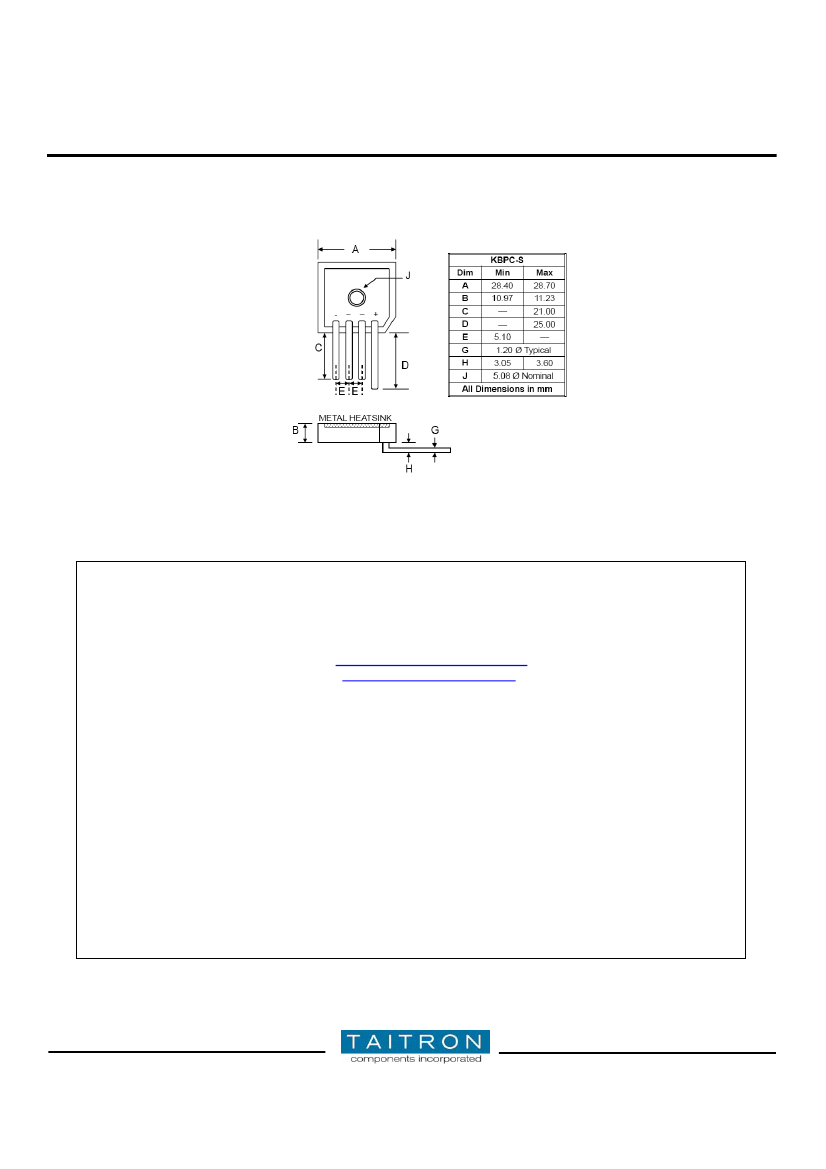

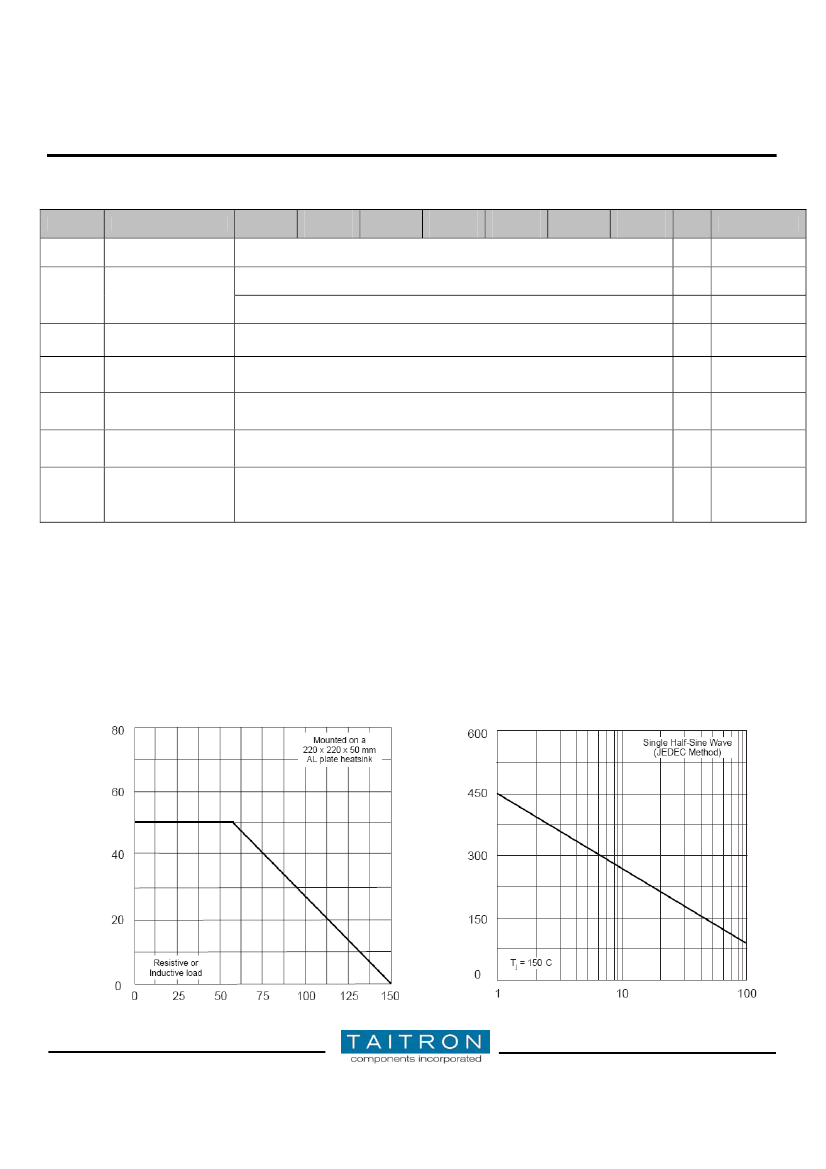

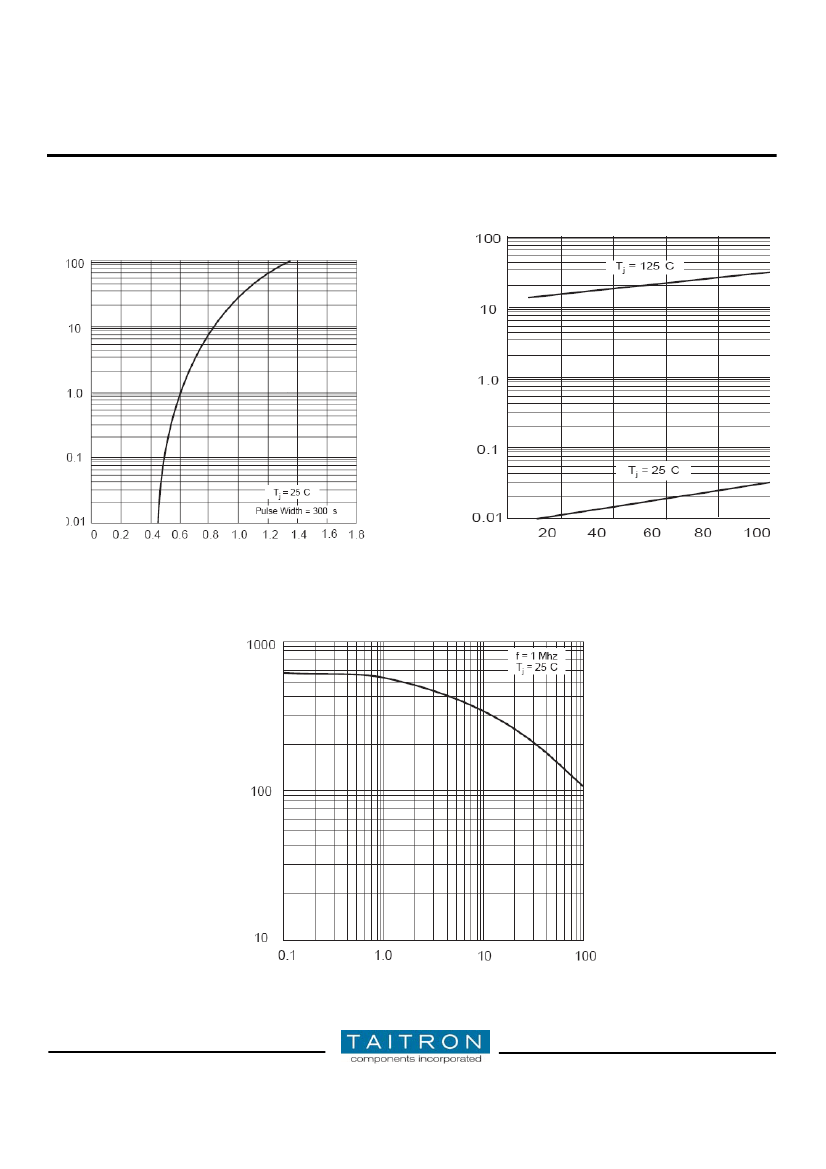

KBP50-08S Related Products

KBP50-08S KBPC50-005S KBPC50-02S KBPC50-04S KBPC50-01S KBPC50-06S KBPC50-10S
Description 50 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE 50 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE 50 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE 50 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE 50 A, 100 V, SILICON, BRIDGE RECTIFIER DIODE 50 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE 50 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE
Is it Rohs certified? - conform to conform to conform to conform to conform to conform to
Maker - TAITRON Components TAITRON Components TAITRON Components TAITRON Components TAITRON Components TAITRON Components
package instruction - S-PXFM-W4 S-PXFM-W4 S-PXFM-W4 S-PXFM-W4 S-PXFM-W4 S-PXFM-W4
Reach Compliance Code - unknown unknown unknown unknown unknown unknow
Other features - HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY
Minimum breakdown voltage - 50 V 200 V 400 V 100 V 600 V 1000 V
Shell connection - ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration - BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS
Diode component materials - SILICON SILICON SILICON SILICON SILICON SILICON
Diode type - BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
JESD-30 code - S-PXFM-W4 S-PXFM-W4 S-PXFM-W4 S-PXFM-W4 S-PXFM-W4 S-PXFM-W4
Maximum non-repetitive peak forward current - 450 A 450 A 450 A 450 A 450 A 450 A
Number of components - 4 4 4 4 4 4
Phase - 1 1 1 1 1 1
Number of terminals - 4 4 4 4 4 4
Maximum operating temperature - 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature - -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Maximum output current - 50 A 50 A 50 A 50 A 50 A 50 A
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape - SQUARE SQUARE SQUARE SQUARE SQUARE SQUARE
Package form - FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum repetitive peak reverse voltage - 50 V 200 V 400 V 100 V 600 V 1000 V
Terminal form - WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location - UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Maximum time at peak reflow temperature - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Base Number Matches - 1 1 1 1 1 -
