Printview: Male header (for PCBs); Straight solder pin 1 x 1 mm; 4-pole; Pin spacing 5 mm / 0.197 in;
Solder pin length 2.4 mm; with closed end; Reflow soldering; Vertical PCB mounting; Male header in tape
on reel acc. to IEC 60286-3 - Item No.: 231-134/001-000/105-604/997-407
.
Male header (for PCBs); Straight solder pin 1 x 1 mm; 4-pole; Pin
spacing 5 mm / 0.197 in; Solder pin length 2.4 mm; with closed
end; Reflow soldering; Vertical PCB mounting; Male header in
tape on reel acc. to IEC 60286-3
Item No.: 231-134/001-000/105-604/997-407
.
Male header (for PCBs); Straight solder pin 1 x 1 mm; 4-pole; Pin spacing 5 mm / 0.197 in; Solder pin length 2.4 mm;
with closed end; Reflow soldering; Vertical PCB mounting; Male header in tape on reel acc. to IEC 60286-3
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
231-134/001-000/105-604/997-407
4044918936200
1
170
Item description: THR male headers for Reflow soldering in SMT applicationsAvailable in tape-and-reel packaging for
automated pick-and-place assemblyAlso available in bulk packaging for manual placementMale headers may be
mounted horizontally or verticallyCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Color
Ratings according to 1
4
5 mm (0.197 in %)
black
IEC/EN 60664-1
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Male header (for PCBs); Straight solder pin 1 x 1 mm; 4-pole; Pin spacing 5 mm / 0.197 in;
Solder pin length 2.4 mm; with closed end; Reflow soldering; Vertical PCB mounting; Male header in tape
on reel acc. to IEC 60286-3 - Item No.: 231-134/001-000/105-604/997-407
Technical data
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of levels
Solder pin length [mm]
Reel diameter of tape-and-reel packaging [mm]
Tape width [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Height from the surface
Length
320 [V]
4 [kV]
320 [V]
4 [kV]
630 [V]
4 [kV]
12 [A]
1
2.4 [mm]
330 [mm]
56 [mm]
1.4(+ 0.1) [mm]
I
Polyphthalamide (PPA GF)
V0
-60 … 100 C
Electrolytic copper (Ecu)
tin-plated
0.04 [MJ]
1.8 [g]
23.2 mm / 0.913 in
14.4 mm / 0.567 in
12 mm / 0.472 in
8.4 mm / 0.331 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Male header (for PCBs); Straight solder pin 1 x 1 mm; 4-pole; Pin spacing 5 mm / 0.197 in;
Solder pin length 2.4 mm; with closed end; Reflow soldering; Vertical PCB mounting; Male header in tape
on reel acc. to IEC 60286-3 - Item No.: 231-134/001-000/105-604/997-407

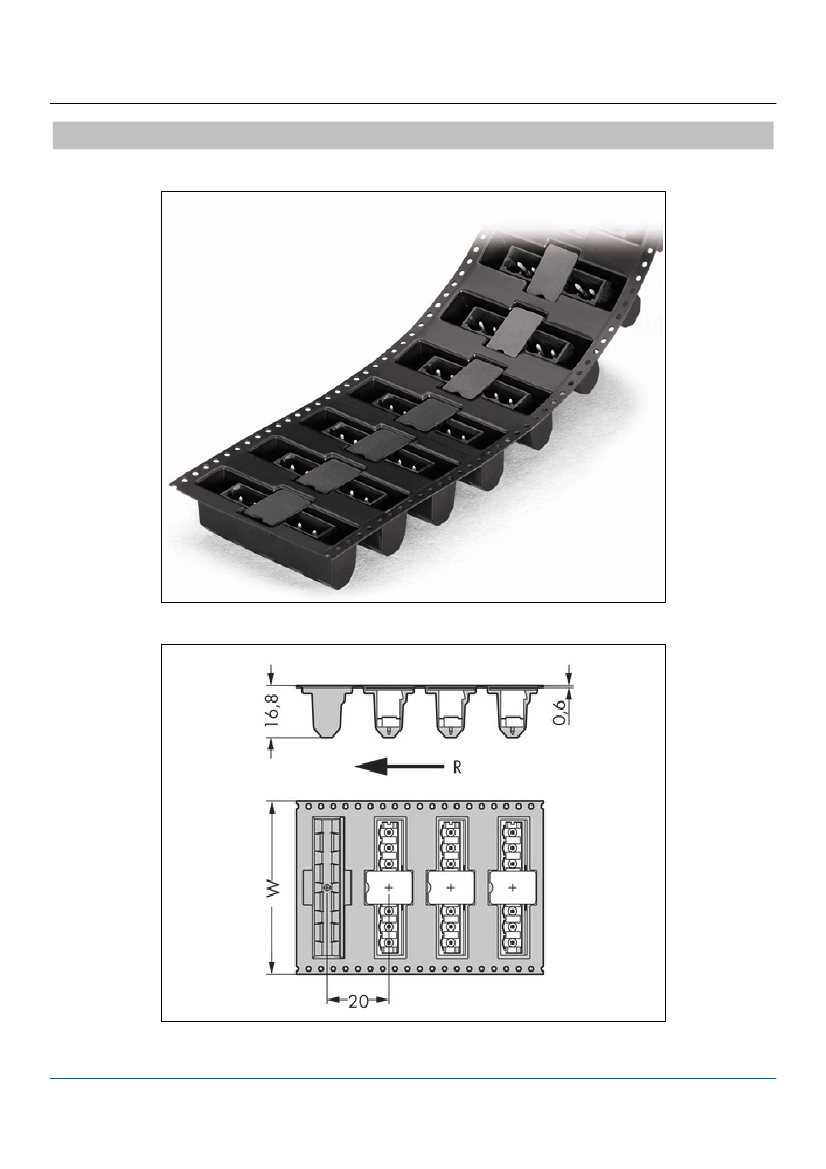

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Male header (for PCBs); Straight solder pin 1 x 1 mm; 4-pole; Pin spacing 5 mm / 0.197 in;
Solder pin length 2.4 mm; with closed end; Reflow soldering; Vertical PCB mounting; Male header in tape
on reel acc. to IEC 60286-3 - Item No.: 231-134/001-000/105-604/997-407
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
4
