10035264-24G444 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 10035264-24G444

10035264-24G444: DescriptionTelecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size67KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

10035264-24G444 Overview

Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack

10035264-24G444 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	8 PORTS 8 CONTACT EACH
Board mount options	PEG
body width	0.535 inch
subject depth	0.846 inch
body length	4.53 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD (150) OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	TELCOM, MODULAR
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	10035264
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	8
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Guideline	UL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.141 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

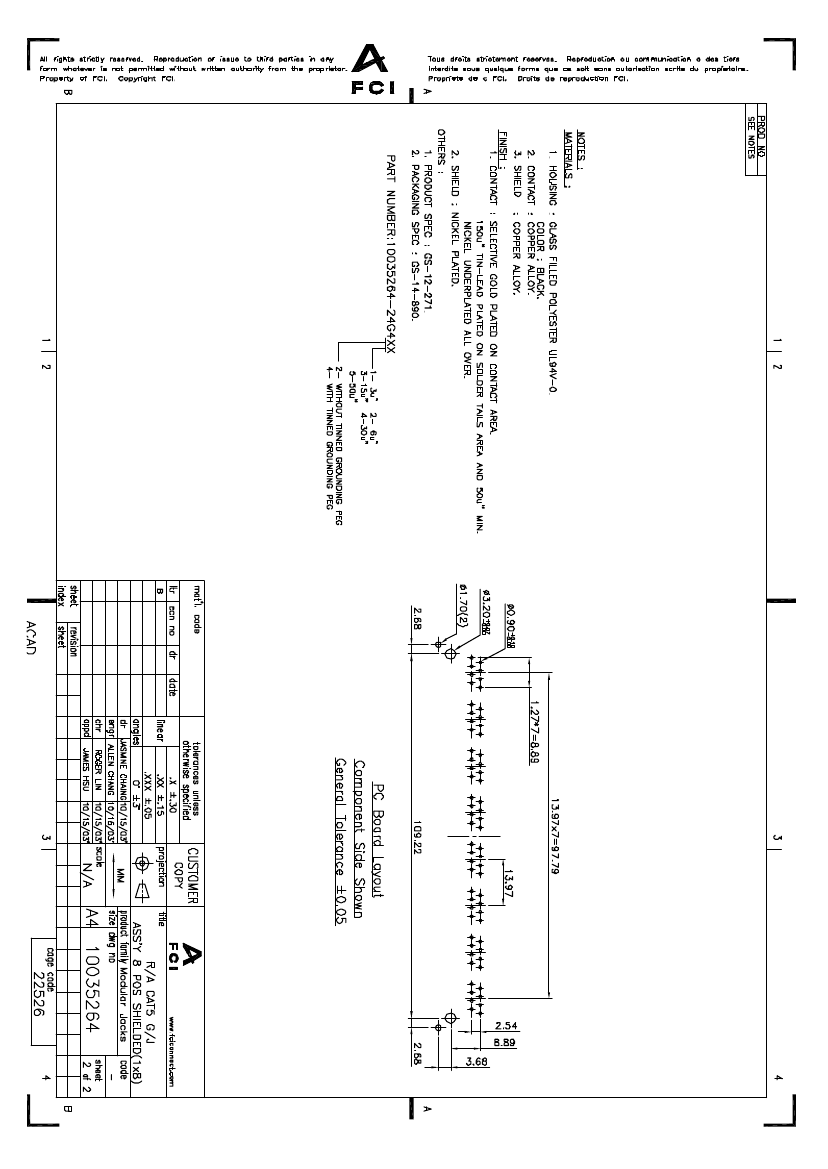

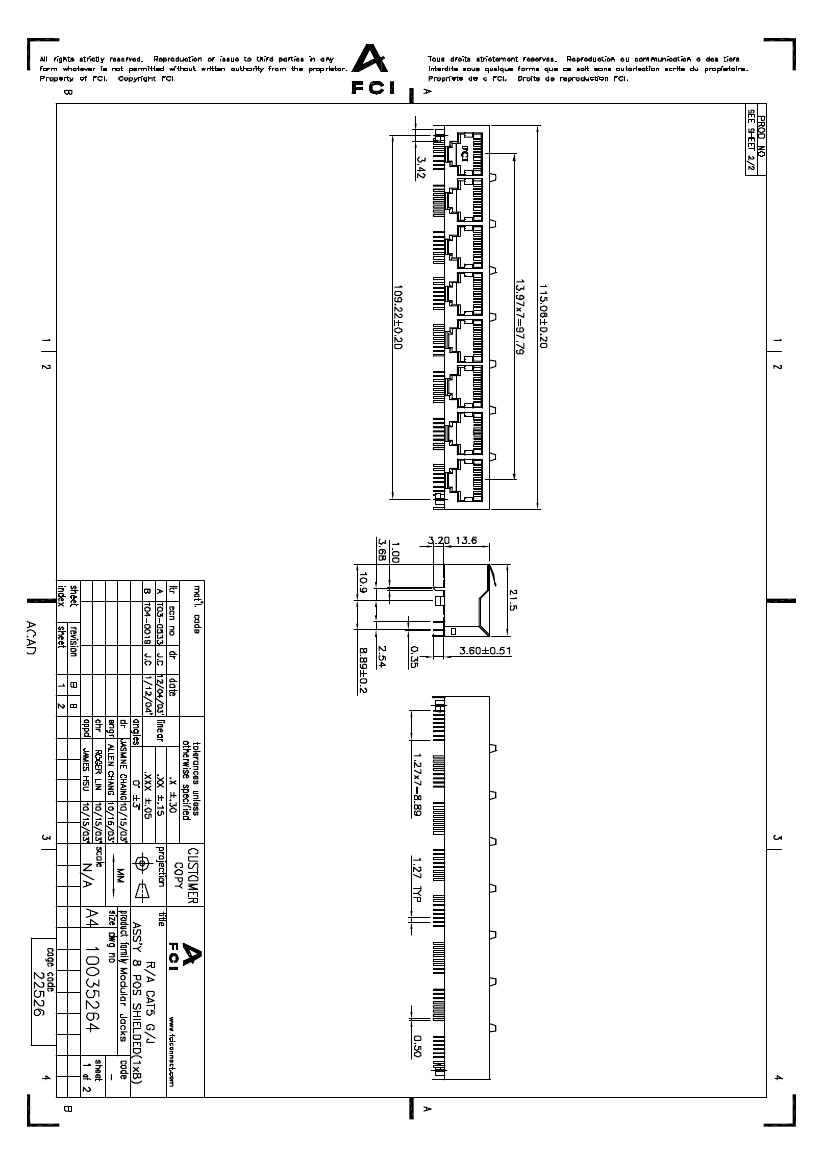

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Feb 27, 2004

10035264-24G444 Related Products

	10035264-24G444	10035264-24G424	10035264-24G421	10035264-24G422	10035264-24G423	10035264-24G425	10035264-24G441	10035264-24G442	10035264-24G443	10035264-24G445
Description	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	8 PORTS 8 CONTACT EACH	8 PORTS 8 CONTACT EACH	8 PORTS 8 CONTACT EACH	-	-	8 PORTS 8 CONTACT EACH	8 PORTS 8 CONTACT EACH	8 PORTS 8 CONTACT EACH	-	-
Board mount options	PEG	PEG	PEG	-	-	PEG	PEG	PEG	-	-
body width	0.535 inch	0.535 inch	0.535 inch	-	-	0.535 inch	0.535 inch	0.535 inch	-	-
subject depth	0.846 inch	0.846 inch	0.846 inch	-	-	0.846 inch	0.846 inch	0.846 inch	-	-
body length	4.53 inch	4.53 inch	4.53 inch	-	-	4.53 inch	4.53 inch	4.53 inch	-	-
Body/casing type	JACK	JACK	JACK	-	-	JACK	JACK	JACK	-	-
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	-	-	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	-	-
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	-	-	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	-	-
Contact completed and terminated	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	-	-	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	-	-
Contact point gender	FEMALE	FEMALE	FEMALE	-	-	FEMALE	FEMALE	FEMALE	-	-
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	-
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	-	-	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	-	-
DIN compliance	NO	NO	NO	-	-	NO	NO	NO	-	-
empty shell	NO	NO	NO	-	-	NO	NO	NO	-	-
Filter function	NO	NO	NO	-	-	NO	NO	NO	-	-
IEC compliance	NO	NO	NO	-	-	NO	NO	NO	-	-
Insulator color	BLACK	BLACK	BLACK	-	-	BLACK	BLACK	BLACK	-	-
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	-
JESD-609 code	e0	e0	e0	-	-	e0	e0	e0	-	-
MIL compliance	NO	NO	NO	-	-	NO	NO	NO	-	-
Manufacturer's serial number	10035264	10035264	10035264	-	-	10035264	10035264	10035264	-	-
Mixed contacts	NO	NO	NO	-	-	NO	NO	NO	-	-
Installation option 1	LOCKING	LOCKING	LOCKING	-	-	LOCKING	LOCKING	LOCKING	-	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-
Installation type	BOARD	BOARD	BOARD	-	-	BOARD	BOARD	BOARD	-	-
Number of ports	8	8	8	-	-	8	8	8	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	-	-	STAGGERED	STAGGERED	STAGGERED	-	-
Plating thickness	30u inch	30u inch	3u inch	-	-	50u inch	3u inch	6u inch	-	-
Guideline	UL	UL	UL	-	-	UL	UL	UL	-	-
Shell surface	NICKEL	NICKEL	NICKEL	-	-	NICKEL	NICKEL	NICKEL	-	-
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	-
Terminal length	0.141 inch	0.141 inch	0.141 inch	-	-	0.141 inch	0.141 inch	0.141 inch	-	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	-	-
Termination type	SOLDER	SOLDER	SOLDER	-	-	SOLDER	SOLDER	SOLDER	-	-
Total number of contacts	64	64	64	-	-	64	64	64	-	-
UL Flammability Code	94V-0	94V-0	94V-0	-	-	94V-0	94V-0	94V-0	-	-
