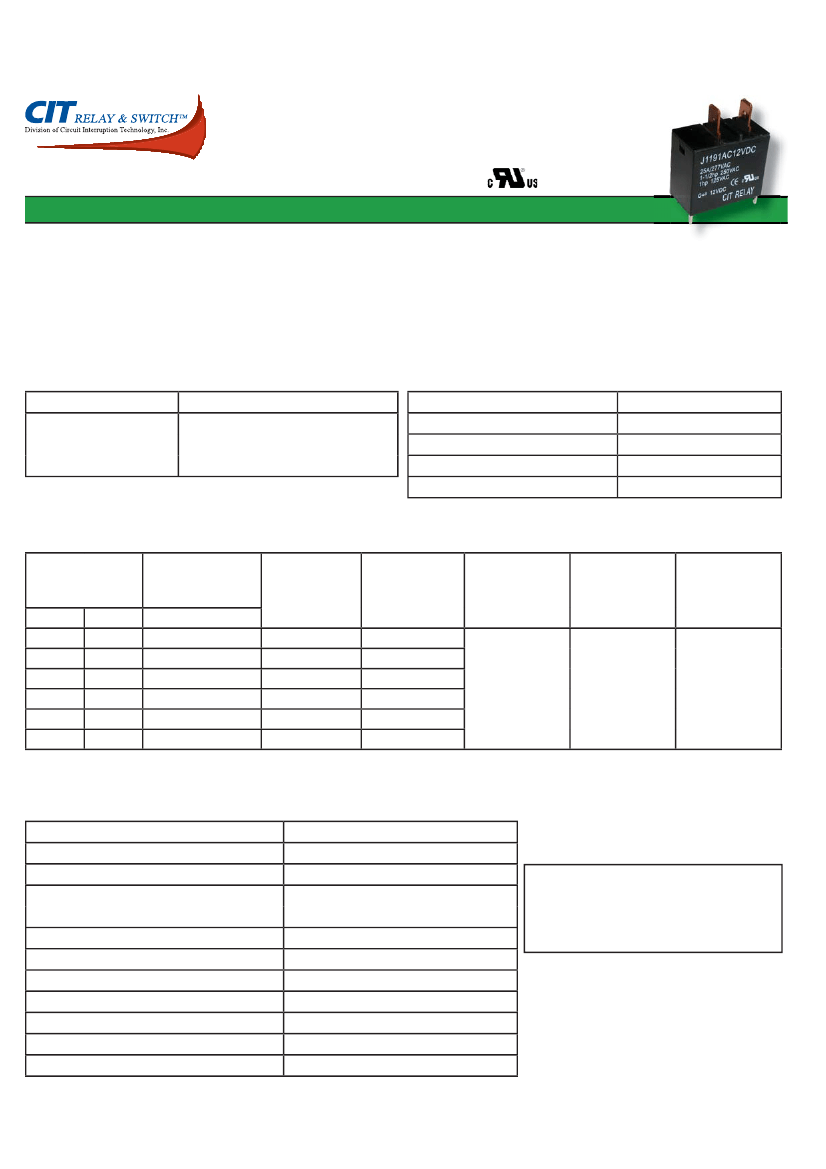

J1191AP18VDC: DescriptionCIT SWITCH; File Size175KB，2 Pages; ManufacturerCIT; Websitehttp://www.citswitch.com/

Download Datasheet View All

J1191AP18VDC Overview

CIT SWITCH

Preview

Download Datasheet

View All

J119

Features

•

RoHS Compliant

30.5 x 15.8 x 26.8 (36.5) mm

Switching capacity up to 25A

PC pins and quick connect terminals

Uses include household appliances

High inrush capability

Strong resistance to shock and vibration

E197852

Contact Data

Contact Arrangement

Contact Rating

1A = SPST N.O.

25A @ 250VAC Resistive

25A @ 277VAC General Purpose

1-1/2hp @ 250VAC

Contact Resistance

Contact Material

Maximum Switching Power

Maximum Switching Voltage

Maximum Switching Current

< 50 milliohms initial

AgSnO

6380VA

300VAC

25A

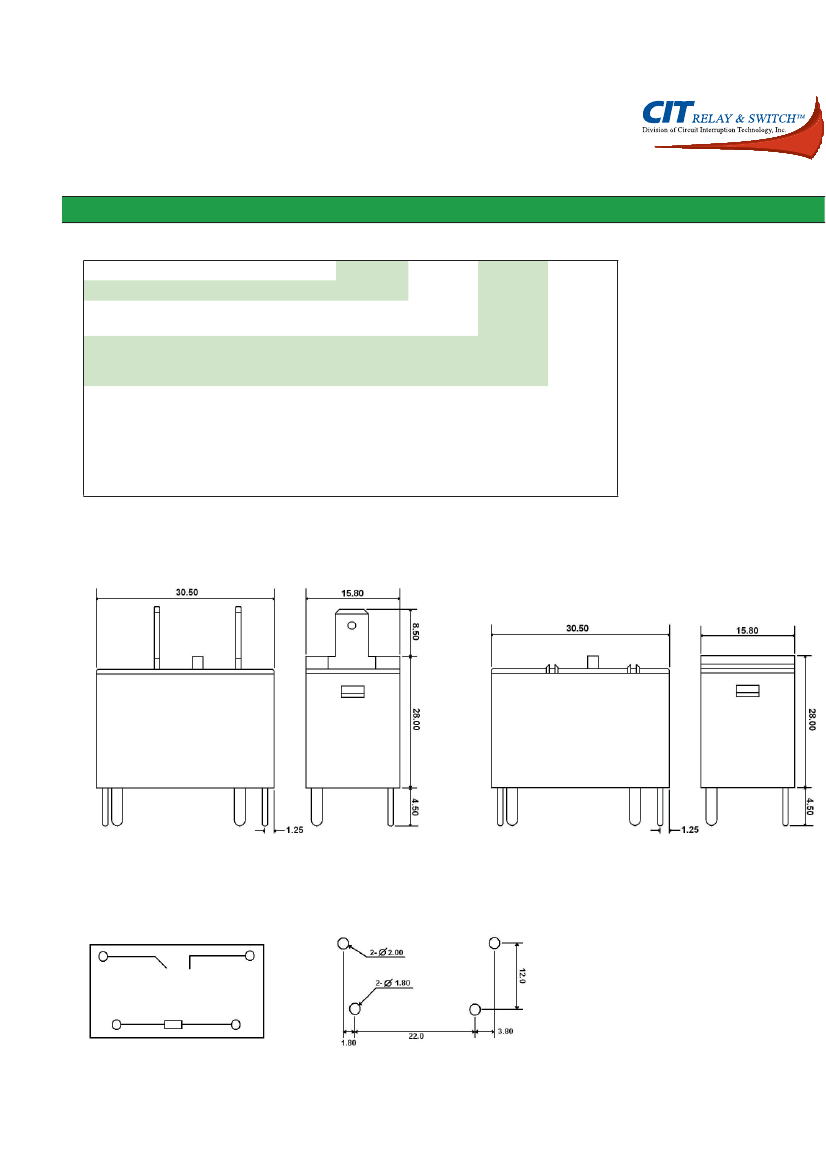

Dimensions shown in mm. Dimensions are shown for reference purposes only.

Coil Data

Coil Voltage

VDC

Rated

Max

6.5

7.8

11.7

15.6

31.2

62.4

Coil Resistance

Ω

+/- 10%

.9W

160

640

2560

Pick Up Voltage Release Voltage

VDC (max)

VDC (min)

75% of rated

voltage

3.75

4.50

6.75

9.00

18.00

36.00

10% of rated

voltage

.25

.30

.45

.60

1.2

2.4

.90

Coil Power

Operate Time

Release Time

General Data

Electrical Life @ rated load

Mechanical Life

Insulation Resistance

Dielectric Strength, Coil to Contact

Contact to Contact

Shock Resistance

Vibration Resistance

Terminal (Copper Alloy) Strength

Operating Temperature

Storage Temperature

Solderability

Weight

100K cycles, typical

10M cycles, typical

100M

Ω

min. @ 500VDC

2000V rms min. @ sea level

1000V rms min. @ sea level

100m/s

for 11 ms

1.50mm double amplitude 10~40Hz

10N

-30

C to +55

-40

C to +85

260

C for 5 s

28g

Caution

1. The use of any coil voltage less than the

rated coil voltage may compromise the

operation of the relay.

Speciﬁcations and availability subject to change without notice.

www.citrelay.com

phone - 763.535.2339

fax - 763.535.2194
