10091836-D0J-50DLF datasheet, PDF

10091836-D0J-50DLF: DescriptionBoard Connector, 64 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator, LEAD FREE; CategoryThe connector The connector; File Size3MB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

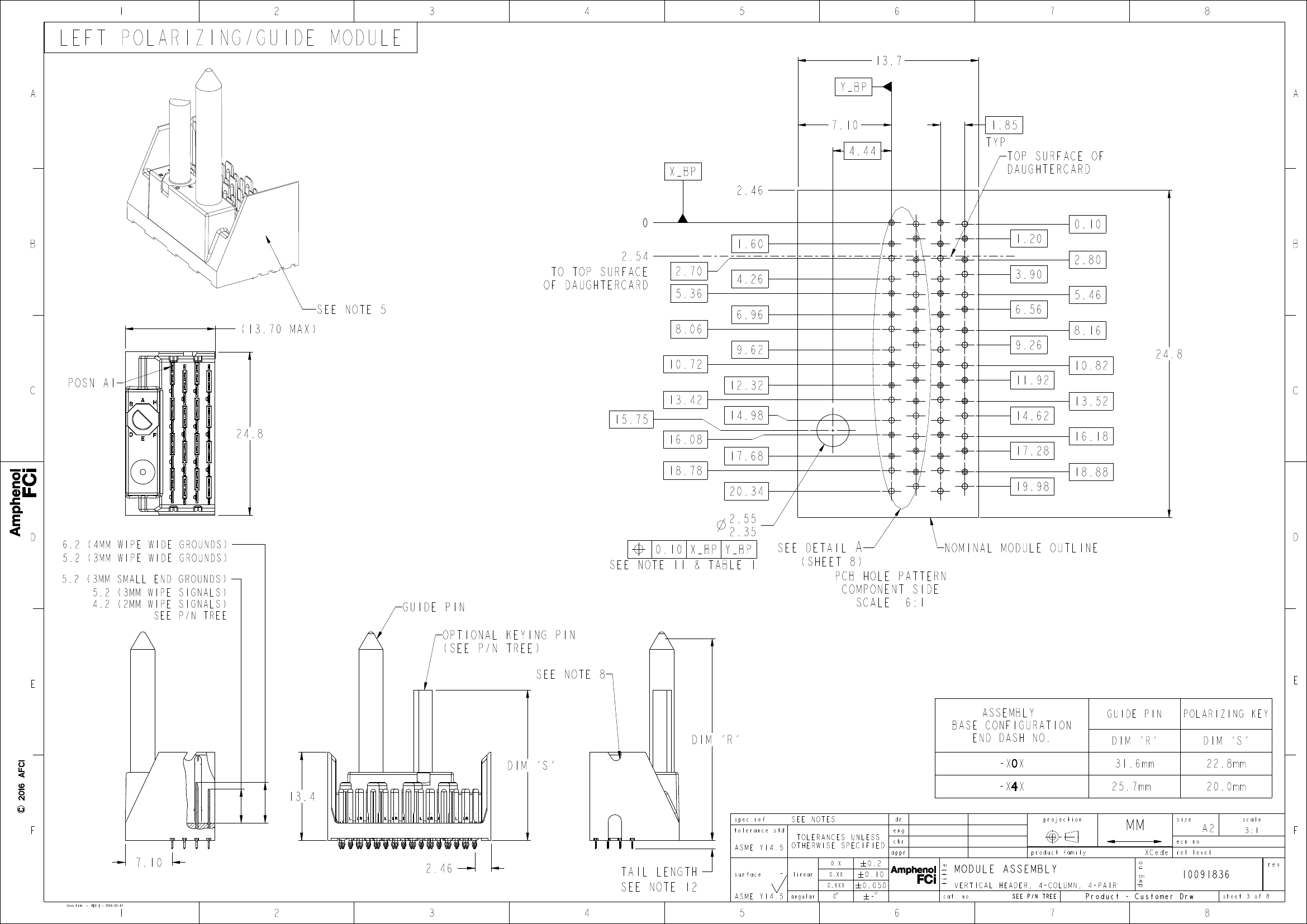

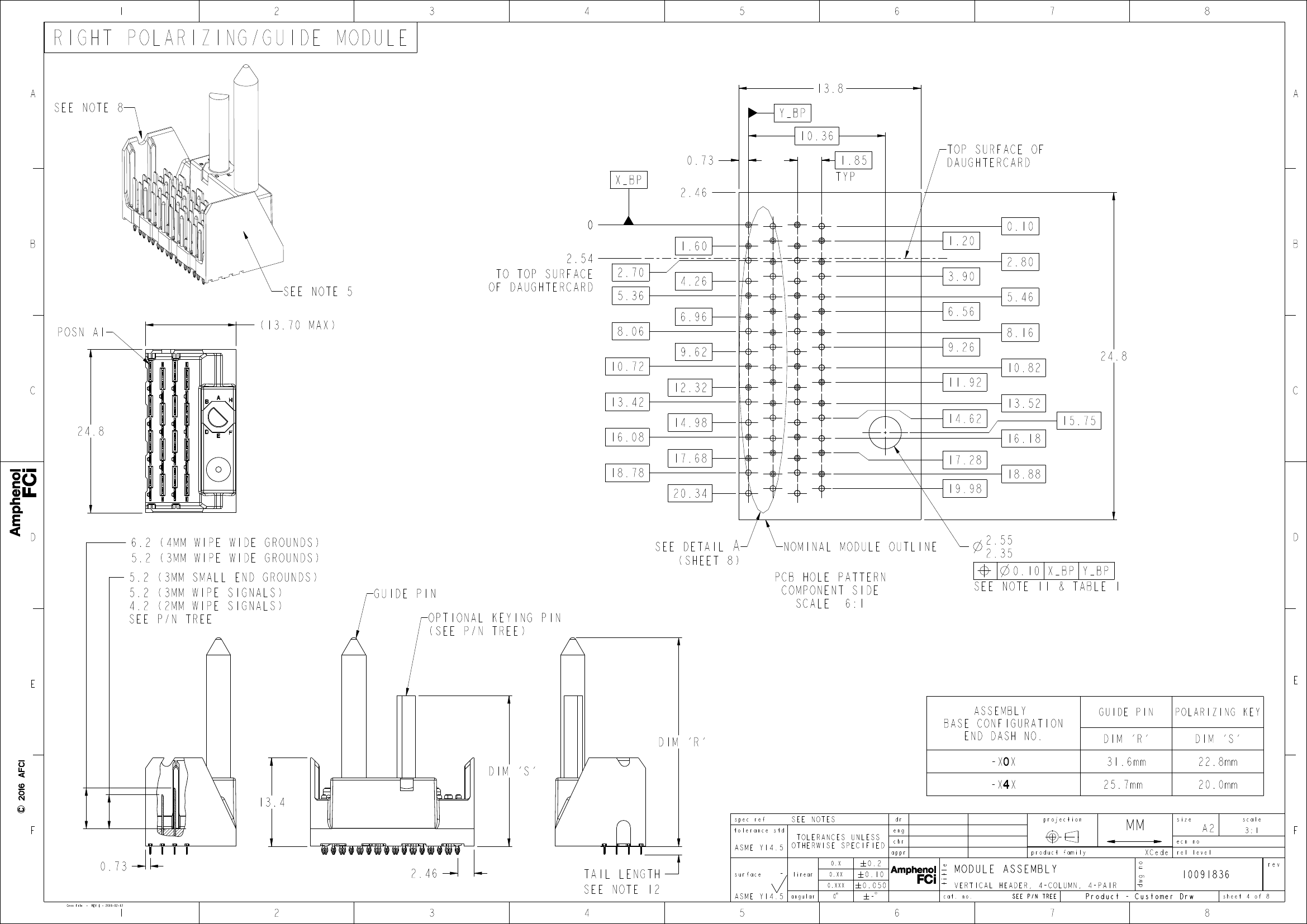

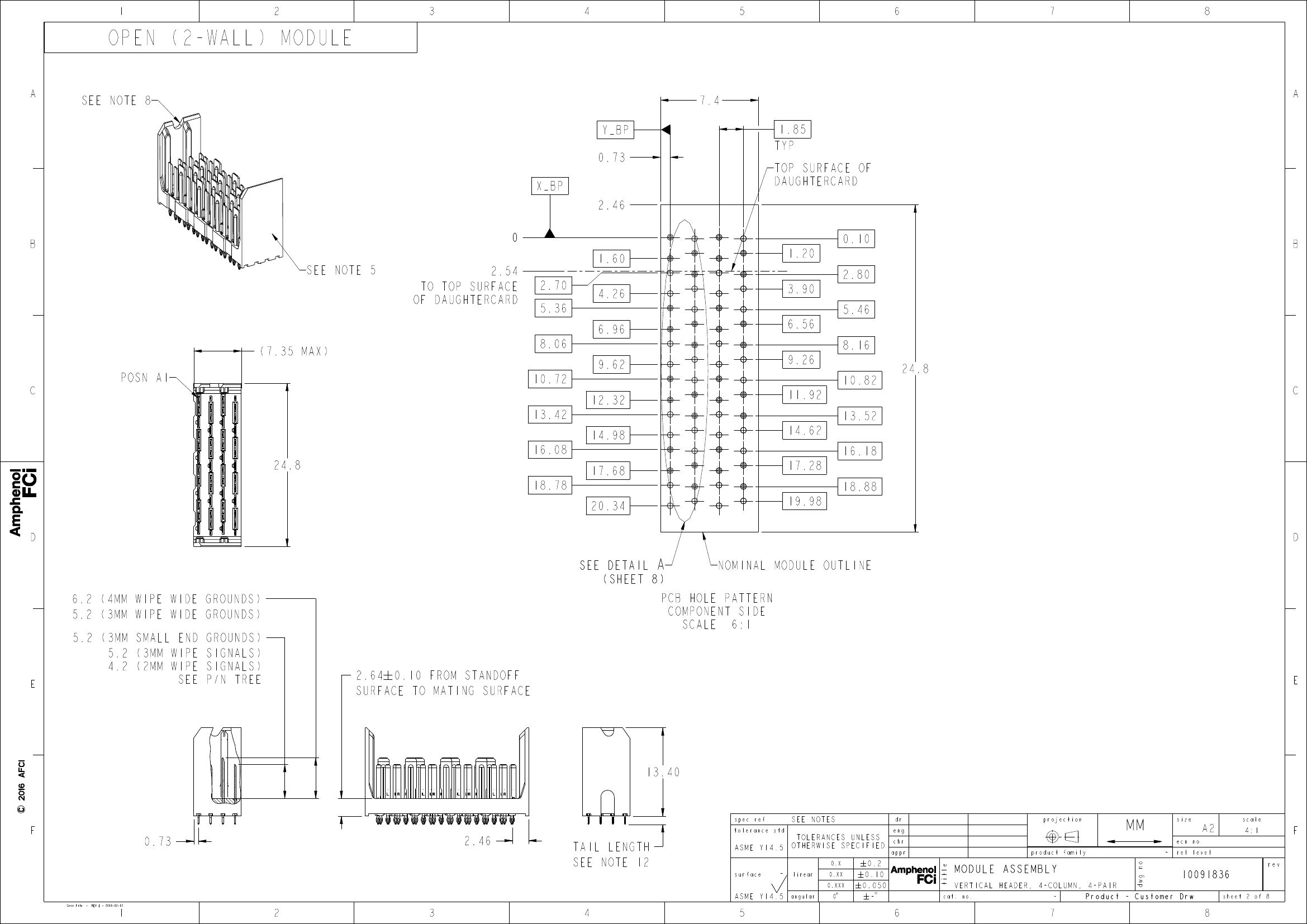

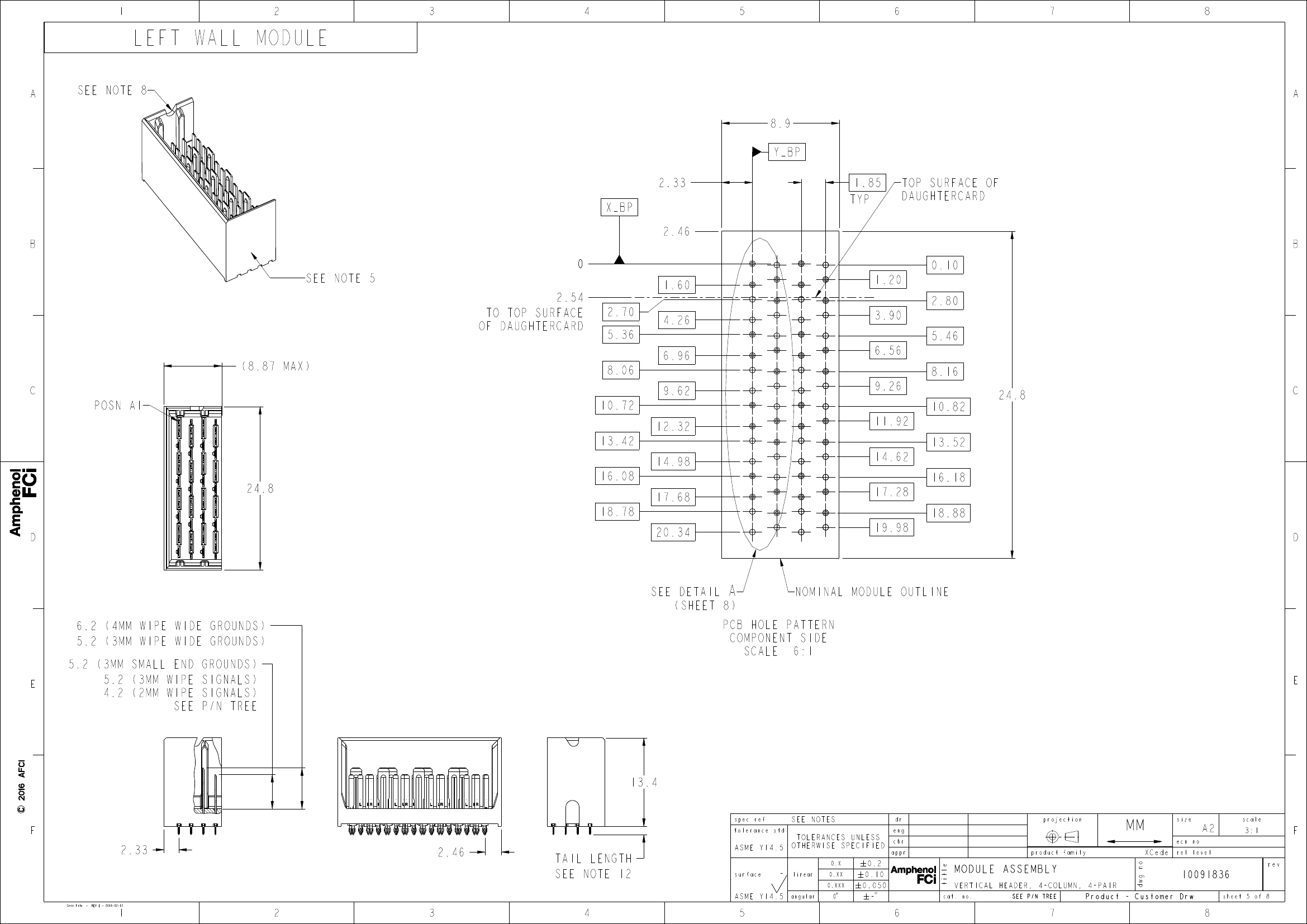

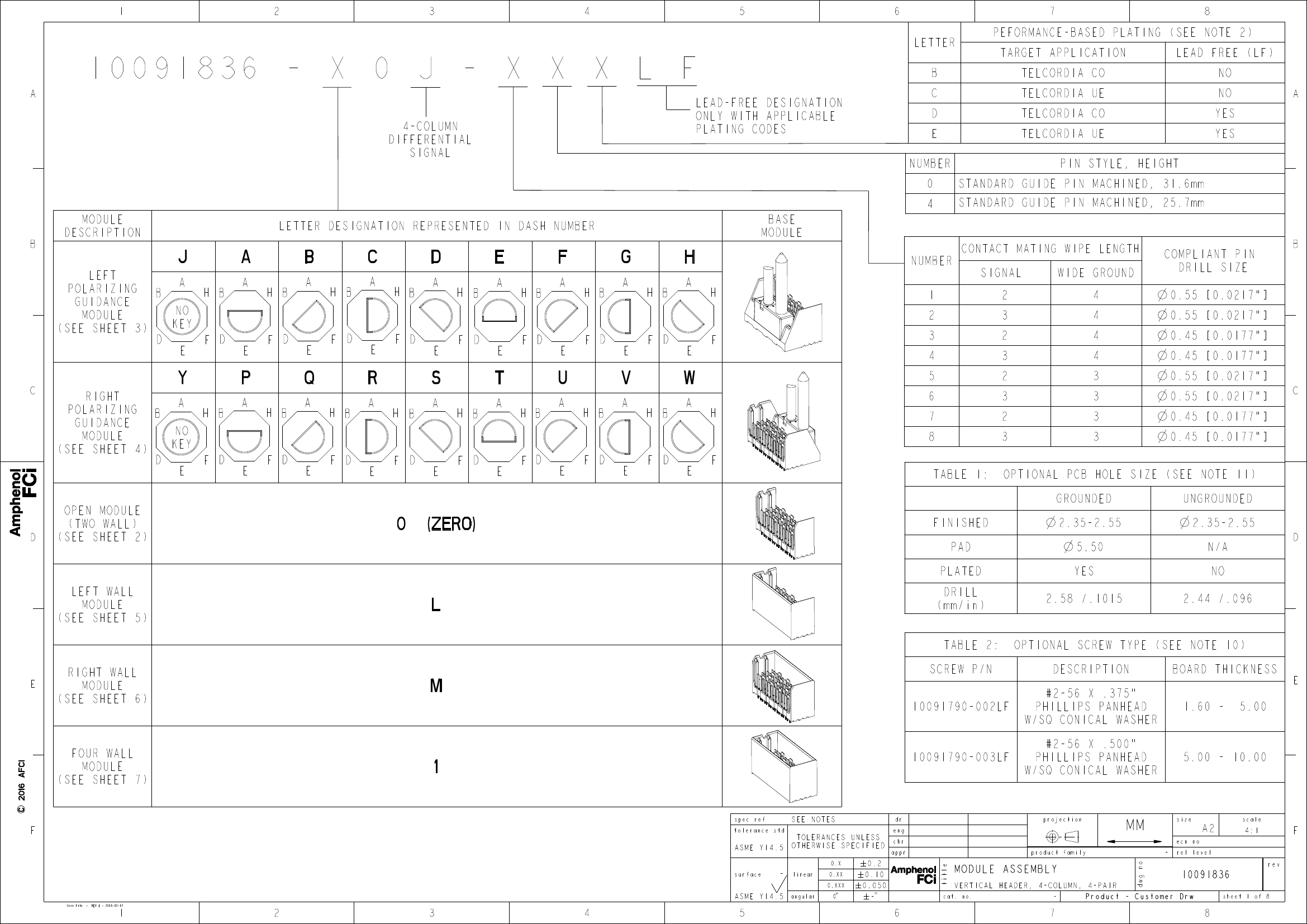

10091836-D0J-50DLF Overview

Board Connector, 64 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Guide Pin, Gray Insulator, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
body width	0.976 inch
subject depth	0.528 inch
body length	0.539 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	55 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.6394 N
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	10091836
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
polarization key	POLARIZED KEY
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.051 inch
Termination type	PRESS FIT
Total number of contacts	64
UL Flammability Code	94V-0
Evacuation force-minimum value	.14734 N
Base Number Matches	1

Jim Swain

Michael Song

Heaven Cen

Pei-Ming Zheng

2010/04/13

2016/06/06

2016/06/08

2016/06/15

ELX-DG-24191-1

Released

PDS: Rev :G

STATUS:Released

Printed: Jun 15, 2016
