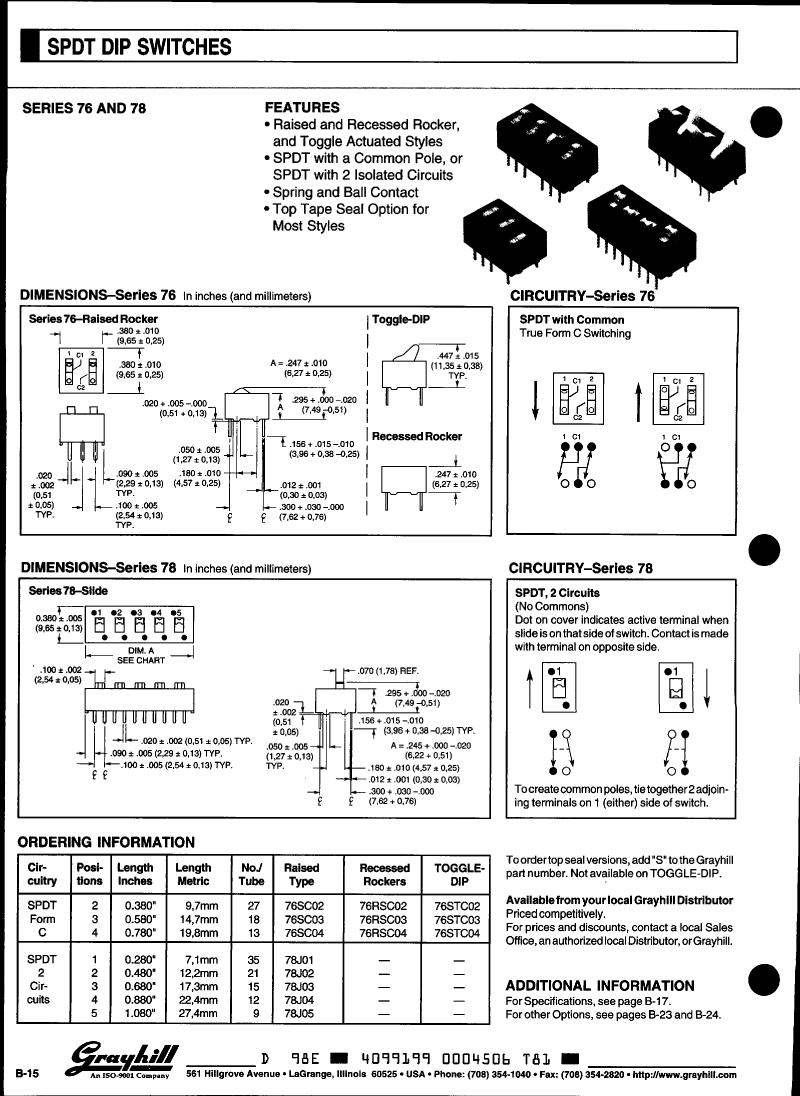

76ST02: DescriptionToggle Switch, SPDT, Maintained, 0.15A, 30VDC, 2 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size398KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric Compare View All

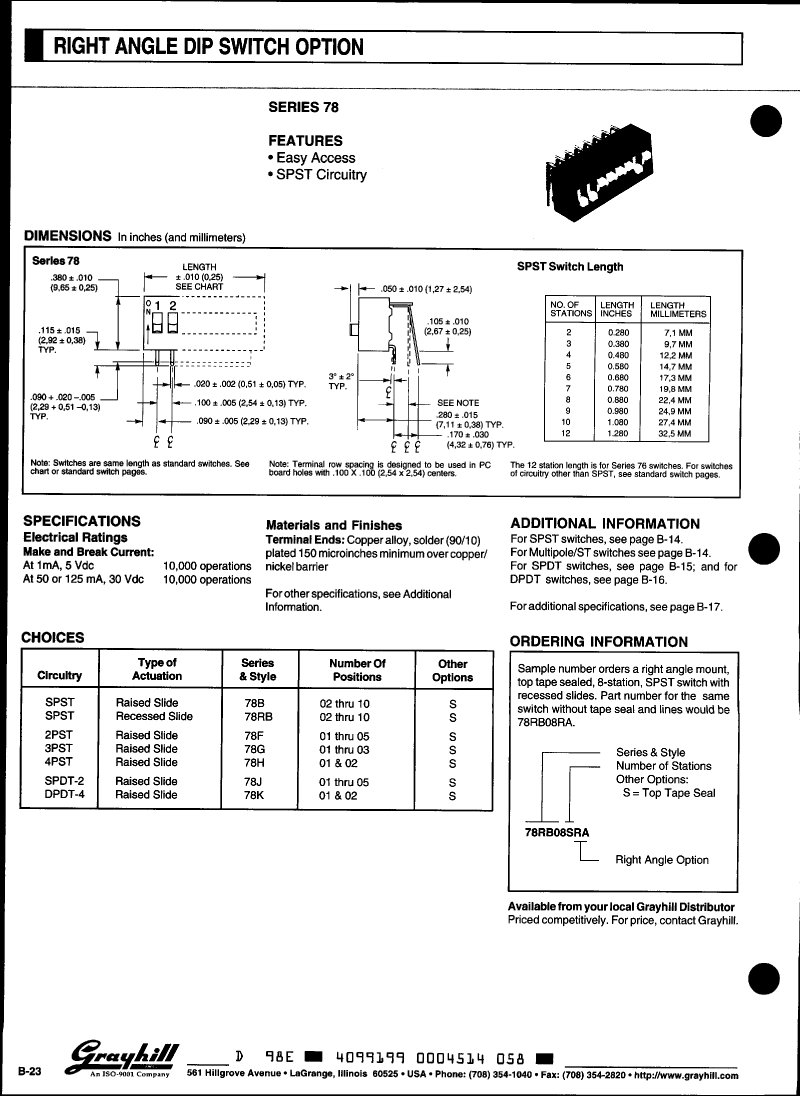

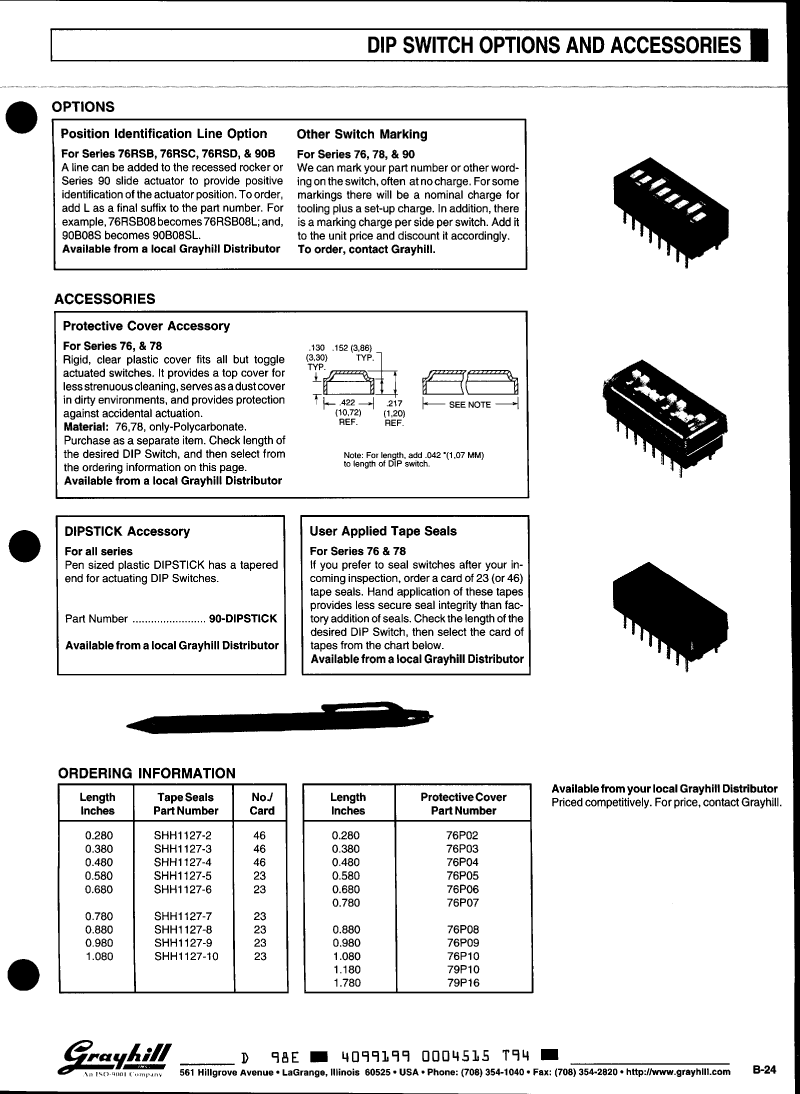

76ST02 Overview

Toggle Switch, SPDT, Maintained, 0.15A, 30VDC, 2 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight

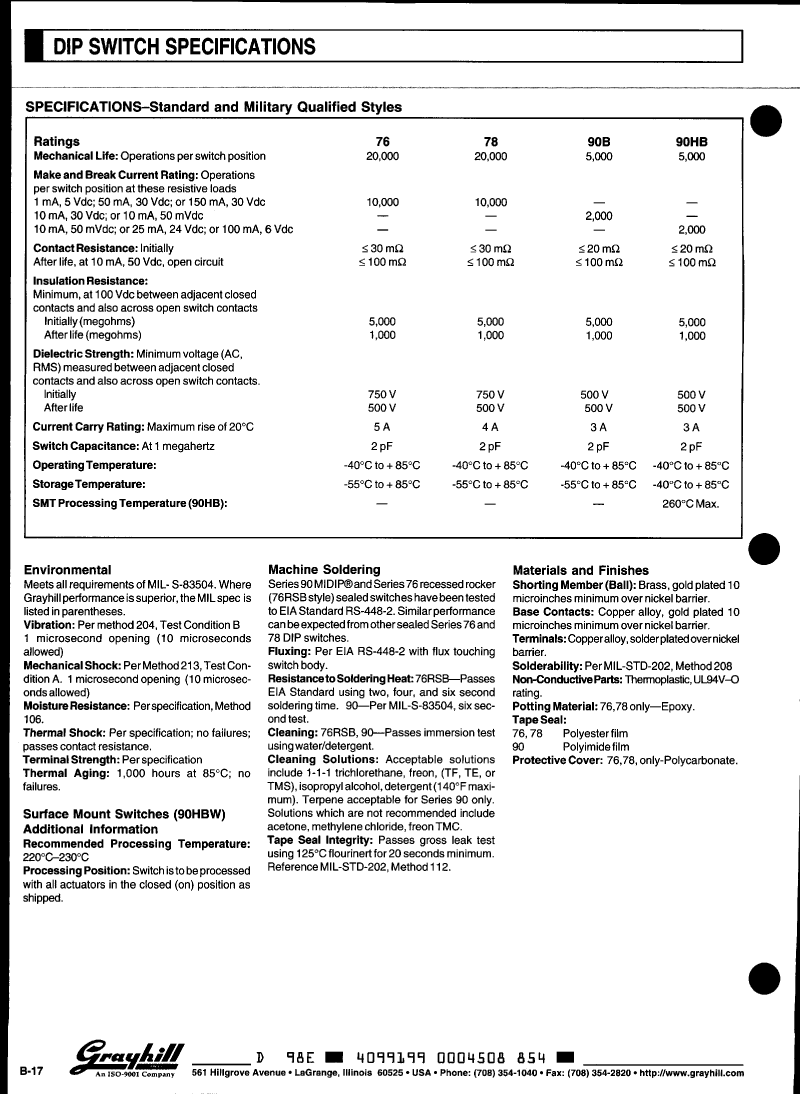

Parameter Name	Attribute value
Reach Compliance Code	unknow
Actuator angle
Actuator material	THERMOPLASTIC
Actuator type	TOGGLE
Other features	TOGGLE-DIP
body width	9.652 mm
body height	6.2738 mm
Body length or diameter	7.112 mm
center contact material	BRASS
Center contact plating	GOLD
Maximum contact current (DC)	0.15 A
Contact (DC) maximum rated R load	0.15A@30VDC
Contact resistance	0.03 mΩ
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	750VRMS V
Electrical life	20000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	78
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	2
Solderability	MIL-STD
surface mount	NO
Switch action	MAINTAINED
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	TIN-LEAD
Terminal length	0.156 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

	76ST02	76ST04
Description	Toggle Switch, SPDT, Maintained, 0.15A, 30VDC, 2 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight	Toggle Switch, SPDT, Maintained, 0.15A, 30VDC, 4 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight
Reach Compliance Code	unknow	unknow
Actuator material	THERMOPLASTIC	THERMOPLASTIC
Actuator type	TOGGLE	TOGGLE
Other features	TOGGLE-DIP	TOGGLE-DIP
body width	9.652 mm	9.652 mm
body height	6.2738 mm	6.2738 mm
Body length or diameter	7.112 mm	19.812 mm
center contact material	BRASS	BRASS
Center contact plating	GOLD	GOLD
Maximum contact current (DC)	0.15 A	0.15 A
Contact (DC) maximum rated R load	0.15A@30VDC	0.15A@30VDC
Contact resistance	0.03 mΩ	0.03 mΩ
Maximum contact voltage (DC)	30 V	30 V
Dielectric withstand voltage	750VRMS V	750VRMS V
Electrical life	20000 Cycle(s)	20000 Cycle(s)
End contact material	COPPER ALLOY	COPPER ALLOY
End contact plating	GOLD	GOLD
Insulation resistance	5000000000 Ω	5000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	78	78
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
PCB hole count	2	4
Solderability	MIL-STD	MIL-STD
surface mount	NO	NO
Switch action	MAINTAINED	MAINTAINED
switch function	SPDT	SPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH
Terminal surface	TIN-LEAD	TIN-LEAD
Terminal length	0.156 inch	0.156 inch
Terminal material	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
