HMC695LP4
/
695LP4E
SMT GaAs HBT MMIC x4 ACTIVE
FREQUENCY MULTIPLIER, 11.4 - 13.2 GHz OUTPUT
Typical Applications
v00.0808
Features
Output Power: +7 dBm
Sub-Harmonic Suppression: >25 dBc
SSB Phase Noise: -140 dBc/Hz
Single Supply: +5V @ 60 mA
24 Lead 4x4 mm SMT Package: 16 mm
2
7
FREQ. MULTIPLIERS - ACTIVE - SMT
The HMC695LP4(E) is ideal for:
• Fiber Optic Applications
• Point-to-Point Radios
• Military Radar

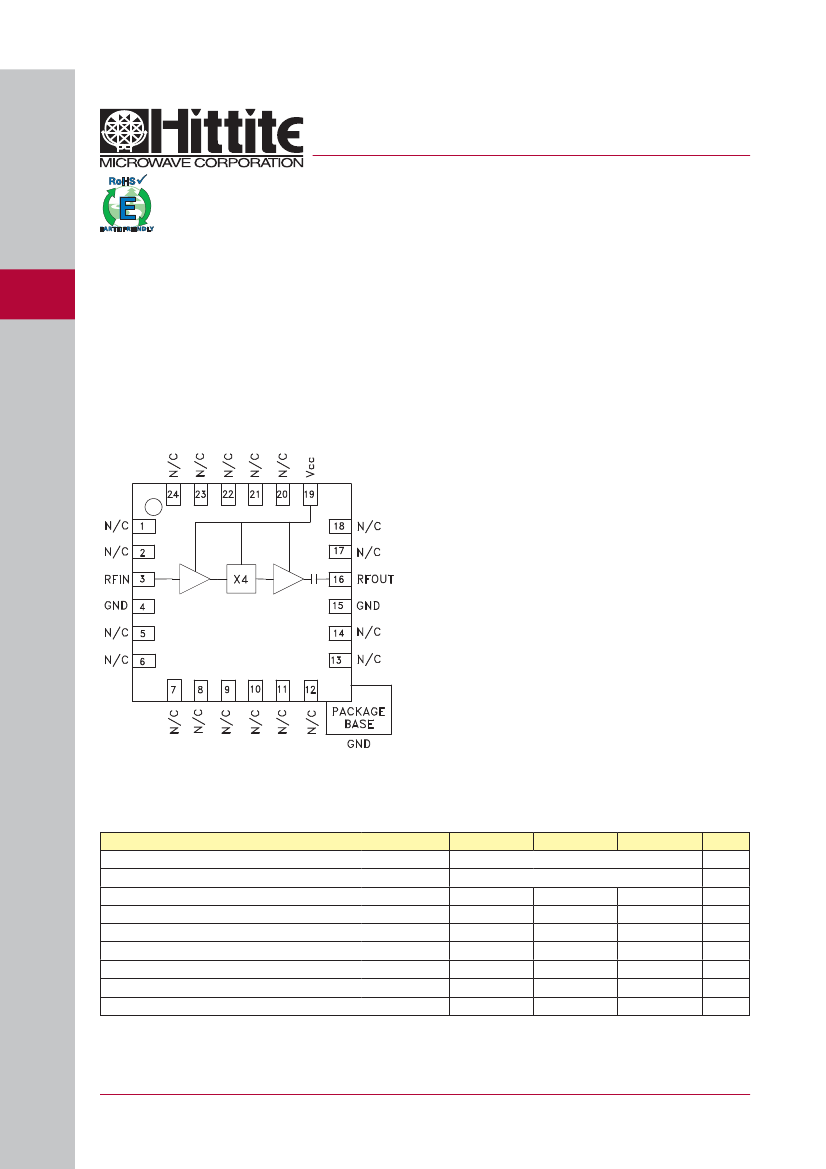

Functional Diagram
General Description
The HMC695LP4(E) are active miniature x4 frequ-
ency multipliers utilizing InGaP GaAs HBT technology
in 4x4 mm leadless surface mount packages. Power
output is +7 dBm typical from a +5V supply voltage
and varies little vs. input power, temperature and
supply voltage. Suppression of undesired fundamental
and sub-harmonics is >25 dBc typical with respect to
output signal level. The low additive SSB phase noise
of -140 dBc/Hz at 100 kHz offset helps the user main-
tain good system noise performance. The
HMC695LP4(E) are ideal for use in LO multiplier
chains allowing reduced parts count vs. traditional
approaches.
Electrical Specifi cations,
T
A
= +25° C, Vcc= 5V
Parameter
Frequency Range, Input
Frequency Range, Output
Input Power Range
Output Power
Sub-Harmonic Suppression
Input Return Loss
Output Return Loss
SSB Phase Noise (100 kHz Offset)
Supply Current (Icc)
Pin= 0 dBm
-15
2
7
25
15
8
-140
60
75
Min.
Typ.
2.85 - 3.3
11.4 - 13.2
5
Max.
Units
GHz
GHz
dBm
dBm
dBc
dB
dB
dBc/Hz
mA
7 - 118
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC695LP4
/
695LP4E
v00.0808
SMT GaAs HBT MMIC x4 ACTIVE
FREQUENCY MULTIPLIER, 11.4 - 13.2 GHz OUTPUT

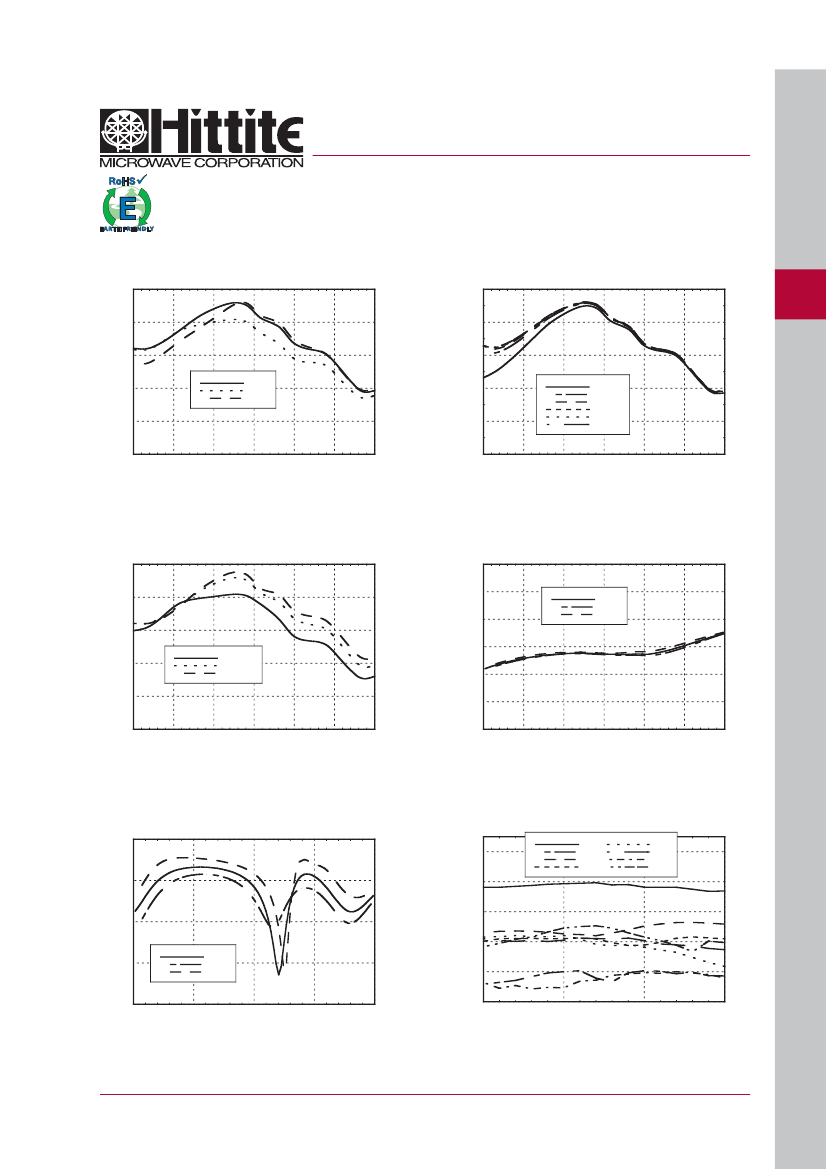

Output Power vs.
Temperature @ -10 dBm Drive Level
10
Output Power vs. Drive Level
10
7
-20 dBm
-15 dBm
-10 dBm
-5 dBm
0 dBm
+5 dBm
OUTPUT POWER (dBm)
OUTPUT POWER (dBm)
8
8
6
+25 C
+85 C
-40 C
6
4
4
2
2
0
11
11.5
12
12.5
13
13.5
14
OUTPUT FREQUENCY (GHz)
0
11
11.5
12
12.5
13
13.5
14
OUTPUT FREQUENCY (GHz)
Output Power vs.
Supply Voltage @ -10 dBm Drive Level
10
Input Return Loss vs. Temperature
0
-5
RETURN LOSS (dB)
-10
-15
-20
-25
-30
OUTPUT POWER (dBm)
8
+25 C
+85 C
-40 C
6
Vcc=4.5V
Vcc=5.0V
Vcc=5.5V
4
2
0
11
11.5
12
12.5
13
13.5
14
OUTPUT FREQUENCY (GHz)
2
2.5
3
3.5
4
4.5
5
FREQUENCY (GHz)
Output Return Loss vs. Temperature
0
Harmonics @ -10 dBm Drive Level
30
Fout
1Fin
2Fin
3Fin
5Fin
6Fin
7Fin
8Fin
RETURN LOSS (dB)
-5
OUTPUT POWER (dBm)
10
-10
-30
-50
-70
2.75
-10
-15
+25 C
+85 C
-40 C
-20
8
10
12
FREQUENCY (GHz)
14
16
3
3.25
3.5
INPUT FREQUENCY (GHz)
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
7 - 11
FREQ. MULTIPLIERS - ACTIVE - SMT
HMC695LP4
/
695LP4E
v00.0808
SMT GaAs HBT MMIC x4 ACTIVE
FREQUENCY MULTIPLIER, 11.4 - 13.2 GHz OUTPUT

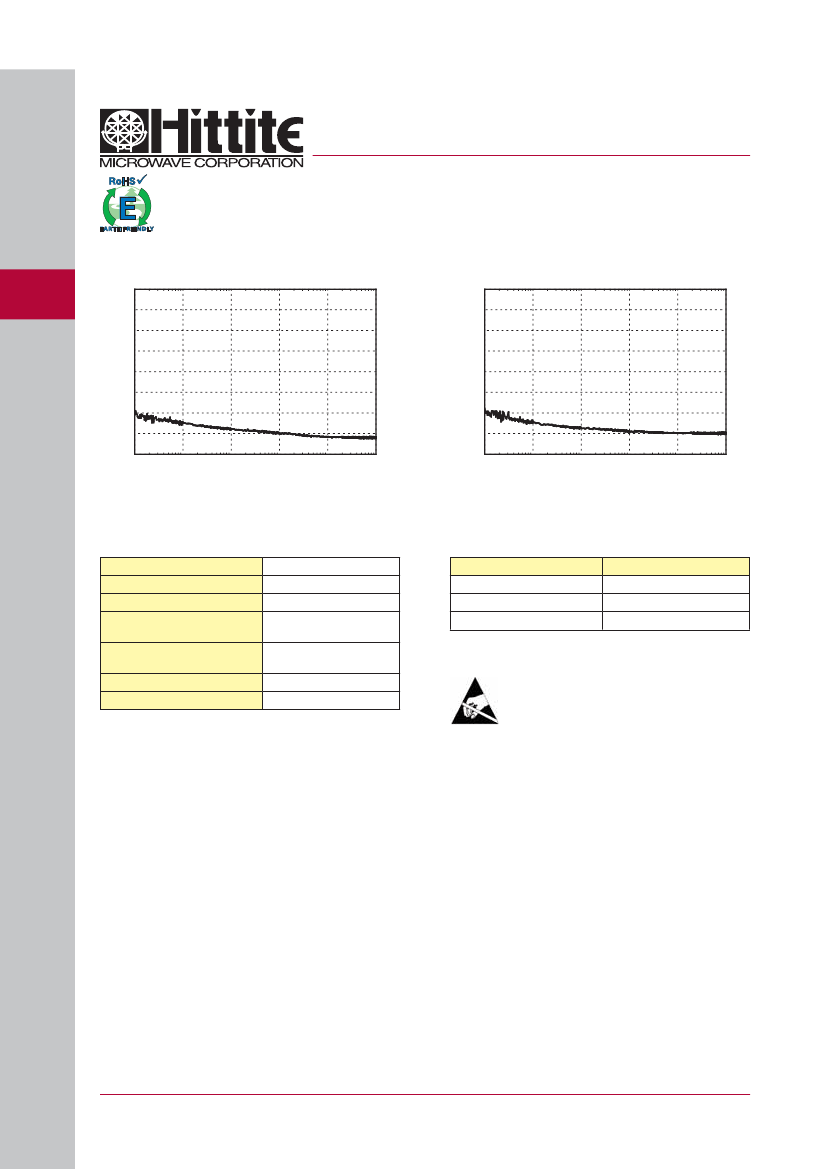

SSB Phase Noise
@ Pin = 0 dBm @ 12.5 GHz
SSB PHASE NOISE (dBc/Hz)
SSB Phase Noise
@ Pin = -10 dBm @ 12.5 GHz
0
-20
SSB PHASE NOISE (dBc/Hz)
-40
-60
-80
-100
-120
-140
-160
2
10
7
FREQ. MULTIPLIERS - ACTIVE - SMT
0
-20
-40
-60
-80
-100
-120
-140
-160
2
10
10
3
10
4
10
5
10
6
10
7
10
3
10
4
10
5
10
6
10
7
OFFSET FREQUENCY (Hz)
OFFSET FREQUENCY (Hz)
Absolute Maximum Ratings
RF Input (Vcc= +5V)
Vcc
Channel Temperature
Continuous Pdiss (T=85 °C)
(derate 10.8 mW/°C above 85 °C)
Thermal Resistance (R
th
)
(junction to ground paddle)
Storage Temperature
Operating Temperature
+20 dBm
+5.5V
135 °C
538 mW
93 °C/W
-65 to +150 °C
-40 to +85 °C
Typical Supply Current vs. Vcc
Vcc (V)
4.75
5.00
5.25
Icc (mA)
59
60
61
Note: Multiplier will operate over full voltage range shown
above.
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
7 - 120
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC695LP4
/
695LP4E
v00.0808
SMT GaAs HBT MMIC x4 ACTIVE
FREQUENCY MULTIPLIER, 11.4 - 13.2 GHz OUTPUT

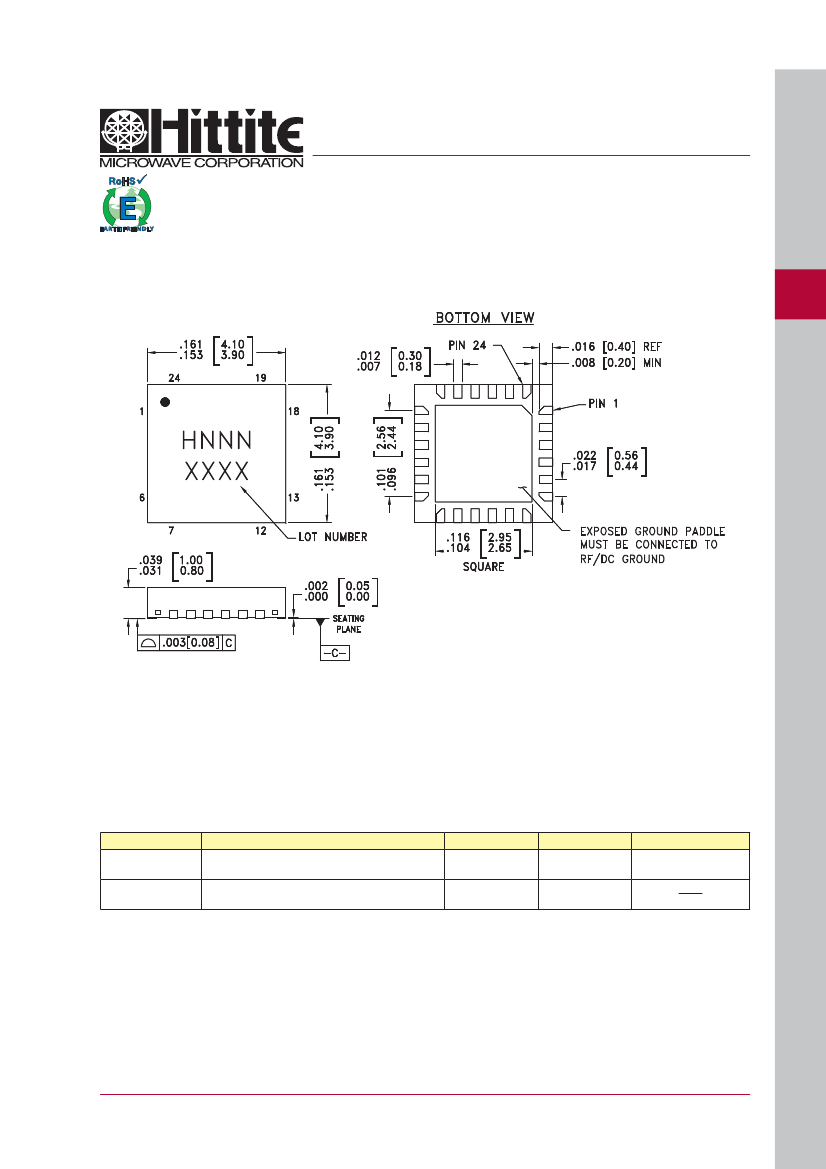

Outline Drawing
7
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM.
PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM.
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE
SOLDERED TO PCB RF GROUND.
7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED
LAND PATTERN.
Package Information
Part Number
HMC695LP4
HMC695LP4E
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL1
MSL1
[1]
Package Marking
[3]
H695
XXXX
H695
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
7 - 12
FREQ. MULTIPLIERS - ACTIVE - SMT
HMC695LP4
/
695LP4E
v00.0808
SMT GaAs HBT MMIC x4 ACTIVE
FREQUENCY MULTIPLIER, 11.4 - 13.2 GHz OUTPUT
Pin Description
7
FREQ. MULTIPLIERS - ACTIVE - SMT
Pin Number
1, 2, 5 - 14,
17, 18, 20 - 24
Function
N/C
Description
No Connection
Interface Schematic
3
RFIN
RF input needs to be DC blocked only if there is an
external DC voltage applied to RFIN.
4, 15
GND
All ground leads and ground paddle
must be soldered to PCB RF/DC ground.
Multiplied Output. AC coupled.
No external DC blocks necessary.
Supply voltage 5V
16
19
RFOUT
Vcc
7 - 122
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
