HFR-RFK52LF-C800OHMF Overview

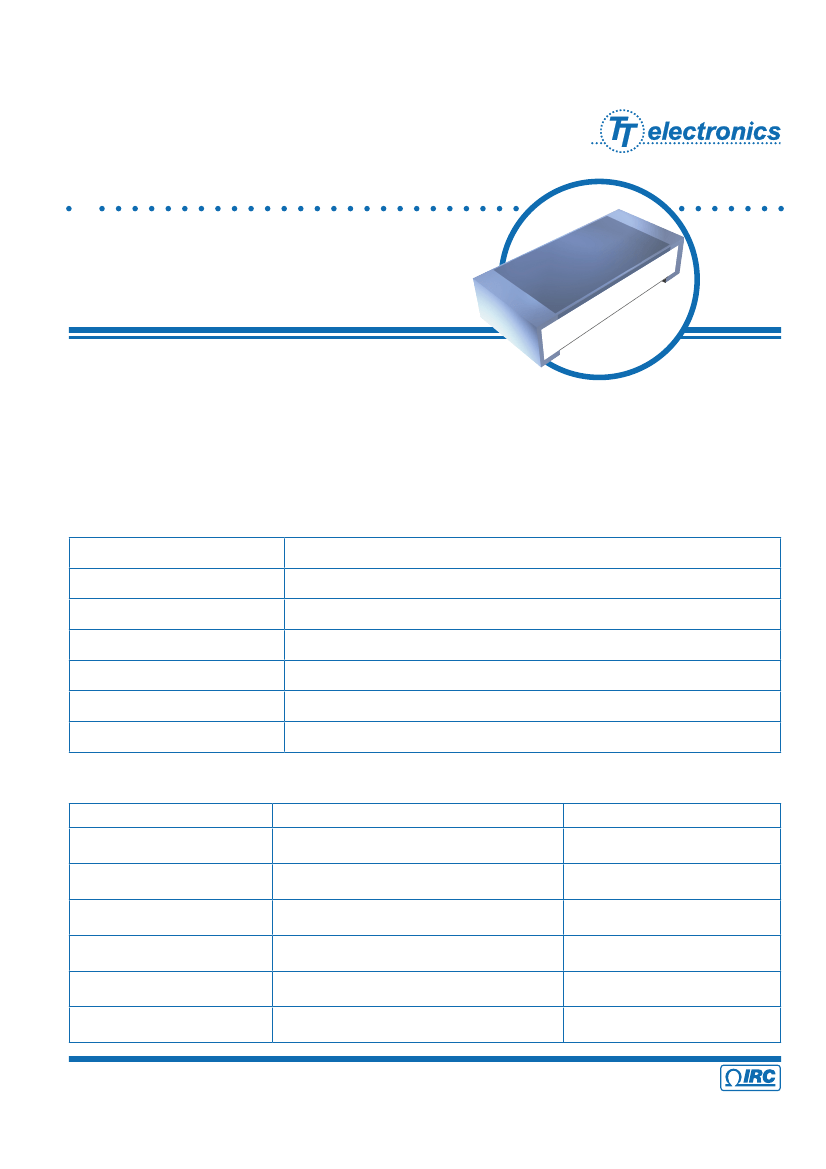

High Frequency Surface Mount Terminators

High Frequency
Surface Mount Terminators
RFX Series
RoHS Compliant
Frequency operation to 3GHz
Small size 10W power chip resistors
1% tolerance and 50ppm/°C absolute TCR
The RFX series of high frequency line terminators provide superb
high frequency performance at power ratings to 10W in a surface
mount chip. Both leadless versions provide maximum flexibility for mechanical circuit attachment and circuit
configuration.
The RFX is available in a wide range of ohmic values from 50Ω to 800Ω affording maximum flexibility in controlled
impedance transmission line design and termination. Applications include RF/microwave power amplifiers, power
splitters, cell base stations and circulators/isolators.
Electrical Data
RFH and RFK
Power Rating
Resistance Values
Tolerance
Capacitance
Operating Temperature Range
Absolute TCR
10W
50Ω, 100Ω, 150Ω, 200Ω, 250Ω, 300Ω, 400Ω, 600Ω, 800Ω
±1%
<0.05pF
-55°C to 155°C
±50ppm/°C
Environmental Data
Test Condition
Short TimeOverload
Load Life
Moisture Resistance
Temperature Cycle
Resistance to Soldering Heat
Insulation Resistance
2.5 x Rated Voltage, 5 seconds
1000 Hours, 70°C
1000 Hours, 40°C, 95% RH
5 Cycles, +125°C high, -55°C Low
260°C, 10 sec.
500V, 1 minute
Maximum
±0.2% +0.05Ω
±0.2% +0.05Ω
±0.2% +0.05Ω
±0.2% +0.05Ω
±0.2% +0.05Ω
>1,000MΩ
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
A subsidiary of
TT electronics plc
RFX Series Issue January 2009 Sheet 1 of 3
