NOTES:
1. MATERIALS AND FINISHES:
BODY - BRASS, NICKEL PLATING
CONTACT PIN - PHOSPHOR BRONZE, GOLD PLATING
INSULATOR - PTFE, NATURAL
LOCK RING - BRASS, GOLD PLATING
FERRULE - BRASS, NICKEL PLATING
2.
ELECTRICAL:
A. IMPEDANCE: 75 OHM
B. FREQUENCY RANGE: DC - 12 GHz
C. RETURN LOSS (VSWR): 20dB (1.22) DC-6 GHz
15dB (1.43) 6-12 GHz
D. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN.
MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -30 $ C TO +85 $ C
CRIMPED FERRULE
HEX. CRIMP SIZE .255"
CRIMPED CONTACT PIN
HEX. CRIMP SIZE 0.042"
6.
7.
SHOWS CABLE ENTRY DIMENSIONS
PACKAGING:
A. QUANTITY: SINGLE PACK
B. BAG TO BE MARKED: AMPHENOL RF
31-70555-12G
YYWW
THIRD ANGLE PROJ.
REV
A
RELEASE TO MFG.
DESCRIPTION
REVISIONS
24-Sep-18
DATE
09442
ECN
APPR
SV
8,3
[.327 ]
2,7
[.106 ]
6
[.236 ]
SCALE
2.000
3.
4.
5.
RECOMMENDED
CABLE STRIPPING DIMENSIONS
11,5
REF
[.453 ]
5
REF.
[.197 ]
3,5
6
[.138 ]
0,9
6
[.035 ]
3
REF
[.118 ]
0,83
6
[.033 ]
6,1
6
[.240 ]
13,6 REF
[.535 ]
29,23 REF
[1.151 ]
2,5
REF
[.098 ]
7,6
REF
[.299 ]
2,1
REF
[.083 ]
12,7
REF
[.500 ]

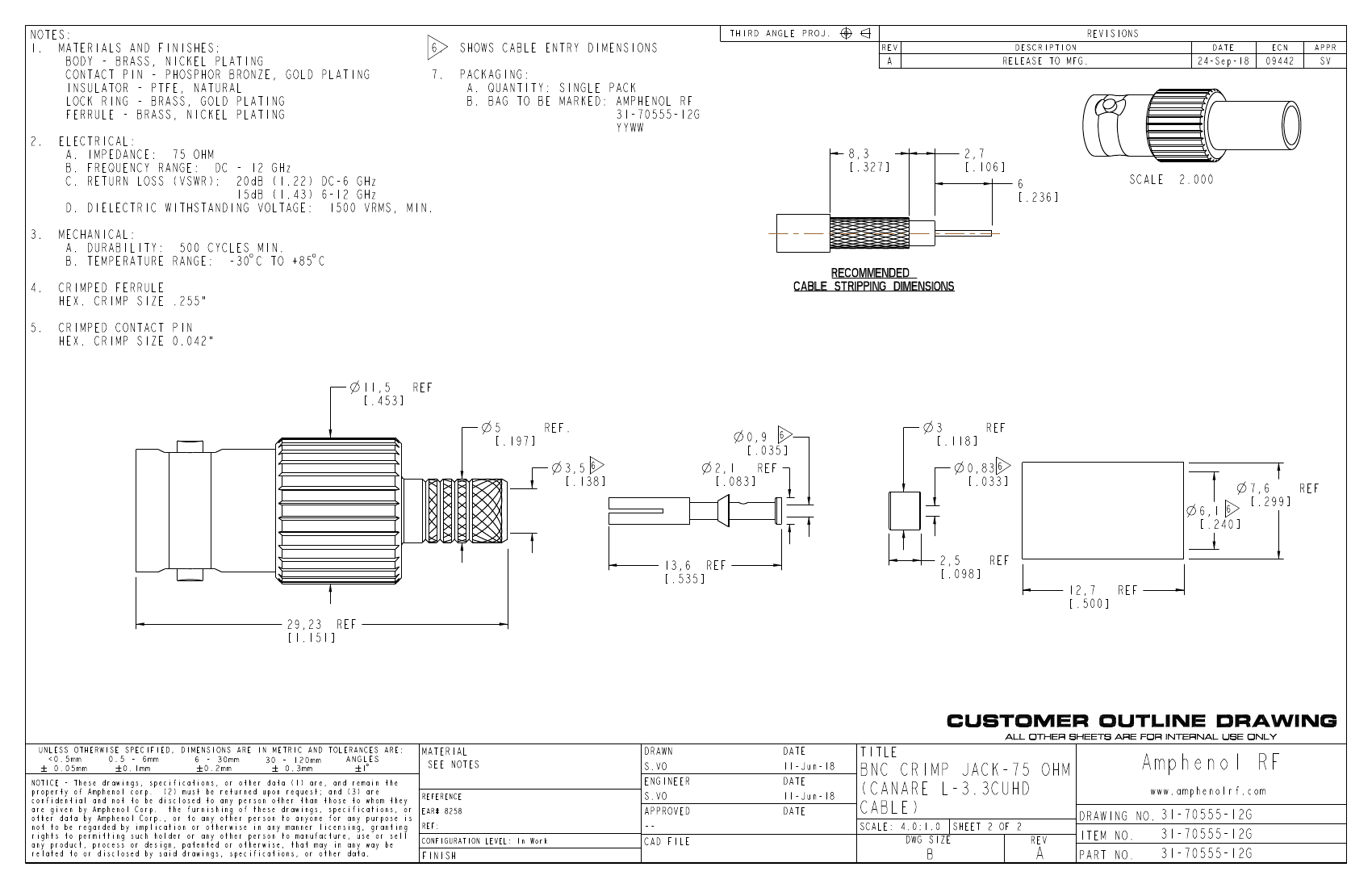

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
ANGLES
6 - 30mm
30 - 120mm
MATERIAL
SEE NOTES
REFERENCE
EAR# 8258
REF:
CONFIGURATION LEVEL: In Work
DRAWN
S.VO
S.VO
--
ENGINEER
APPROVED
CAD FILE
DATE
DATE
DATE
11-Jun-18
11-Jun-18
TITLE
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing, granting
rights to permitting such holder or any other person to manufacture, use or sell
any product, process or design, patented or otherwise, that may in any way be
related to or disclosed by said drawings, specifications, or other data.
BNC CRIMP JACK-75 OHM
(CANARE L-3.3CUHD
CABLE)
SCALE: 4.0:1.0 SHEET 2 OF 2
DWG SIZE
REV
Amphenol RF
www.amphenolrf.com
DRAWING NO.
31-70555-12G
ITEM NO.
PART NO.
FINISH
B
A
31-70555-12G
31-70555-12G
