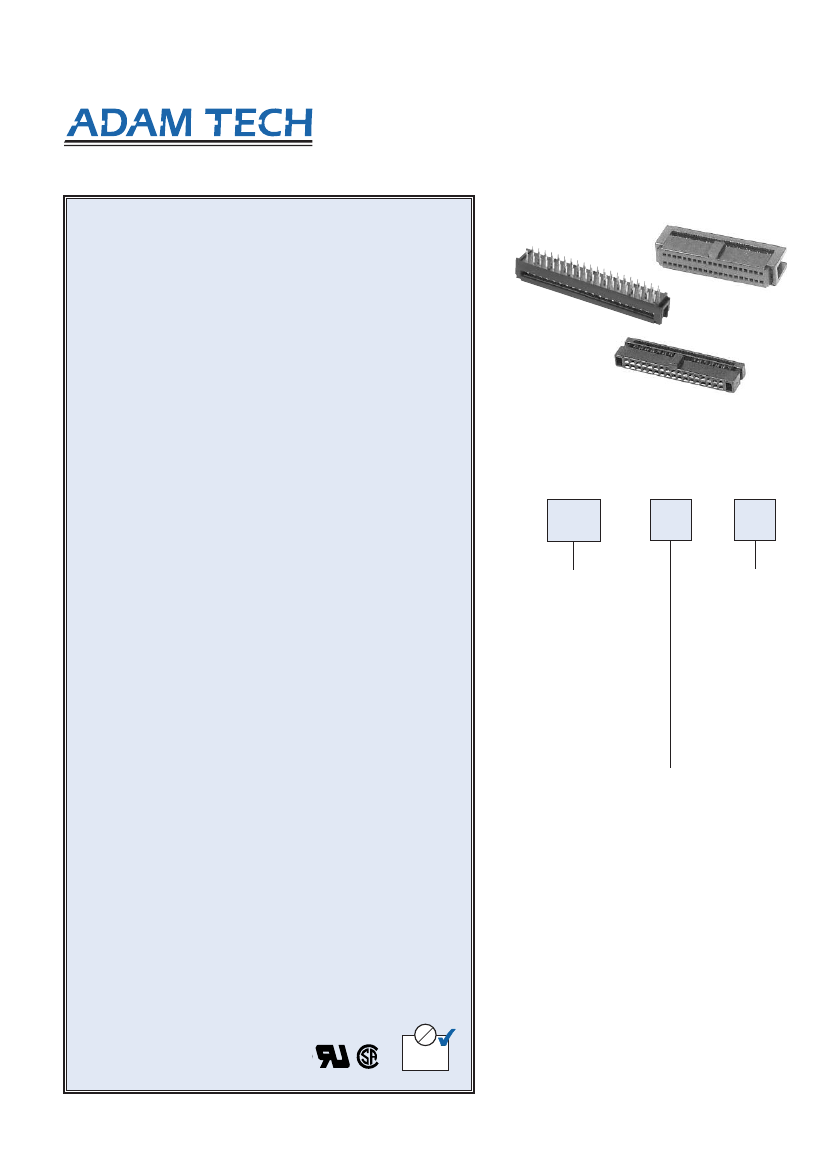

.050" IDC CONNECTORS
Adam Technologies, Inc.
DUAL ROW SOCKETS & TRANSITION PLUGS
HFCS & HFDP SERIES
INTRODUCTION:
Adam Tech .050" IDC Sockets and transition plugs are low profile,
precision designed flat cable connectors that feature either .050" x
.100" centerlines or .050" x .050" centerlines. These series quickly
and easily mass terminate flat cable in one simple step. Our superior
contact design provides a smooth high pressure wiping action to
ensure excellent continuity. They are used with a single layer of .025"
flat cable. Their small size, light weight and high density make them
ideal for compact and limited space applications.
FEATURES:
.050" x .050" or .050" x .100"
Low Profile and High Density
Uses Single layer .025” Flat Cable
Quickly and easily mass terminates standard Flat Cable
Smooth High Pressure Wiping Contacts
MATING CONNECTORS:
Adam Tech .050" HBHR series box headers or HPH2 series pin
headers
SPECIFICATIONS:
Material:
Insulator: PBT, glass reinforced, rated UL94V-0
Insulator Color: Black
Contacts: Phosphor Bronze
Contact Plating:
Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max.
Contact resistance: 20 mΩ max. Initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 0.312 lbs per contact max.
Withdrawal force: 0.094 lbs per contact min.
Recommended wire size: 28 Awg stranded
Cable retention: 22 lbs. min axial force per inch.
Mating durability: 500 cycles min.
Temperature Rating:
Operating temperature: -40°C to +105°C
PACKAGING:
Anti-ESD plastic trays
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
HFCS Strain Relief
Part No.:
HFSR - XX
(XX = No. of Positions)
ORDERING INFORMATION
HFCS
50
SG
SERIES INDICATOR
HFCS
= Low profile
.050" x .100" IDC
Socket for single
layer .025"
Flat Cable
HFCS-A
= Low profile
.050" x .050" IDC
Socket for single
layer .025"
Flat Cable
HFDP
= .050" Paddleboard
Connector for
single layer .025"
Flat Cable
FDH
= 4 Row
Transition plug
PLATING
SG
= Selective
gold plating
in contact
area
T
= Tin plated
(HFDP)
POSITIONS
HFCS:
10, 20, 30, 40,
50, 60, 70, 80,
90, 100
HFCS-A:
10, 20, 26, 34,
40, 50
HFDP:
30, 50, 68,
72, 80, 100
FDH:
10, 14, 16,
20, 26, 34,
40, 50, 60
Pb
UL
®
®
®
D E
COMPLIANT
2002
/ 95
/ EC
V
RoHS
OPTIONS
Add designator(s) to end of part number
N
= No polarization bump (HFCS series)
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
