1F11192A-SS4340M-AF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1F11192A-SS4340M-AF

1F11192A-SS4340M-AF: DescriptionBoard Connector, 192 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

1F11192A-SS4340M-AF Overview

Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, LEAD FREE

1F11192A-SS4340M-AF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	GOLD (10)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1F
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	192
UL Flammability Code	94V-0
Base Number Matches	1

1F11192A-SS4340M-AF Preview

Download Datasheet

View All

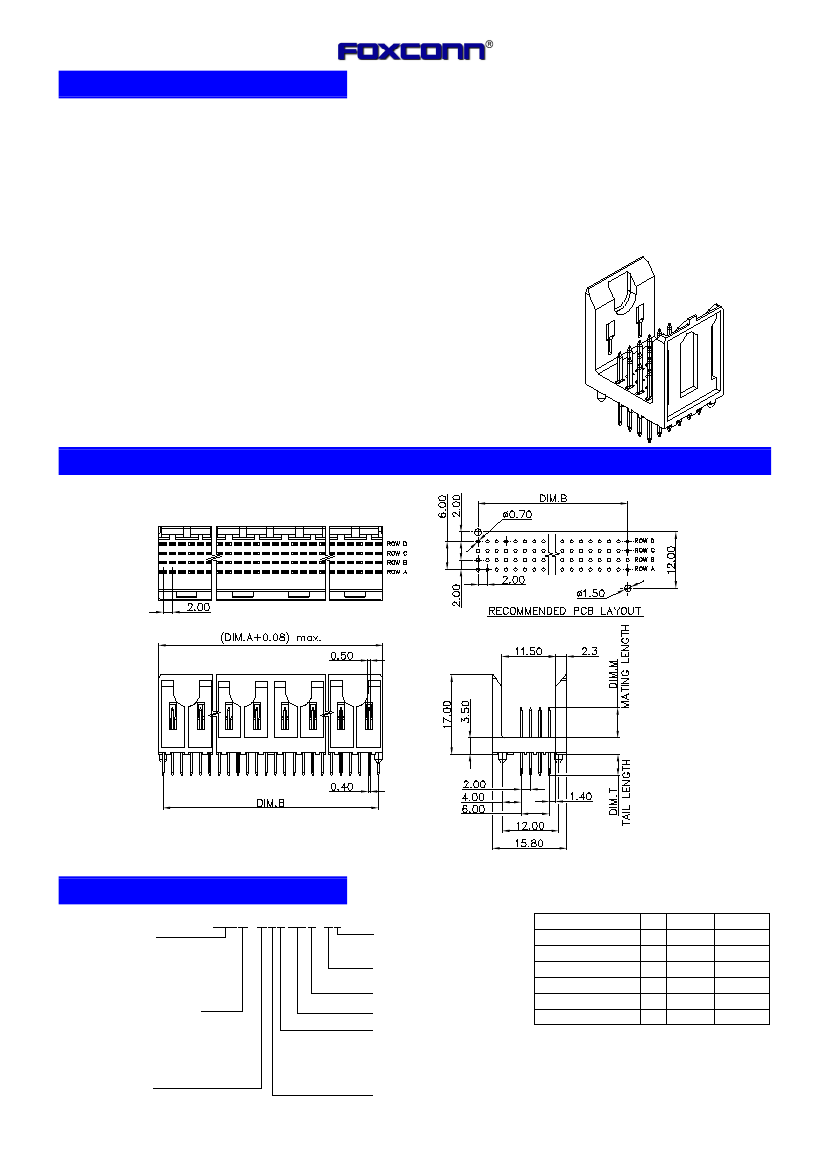

SPECIFICATIONS

FUTURE BUS CONNECTOR

1F Series

Header Sol der Type

2.0mm Pitch

4 Row s

Mechanical

Contact Retention Force:

1.0Kg min.

Electrical

Voltage Rating:

750V

Current Rating:

Contact Resistance:

45m

Ω

max.

Dielectrical Withstanding Voltage:

1000V

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

LCP, UL 94-0 rated, Ivory White

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

DRAWING

ORDERING I NF OR MATI O N

PRODUCT NO.: 1 F 1 1 * * * * - S * * 4 0 * - * *

POS. NO.:

024=024 pos.

048=048 pos.

072=072 pos.

096=096 pos.

120=120 pos.

192=192 pos.

1F11024*-S**40*-**

120

192

11.90

23.90

35.90

47.90

59.90

95.90

10.00

22.00

34.00

46.00

58.00

94.00

DIM. B

Lead Free Code:

N=None

F=Lead Free

1F11048*-S**40*-**

1F11072*-S**40*-**

1F11096*-S**40*-**

1F11120*-S**40*-**

1F11192*-S**40*-**

P/N

Package Type:

A=Tube

Extension Code:

N,T,L,M

Mating Area Plating:

1=GOLD FLASH

3=0.76um(30u")MIN. GOLD PLATING

5=1.27um(50u")MIN. GOLD PLATING

6=0.25um(10u")MIN. GOLD PLATING

A=0.76um(30u")MIN. FPT PLATING,

0.25um(10u")MIN. GOLD INCLUDED

Body Style

Mating Length(DIM.M)

1=5.00 mm

2=5.75 mm

3=6.50 mm

4=7.25 mm

5=8.00 mm

POS. DIM. A

Tail Style:

S=Solder Type

Tail Length(DIM.T)

4=2.65mm

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
