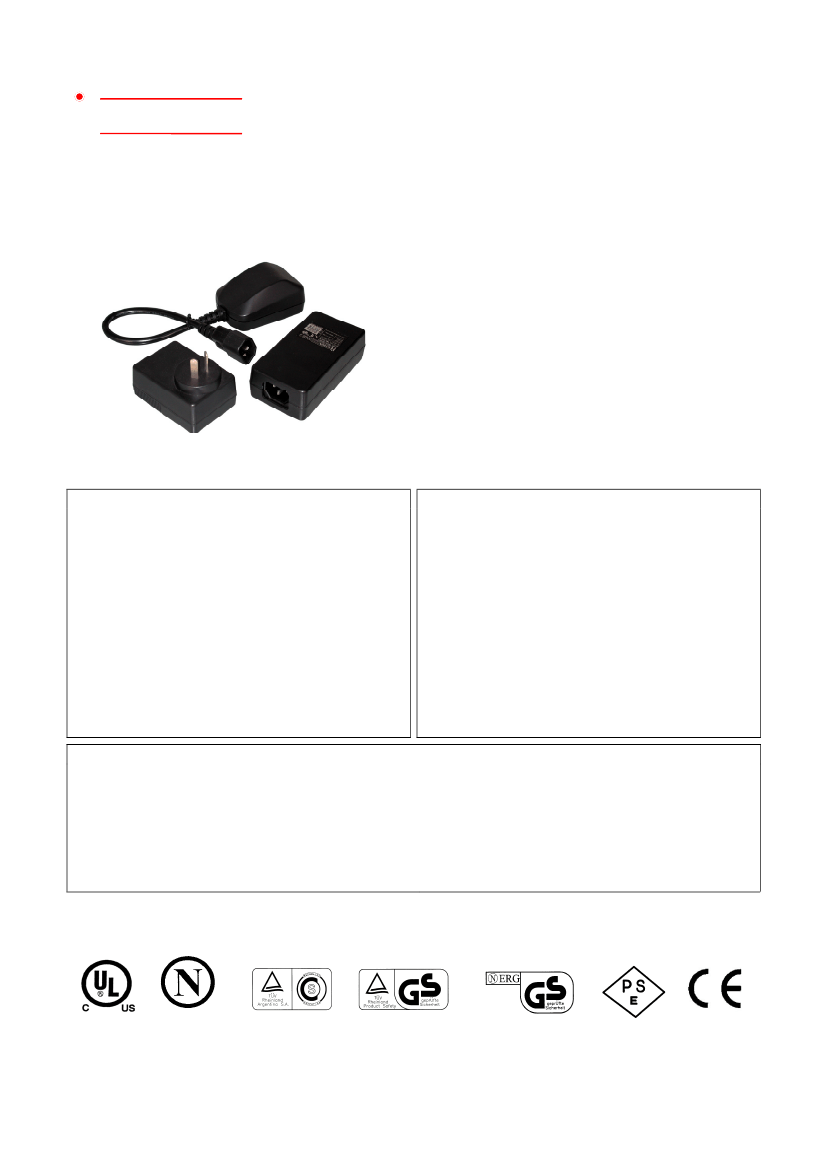

H HiTRON

AC/DC EXTERNAL WALLMOUNT & DESKTOP ADAPTER

UNIVERSAL INPUT SINGLE OUTPUT 16-18 WATTS

SWITCHING POWER SUPPLIES HES18 SERIES

FEATURES:

UNIVERSAL INPUT

DIVERSE AC PLUGS AVAILABLE

WALLMOUNT OR DESKTOP FORMAT

MEET UNIVERSAL SAFETY STANDARD

EMI MEET EN55022 / FCC CLASS B

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

OUTPUT SPECIFICATION

Input Voltage:

90-264Vac typical.

Output Voltage:

See Ratings Chart.

Input Connector:

Output Current:

See Ratings Chart.

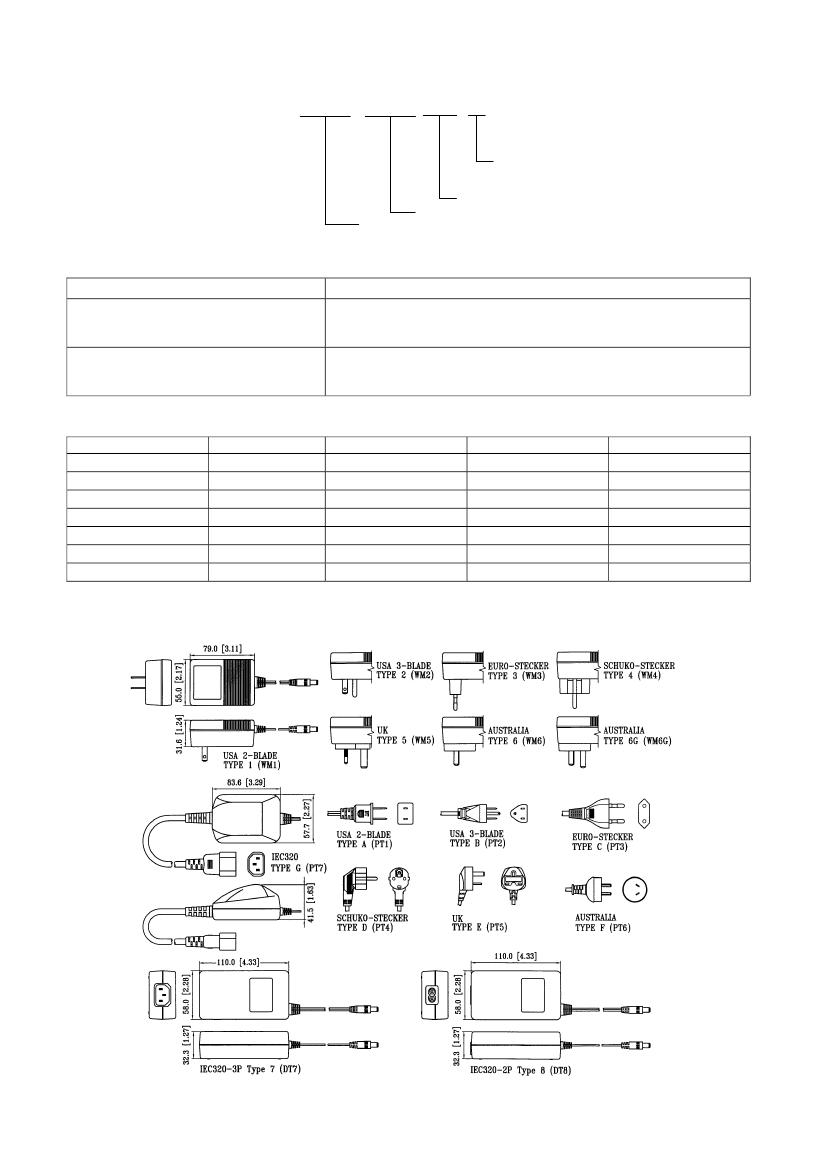

Wallmount format:

WM1,2(USA/Japan)/WM3(Euro-Stecker)/

Output Wattage:

16-18 Watts typical.

WM4(Schuko-stecker)/ WM5(UK)/

Output Connector:

Optional.

WM6, 6G(Australia).

Line Regulation:

0.1% typical.

Desktop format:

IEC320 Inlet Type: DT7-3P or DT8-2P.

Mouse Power Pig-tail Type: PT1/2/3/4/5/6/7.

Load Regulation:

±1.5-3.0% typical.

Noise & Ripple:

1.0% typical peak to peak.

Input Frequency:

47-63Hz.

OVP:

Built-in Zener diode clamping.

Inrush Current:

Typical 48A @230Vac or

Adjustability:

Factory set.

28A @230Vac by adding thermister.

Overload Protection (OLP):

Input Current:

0.4A @115Vac/ 0.17A @230Vac typical.

Fully protected against output overload and short circuit.

Dielectric Withstand:

Meet IEC60950.

OLP set at about 125-150% rating output wattage.

EMI:

Meet EN55022 / FCC Class B.

Hold-up Time:

10mS @115Vac/ 40mS @230Vac typical.

Consult the factory for OLP setting.

GENERAL SPECIFICATION

Efficiency:

75-80% typical.

Switching Frequency:

Fixed 40KHz.

Circuit Topology:

Fixed Frequency Flyback circuit.

Transient Response:

Output voltage returns in less than

3mS following a 25% load change.

Safety Standard:

Meet UL1950/ EN60950 Class II.

Class I for WM2,4,5,6G / DT7/PT 2,4,5,7.

Power Density:

2.0-2.3Watts / Cubic inch.

Operating Temperature:

0°C to room temperature.

0 to +40 °C for Japan PSE mark.

Storage Temperature:

-20 to +85°C.

Temperature Coefficient:

0.04% /°C typical.

Cooling:

Free air convection.

Construction:

Impact resistant thermo-plastic

enclosure case.

Wallmount or Desktop Format.

NOTE: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.

(2) Load regulation is measured at 115Vac or 230Vac in percentage to indicate the change in output voltage as the load is varied from half load to full load (±%).

(3) The exact obtainable load regulation depends upon the output cord selected and load current. Upper data are for 6 ft. (2 meters) cord AWG#18 wires.

(4)Due to requests in market and advances in technology, specifications subject to change without notice.

For the details of safety approval, please consult the factory.
