HER-35-240015-1 datasheet, PDF

Datasheet> All Categories > HER-35-240015-1

HER-35-240015-1: DescriptionAC/DC EXTERNAL REGULATED WALLMOUNT ADAPTER 2-BLADE USA AND EURO-STECKER AC PLUG SINGLE OUTPUT 1.6-3.6 WATTS LINEAR POWER SUPPLIES; File Size215KB，2 Pages; ManufacturerHitron; Websitehttp://www.hitron-e.com/

Download Datasheet View All

HER-35-240015-1 Overview

AC/DC EXTERNAL REGULATED WALLMOUNT ADAPTER 2-BLADE USA AND EURO-STECKER AC PLUG SINGLE OUTPUT 1.6-3.6 WATTS LINEAR POWER SUPPLIES

Preview

Download Datasheet

View All

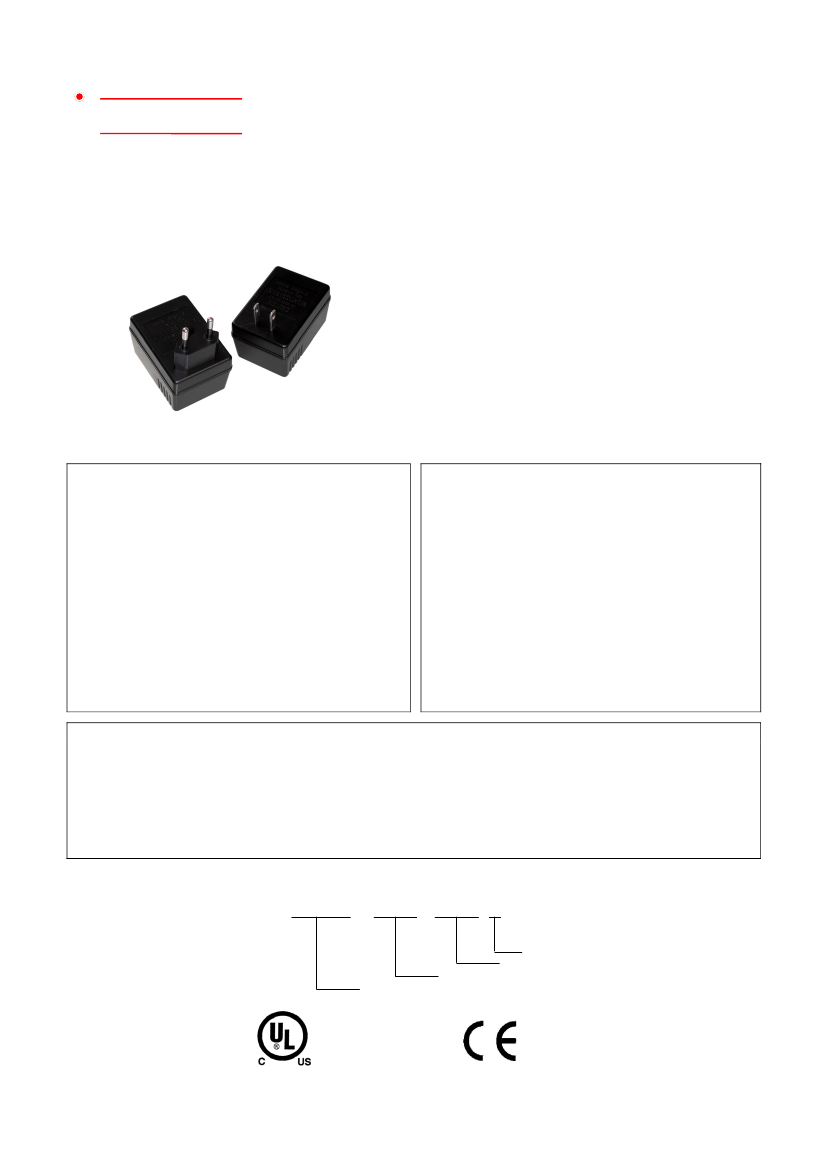

H HiTRON

AC/DC EXTERNAL REGULATED WALLMOUNT ADAPTER

2-BLADE USA AND EURO-STECKER AC PLUG SINGLE OUTPUT

1.6-3.6 WATTS LINEAR POWER SUPPLIES HER-35 SERIES

FEATURES:

SMALL & COMPACT IN SIZE

2-BLADES USA & EUROPEAN AC PLUG

MEET USA & CANADA STANDARD

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Nominal 100/110/120Vac

Custom Vac available.

Input Connector:

U.S. 2-blade AC plug WM1.

Euro-stecker AC plug WM3.

Input Frequency:

60Hz.for nominal 100/110/120Vac.

50Hz for nominal 220/230/240Vac.

Input Current:

0.1A @120Vac input.

Dielectric Withstand:

Meet IEC950.

EMI:

Inherent low conducted and radiated noise level,

meet EN 55022 & FCC class B.

Hold-up Time:

Less than 1mS at nominal input and

typical load.

Thermal Protection:

Thermal fuse installed in the

input transformer.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Wattage:

1.6-3.6 Watts typical.

Output Connector:

Optional.

Load Regulation:

±5.0% typical at end of 6ft.cord

AWG#20 wires.

(The exactly voltage regulation obtainable

depends upon the output cord & connector

selected and load current.)

Noise & Ripple:

Less than 20 mV.

Overload Protection:

Protected by thermal fuse buried

inside the transformer.

GENERAL SPECIFICATION

Efficiency:

16% for 3.3V unit typical, 20% for 5V unit,

30% for 12V, 15V and 24V unit.

Circuit Topology:

Line frequency lamination

steel transformer circuit.

Transient Response:

Less than 50µS following

a 25% load change.

Safety Standard:

Meet UL1950 Class II.

Operating Temperature:

0 to +25/35/40°C

without derating. (various with output voltage)

Storage Temperature:

-20 to +85°C.

Cooling:

Free air convection.

Construction:

Impact resistant plastic enclosure case.

Wallmount format in EI-35 case.

NOTE: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.

(2) Due to requests in market and advances in technology, specifications subject to change without notice.

MODEL NO. DESCRIPTION:

HER-35

—

X X X Y Y Y - N

AC PLUG: [1] WM1, [3] WM3

OUTPUT CURRENT

OUTPUT VOLTAGE

SERIES NAME IN EI-35 SIZE

In application.

-49-
