132294-10 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 132294-10

Preview

132294-10: DescriptionRF SMA Connector, Male, Cable Mount, Solder Terminal, Plug; CategoryThe connector The connector; File Size216KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

132294-10 Overview

RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug

132294-10 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	INSERTION LOSS MAX AT 6 GHZ, STANDARD: MIL-C-39012
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	GOLD (50)
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.14 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	132294-10
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

SMA.4

11/27/01

5:05 PM

Page 27

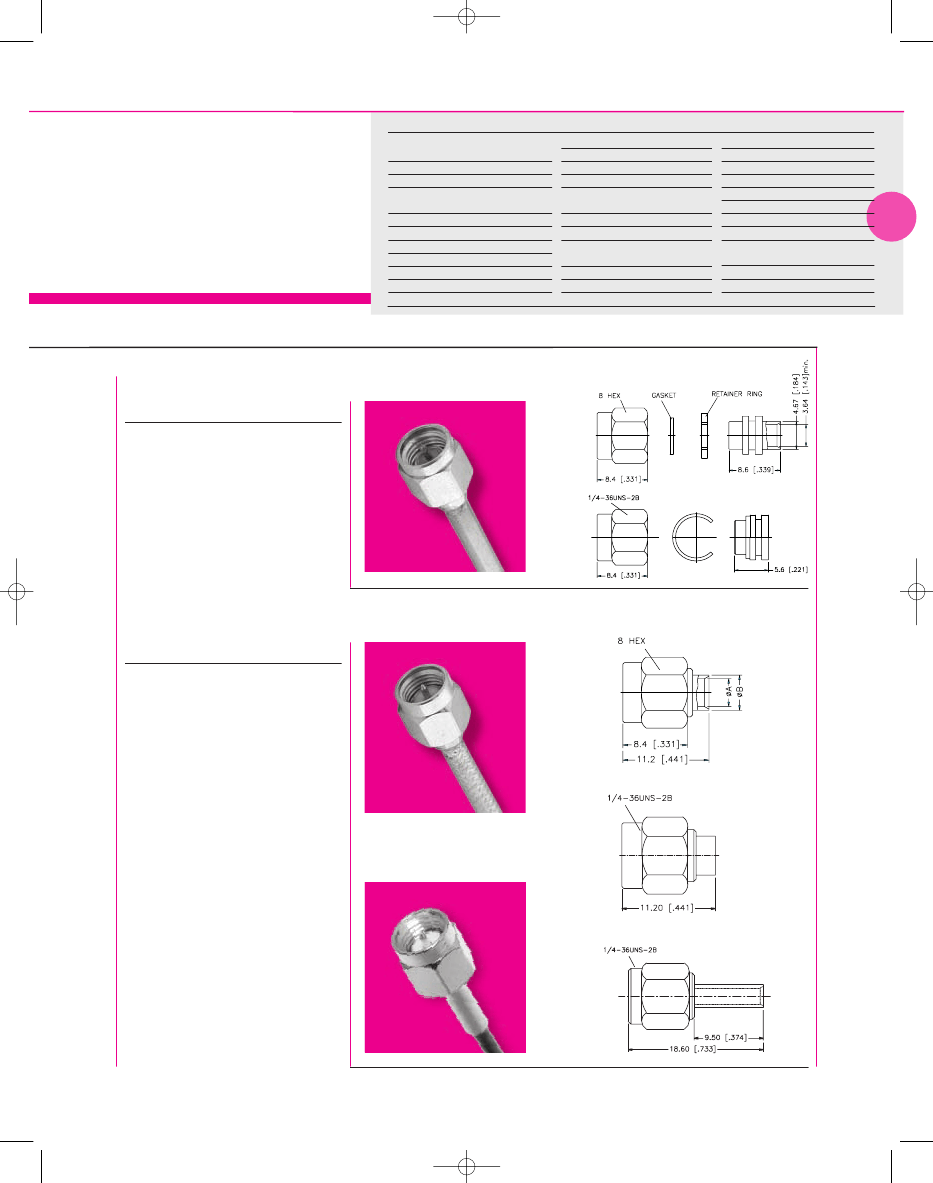

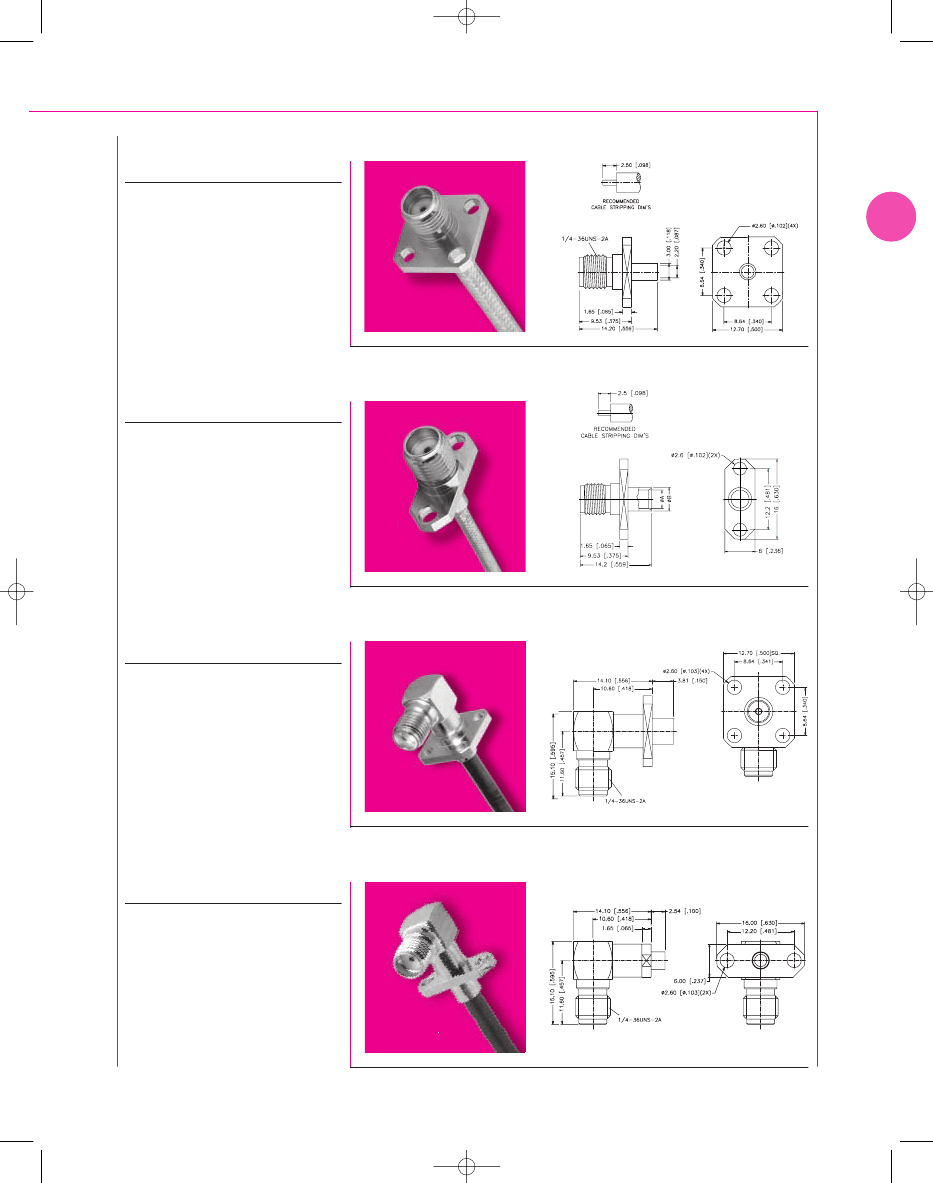

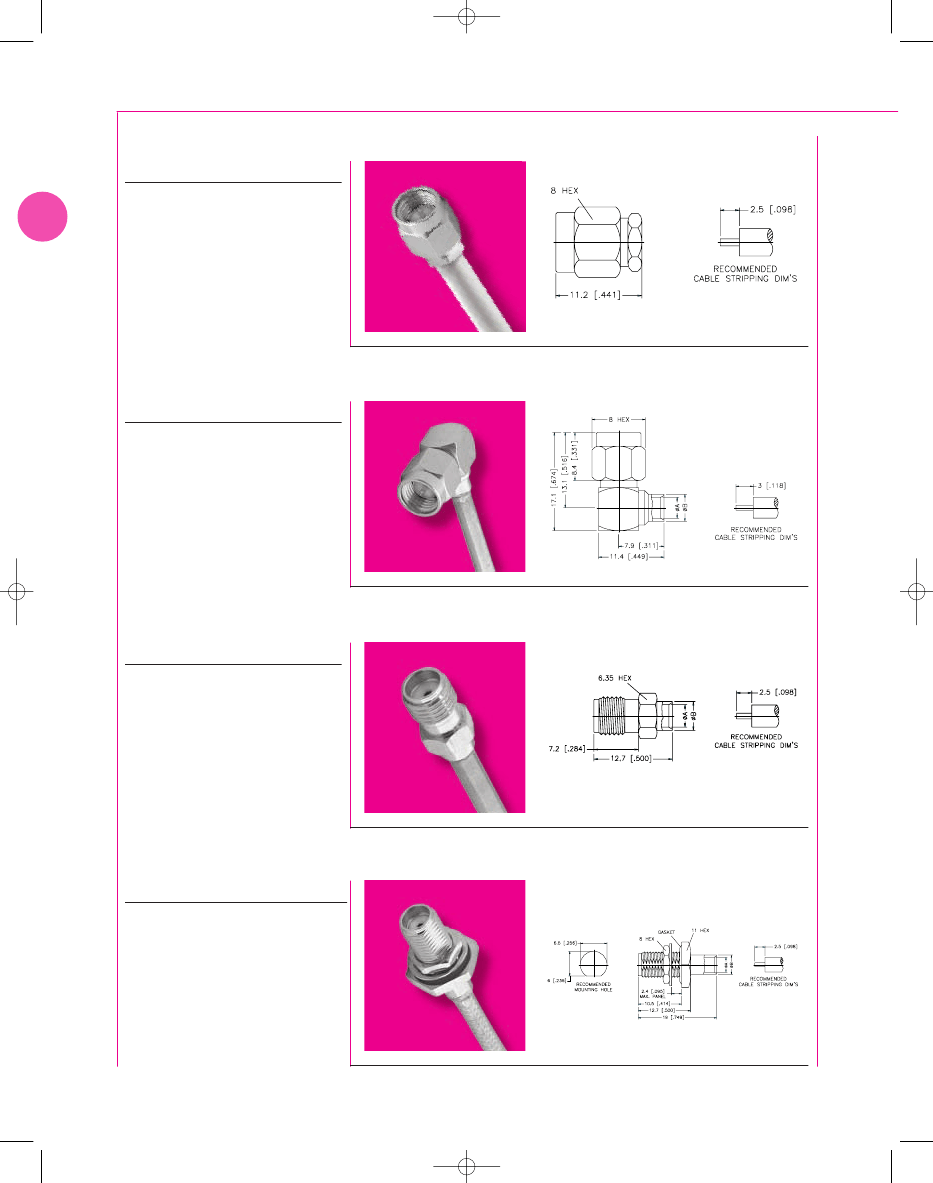

SMA COAXIAL CONNECTORS

All connectors listed, unless otherwise noted,

are Commercial Grade construction, gold-

plated brass bodies with 50µ" gold contacts.

All insulators are teflon. All other parameters

are equal to Mil Standard construction.

Mil Standard connectors, i.e. Stainless Steel

body, available upon request as per material

specifications listed in Material section on

preceding page.

All dimensions in millimeters and [inches].

01

01A

01B

02

03

03A

04

04A

05

05A

06

C A B L E

58/ 58A/ 58C/ 141/ 303/

LMR195

™

/ B7806A

55/ 142/ 223/ 400

LMR200

™

/ B7807A

58 PLENUM/THINNET/

122U/ B88240/ B89907

59/ 62/ 140/ 210

59/ U-20AWG

59/ U PLENUM

59/ U PLENUM-20AWG

174/ 188A/ 316/ B7805A

316/ U DOUBLE BRAIDED

179/ 187/ B9221

R O U P

L

179/ U DOUBLE BRAIDED

8/ 8A/ 213/ 393

214

8X/ LMR240

™

/ B7808A

B9913/ LMR400

™

/

B7810A/ B8214

07D B89913

07E 11

07F 11/ U-14AWG/ B8213/

B9292/ B7731/ B1859A

08

6/ 143/ 212

08A B1694A/ B9248

08B 6 PLENUM/ B1695A

G

06A

07

07A

07B

07C

E G

09

10

11

12

13

14

15

15A

16

17

18

19

E N D

B8227/ 89207

.141 SEMI-RIGID/ 402/U

.085 SEMI-RIGID/ 405/U

.250 SEMI-RIGID

.047 SEMI-RIGID/ B1674A

178/ 196

B8281/ B9231/ B9141

B88281

180/ 195/ 122/ B8218/

B1865A/ B1855

LMR6OO

™

AT&T734A/ B1505A

AT&T735A/ B735A1

DIRECT SOLDER FOR SEMI-RIGID .047", .085" AND .141" CABLE

STRAIGHT CABLE PLUG — CABLE CENTER CONTACT

P.N.

Cable

Group

10

Finish

Gold

Insulation Impedance

N/A

50

Crimp

Tool

N/A

132100

132100SS 10

S/S

STAINLESS STEEL

132266 10

Gold

SHORT PROFILE

132266SS

10

S/S

N/A

STAINLESS STEEL, SHORT PROFILE

50

N/A

132266

STRAIGHT CABLE PLUG — WITH CONTACT

P.N.

Cable

Group

11

10

Finish

Gold

Insulation Impedance

Teflon

50

Crimp

Tool

N/A

132101

132102

132200 10

Gold

STAINLESS STEEL

132101

132248 11

Gold

Teflon

STAINLESS STEEL NUT

132296

132249

12

13

Gold

Teflon

132290

10 Gold

CONTACT IN BODY

132294

11 Gold

CONTACT IN BODY

132290-10 10 Gold

EXTENDED BODY

132294-10 11 Gold

EXTENDED BODY

Teflon

50

N/A

Cable: .047" Cable, A = 1.24 mm [.049"] min,

B = 3.0 mm [.118"] min

.085" Cable, A = 2.2 mm [.087"] min,

B = 3.0 mm [.118"] min

.141" Cable, A = 3.6 mm [.142"] min,

B = 4.6 mm [.181"] min

132294-10

For Reverse Polarized connecters, add RP to standard part number. Contact Connex marketing for availability.

For Reverse Threaded connecters, add RT to standard part number. Contact Connex marketing for availability.

For Crimp Tool information, see page 183.

27

SMA COAXIAL CONNECTORS

132294-10 Related Products

	132294-10	132266SS	132290-10	132100SS	132292
Description	RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug	RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack,
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant
Other features	INSERTION LOSS MAX AT 6 GHZ, STANDARD: MIL-C-39012	INSERTION LOSS MAX AT 6 GHZ, STANDARD: MIL-C-39012	INSERTION LOSS MAX AT 6 GHZ, STANDARD: MIL-C-39012	INSERTION LOSS MAX AT 6 GHZ, STANDARD: MIL-C-39012	INSERTION LOSS MAX AT 6 GHZ, STANDARD: MIL-C-39012
Body/casing type	PLUG	PLUG	PLUG	PLUG	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (50)	NOT SPECIFIED	GOLD (50)	NOT SPECIFIED	GOLD (50)
Contact point gender	MALE	MALE	MALE	MALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insertion loss	0.14 dB	0.14 dB	0.14 dB	0.14 dB	0.14 dB
MIL compliance	YES	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE AND PANEL
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Contact completed and terminated	GOLD (50)	-	GOLD (50)	-	Gold (Au)
insulator material	POLYTETRAFLUORO ETHYLENE	-	POLYTETRAFLUORO ETHYLENE	-	POLYTETRAFLUOROETHYLENE
JESD-609 code	e4	-	e4	-	e4
Manufacturer's serial number	132294-10	132266SS	132290-10	-	-
Base Number Matches	1	1	1	1	-
voltage standing wave ratio	-	1.14	1.14	1.14	-
