10104389-13114LF datasheet, PDF

10104389-13114LF: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, LEAD FREE; CategoryThe connector The connector; File Size318KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10104389-13114LF Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, LEAD FREE

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	MATTE TIN (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	10104389
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	240
UL Flammability Code	94V-0
Base Number Matches	1

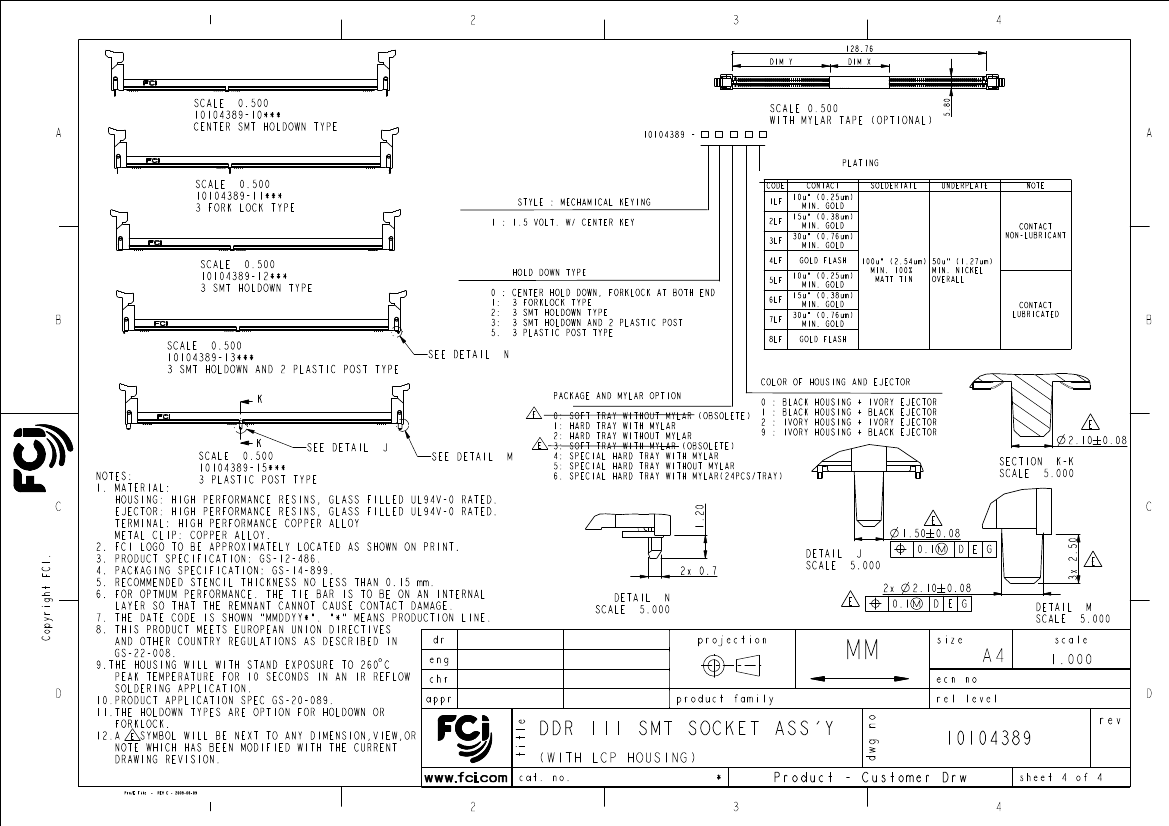

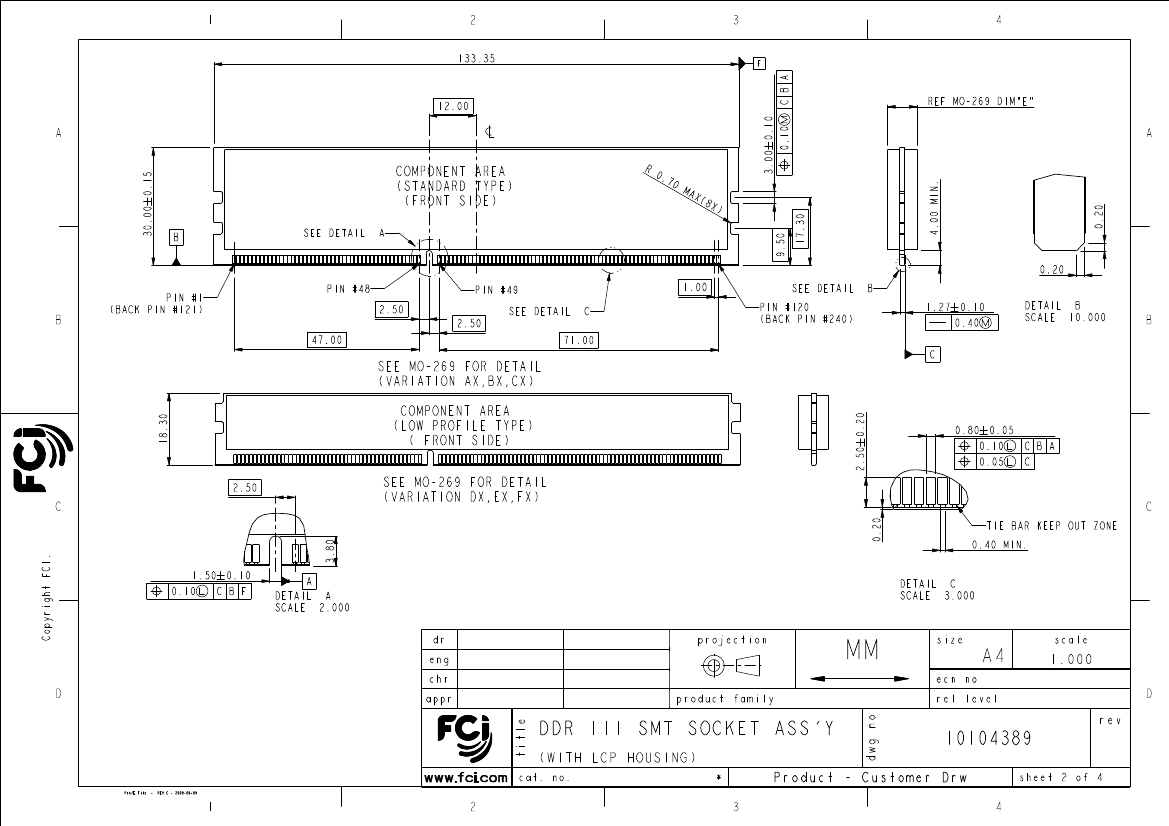

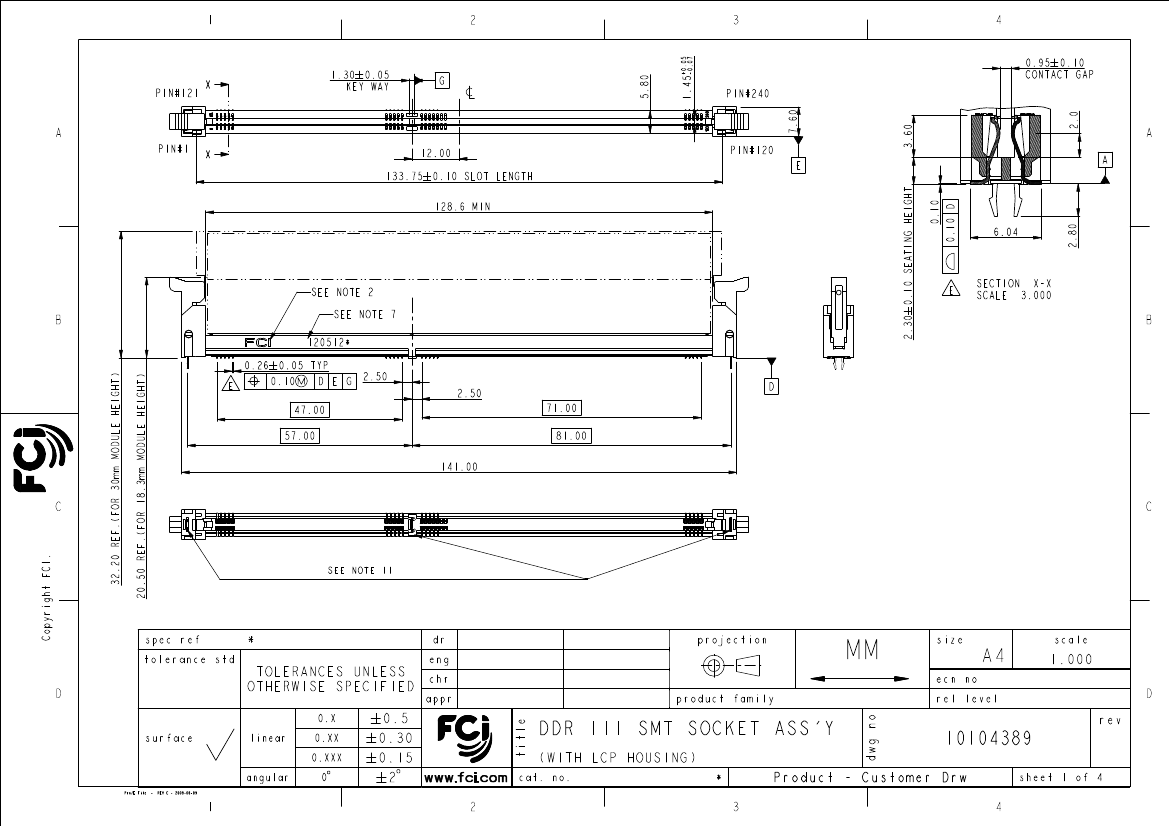

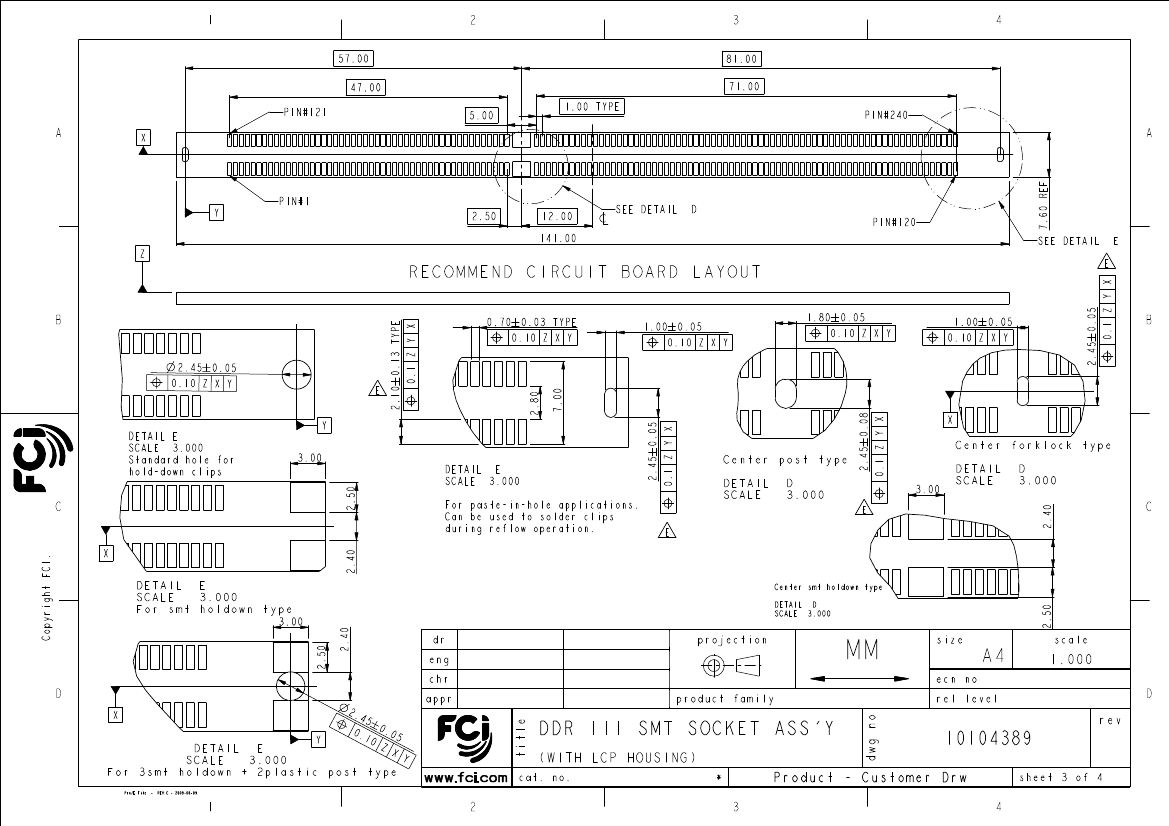

Rick Bian

Eric Jiang

Jian Huang

Pei-Ming Zheng

2010/07/03

2014/07/31

2014/08/04

ELX-DG-18366-1

Released

E

PDS: Rev :E

STATUS:Released

Printed: Aug 05, 2014
