SY10H842LZI-TR datasheet, PDF - EEWORLD Datasheet

SY10H842LZI-TR: Description10H SERIES, LOW SKEW CLOCK DRIVER, 4 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16; Categorylogic logic; File Size309KB，5 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

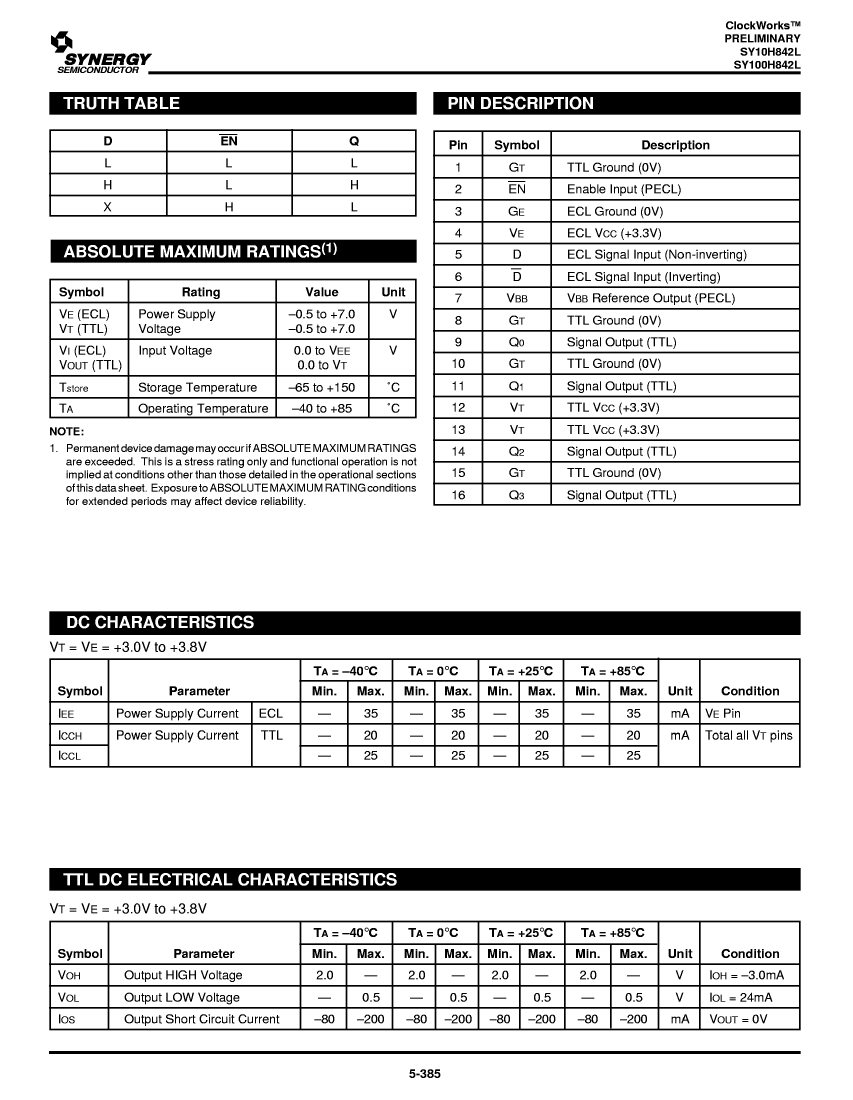

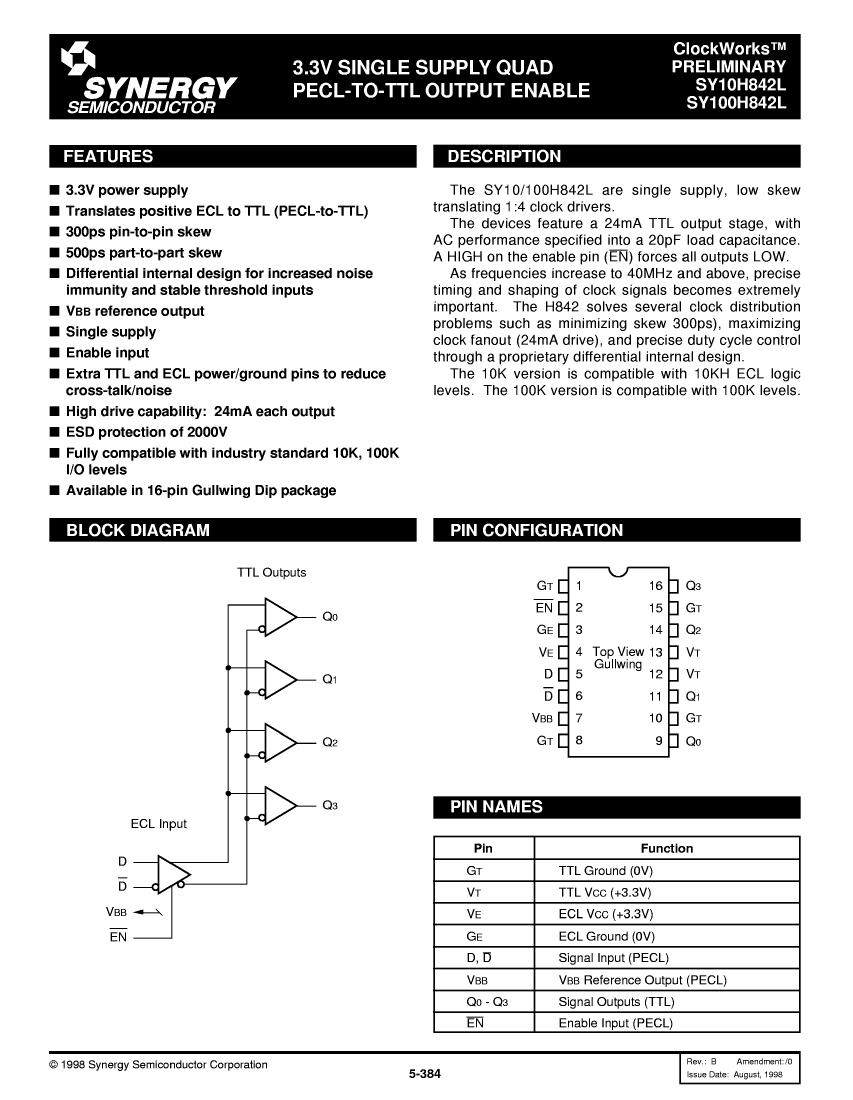

SY10H842LZI-TR Overview

10H SERIES, LOW SKEW CLOCK DRIVER, 4 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
package instruction	0.300 INCH, GULLWING, DIP-16
Reach Compliance Code	compli
series	10H
Input adjustment	DIFFERENTIAL
JESD-30 code	R-PDSO-G16
JESD-609 code	e0

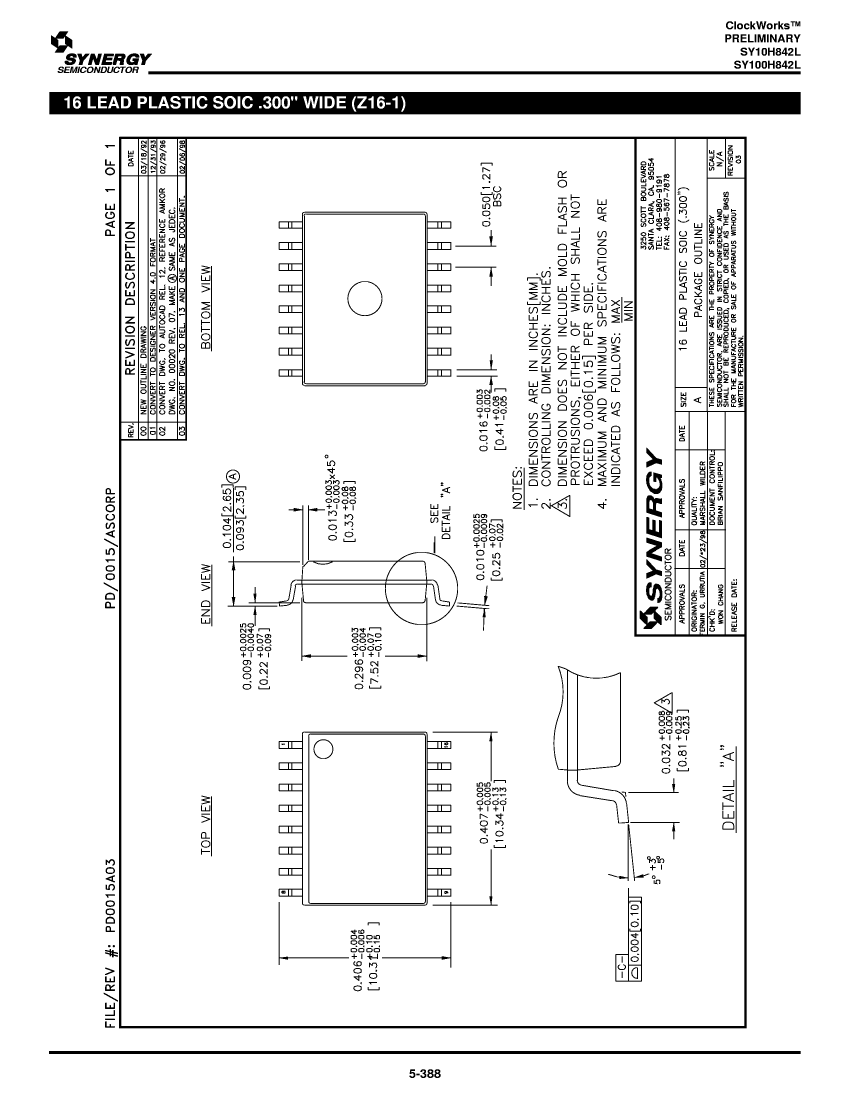

length	10.3 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	16
Actual output times	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240

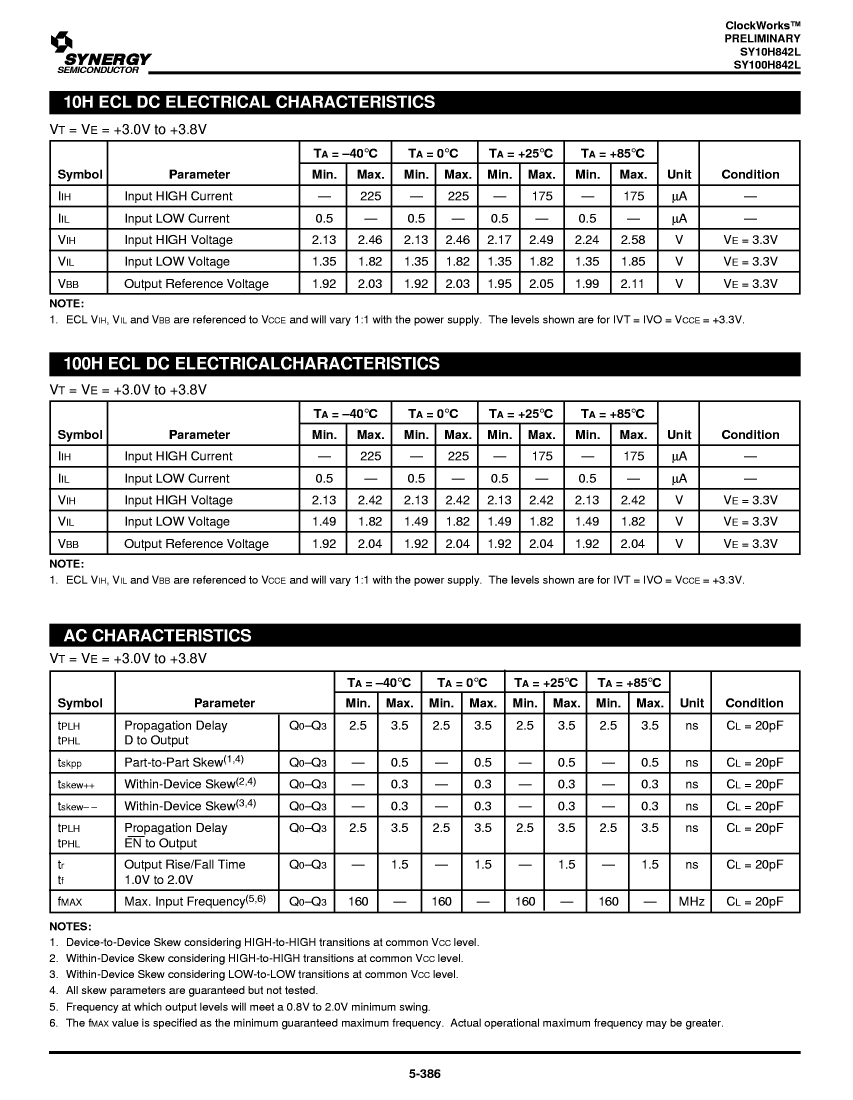

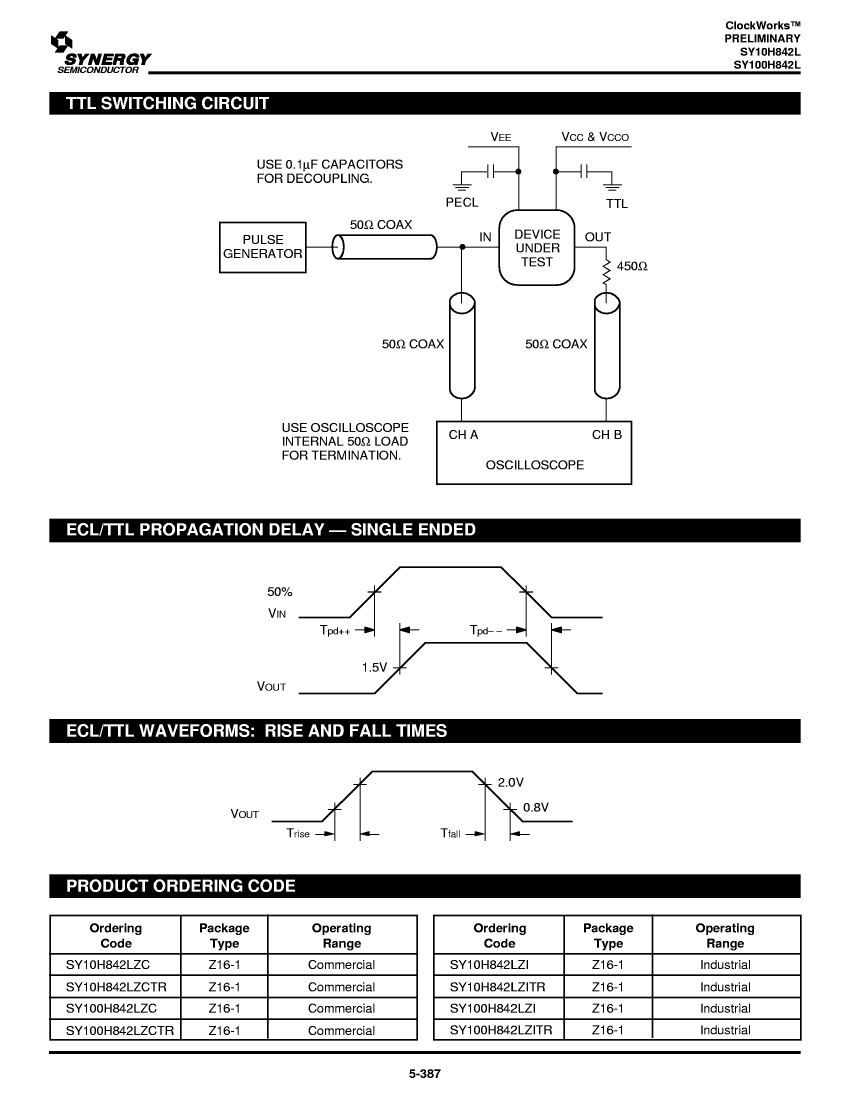

propagation delay (tpd)	3.5 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.3 ns
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	3.8 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm
minfmax	160 MHz

	SY10H842LZI-TR	SY10H842LZI
Description	10H SERIES, LOW SKEW CLOCK DRIVER, 4 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16	10H SERIES, LOW SKEW CLOCK DRIVER, 4 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16
Is it Rohs certified?	incompatible	incompatible
Maker	Microchip	Microchip
package instruction	0.300 INCH, GULLWING, DIP-16	0.300 INCH, GULLWING, DIP-16
Reach Compliance Code	compli	compli
series	10H	10H
Input adjustment	DIFFERENTIAL	DIFFERENTIAL
JESD-30 code	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0
length	10.3 mm	10.3 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Number of functions	1	1
Number of terminals	16	16
Actual output times	4	4
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240
propagation delay (tpd)	3.5 ns	3.5 ns
Certification status	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.3 ns	0.3 ns
Maximum seat height	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	3.8 V	3.8 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
width	7.5 mm	7.5 mm
minfmax	160 MHz	160 MHz
