2SK2158A-T1B-AT

Description
Small Signal Field-Effect Transistor, 0.1A I(D), 50V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, LEAD FREE, MINI MOLD, SC-59, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size126KB,5 Pages
ManufacturerNEC Electronics
Environmental Compliance
Download Datasheet Parametric Compare View All

2SK2158A-T1B-AT Overview

Small Signal Field-Effect Transistor, 0.1A I(D), 50V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, LEAD FREE, MINI MOLD, SC-59, 3 PIN

2SK2158A-T1B-AT Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNEC Electronics
Parts packaging codeSC-59
package instructionSMALL OUTLINE, R-PDSO-G3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage50 V
Maximum drain current (ID)0.1 A
Maximum drain-source on-resistance0.05 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountYES
Terminal surfaceMATTE TIN
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1

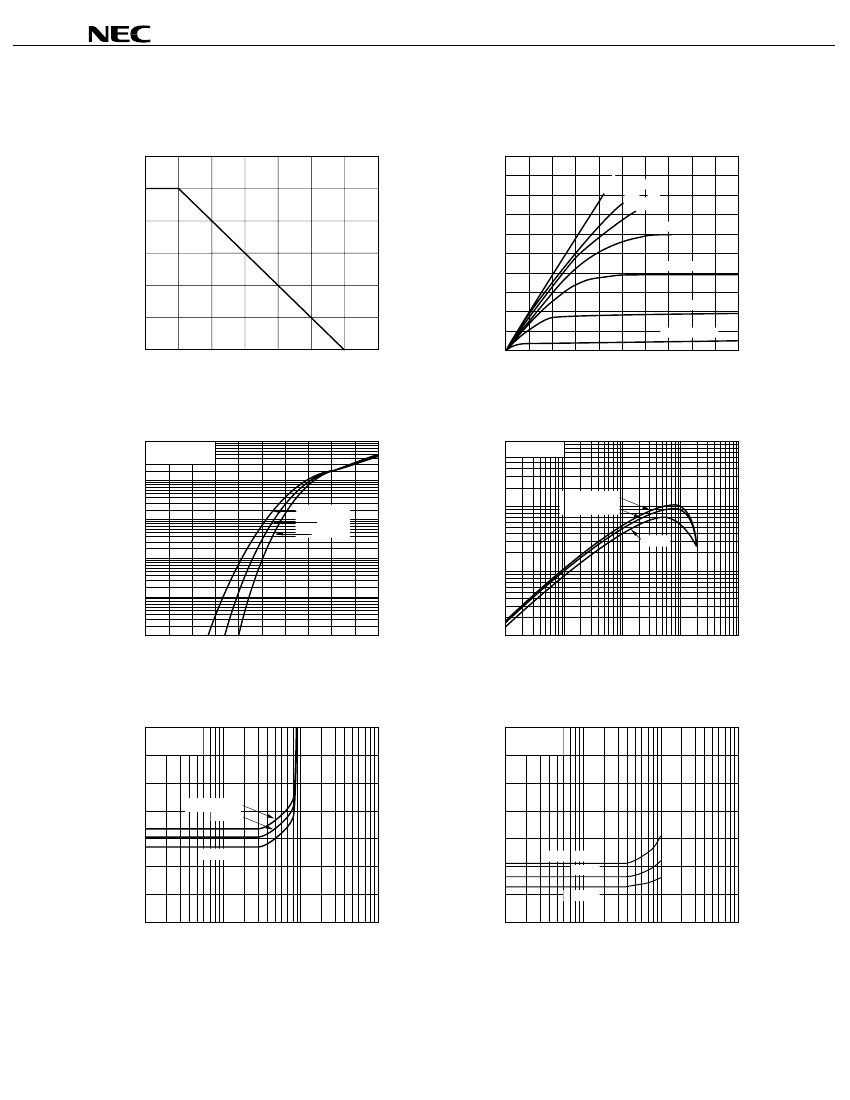

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK2158A
N-CHANNEL MOSFET
FOR HIGH-SPEED SWITCHING
The 2SK2158A is an N-channel vertical type MOSFET featuring an operating voltage as low as 1.5 V. Because it can
be driven on a low voltage and it is not necessary to consider driving current, the 2SK2158A is suitable for use in low-
voltage portable systems such as headphone stereo sets and camcorders.
FEATURES
• Capable of drive gate with 1.5 V
• Because of high input impedance, there is no need to consider
driving current.
• Bias resistance can be omitted, enabling reduction in total
number of parts.

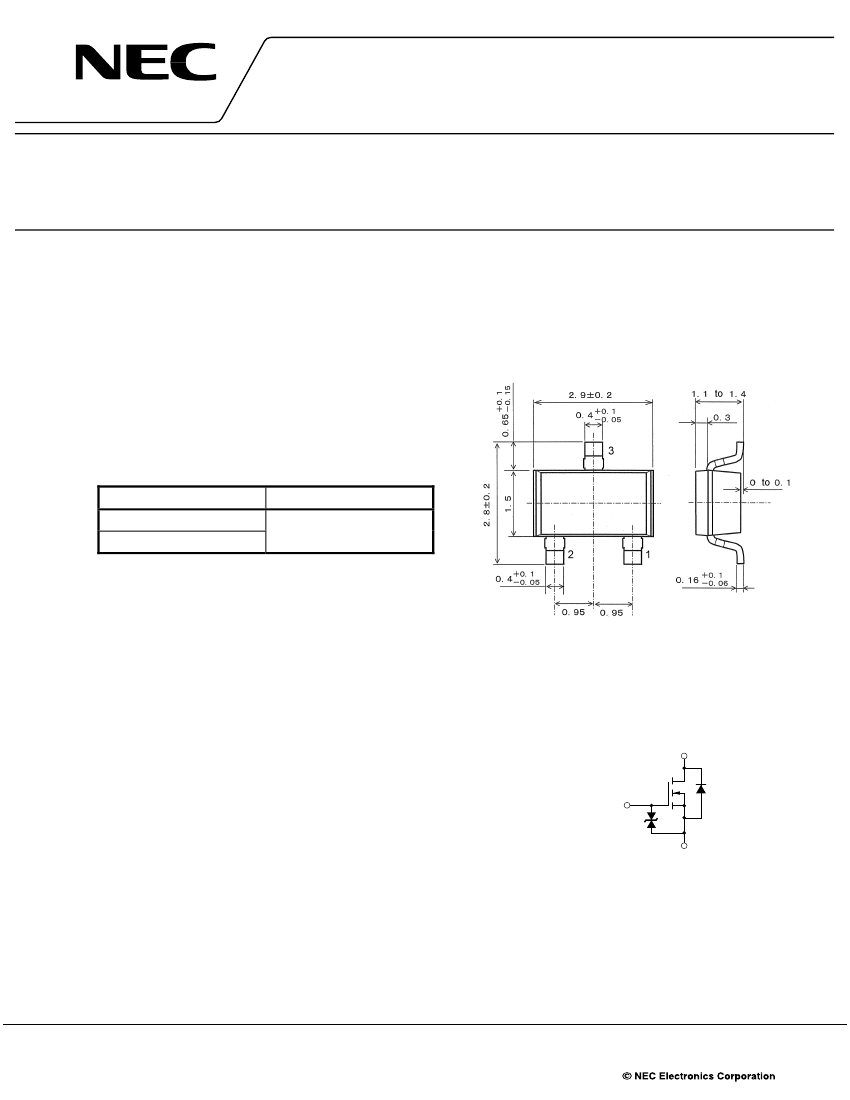

PACKAGE DRAWING (Unit: mm)
ORDERING INFORMATION
PART NUMBER
2SK2158A-T1B-AT
2SK2158A-T2B-AT
PACKAGE
SC-59 (Mini Mold)
Marking: G23
Remark
“-AT” indicates Pb-free (This product does not contain
Pb in external electrode and other parts.). “-T1B”, “-
T2B” indicates the unit orientation (8 mm embossed
carrier tape, 3,000 pcs/reel).
1: Source
2: Gate
3: Drain
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
Drain to Source Voltage (V
GS
= 0 V)
Gate to Source Voltage (V
DS
= 0 V)
Drain Current (DC)
Drain Current (pulse)
Note
EQUIVALENT CIRCUIT
50
±7.0
±0.1
±0.2
200
150
−55
to +150
V
V
A
A
mW
°C
°C
Gate
Protection
Diode
Source
Gate
Body
Diode
Drain
V
DSS
V
GSS
I
D(DC)
I
D(pulse)
P
T
T
ch
T
stg
Total Power Dissipation
Channel Temperature
Storage Temperature
Note
PW
10 ms, Duty Cycle
50%
Remark
The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage exceeding
the rated voltage may be applied to this device.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D17878EJ1V0DS00 (1st edition)
Date Published February 2006 NS CP(K)
Printed in Japan
1996
