DIVISION OF DELTROL CORP.
105
105
105:
105A:
105G:
105T:

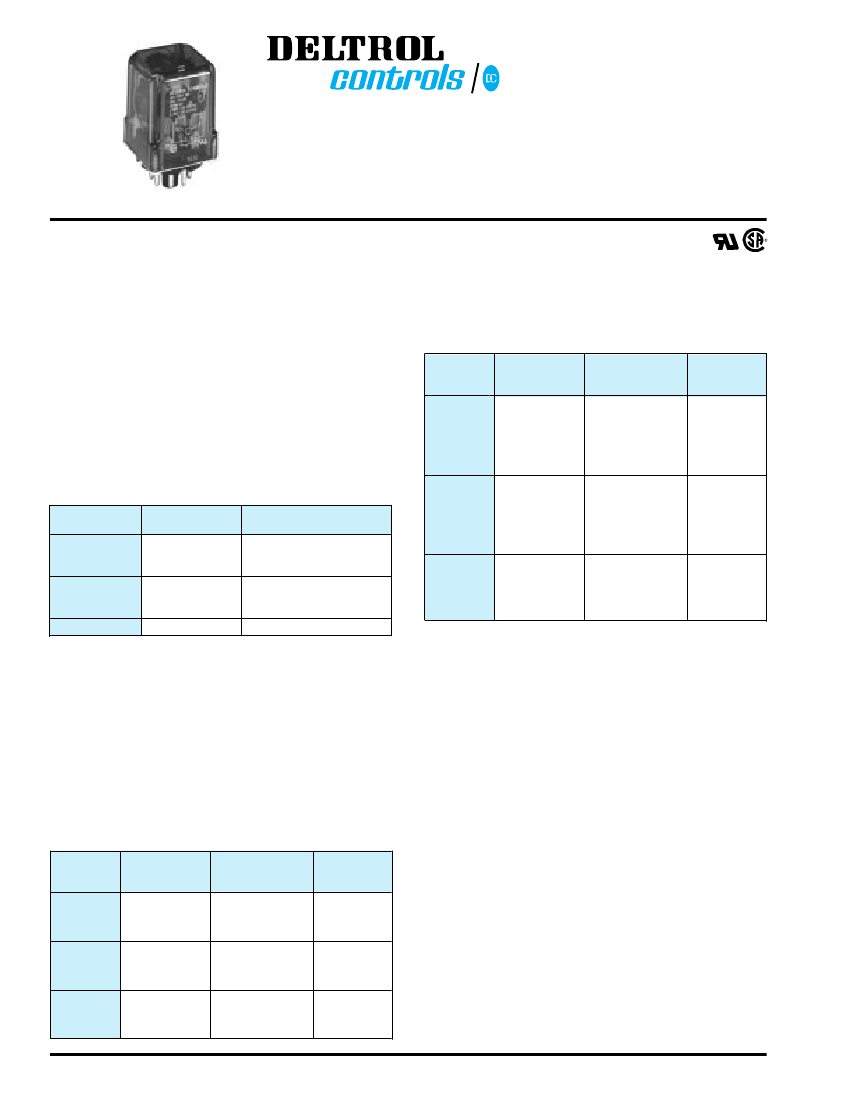

SERIES RELAY
5 AND 10 AMP
GENERAL PURPOSE
PLUG-IN – OCTAL BASE
Standard 8 or 11 Pin Socket Termination
Addition of Indicator Lamp – Indicates Voltage to the Coil
(48V Not Available)
Uses Std. Cover With Neoprene Gasket
Sensitive Coil Version of 105 Uses 125MW Per Pole
FEATURES
s
s
s
Class F Coil Insulation System for 155°C Total Temperature
Coil Molded in DuPont Rynite
®
for Environmental Protection
Unique Armature Stop Maintains Adjustment
MODELS
CONTACT DATA
CONFIGURATION:
Thru 3PDT
MATERIALS:
5 AMP:
1/8" Diameter Moveable Fine Silver
3/16" Diameter Stationary Fine Silver
10 AMP:
3/16" Diameter Moveable Silver Cadmium Oxide
3/16" Diameter Stationary Fine Silver
Gold Flash is Standard on All Contacts
Gold Diffused Available on Special Order – Min. Qty. Req’d.
COIL DATA –
ALL VERSIONS EXCEPT SENSITIVE COIL 105T
NOMINAL
VOLTAGE
6VAC
12VAC
24VAC
48VAC
120VAC
240VAC
6VAC
12VAC
24VAC
48VAC
120VAC
240VAC
6VDC
12VDC
24VDC
48VDC
110VDC
RESISTANCE
IN OHMS
±
10%
5.0
20
80
315
2025
8000
4.5
18
72
285
1850
7200
30
120
480
1850
10,000
NOMINAL
COIL
POWER
AC Coils
Single
Pole Units
2.0VA
CONTACT RATINGS
MOVEABLE
POLE
CONTACT SIZE CONFIGURATION
1/8" Diameter
thru 3PDT
UL
RATINGS
5 amp or 1/8 HP at 120VAC
5 amp or 1/4 HP at 277VAC
5 amp at 28VDC
10 amp or 1/3 HP at 120VAC
10 amp or 1/2 HP at 277VAC
10 amp at 28VDC
6.6 amp at 120VAC
AC Coils
2&3
Pole Units
2.2VA
3/16" Diameter
3/16" Diameter
thru DPDT
3PDT
DC Coils
1-3
Pole Units
Coil Voltages:
1.2W
UL RECOGNIZED FILE NO.:
E37066
CSA CERTIFIED FILE NO.:
LR20690
Not Applicable to 105T
EXPECTED LIFE
Electrical At Rated Load (Minimum)
100,000 Operations
Mechanical Life
10,000,000 Operations
AC: Up to 277 Volts/60 Hz
DC: Up to 125 Volts
Coil Treatment:
Molded Rynite
®
Std. Class F
Insulation Resistance:
100 Megohms Minimum
UL Insulation System File No.:
E74443
S155D 155°C Total Temperature Std.
(Covers S105 Class A and S130D Class B Requirements)
OPERATE DATA
Pick Up (at 25°C):
AC Volts 85% or Less of Nominal
DC Volts 75% or Less of Nominal
Operate Time:
Approx. 15 Milliseconds
Release Time:
Approx. 15 Milliseconds
DIELECTRIC STRENGTH
800 VRMS, 60 Hz Between Contacts
1500 VRMS, 60 Hz Between Other Elements
ENVIRONMENTAL DATA
Operating Ambient:
NOMINAL
COIL
POWER
125MW
AC: -45° to 55°C
DC: -45° to 70°C
Coil Temperature Rise:
(25°C Ambient – Continuous Duty)
AC: 45°C Approx. @ 60 Hz – Use at 50 Hz
will Cause Slight Increase in Coil Rise
DC: 25°C Approx.
105T SENSITIVE RELAY 5 AMP RATING ONLY
CONTACT
CONFIG.
SPDT
DC
PULL-IN
CURRENT
11.2MA
7.2MA
5MA
3.6MA
16MA
10MA
7.2MA
5MA
19.5MA
12.3MA
8.7MA
6.1MA
RESISTANCE
IN OHMS
±
10%
1K
2.5K
5K
10K
1K
2.5K
5K
10K
1K
2.5K
5K
10K

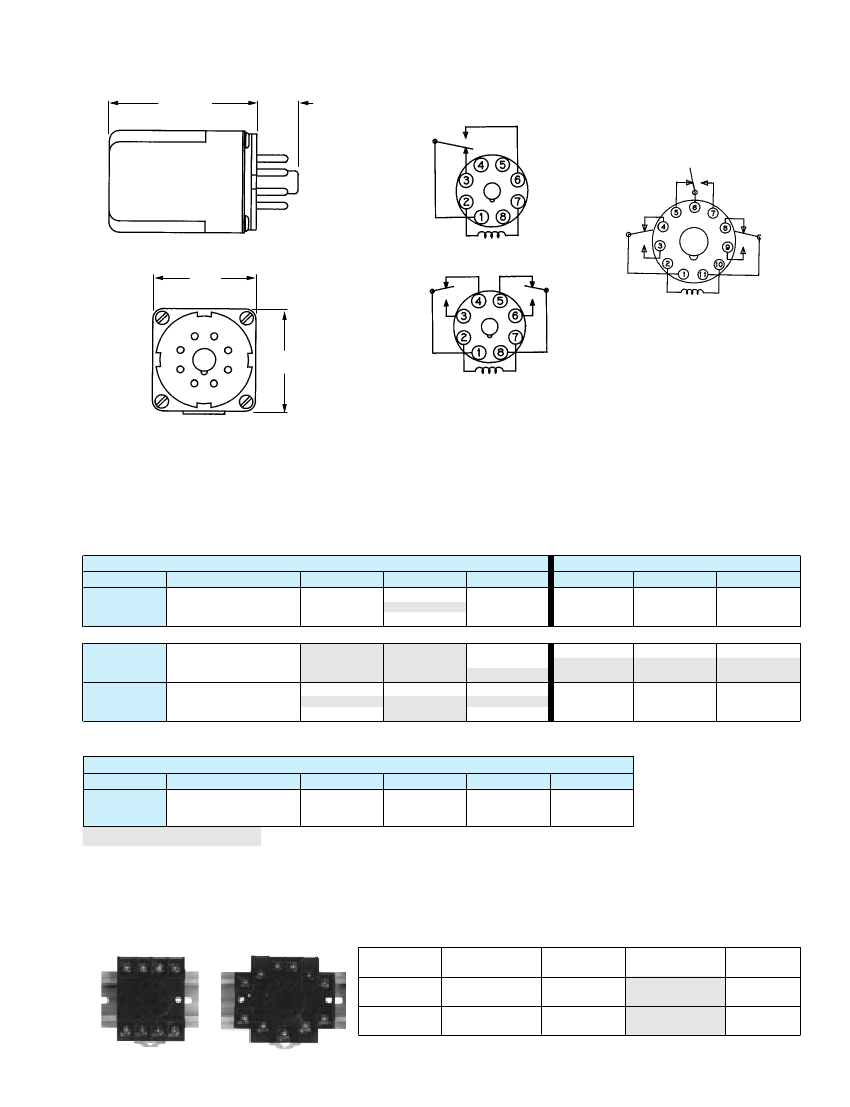

MECHANICAL DATA
250MW
Terminals:
8 or 11 Pin-Plug
Cover:
Polycarbonate – Flammability Rating 94V2
Weight:
All Versions Approx. 3.0 oz. (85 g)
DPDT
3PDT
375MW
8
FPGA/CPLD
