Microwave Ceramics Filters
Series/Type:
B350
The following products presented in this data sheet are being withdrawn.
Ordering Code
B69812N1907B350
Substitute Product
CF61B1201-1905-50
Date of Withdrawal
2012-04-27
Deadline Last
Orders
2012-07-31
Last Shipments
2012-10-31
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
Microwave Ceramics Filter
2-pole filter for DECT
Preliminary data sheet
Modification
P1
P2
Upgraded to new form
B69812N1907B350
S2D2/3/15
04.12.09
Applications
RF filter for DECT standard (Digital Enhanced Cordless Telecommunications)
Features
SMD filter consisting of coupled resonators with stepped impedances
(NdBa)TiO3 (εr = 88/TCf = 0 ±10 ppm/K) with a coating of copper (10
μm)
and tin (>5
μm)
Excellent reflow solderability, no migration effect due to copper/tin metallization
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 6
2009-12-04
Microwave Ceramics Filter
2-pole filter for DECT
Preliminary data sheet

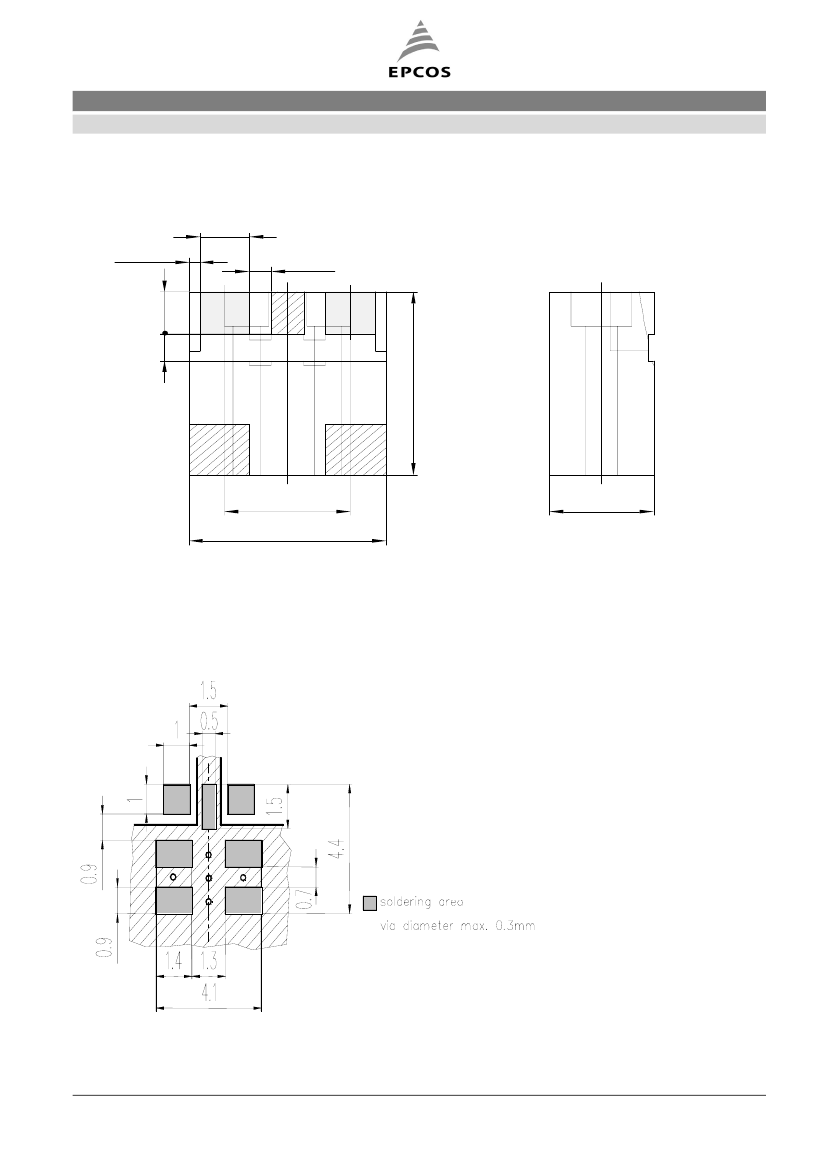

Component drawing
B69812N1907B350
S2D2/3/15
0.9
+ 0.2
- 0.2
0.2±0.1
0.9±0.15
0.6
+0.2
- 0.1
4±0.3
0.4
+0.2
- 0.2
I/O G I/O
G
2.3±0.2
3.6
+0.2
- 0.1
G
1.9±0.1
View from below onto the solder terminals and view from beside
Marking ‘A201 + DC’ on top of the filter
Recommended footprint
I/O size valid for substrates:
ε
r
: 3.5 … 4.5
thickness: 200 … 300
μm
I/O
G
G
G
I/O
G
G
For other substrates:
•
•
resize I/O patterns for a ground
capacitance: 0.1 … 0.2 pF
respect a min area of 0.8 × 0.8 mm
2
Characteristics
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 6
2009-12-04
Microwave Ceramics Filter
2-pole filter for DECT
Preliminary data sheet
Characteristics
min.
Center frequency
Insertion loss
Passband
Amplitude ripple (peak – peak)
Standing wave ratio
Impedance
Attenuation
DC to 1660 MHz
1660 to 1710 MHz
1710 to 1780 MHz
at 2 fc, 3 fc
Maximum ratings
IEC climatic category (IEC 68-1)
Operating temperature
fc –
α
IL
B 50
Δα
SWR
Z
α
30
35
8.0
10
38
17
typ.
1905
1.2
B69812N1907B350
S2D2/3/15
max.
–
1.5
MHz
dB
MHz
0.2
1.4
50
0.5
1.8
dB
Ω
dB
dB
dB
dB
–40 °C/+90 °C/56
Top –20/+85
°C
Typical passband characteristic
1,600
1,630
1,660
1,690
1,720
1,750
1,780
1,810
1,840
1,870
1,900
1,930
1,960
1,990
2,020
2,050
2,080
2,110
2,140
2,170
2,200
S11[dB]
S21[dB]
0
-5
-10
-15
-20
Attenuation [dB]
-25
-30
-35
-40
-45
-50
-55
-60
Frequency[GHz]
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 6
2009-12-04
Microwave Ceramics Filter
2-pole filter for DECT
Preliminary data sheet

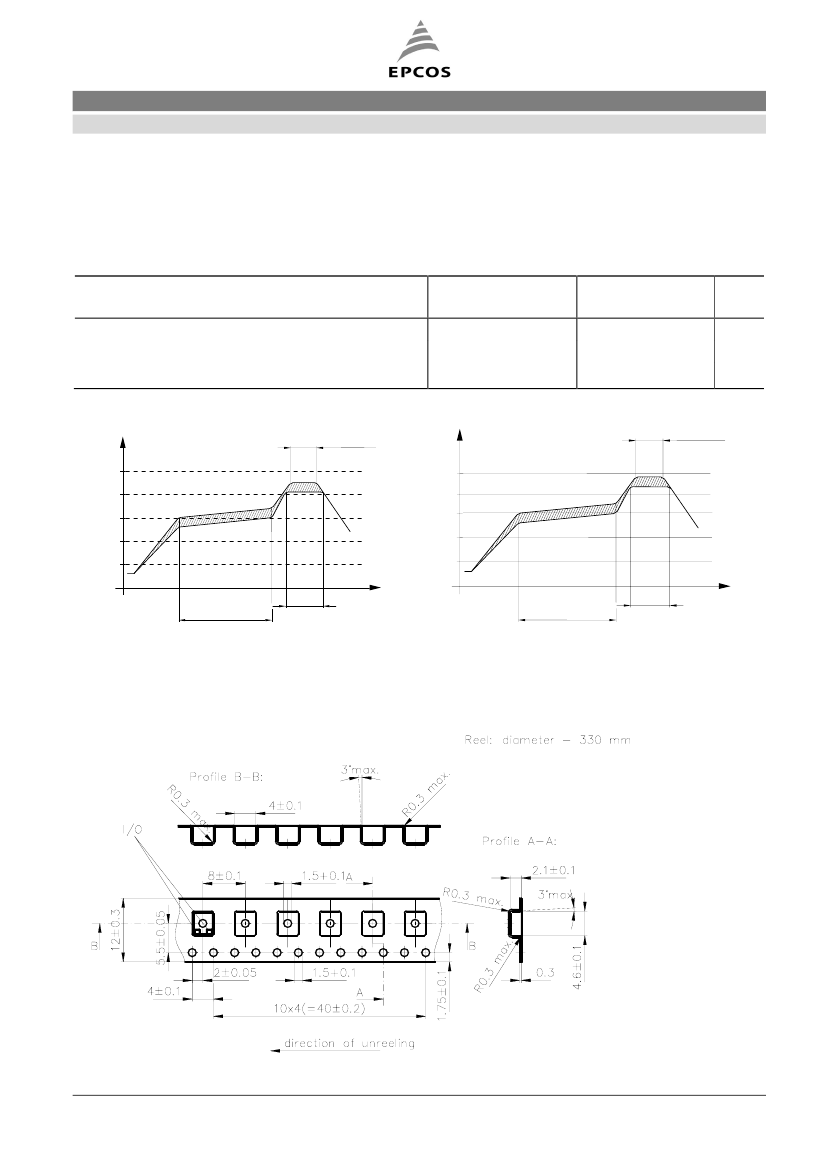

Processing information
Wettability acc. to IEC 68-2-58:
≥75%
(after aging)
Soldering requirements
Profile for eutectic
SnPb solder paste
Soldering type
Maximum soldering temperature
(measuring point on top surface of the component)
Recommended soldering conditions (infrared):
Temp. [°C]
250
215°C±10°C
200
150
100
50
within 10 sec.
B69812N1907B350
S2D2/3/15
Profile for leadfree
solder paste
reflow
260 (max. 2 sec.) °C
250 (max. 10 sec.) °C
reflow
235 (max. 2 sec.)
225 (max. 10 sec.)
Temp. [°C]
250
within 10 sec.
245°C±5°C
200
150
100
50
20-40 sec.
40-80 sec.
Time [sec.]
30 sec.
2.5 °C/s
2-3 min.
Time [sec.]
> - 5 °C/s
Delivery mode
Blister tape acc. to IEC 286-3, polyester, grey
Pieces/tape: 3000
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 6
2009-12-04
