8R2011B datasheet, PDF - EEWORLD Datasheet

8R2011B: DescriptionSpecial Switch, DPDT, On-on, Alternate, 0.06A, 30VDC, Solder Lug Terminal, Panel Mount,; CategoryMechanical and electronic products switch; File Size323KB，2 Pages; ManufacturerNidec Copal Electronics

Download Datasheet Parametric Compare View All

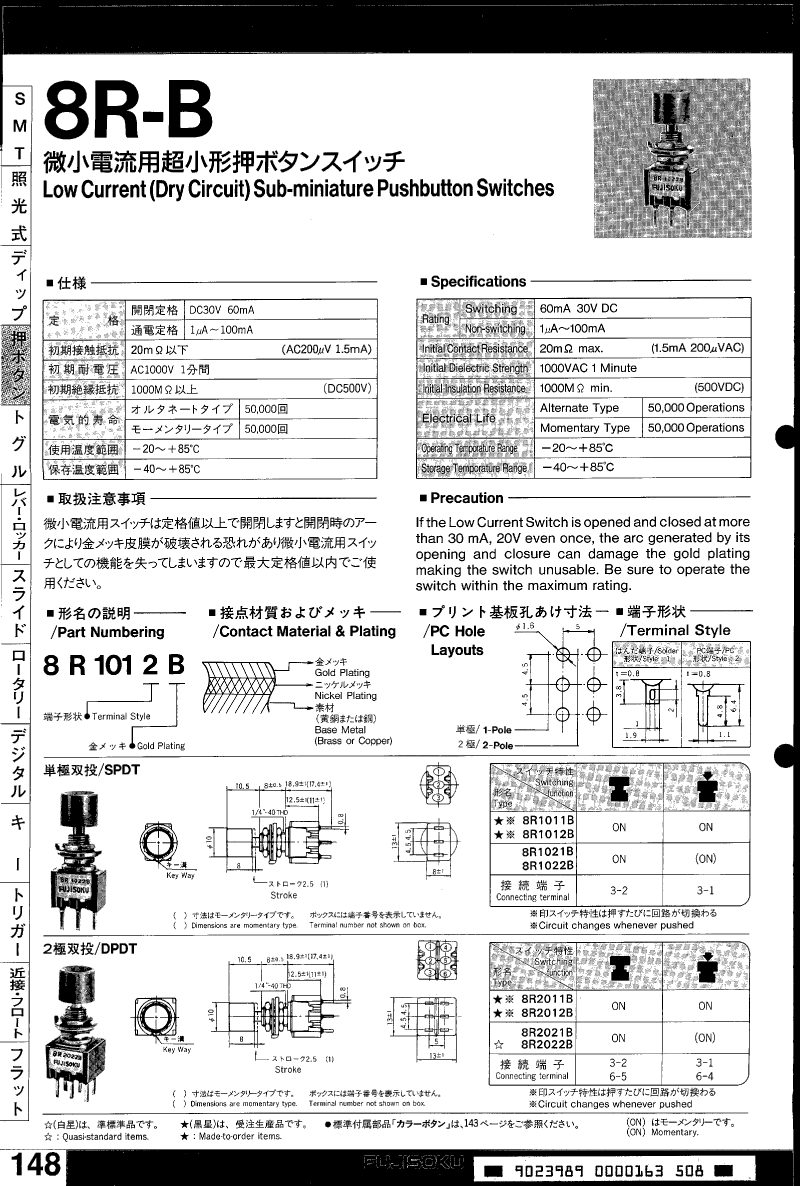

8R2011B Overview

Special Switch, DPDT, On-on, Alternate, 0.06A, 30VDC, Solder Lug Terminal, Panel Mount,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Actuator angle
Actuator length	0.413 inch
Actuator stroke	2.4892 mm
Actuator type	PUSHBUTTON
body width	13.0048 mm
body height	12.4968 mm
Body length or diameter	13.0048 mm
Nozzle length	0.315 inch
Casing type	1/4-40
Center contact plating	GOLD
Maximum contact current (DC)	0.06 A
Contact (DC) maximum rated R load	0.06A@30VDC
Contact function	ON-ON
Contact resistance	0.02 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1000VAC V
Electrical life	50000 Cycle(s)
End contact plating	GOLD
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8R-B
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Solderability	HAND
surface mount	NO
Switch action	ALTERNATE
switch function	DPDT
Terminal length	0.252 inch
Termination type	SOLDER LUG
Washability	SOLVENT
Base Number Matches	1

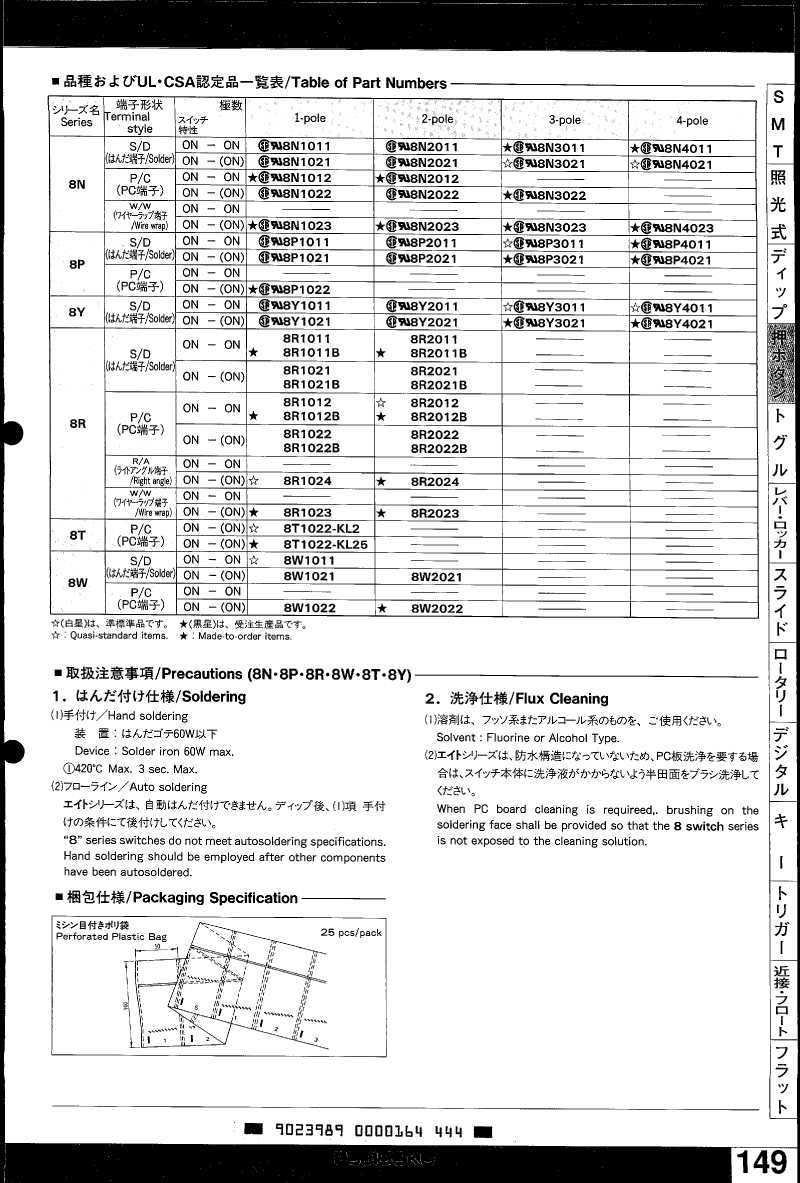

	8R2011B
Description	Special Switch, DPDT, On-on, Alternate, 0.06A, 30VDC, Solder Lug Terminal, Panel Mount,
Reach Compliance Code	unknown
Actuator length	0.413 inch
Actuator stroke	2.4892 mm
Actuator type	PUSHBUTTON
body width	13.0048 mm
body height	12.4968 mm
Body length or diameter	13.0048 mm
Nozzle length	0.315 inch
Casing type	1/4-40
Center contact plating	GOLD
Maximum contact current (DC)	0.06 A
Contact (DC) maximum rated R load	0.06A@30VDC
Contact function	ON-ON
Contact resistance	0.02 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1000VAC V
Electrical life	50000 Cycle(s)
End contact plating	GOLD
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8R-B
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Solderability	HAND
surface mount	NO
Switch action	ALTERNATE
switch function	DPDT
Terminal length	0.252 inch
Termination type	SOLDER LUG
Washability	SOLVENT
Base Number Matches	1
