2SD1579-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SD1579-L

2SD1579-L: DescriptionSmall Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon,; CategoryDiscrete semiconductor The transistor; File Size125KB，2 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

2SD1579-L Overview

Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon,

2SD1579-L Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	IN-LINE, R-PSIP-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	1.5 A
Collector-emitter maximum voltage	80 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	4000
JESD-30 code	R-PSIP-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	60 MHz
Base Number Matches	1

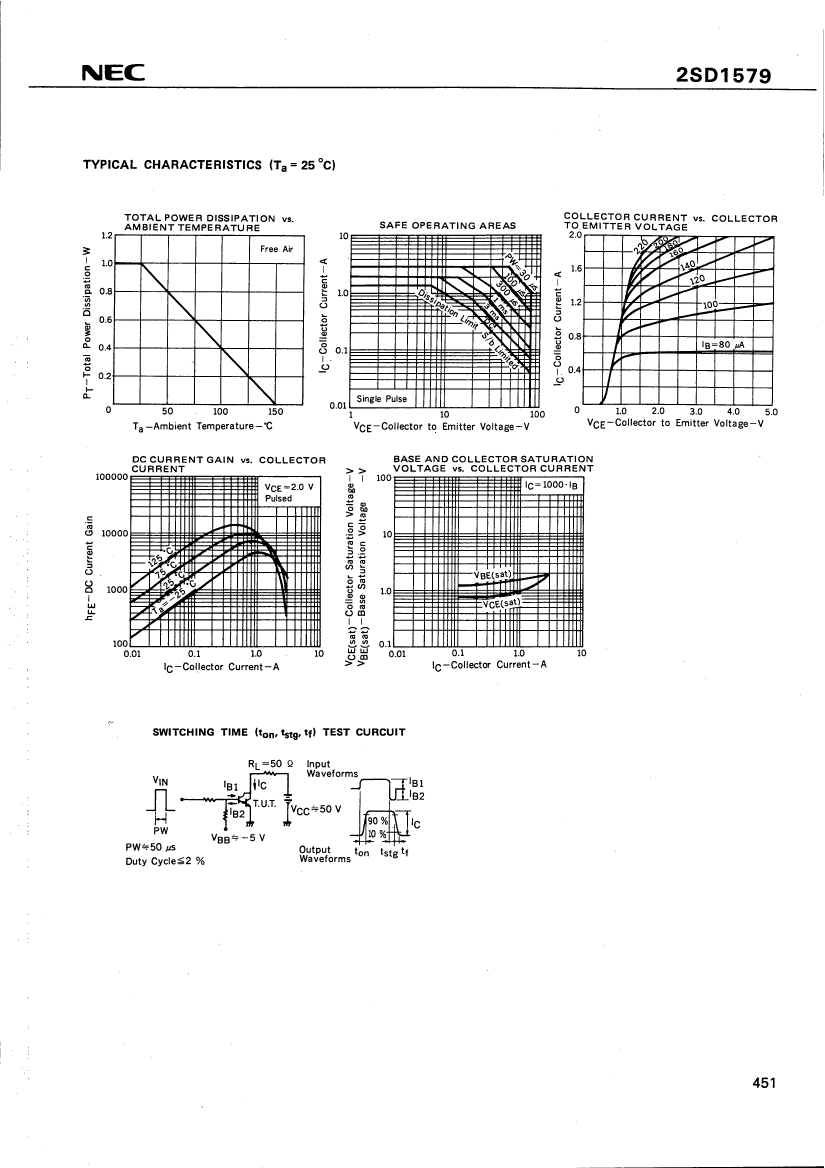

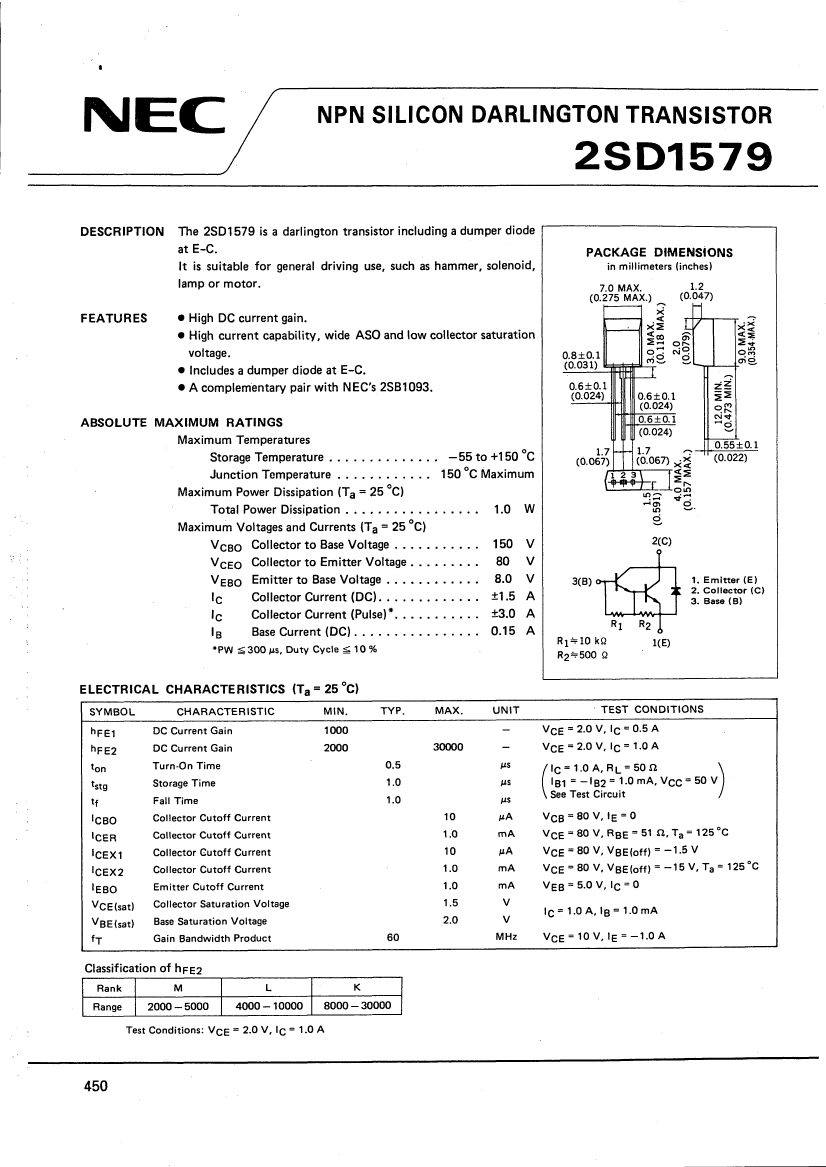

Preview

Download Datasheet

View All

2SD1579-L Related Products

	2SD1579-L	2SD1579-L-AZ	2SD1579-AZ	2SD1579-K-AZ	2SD1579-M-AZ	2SD1579	2SD1579-K	2SD1579-M
Description	Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 1.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon,
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Collector-emitter maximum voltage	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	4000	4000	2000	8000	2000	2000	8000	2000
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz
Base Number Matches	1	1	1	1	1	1	1	1
