86092166324758E1LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 86092166324758E1LF

Preview

86092166324758E1LF: DescriptionBoard Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86092166324758E1LF Overview

Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE

86092166324758E1LF Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

1

2 3

4

5

6

A

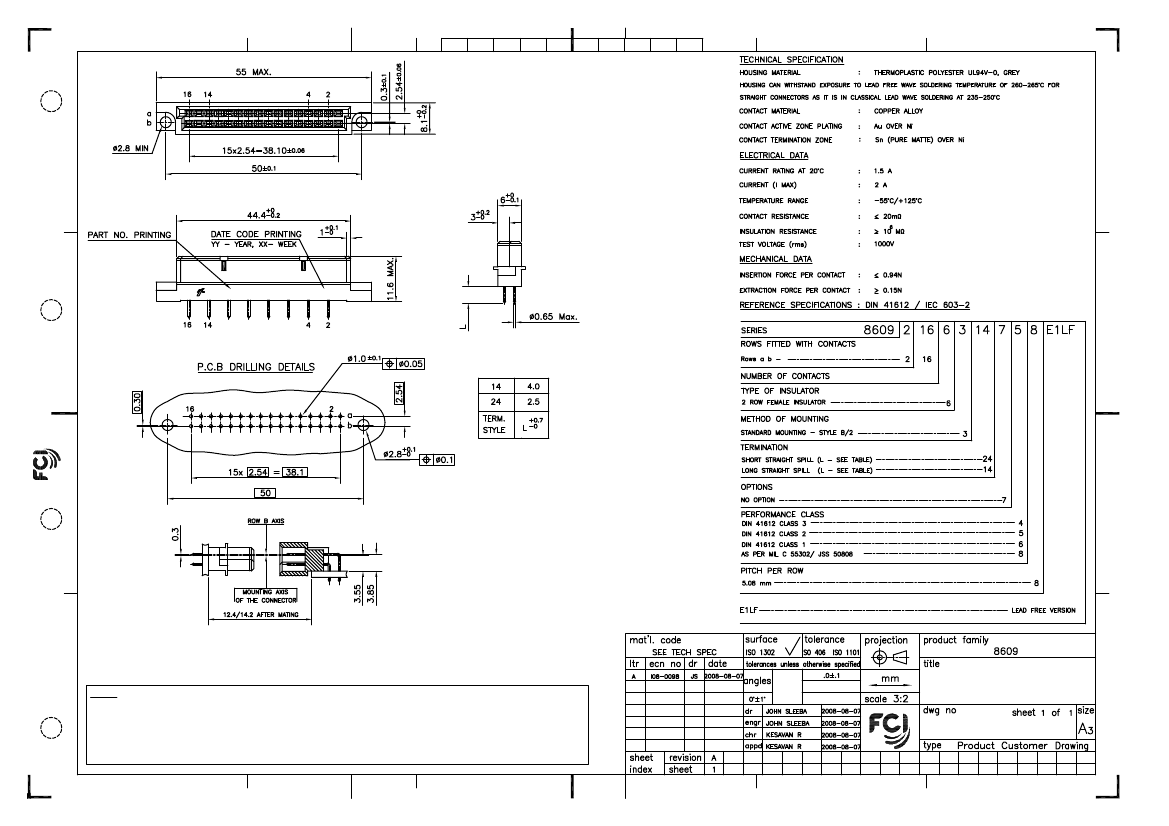

8609 XXX XX XX XXX XXXXX YY XX

B

FCIconnect.com

B

C

Copyright FCI

NOTES:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.

linear

DIN STANDARD RECEPTACLE

STRAIGHT SPILL DIN 41612 STYLE-B/2

C-8609-2146

D

form: A3

1

2

3

4

5

6

PDM: Rev:A

STATUS:

Released

Printed: May 14, 2011

.

86092166324758E1LF Related Products

	86092166324758E1LF	86092166314748E1LF	86092166324768E1LF	86092166324788E1LF	86092166324748E1LF	86092166314758E1LF	86092166314788E1LF	86092166314768E1LF
Description	Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE	Board Euro Connector, 16 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	NOT SPECIFIED	GOLD OVER NICKEL	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	16	16	16	16	16	16	16
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	-	MATTE TIN OVER NICKEL	-
JESD-609 code	e3	e3	e3	e3	e3	-	e3	-
Manufacturer's serial number	8609	8609	8609	8609	8609	-	8609	-
Base Number Matches	1	-	1	1	1	1	1	-
