5962-01-194-3827 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-194-3827

5962-01-194-3827: DescriptionBus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20; Categorylogic logic; File Size204KB，4 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

5962-01-194-3827 Overview

Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20

5962-01-194-3827 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	compli
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDIP-T20
MaximumI(ol)	0.032 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	130 mA
Prop。Delay @ Nom-Su	30 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
translate	N/A
Base Number Matches	1

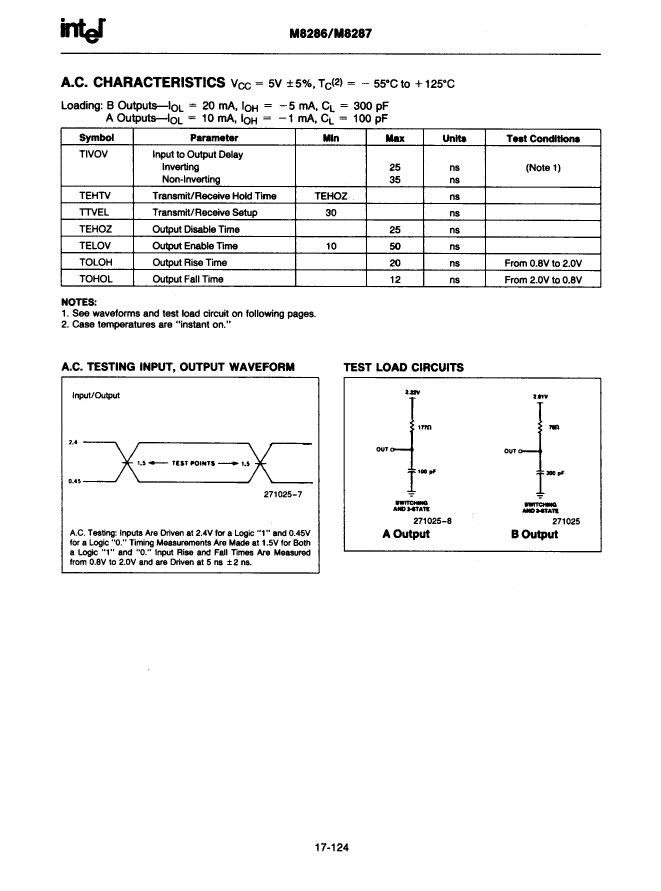

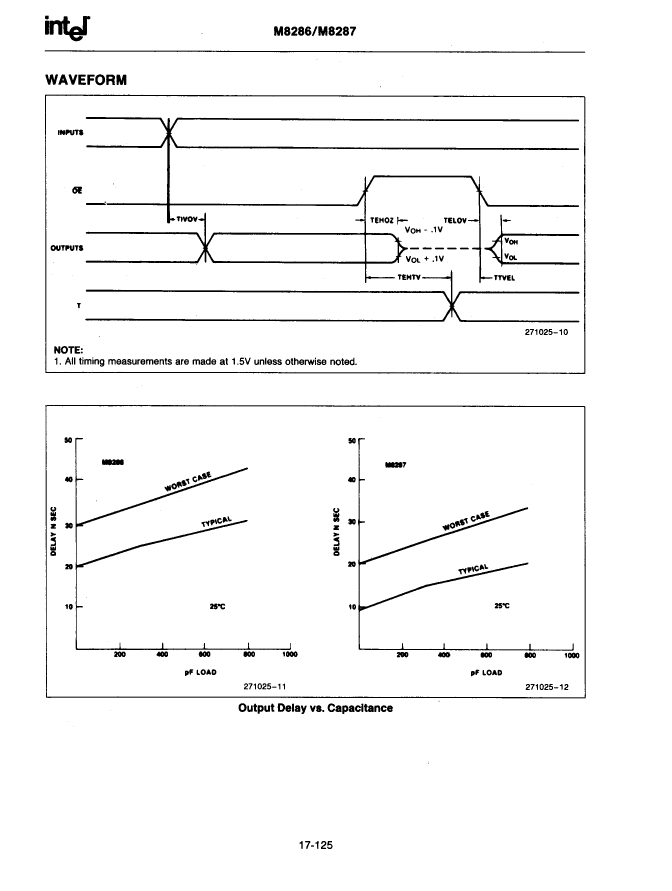

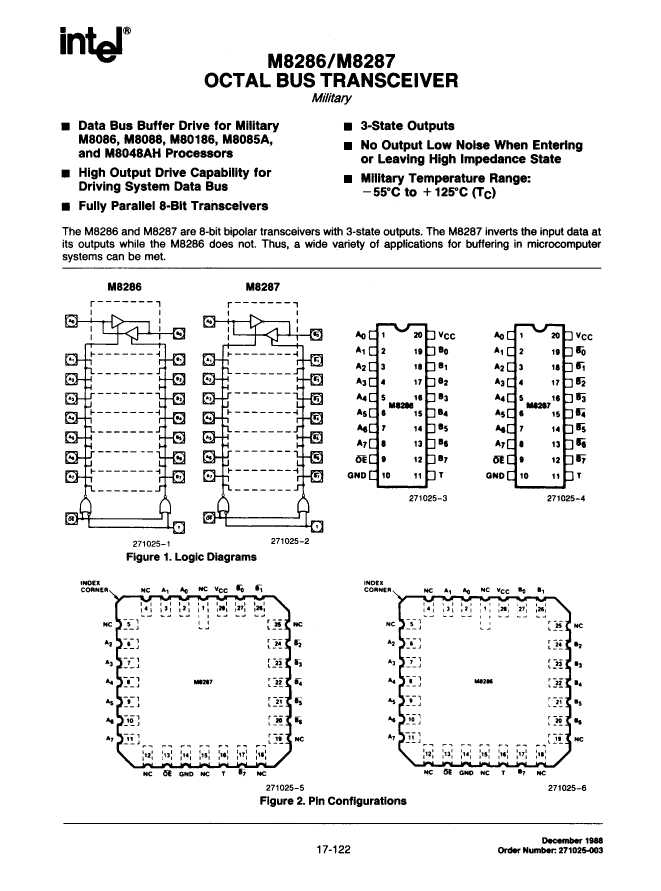

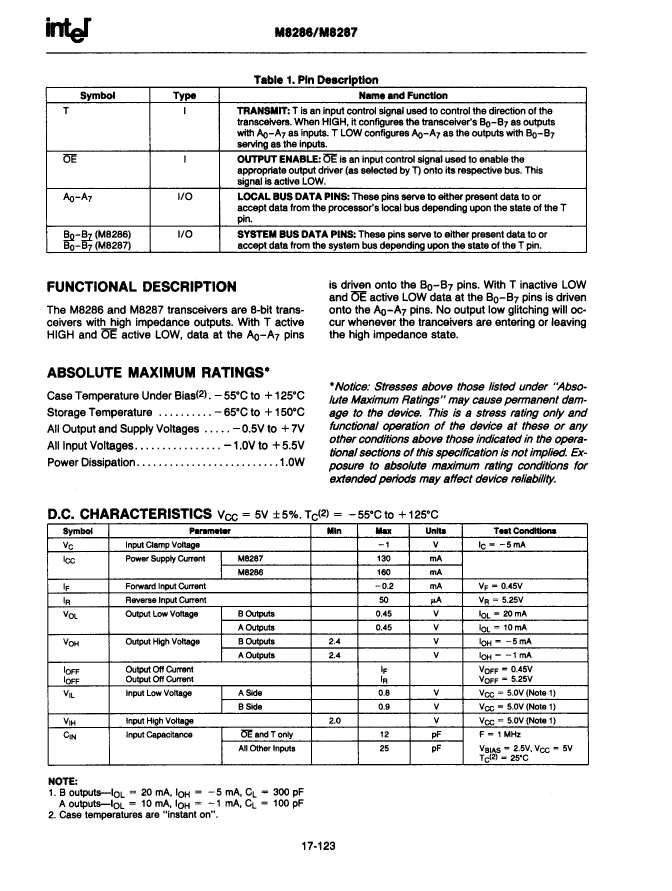

Preview

Download Datasheet

View All

5962-01-194-3827 Related Products

	5962-01-194-3827	5962-01-140-2998	5962-01-112-7394	ID8286	MD8286/C	MR8287	MR8286
Description	Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20	Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20	Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, TTL, PDIP20	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, TTL, CDIP20	Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, TTL, CQCC28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	QCCN, LCC28,.45SQ	QCCN, LCC28,.45SQ
Reach Compliance Code	compli	compli	compliant	unknown	unknown	compliant	compliant
Control type	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	-	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	-	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDIP-T20	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	-	S-XQCC-N28	S-XQCC-N28
MaximumI(ol)	0.032 A	0.02 A	0.032 A	0.032 A	-	0.02 A	0.02 A
Number of digits	8	8	8	8	-	8	8
Number of functions	1	1	1	1	-	1	1
Number of terminals	20	20	20	20	-	28	28
Maximum operating temperature	70 °C	125 °C	70 °C	85 °C	-	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-	-40 °C	-	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	TRUE	-	INVERTED	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	-	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	-	QCCN	QCCN
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	-	LCC28,.45SQ	LCC28,.45SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	-	5 V	5 V
Maximum supply current (ICC)	130 mA	130 mA	130 mA	160 mA	-	130 mA	160 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	5 V	5 V
surface mount	NO	NO	NO	NO	-	YES	YES
technology	TTL	TTL	TTL	TTL	-	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	INDUSTRIAL	-	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	QUAD	QUAD
translate	N/A	N/A	N/A	N/A	-	N/A	N/A
Prop。Delay @ Nom-Sup	-	-	30 ns	30 ns	-	50 ns	50 ns
Maker	-	-	-	Intel	Intel	Intel	Intel
