H12CA4890H-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> H12CA4890H-10

H12CA4890H-10: DescriptionPanel Mount; CategoryLED optoelectronic/LED photoelectric; File Size602KB，5 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml

Download Datasheet Parametric View All

H12CA4890H-10 Overview

Panel Mount

H12CA4890H-10 Parametric

Parameter Name	Attribute value
Maker	Crydom
package instruction	PLASTIC PACKAGE-4
Reach Compliance Code	compli
Is Samacsys	N
Other features	UL RECOGNIZED, VDE APPROVED
Maximum forward current	0.015 A
Maximum insulation voltage	4000 V
Number of components	1
Maximum on-state current	90 A
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Base Number Matches	1

Preview

Download Datasheet

View All

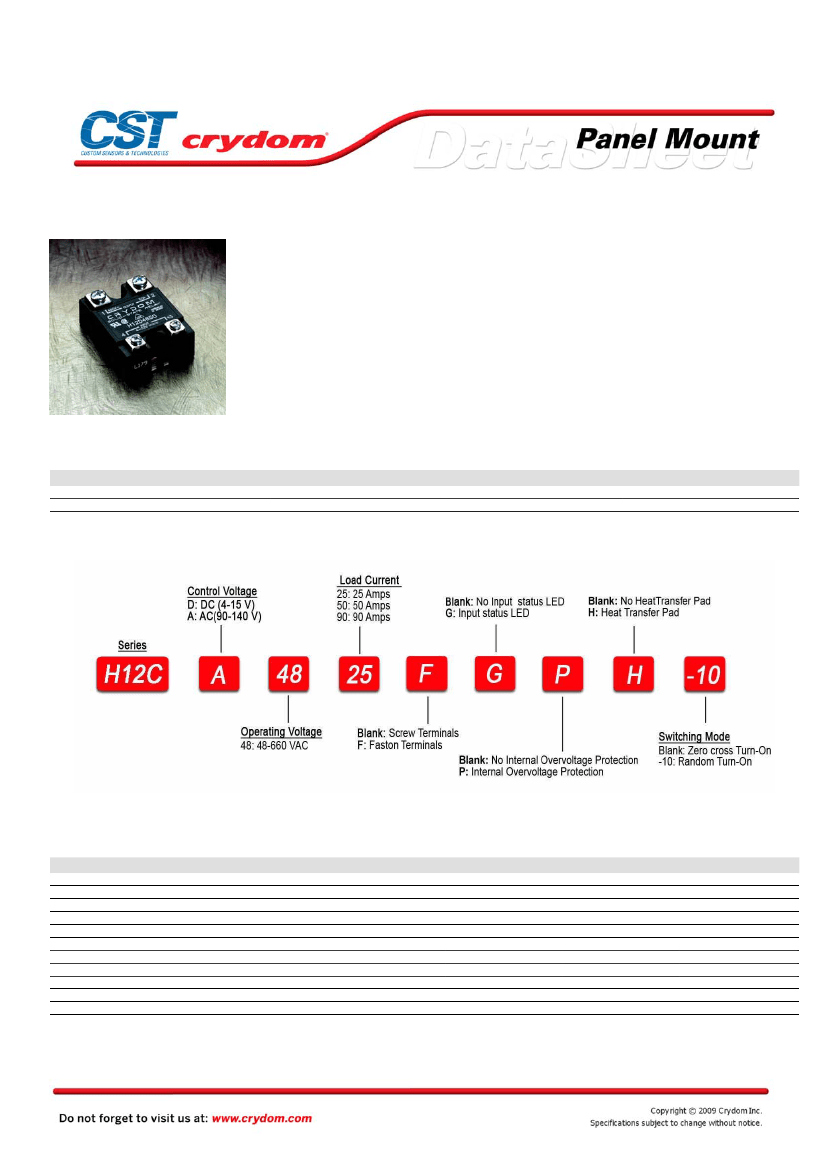

H12C Series

• Ratings from 25A to 125A @ 48-660 VAC

• SCR output for heavy industrial loads

• AC or DC control

• Zero-crossing (resistive loads) or random-fire (inductive loads) output

PRODUCT SELECTION

Control Voltage

4-15 VDC

90-140 Vrms

25A

H12CD4825

H12CA4825

50A

H12CD4850

H12CA4850

90A

H12CD4890

H12CA4890

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

Maximum Load Current (3) [Arms]

Minimum Load Current [mArms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case (Rjc) [°C/W]

Maximum I² t for Fusing (8.3 msec) [A² sec]

Minimum Power Factor (with Maximum Load)

25A

48-660

1200

1.0

500

150

250

1.6

1.02

260

0.5

50A

48-660

1200

1.0

500

150

625

1.6

0.63

1620

0.5

90A

48-660

1200

1.0

500

150

1200

1.6

0.28

6000

0.5
