2N6071A-VD datasheet, PDF - EEWORLD Datasheet

2N6071A-VD: Description200V, 4A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-225AA; CategoryAnalog mixed-signal IC Trigger device; File Size190KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

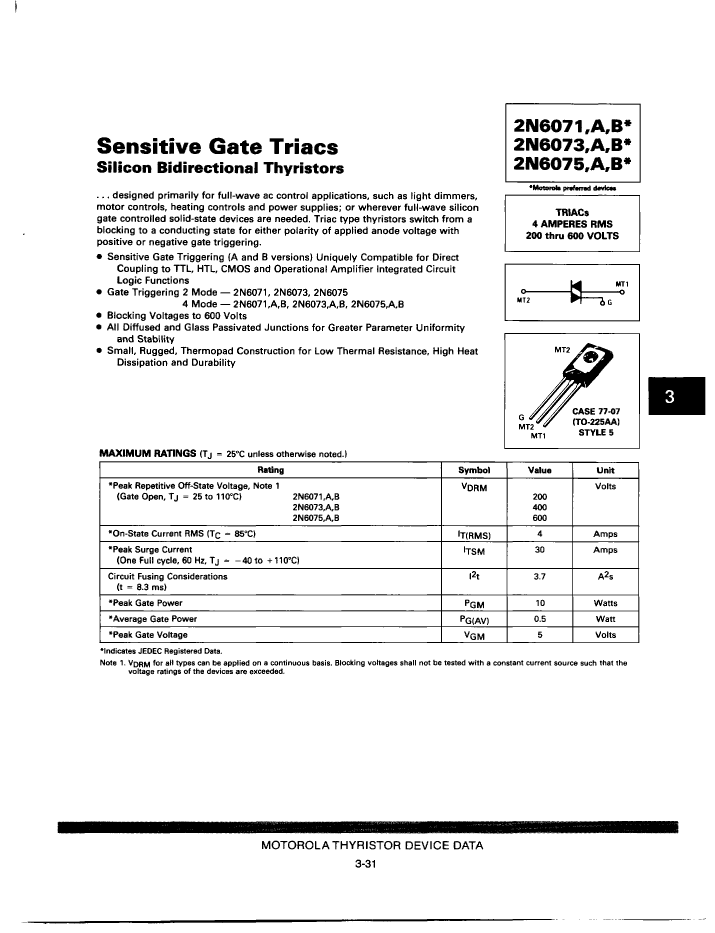

2N6071A-VD Overview

200V, 4A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-225AA

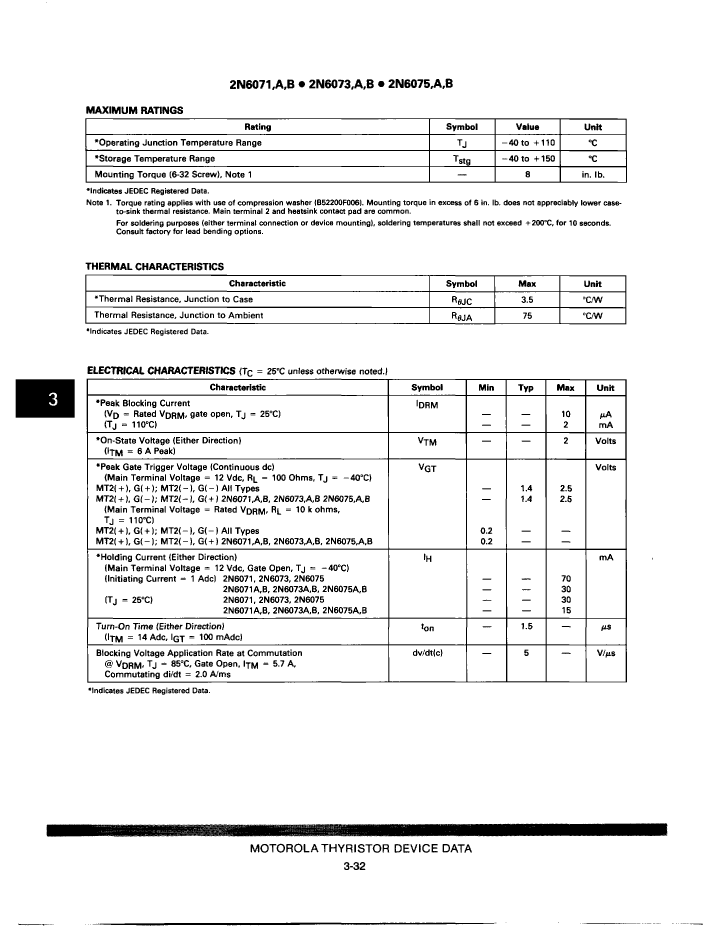

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SENSITIVE GATE
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE

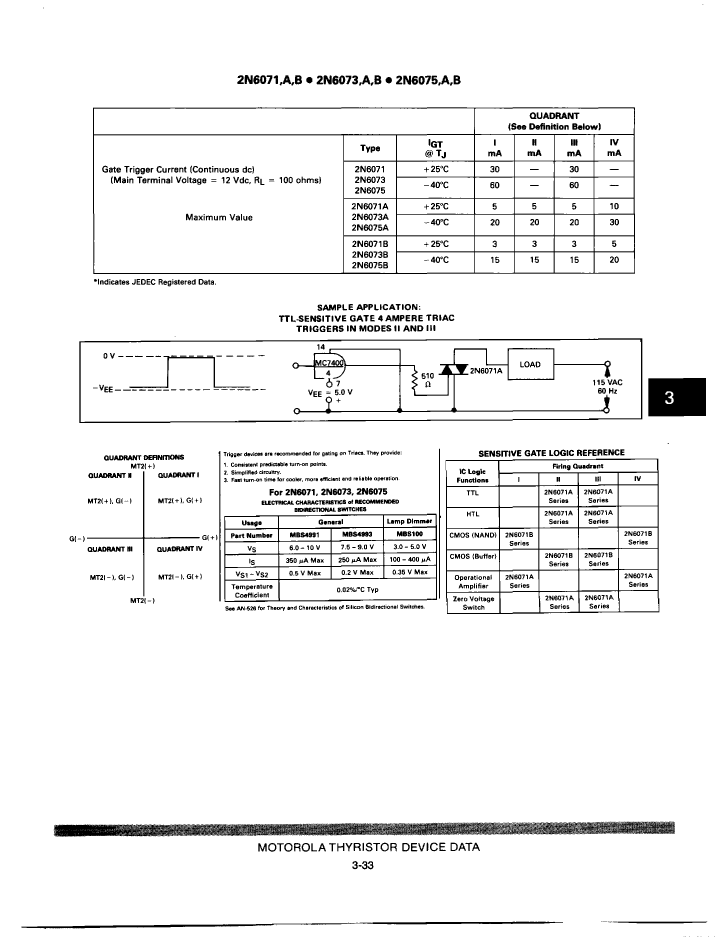

Maximum DC gate trigger current	5 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	15 mA
JEDEC-95 code	TO-225AA
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified

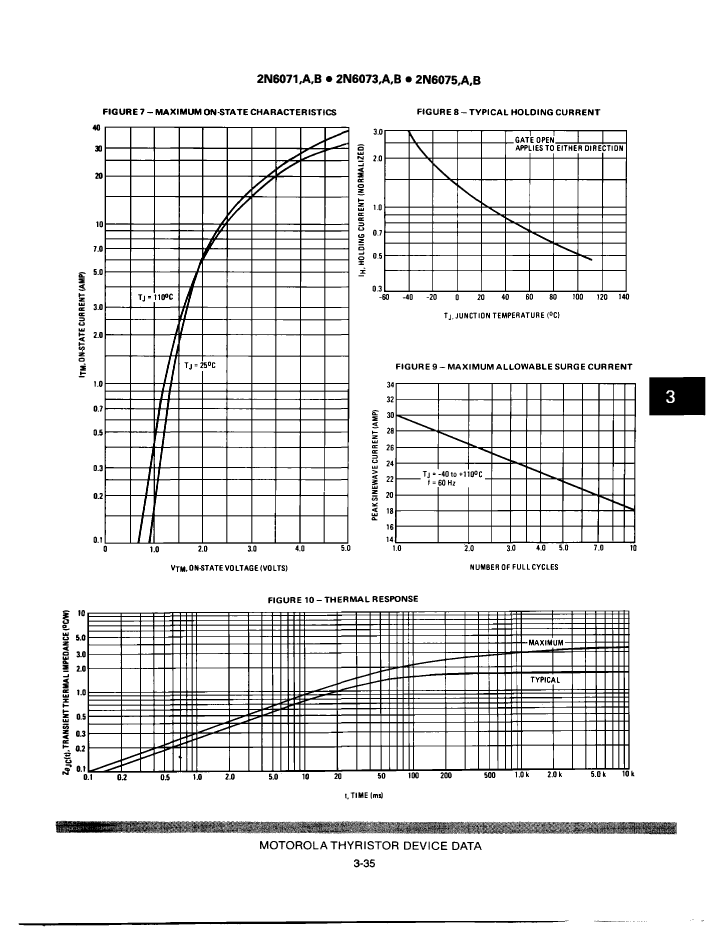

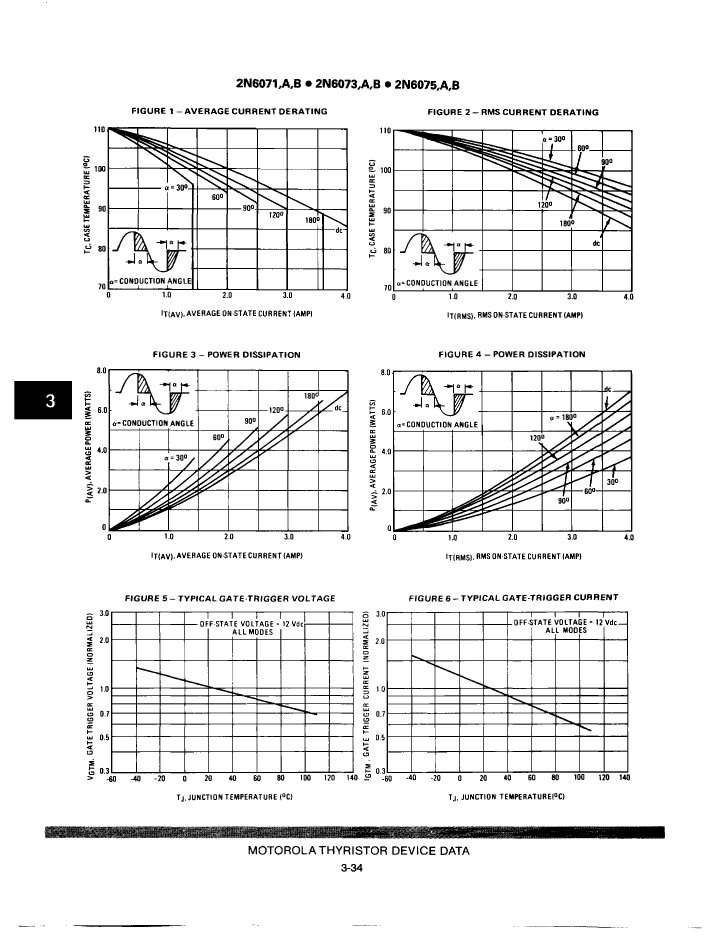

Maximum rms on-state current	4 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1
