Part Number

Search

20010WS-12A00

Description
Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size66KB,1 Pages
ManufacturerYEONHO ELECTRONICS CO., LTD.
Websitehttp://www.yeonho.com/

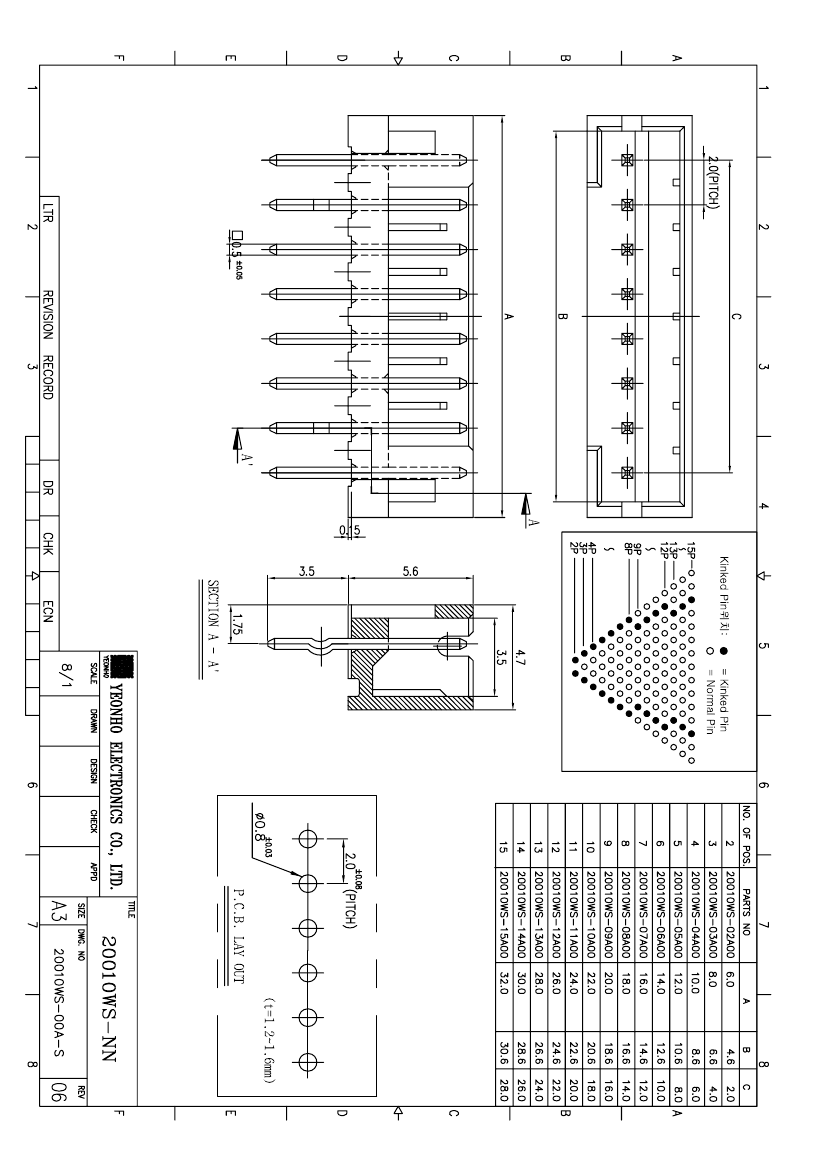

Download Datasheet Parametric View All

20010WS-12A00 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle

20010WS-12A00 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
body width0.185 inch
subject depth0.22 inch
body length1.024 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
insulator materialPOLYAMIDE
Manufacturer's serial number20010WS
Plug contact pitch0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2.0066 mm
Termination typeSOLDER KINKED LEADS
Total number of contacts12
Base Number Matches1
