GMR10H45C
10A SCHOTTKY RECTIFIER
Description
Dual center tap Schottky rectifier designed for high
frequency Switched Mode Power Supplies.
Features
High junction temperature capability
Good trade off between leakage current
and forward voltage drop
Low leakage current
Applications
Switching Power Supply
Industrial Application
Computer and Peripheral
Home Appliance
Consumer Product
Battery Charger/Adapter
LCD Monitor/TV
AC-DC Converter
DC-DC Converter
Telecommunication
Free Wheeling Diodes
Polarity Protection

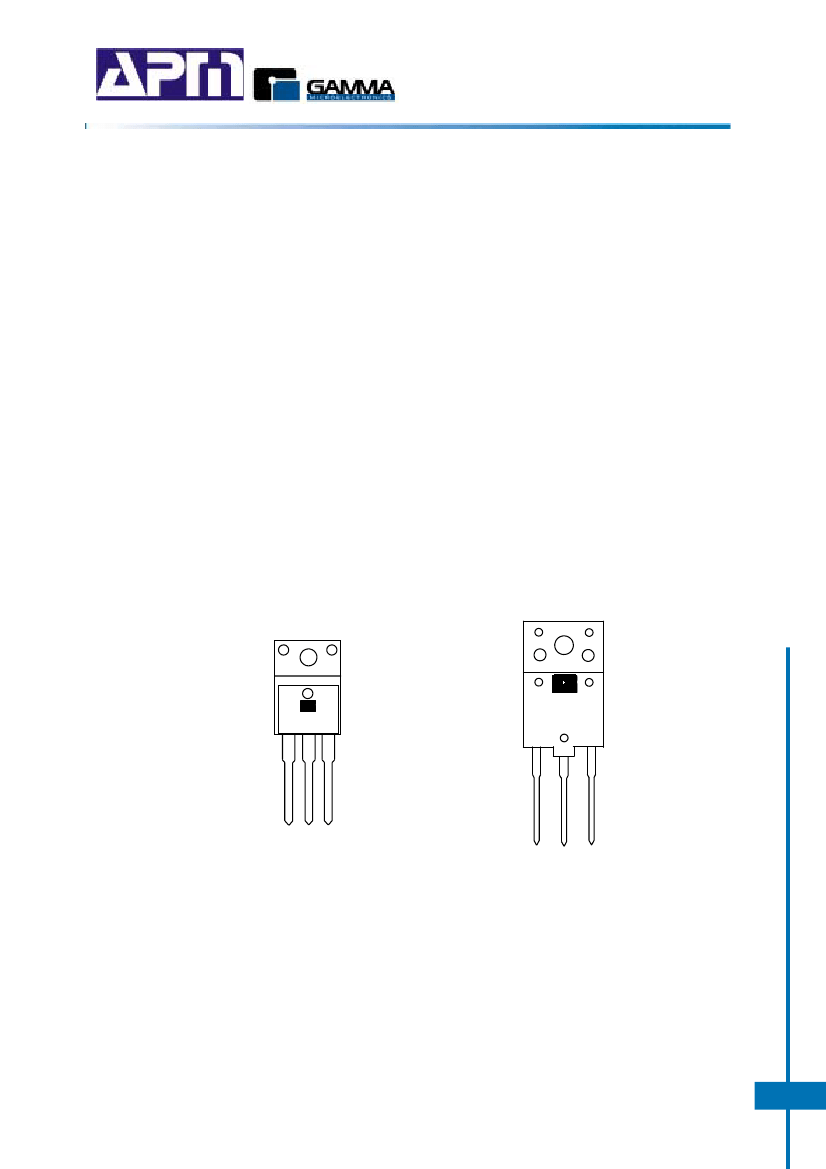

Marking Information and Pin Configurations (Top View)
10H45C
AYWW
10H45C
AYWW
TO - 220FPAB & TO - 220AB
10:
H:
45:
C:
A:
Y:
WW:
TO – 3PF
Maximum average forward rectified current - 10A
Low V
F
family
Repetitive peak reverse voltage - 45V
Dual Cathode Common
Assembly Location
Year
Work Week
1
GMR10H45C
V1.00
GMR10H45C
10A SCHOTTKY RECTIFIER
Ordering Information
ORDERING NUMBER
GMR10H45CTB3T
GMR10H45CTBF3T
GMR10H45CTPF3
PACKAGE
TO220AB
TO220FPAB
TO-3PF
SHIPPING
50 Units/ Tube
50 Units/ Tube
30 Units/ Tube
Block Diagram
1
Anode
2
Common
Cathode
3
Anode
GMR10H45C
V1.00
2
GMR10H45C
10A SCHOTTKY RECTIFIER
Absolute Maximum Ratings
PARAMETER
Repetitive Peak Reverse Voltage
RMS Forward Current
Peak Forward Surge Current 8.3ms single half sine-wave
superimposed on rated load (JEDEC METHOD)
Maximum Operating Junction Temperature
Operating storage temperature
Voltage Rate of Change
Electrostatic Discharge Voltage. JEDEC Method. ESD HBM.
Contact
SYMBOL
V
RPM
I
F(RMS)
I
FSM
T
J,
T
STG
dV/dt
V
ESD
VALUE
45
10
135
150
-45 to +150
10,000
±
8
UNITS
V
A
A
°C
°C
V/µs
kV
Thermal Characteristics
PARAMETER
Typical thermal resistance per leg
SYMBOL
Ө
JC
TO220AB
2.4
TO220FPAB
4.2
TO-3PF
1.2
UNITS
°C/W
Electrical Characteristics
(per diode)
T
J
= 25
°C
, Unless otherwise noted
PARAMETER
DC Forward Voltage
Average Rectified Forward
Current
Maximum Reverse Current
SYMBOL
V
F
I
F(AV)
I
R
V
R
= 45V
V
R
= 45V, T
J
= 125°C
-
-
-
Test Condition
I
F
= 5A
Min
Typ
0.68
Max
0.70
5.0
8
8
Units
V
A
µA
mA
3
GMR10H45C
V1.00
GMR10H45C
10A SCHOTTKY RECTIFIER

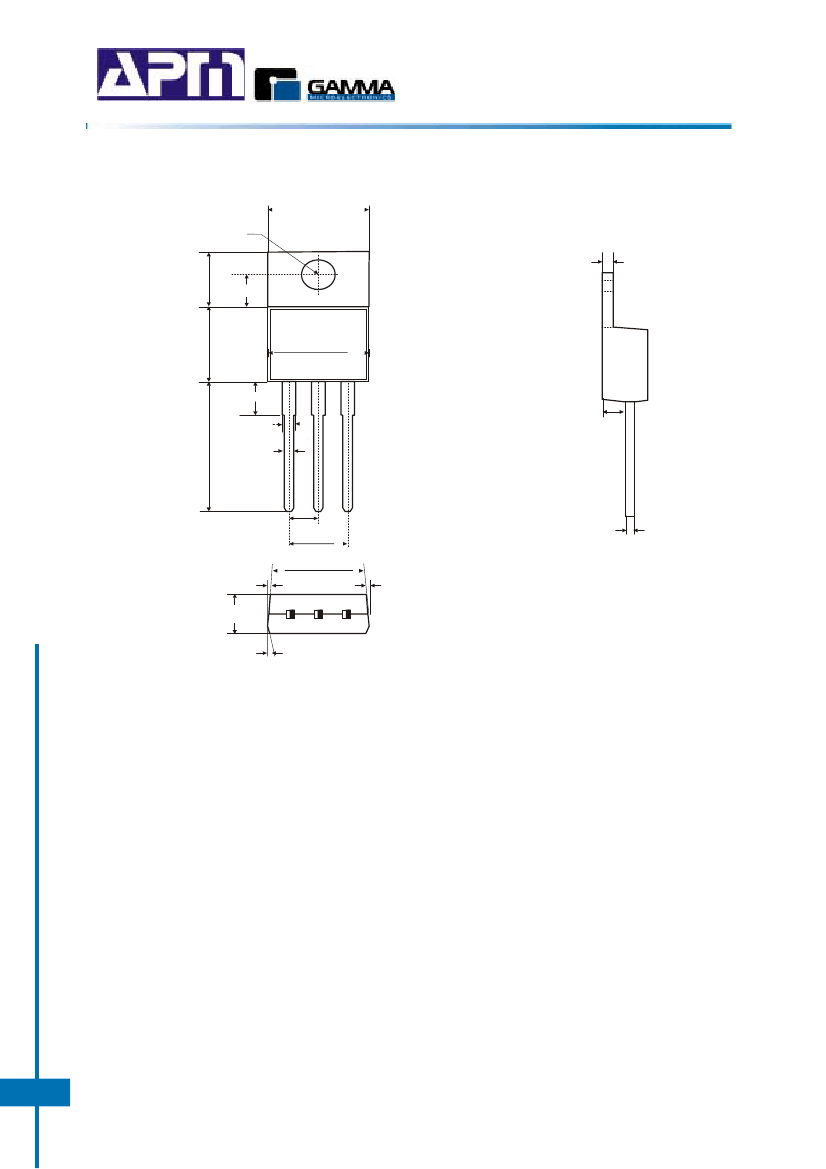

Package Outline Dimensions – TO220AB
10.16 ± 0.20
Φ3.84
6.24± 0.20
1.27 ± 0.015
3.50
9.00 ± 0.10
10.16 ± 0.10
3.50 ± 0.20
13.00 ± 0.5
1.27
0.81
2.67 ± 0.4
2.54
5.08
9.40 ± 0.20
5°
4.70 ± 0.20
5°
0.38 ± 0.015
Unit: mm
5°
GMR10H45C
V1.00
4
GMR10H45C
10A SCHOTTKY RECTIFIER

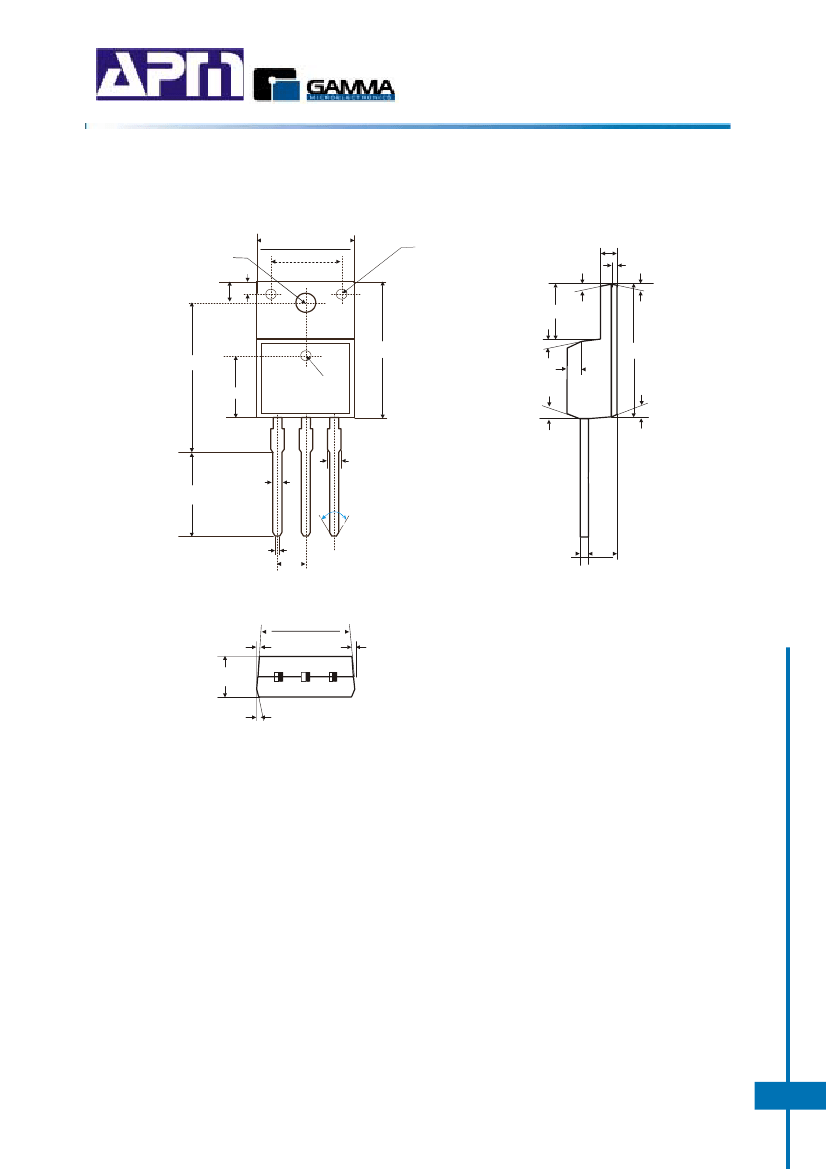

Package Outline Dimensions – TO220FPAB
10.16 ± 0.20
Φ3.18
± 0.10
3.30 ± 0.10
1.50
7.00
Φ1.50
± 0.10
5°
2.54 ± 0.20
0.70
5°
6.68 ± 0.20
6.50
15.87± 0.20
15.80 ± 0.20
Φ1.6
± 0.10
5 ± 0.10
5°
5°
5°
1.00 X 45°
15.87 ± 0.20
MAX 1.47
0.80 ± 0.10
9.75 ± 0.30
0.5
2.54 TYP
(2.54 ± 0.20)
+0.13
- 0.05
2.75 ± 0.20
9.40 ± 0.20
5°
4.70 ± 0.20
5°
Unit: mm
5°
5
GMR10H45C
V1.00
