PhiCap capacitors for power factor correction
B32344D series
Series/Type:
B32344D
Ordering code: B32344D….A…
Date:
Version:
August 2006
4
Content of inside pages of data sheet. Data will be automatically entered into front page
headlines, headers and footers. Please fill in the table and then change the colour to “White”.
This ensures that the table disappears for the customer pdf.
Identification/Classification 1:
(header 1)
Identification/Classification 2:
(header 2)
Ordering code:
Series/Type:
Preliminary data (optional):
(if necessary)
Department:
Date:
FK PFC R&D
August 2006
PhiCap capacitors for power factor correction
B32344D series
B32344D…A…
©
EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
PhiCap capacitors for power factor correction
B32344D series

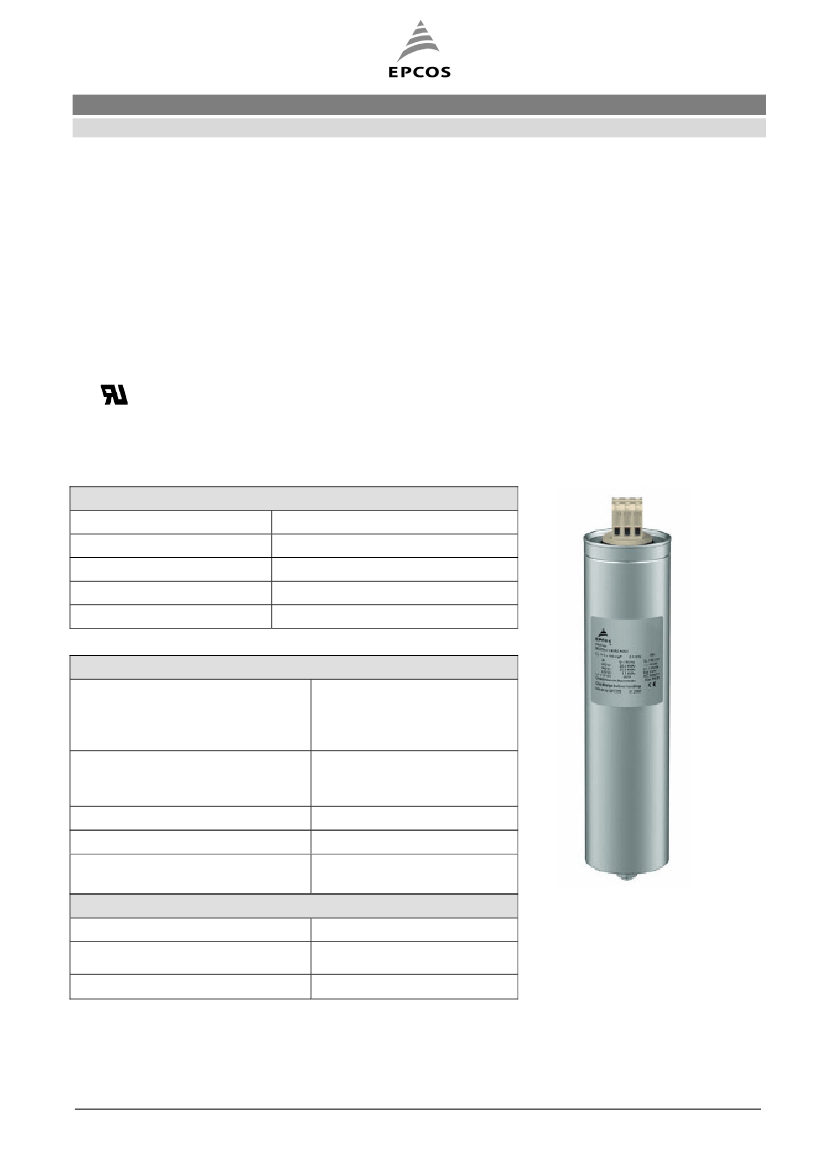

Construction
Dielectric: metallized polypropylene film
Semi-dry; high viscosity PU resin; non-PCB
Case: extruded round aluminum can with stud
Mounting and grounding: threaded M12 stud on bottom of can
Degree of protection: IP20 (optionally IP54 with terminal cover)
Terminals: SIGUT screw terminals
Features
Three-phase, provided with discharge resistors
Dual safety system: overpressure disconnector, self-healing technology
US
file # E106388
C
Naturally air cooled (or forced air cooling)
Indoor mounting
Technical data and specifications
Characteristics
Rated capacitance C
R
and Q
R
Tolerance
Connection
Rated voltage V
R
Rated frequency f
R
According to specification table
–5/+10%
D (Delta)
According to specification table
50/60 Hz
B32344D…A…
Maximum ratings
(to IEC 60831)
Maximum permissible voltage V
max
Maximum permissible current I
max
V
R
+10% (up to 8 h daily)
V
R
+15% (up to 30 min daily)
V
R
+20% (up to 5 min daily)
V
R
+30% (up to 1 min daily)
Up to 1.3 × I
R
(up to 1.5 × I
R
incl.
combined effects of harmonics,
over voltages and capacitance)
Up to 200 × I
R
< 0.2 W/kvar
< 0.45 W/kvar
Maximum transient inrush current
Power dissipation (dielectric)
Power dissipation
(excluding discharge resistors)
Test data
(accord. to IEC 60831)
AC test voltage terminal-to-terminal
Insulation voltage between terminals
and container
Dissipation factor tan
δ
at 100 Hz
2.15 × V
R
, 2 s
3000 V AC, 10 s
≤
1.0 × 10
-3
FK PFC R&D
Page 2/10
August 2006
PhiCap capacitors for power factor correction
B32344D series
Climatic category / -25/D
(to IEC 60831)
Ambient temperature
Maximum permissible humidity
Maximum permissible altitude
Max. temp. 55 °C;
Max. mean 24 h = 45 °C;
Max. mean 1 year = 35 °C;
Lowest temperature = –25 °C
Average relative < 95%
4000 m
B32344D…A…
Mean life expectancy
t
LD
V
p
to 100.000 operating hours
Max. 5000 switching operations per year to IEC 60831
Design data
Dimensions (∅ × l)
Weight approx.
Filling
Fixing
Max. torque (Al can stud)
According to specification table
According to specification table
High viscosity polyurethane resin
Threaded bolt M12
10 Nm
Upright.
See “Maintenance and Installation
Manual” for further details.
Horizontal mounting with additional
head support possible.
Mounting position
Terminals
Degree of protection
Max. torque
Terminal cross section
Creepage distance
Clearance
IP20 (Optional IP54) (to IEC 529)
2.5 Nm
16 mm
2
12.7 mm (to UL 810)
9.6 mm (to UL 810)
PhiCap
TM

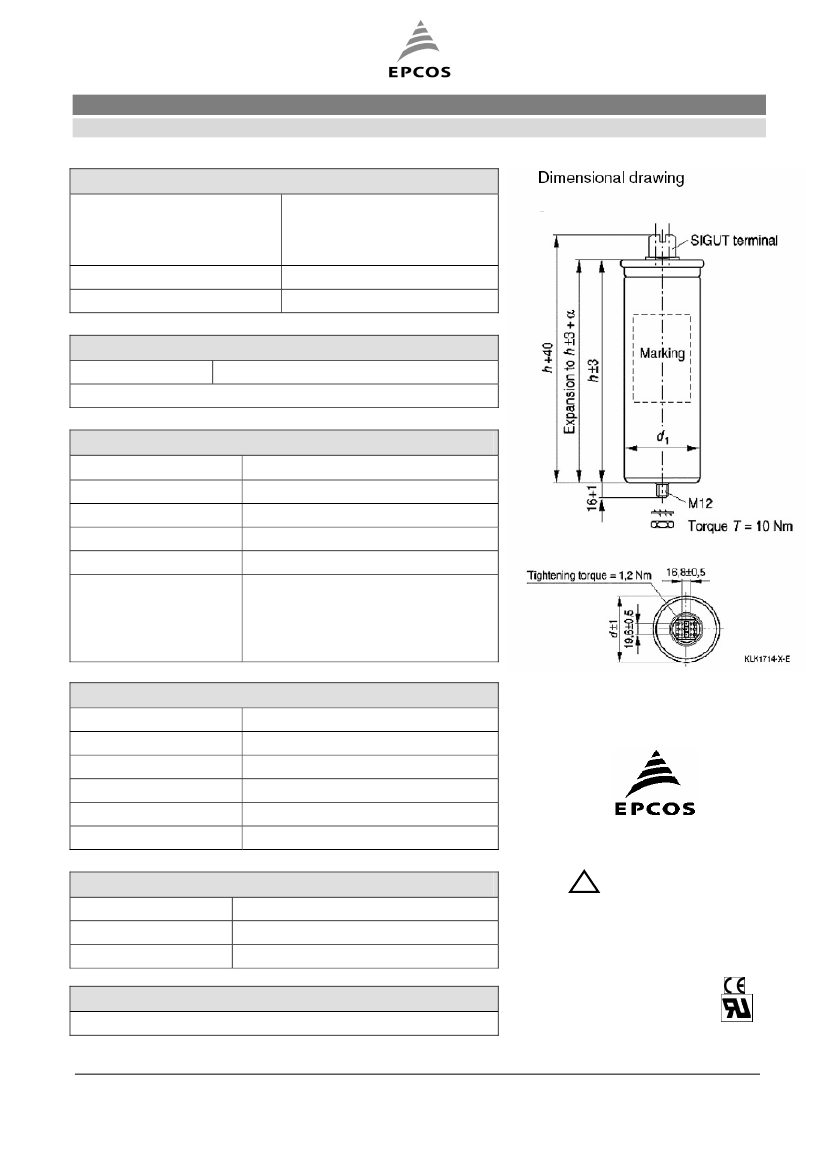

Label drawing
Maximum terminal current 60 A (continuous)
Power Quality
Safety
Mechanical safety
Discharge resistor time
Tear off fuses overpressure disconnector
≤
1 min (75 V) , IEC 60831 specify 3 min.
Max. short circuit current (AFC: 10 kA) (to UL 810)
B32344-D4252-A040
U
N
440V~
415V~
400V~
Ui = 3/-Kv
B32344D4252A040
+10%
Q
N
/ 50 Hz
25,00 kvar
22,23 kvar
20,65 kvar
-25 / +55°C
SH
Q
N
/ 60 Hz
30,00 kvar
26,68 kvar
24,78 kvar
IEC 60831
Non PCB
3 x
F -5
μF
3 x 138,0
μ
138
+10%
-5
Overpressure disconnector
Protected File E106388 10K AFC
Reference standards
IEC 60831–1/2. UL 810-5
th
edition
Discharge before handling
Made by EPCOS
C
1 G06
US
FK PFC R&D
Please read the important notes, cautions and warnings on the next pages
.
Page
3 of 10
August 2006
PhiCap capacitors for power factor correction
B32344D series
Three-phase capacitors - Rated voltage 220 V AC, 50/60 Hz, delta connection
Product / Type
C
R
d xh
50 Hz
60 Hz
Ordering code
Output
I
R
Output
I
R
kvar
A
kvar
A
μF
mm
B32344D2021A020
1.7
4.4
2.0
5.3
3x
37.0
79.5 x 138
B32344D2021A520
2.0
5.5
2.5
6.6
3x
46.0
79.5 x 138
B32344D2051A020
4.2
11.0
5.0
13.2
3x
92.0
79.5 x 198
B32344D2071A520
6.3
16.4
7.5
19.7
3x
137.0
89.5 x 198
B32344D2101A020
8.3
21.9
10.0
26.3
3x
183.0
89.5 x 273
B32344D2121A520
10.4
27.4
12.5
32.9
3x
229.0
89.5 x 273
B32344D2151A020
12.5
32.8
15.0
39.4
3x
274.0
89.5 x 348
Three-phase capacitors - Rated voltage 230 V AC, 50/60 Hz, delta connection
Product / Type
C
R
d xh
50 Hz
60 Hz
per
Ordering code
Output
I
R
Output
I
R
kvar
A
kvar
A
μF
box
B32344D2022A030
2.0
5.3
2.5
6.3
3x
42.0
79.5 x 138
B32344D2022A530
2.5
6.3
3.0
7.5
3x
50.0
79.5 x 138
B32344D2052A030
5.0
12.5
6.0
15.0
3x
100.0 79.5 x 198
B32344D2072A530
7.5
18.8
9.0
22.5
3x
150.0 89.5 x 198
B32344D2102A030
10.0
25.0
12.0
30.0
3x
200.0 89.5 x 273
B32344D2122A530
12.5
31.3
15.0
37.5
3x
250.0 89.5 x 273
B32344D2152A030
15.0
37.7
1)
1)
3x
300.0 89.5 x 348
Three-phase capacitors - Rated voltage 240 V AC, 50/60 Hz, delta connection
Product / Type
C
R
d xh
50 Hz
60 Hz
per
Ordering code
Output
I
R
Output
I
R
kvar
A
kvar
A
μF
box
B32344D2021A540
2.1
5.0
2.5
6.0
3x
38.0
79.5 x 138
B32344D2031A040
2.5
6.0
3.0
7.2
3x
46.0
79.5 x 138
B32344D2051A040
4.2
10.1
5.0
12.1
3x
77.0
79.5 x 160
B32344D2071A540
6.3
15.0
7.5
18.0
3x
115.0 79.5 x 198
B32344D2081A340
6.9
16.6
8.3
19.9
3x
127.0 89.5 x 198
B32344D2101A040
8.3
20.1
10.0
24.1
3x
154.0 89.5 x 198
B32344D2121A540
10.4
25.1
12.5
30.1
3x
192.0 89.5 x 273
B32344D2151A040
12.5
30.0
15.0
36.0
3x
230.0 89.5 x 273
B32344D2161A740
13.9
33.4
1)
1)
3x
256.0 89.5 x 348
B32344D…A…
Weight
kg
0.4
0.4
0.6
0.8
1.2
1.5
1.5
Quantity
per
box
6
6
6
4
4
4
4
Weight
kg
0.4
0.4
0.6
0.8
1.2
1.5
1.5
Quantity
per
box
6
6
6
4
4
4
4
Weight
kg
0.4
0.4
0.6
0.6
1.5
0.9
1.2
1.2
1.2
Quantity
per
box
6
6
6
6
4
4
4
4
4
1) Product not applicable to 60 Hz, since the product’s rated current is exceeded.
FK PFC R&D
Please read the important notes, cautions and warnings on the next pages
.
Page
4 of 10
August 2006
PhiCap capacitors for power factor correction
B32344D series
Three-phase capacitors - Rated voltage 380 V AC, 50/60 Hz, delta connection
Product / Type
C
R
d xh
50 Hz
60 Hz
Ordering code
Output
I
R
Output
I
R
kvar
A
kvar
A
μF
Unit
B32344D3071A580
6.3
9.5
7.5
11.4
3x
46.0
79.5 x 160
B32344D3101A080
8.3
12.6
10.0
15.1
3x
61.0
79.5 x 160
B32344D3121A580
10.4
15.9
12.5
19.1
3x
77.0
79.5 x 198
B32344D3151A080
12.5
19.0
15.0
22.8
3x
92.0
89.5 x 198
B32344D3201A080
16.7
25.4
20.0
30.5
3x
123.0
89.5 x 273
B32344D3251A080
20.8
31.6
25.0
38.0
3x
153.0
89.5 x 273
B32344D…A…
Weight
kg
0.5
0.5
0.6
0.8
1.2
1.2
Quantity
per
box
6
6
6
4
4
4
Three-phase capacitors - Rated voltage 400 V AC, 50/60 Hz, delta connection
Product / Type
C
R
d xh
50 Hz
60 Hz
Ordering code
Output
I
R
Output
I
R
kvar
A
kvar
A
μF
mm
B32344D4071A500
6.3
9.1
7.5
11.0
3x
42.0
79.5 x 160
B32344D4072A500
7.5
10.9
9.0
13.1
3x
50.0
79.5 x 160
B32344D4101A000
8.3
12.0
10.0
14.4
3x
55.0
79.5 x 160
B32344D4102A000
10.0
14.6
12.0
17.5
3x
67.0
79.5 x 198
B32344D4122A500
12.5
18.1
15.0
21.7
3x
83.0
89.5 x 198
B32344D4152A000
15.0
21.8
18.0
26.1
3x
100.0 89.5 x 198
B32344D4201A000
16.7
24.2
20.0
29.0
3x
111.0 89.5 x 198
B32344D4202A000
20.0
28.9
24.0
34.7
3x
133.0 89.5 x 273
B32344D4252A000
25.0
36.1
1)
1)
3x
166.0 89.5 x 273
Three-phase capacitors - Rated voltage 415 V AC, 50/60 Hz, delta connection
Product / Type
C
R
d xh
50 Hz
60 Hz
Ordering code
Output
I
R
Output
I
R
kvar
A
kvar
A
μF
mm
B32344D4071A510
6.3
8.8
7.5
10.6
3x
39.0
79.5 x 160
B32344D4072A510
7.5
10.4
9.0
12.5
3x
46.0
79.5 x 198
B32344D4102A010
10.0
14.0
12.0
16.8
3x
62.0
79.5 x 198
B32344D4122A510
12.5
17.4
15.0
20.9
3x
77.0
89.5 x 198
B32344D4152A010
15.0
20.8
18.0
24.9
3x
92.0
89.5 x 273
B32344D4202A010
20.0
27.8
24.0
33.3
3x
123.0 89.5 x 273
B32344D4252A010
25.0
34.8
1)
1)
3x
154.0 89.5 x 348
Weight
kg
0.5
0.5
0.5
0.6
0.8
0.8
0.8
1.2
1.5
Quantity
per
box
6
6
6
6
4
4
4
4
4
Weight
kg
0.5
0.6
0.6
0.8
1.2
1.2
1.5
Quantity
per
box
6
6
6
4
4
4
4
1) Product not applicable to 60 Hz, since the product’s rated current is exceeded.
FK PFC R&D
Please read the important notes, cautions and warnings on the next pages
.
Page
5 of 10
August 2006
