10125756-641110LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 10125756-641110LF

10125756-641110LF: DescriptionCard Edge Connector, 64 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size681KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

10125756-641110LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10125756-641110LF	-	-	View	Buy Now

10125756-641110LF Overview

Card Edge Connector, 64 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator

10125756-641110LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Board mount options	HOLE .086-.098
body width	0.276 inch
subject depth	0.76 inch
body length	1.921 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Insulator color	BLACK
Manufacturer's serial number	10125756
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Plating thickness	30u inch
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
Base Number Matches	1

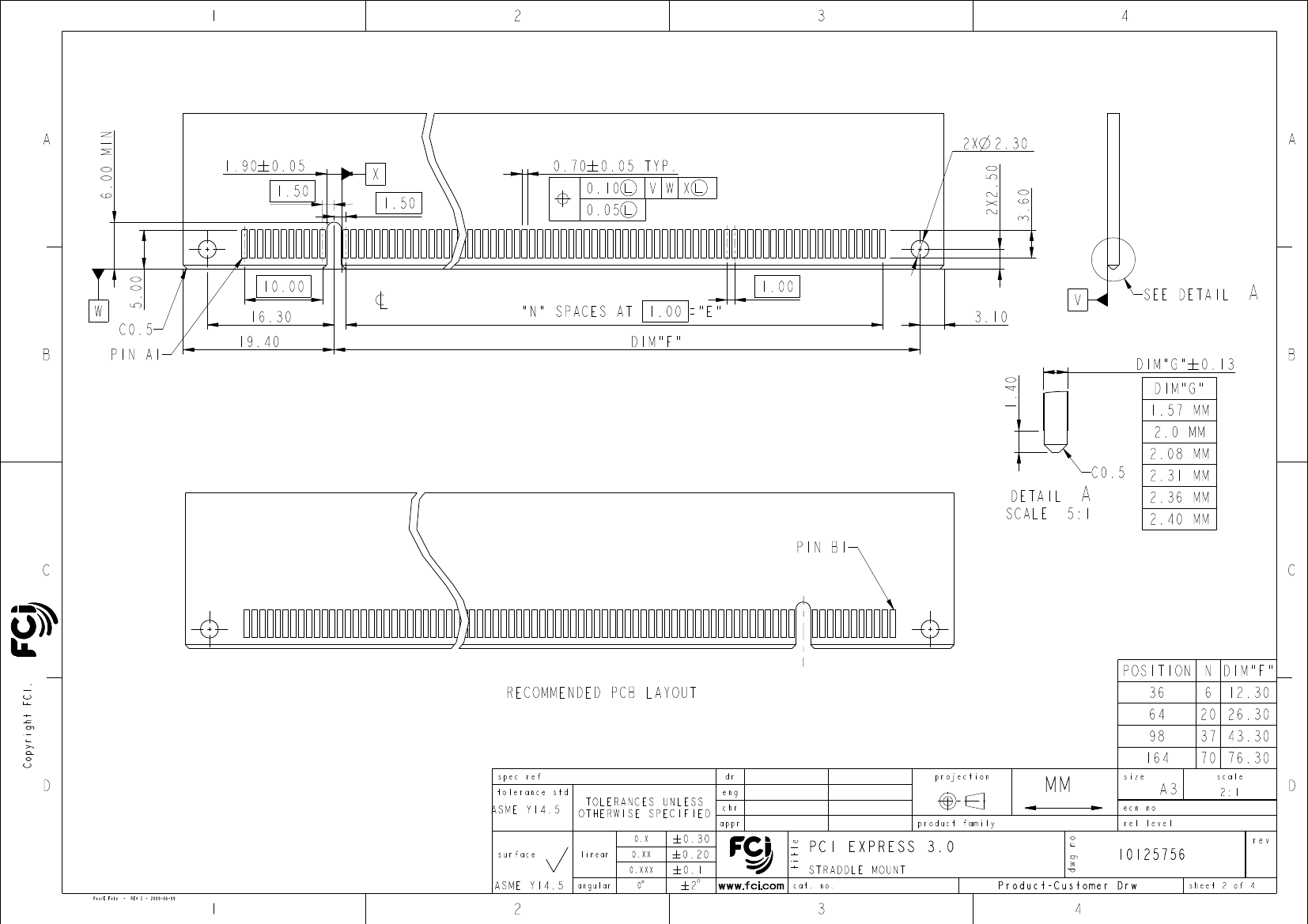

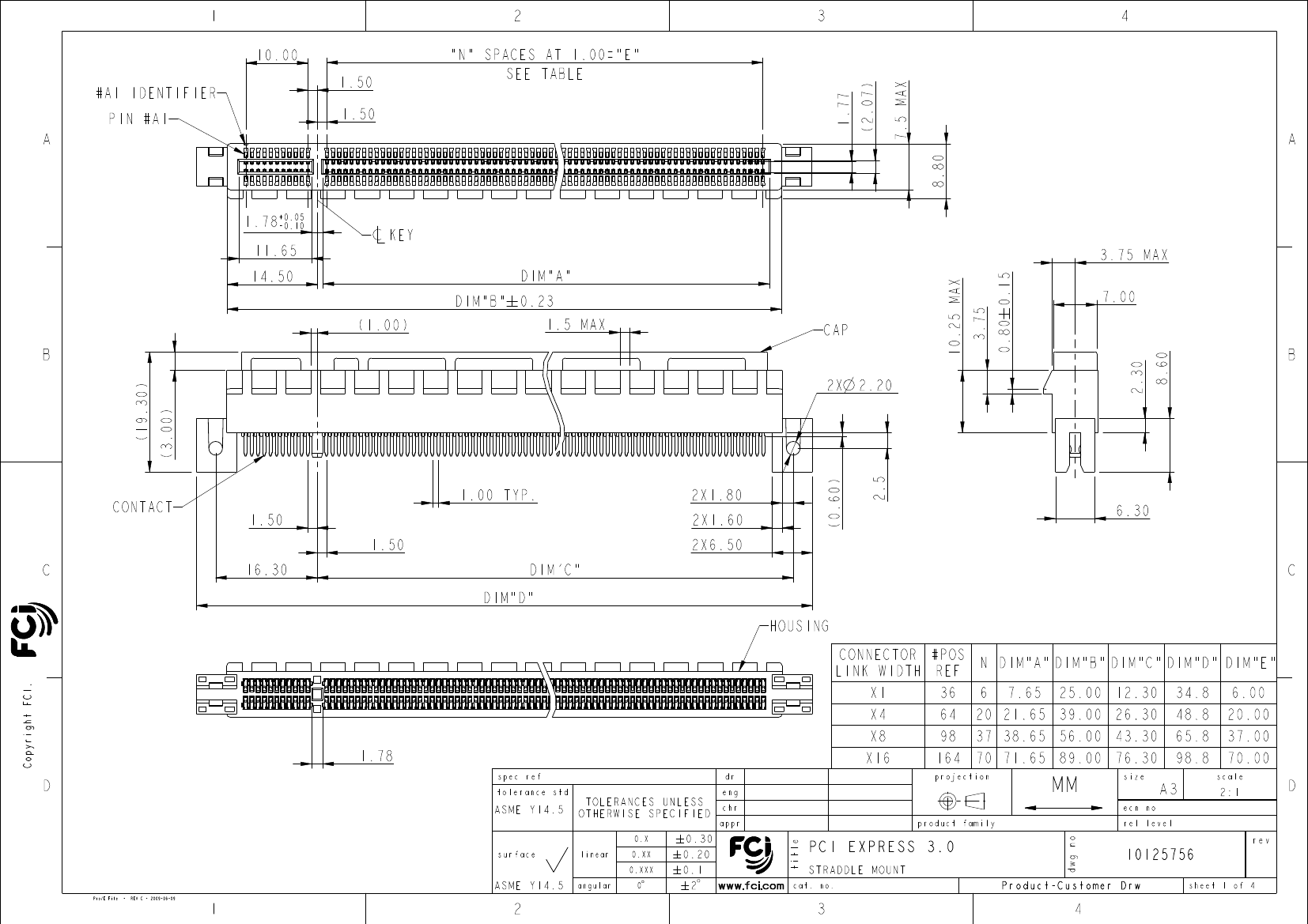

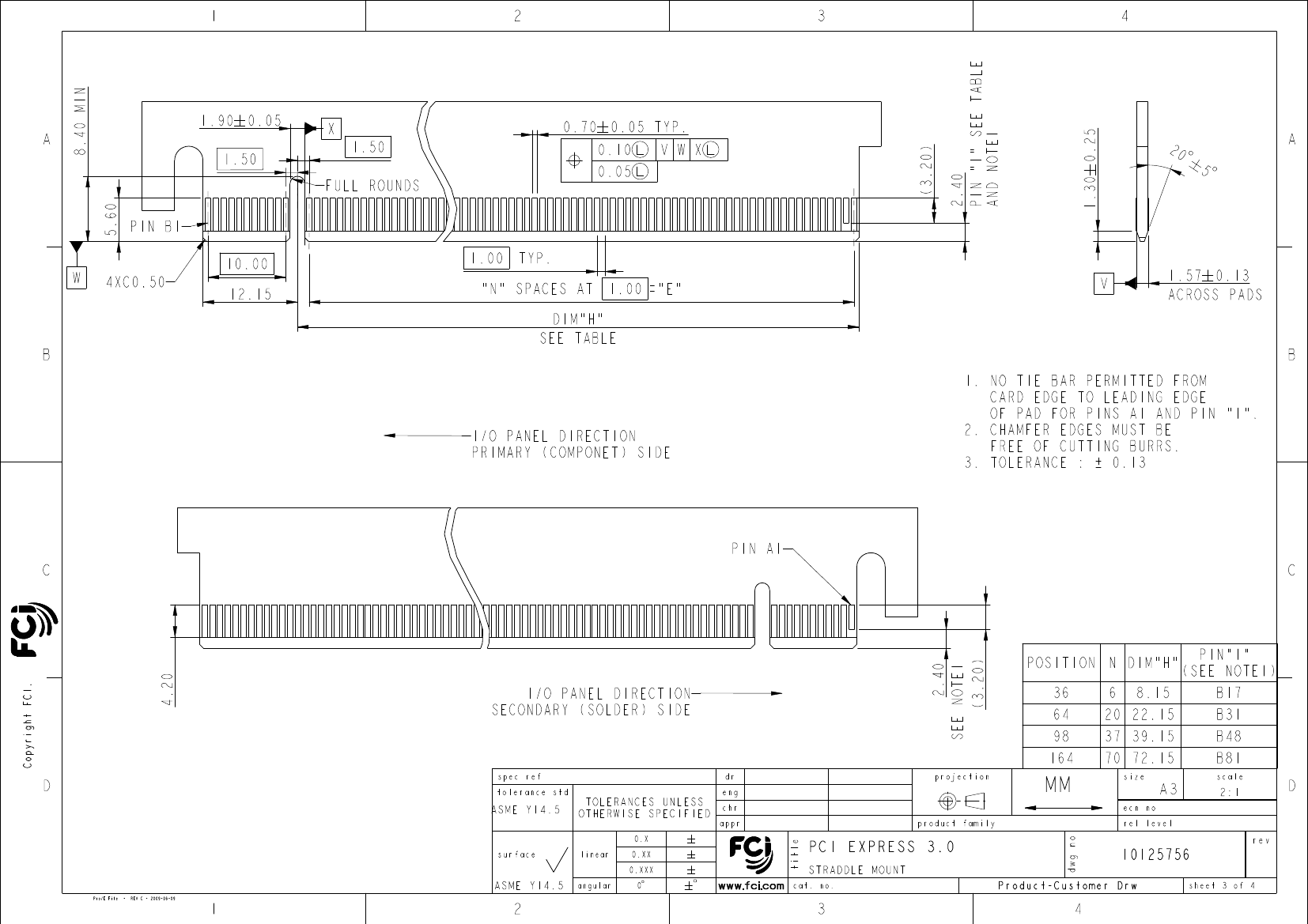

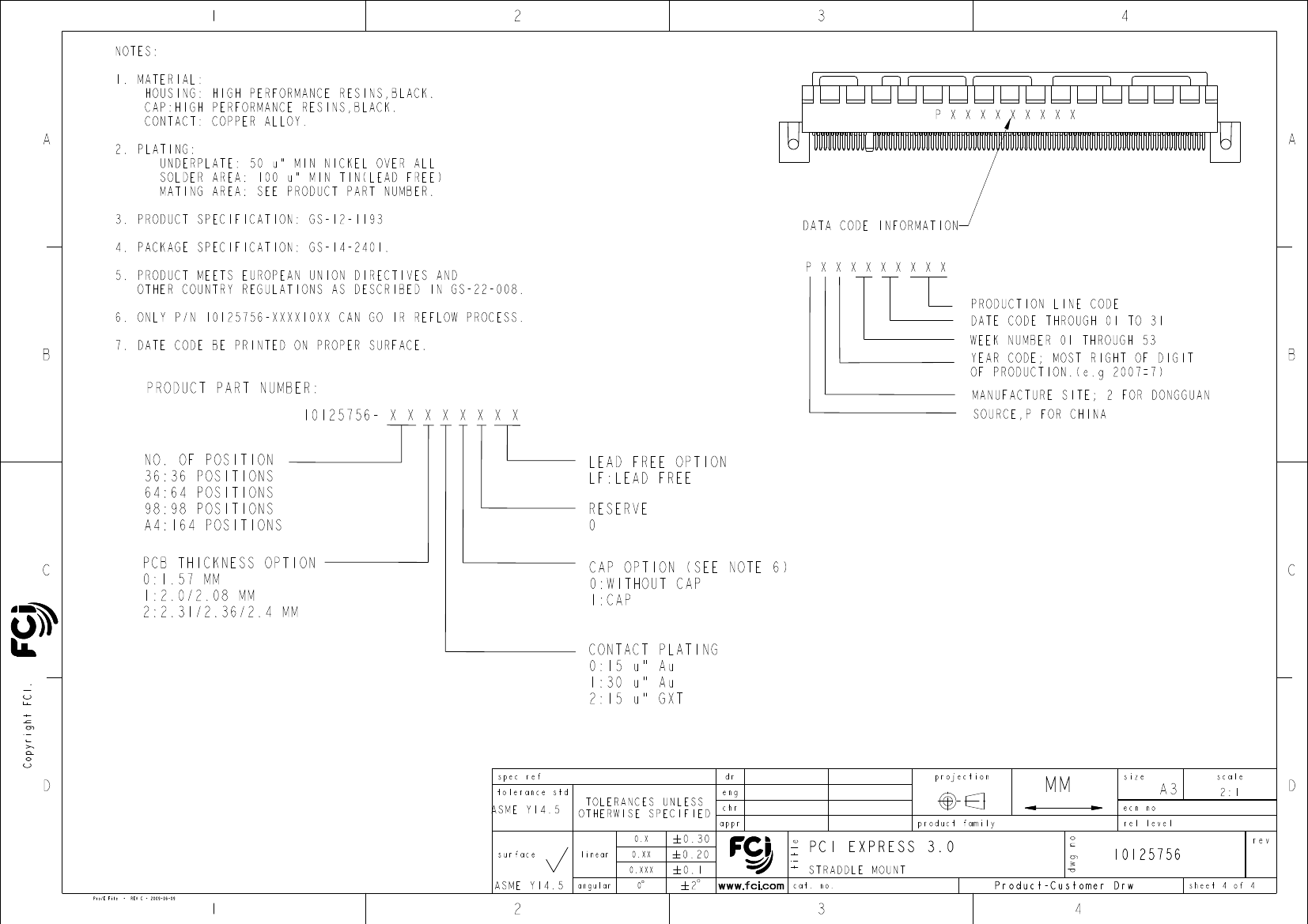

Preview

Download Datasheet

View All

Eric Jiang

Nickor Zuo

Pei-Ming Zheng

2014/07/20

2015/09/21

2015/09/18

2015/09/21

Released

PDS: Rev :A

STATUS:Released

Printed: Sep 21, 2015

10125756-641110LF Related Products

	10125756-641110LF	10125756-642010LF	10125756-642110LF	10125756-640110LF	10125756-641000LF	10125756-982100LF	10125756-982110LF	10125756-982010LF
Description	Card Edge Connector, 64 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 64 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 64 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 64 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 64 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 98 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 98 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator	Card Edge Connector, 98 Contact(s), 2 Row(s), Straight, Surface Mount Terminal, Locking, Black Insulator
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	7 weeks	7 weeks	7 weeks	7 weeks	7 weeks	7 weeks	7 weeks	7 weeks
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
subject depth	0.76 inch	0.76 inch	0.76 inch	0.76 inch	0.76 inch	0.521 inch	0.521 inch	0.521 inch
body length	1.921 inch	1.921 inch	1.921 inch	1.921 inch	1.921 inch	2.591 inch	2.591 inch	2.591 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
Manufacturer's serial number	10125756	10125756	10125756	10125756	10125756	10125756	10125756	10125756
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Number of rows loaded	2	2	2	2	2	2	2	2
Plating thickness	30u inch	15u inch	15u inch	15u inch	30u inch	15u inch	15u inch	15u inch
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	64	64	64	64	64	98	98	98
Base Number Matches	1	1	1	1	1	1	1	1
