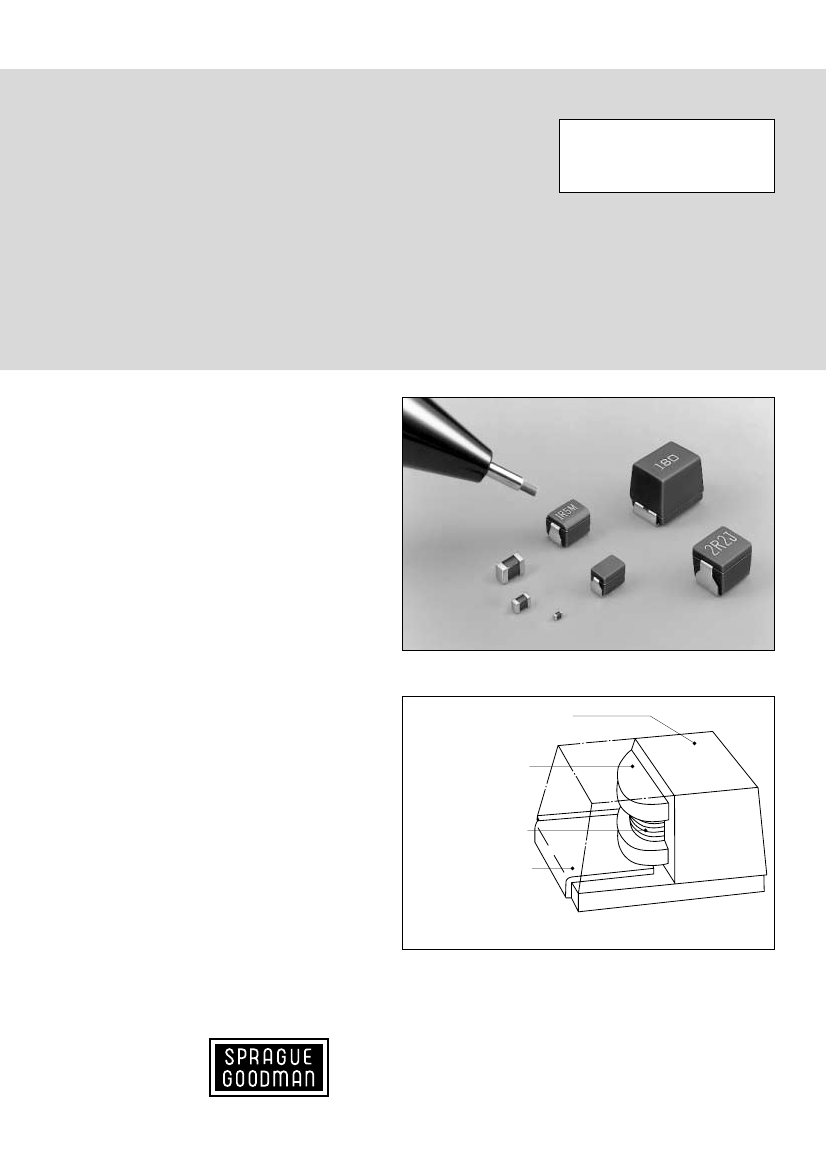

ENGINEERING BULLETIN

Sprague-Goodman

SG-800H.1

Supercedes SG-800G

SURFCOIL SMT INDUCTORS

FEATURES

• Lead free, ROHS Compliant

• High Q

• High self-resonant frequency including

nonmagnetic models in microwave range

• Shielded series use ferrite filled encapsulation

to reduce external magnetic coupling

• Low DC resistance

• Carrier and reel packaging is standard

• Ten case sizes

SPECIFICATIONS

Electrical

• Inductance & Q, etc.: See tables

• Temperature range –20°C to +85°C,

except GLY, GLYC, GLZ, GLZB and GLZP

Models are – 40°C to +85°C

- Change of L = ±10% max, except

GLX, GLY, GLYC, GLZ, GLZB and GLZP

Models are ± 5%

- Change of Q = ±20% max, except GLY, GLYC,

GLZ, GLZB and GLZP Models are ±25%

• Rated Current: See tables. Current

rating is determined by either or both

of the following conditions:

1. Self heating raises SURFCOIL

temperature 20°C

2. Inductance value reduced by

10% from saturation effect

Mechanical (Chip Inductors)

• Suitable for wave flow soldering, infrared,

and vapor phase reflow (typically over 90%

coverage)

• Withstands soldering temperatures

without damage

• Fully encapsulated and thermally cycled

for stability and highest reliability

Encapsulation:

Epoxy resin all series;

GLC, GLD and GLW have ferrite

filler for closed magnetic circuit.

Core:

Ferrite (except high

frequency GLA and

GLU series, which

are nonmagnetic)

Coil:

Polyurethane

enameled copper wire

Terminal:

Phosphor-Bronze

tin plated

[View applies to molded bobbin wound types]

Sprague-Goodman Electronics, Inc.

1700 SHAMES DRIVE, WESTBURY, NY 11590

TEL: 516-334-8700 • FAX: 516-334-8771

E-MAIL: info@spraguegoodman.com
