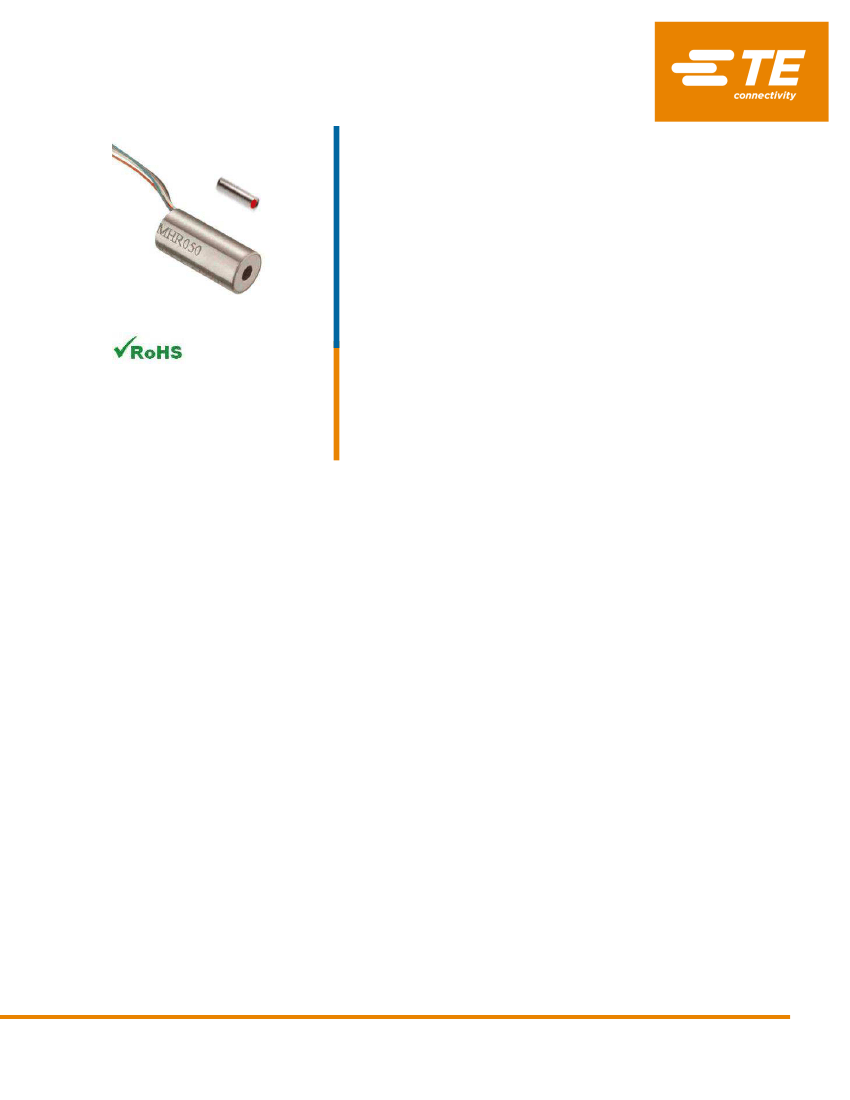

(*) Unit for output at stroke ends is millivolt per volt of input voltage
(**) Requires special reduced core length
SENSOR SOLUTIONS
/// MHR Series Rev. 8
07/2017
Page 2
MHR SERIES
Miniature General Purpose AC LVDT
ENVIRONMENTAL SPECIFICATIONS & MATERIALS
Operating temperature
Shock survival
Vibration tolerance
Housing material
Electrical connection
IEC 60529 rating
-65°F to +300°F [-55°C to 150°C]
1,000 g (11ms half-sine)
20 g up to 2KHz
AISI 400 Series stainless steel
Six lead-wires, 32 AWG stranded Copper, PTFE insulated, 1 foot [0.3m] long
(longer wires optional)
IP61
Notes:
All values are nominal unless otherwise noted
Electrical specifications are for the test frequency indicated in the table
Dimensions are in inch [mm] unless otherwise noted
FR: Full Range is the stroke range, end to end; FR=2xS for ±S stroke range
FRO (Full Range Output): Algebraic difference in outputs measured at the ends of the range

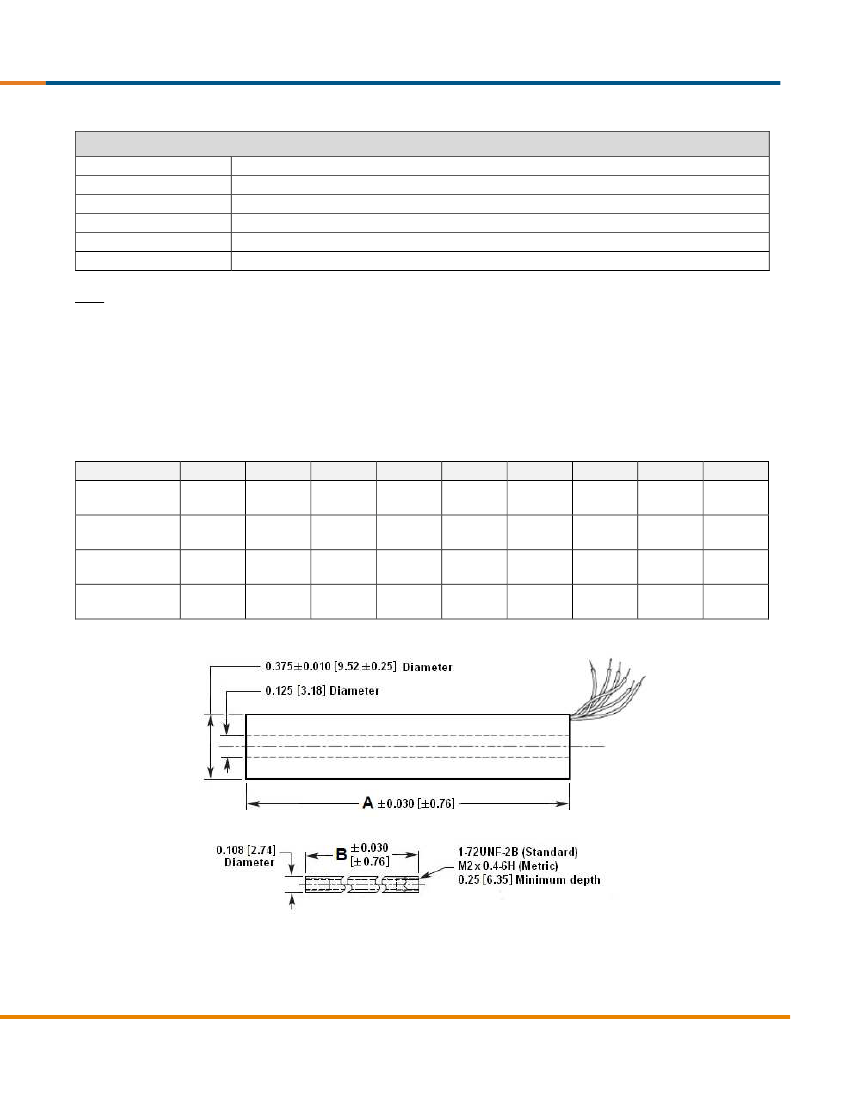

MECHANICAL SPECIFICATIONS
Parameter
Body length “A”
Core length “B”
Body weight
Core weight
oz
[g]
oz
[g]
MHR 005
0.375
[9.5]
0.180
[4.6]
0.07
[2]
0.004
[0.1]
MHR 010
0.535
[13.6]
0.233
[5.9]
0.11
[3]
0.007
[0.2]
MHR 025
0.660
[16.8]
0.400
[10.2]
0.18
[5]
0.016
[0.5]
MHR 050
0.815
[20.7]
0.500
[12.7]
0.21
[6]
0.016
[0.5]
MHR 100
0.990
[25.1]
0.625
[15.9]
0.21
[6]
0.025
[0.7]
MHR 250
1.850
[47.0]
1.125
[28.6]
0.32
[9]
0.032
[0.9]
MHR 500
3.300
[83.82]
2.000
[50.8]
0.60
[17]
0.056
[1.6]
MHR 1000
5.600
[142.2]
3.000
[76.2]
0.92
[26]
0.088
[2.5]
MHR 2000
8.000
[203.2]
3.00
[76.2]
1.4
[40]
0.088
[2.5]
Dimensions are in inch [mm]
SENSOR SOLUTIONS
/// MHR Series Rev. 8
07/2017
Page 3
MHR SERIES
Miniature General Purpose AC LVDT

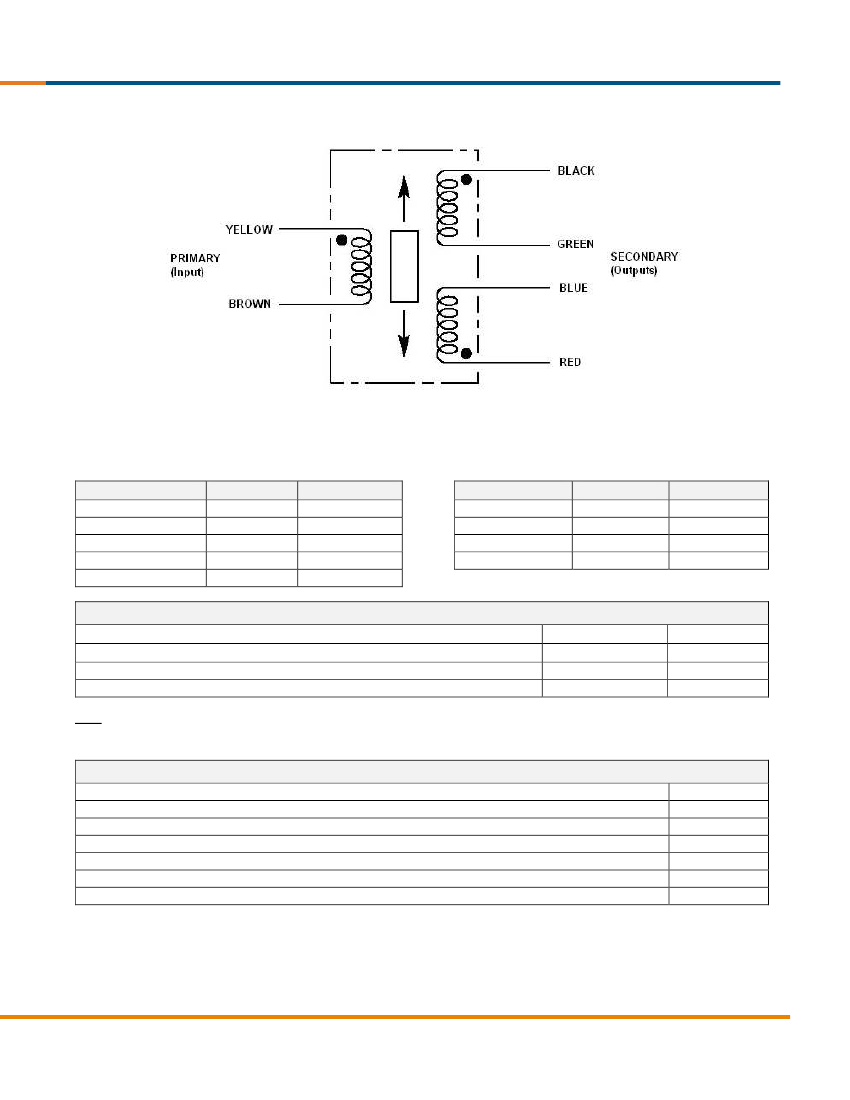

WIRING INFORMATION
Connect Blue to Green for differential output
ORDERING INFORMATION
Description
±0.005 inch LVDT
±0.010 inch LVDT
±0.025 inch LVDT
±0.05 inch LVDT
±0.10 inch LVDT
Model
MHR 005
MHR 010
MHR 025
MHR 050
MHR 100
Part Number
02560405-000
02560406-000
02560407-000
02560408-000
02560409-000
Description
±0.25 inch LVDT
±0.5 inch LVDT
±1 inch LVDT
±2 inch LVDT
Model
MHR 250
MHR 500
MHR 1000
MHR 2000
Part Number
02560410-000
02560411-000
02560412-000
02561033-000
OPTIONS
5.0 kHz calibration
10 kHz calibration
Metric threaded core
10 foot long lead-wires
XXXXXXXX
-002
XXXXXXXX
-003
XXXXXXXX
-006
Consult factory
XXXXXXXX
-040
Note: Add multiple option dash numbers together to determine proper ordering suffix
Example: MHR 1000, ±1 inch, with 5 kHz calibration and metric threaded core, P/N 02560412-008
ACCESSORIES
Core connecting rod,
Core connecting rod,
Core connecting rod,
Core connecting rod,
Core connecting rod,
Core connecting rod,
Mounting block
6 inches long, 1-72 threads
12 inches long, 1-72 threads
24 inches long, 1-72 threads
36 inches long, 1-72 threads
6 inches long, M2x0.4 metric threads
12 inches long, M2x0.4 metric threads
05282945-006
05282945-012
05282945-024
05282945-036
05282976-006
05282976-012
04560954-000
