2682-6460-10U

Description
Fixed Attenuator, 0MHz Min, 26500MHz Max
CategoryWireless rf/communication    Radio frequency and microwave
File Size31KB,1 Pages
ManufacturerXMA Corp.
Download Datasheet Parametric View All

2682-6460-10U Overview

Fixed Attenuator, 0MHz Min, 26500MHz Max

2682-6460-10U Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresSMA, I/P POWER-MAX(PEAK)=500W
Nominal attenuation10 dB
Characteristic impedance50 Ω
structureCOAXIAL
Maximum input power (CW)33.01 dBm
Maximum operating frequency26500 MHz
Minimum operating frequency
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesFIXED ATTENUATOR
Maximum voltage standing wave ratio1.5
Base Number Matches1
2682-6460-XX
26.5 GHz SMA Hex/Round Attenuator
Specifications
Electrical:
Freq. Range:
VSWR:
DC-18 GHz
18-26.5 GHz
Power (Ave):
Power (Peak):
Impedance
Operating Temp Range
DC-26.5 GHz

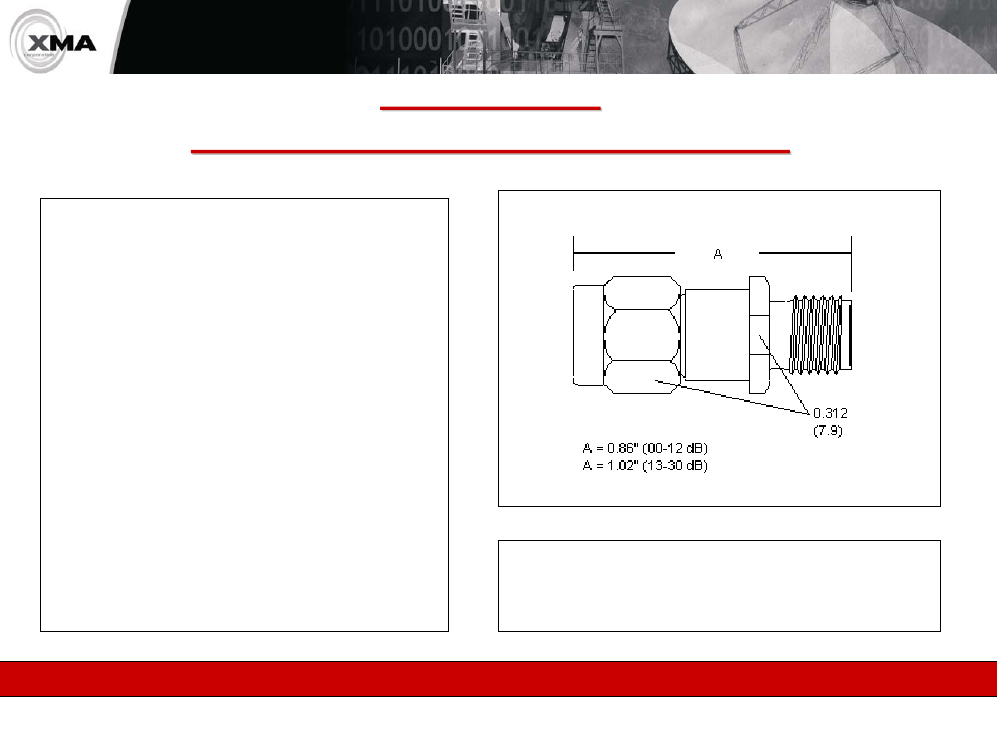

Outline Drawing
1.35:1 Max
1.50:1 Max
2 Watts @ 25 Deg. C
500 Watts
50 Ohms
-55 to +125 °C
Mechanical:
Size
Length (0-12dB)
(13-30 dB)
Body Dia:
Connector & Body
Center Conductor
.86”
1.02”
.28”/.312 Hex Nut
Passivated Stainless Steel
Gold Plated Beryllium Copper
Ordering Guide
Part Number Format: 2682-6460-XX
XX = 00-12, 15, 20, 30 dB. Other dB Values available upon request.
Add letter U to end of part number for unmarked parts
Rev: A0 112606DC
WHEN PERFORMANCE MATTERS
150 Dow Street Manchester, NH 03101
Tel:603-222-2256
Fax:603-222-2259
www.XMACORP.com
