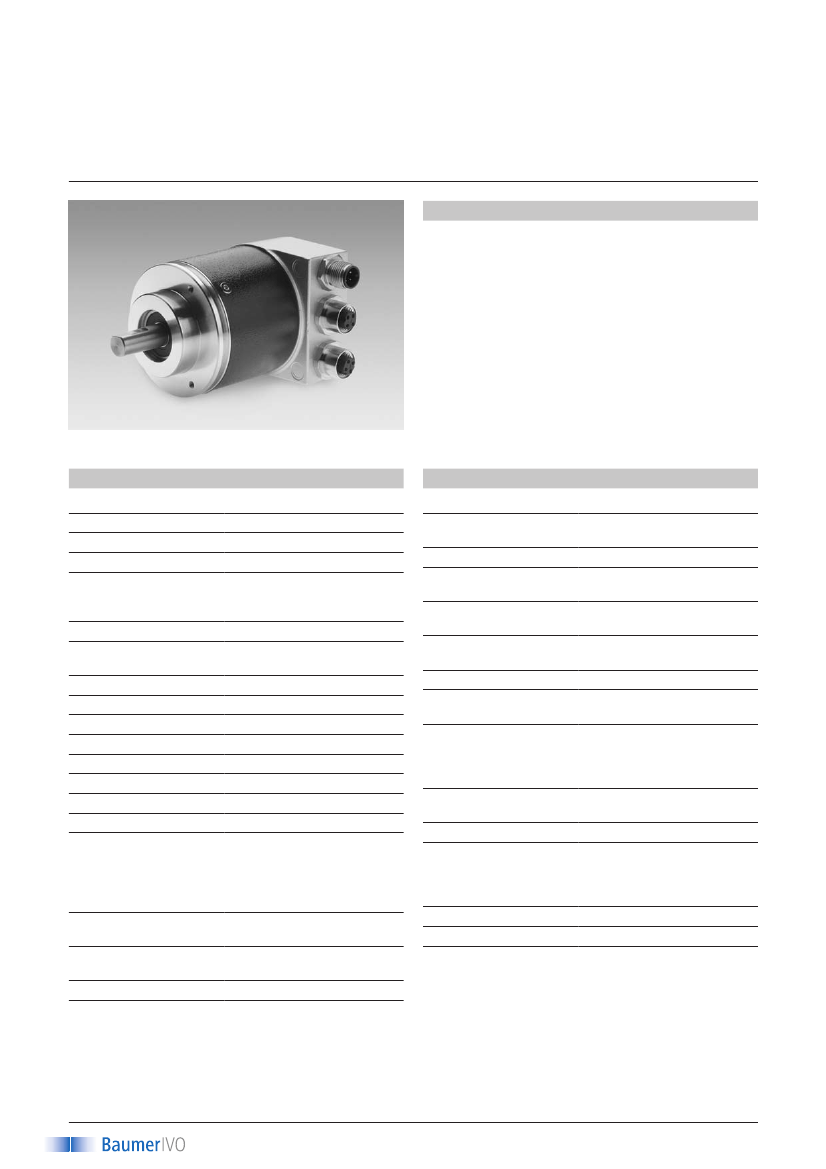

Absolute encoders - modular bus covers

Magnetical sensing, shaft

Multiturn encoder 12 bit ST / 16 bit MT

CANopen / DeviceNet / EtherCAT / Profibus / SSI / Lightbus

GCMMW -

magtivo

Features

– Encoder multiturn / bus cover

– Magnetic sensing

– Resolution: singleturn 12 bit, multiturn 16 bit

–

Clamping flange or synchro flange

–

Encoder for heavy-duty applications

–

New innovative sensing technology

– Modular bus interface concept

–

CANopen/DeviceNet/EtherCAT/Profibus/SSI/fibre-

optic

–

Code continuity check optional by bus

GCMMW with modular bus cover

Technical data - electrical ratings

Voltage supply

Consumption w/o load

Initializing time (typ.)

Interfaces

10...30 VDC

≤100 mA (24 VDC)

250 ms after power on

Profibus-DPV0 / V2, CANopen,

DeviceNet, EtherCAT, Fiber-

optic bus, SSI

Multiturn

Rotary switch in bus cover

(type-specific)

4096 / 12 bit

65536 / 16 bit

±1°

Magnetic

Binary

CW default, programmable

DIN EN 61000-6-2

DIN EN 61000-6-4

Steps per revolution

Number of revolutions

Preset

Scaling

Rotational direction

Position or parameter error

Multiturn sensing

DUO-LED integrated in bus

cover

UL approval / E63076

Operating temperature

Relative humidity

Resistance

Reverse polarity protection Yes

Technical data - mechanical design

Housing

Shaft

Flange

Protection DIN EN 60529

Operating speed

Starting torque

Rotor moment of inertia

Admitted shaft load

Materials

ø58 mm

ø10 mm (clamping flange)

ø6 mm (synchro flange)

Clamping or synchro flange

IP 54 without shaft seal

IP 65 with shaft seal

≤10000 rpm (mechanical)

≤6000 rpm (electric)

≤0.015 Nm IP 54

≤0.03 Nm IP 65

20 gcm²

≤20 N axial

≤40 N radial

Housing: steel

Flange: aluminium

Bus cover: zinc die-cast

or aluminium

-25...+85 °C

-40...+85 °C (optional)

95 % non-condensing

DIN EN 60068-2-6

Vibration 10 g, 16-2000 Hz

DIN EN 60068-2-27

Shock 200 g, 6 ms

700 g

Bus cover

Function

User address

Steps per turn

Number of turns

Absolute accuracy

Sensing method

Code

Code sequence

Interference immunity

Emitted interference

Programmable

parameters

Diagnostic functions

Status indicator

Approval

Weight approx.

E-connection

www.baumerivo.com

28/11/2008

Subject to modification in technic and design. Errors and omissions excepted.
