GBU4005 thru GBU410 SERIES
GLASS PASSIVATED
BRIDGE RECTIFIERS
FEATURES
●
Surge overload rating -150 amperes peak
●
Ideal for printed circuit board
●
Reliable low cost construction utilizing
REVERSE VOLTAGE
FORWARD CURRENT
GBU
.874(22.2)
.860(21.8)
.154(3.9)
.146(3.7)
- 50
to
1000Volts
- 4.0
Amperes
.139(3.53)
.133(3.37)
3.2*3.2
CHAMFER
molded plastic technique
●
Plastic material has U/L
.752(19.1)
.720(18.3)
.073(1.85)
.057(1.45)
flammability classification 94V-0
●
Mounting postition:Any
.232(5.9)
.224(5.7)
.720(18.29)
.680(17.27)
.047(1.2)
.035(0.9)
.100(2.54)
.085(2.16)
.080(2.03)
.065(1.65)
.106(2.7)
.091(2.3)
.022(.56)
.210 .210 .210
.018(.46)
.190 .190 .190
(5.3) (5.3) (5.3)
(4.8) (4.8) (4.8)
Dimensions in inches and (milimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward (with heatsink Note 2)
Rectified Current
@ T
C
=100℃ (without heatsink)
Peak Forward Surage Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load (JEDEC Method)
Maximum Forward Voltage at 4.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
I
2
t Rating for Fusing (t<8.3ms)
Typical Junction Capacitance Per Element (Note1)
Typical Thermal Resistance (Note2)
Operating Temperature Range
Storage Temperature Range
@ T
J
=25℃
@ T
J
=125℃
SYMBOL GBU4005 GBU401 GBU402 GBU404 GBU406 GBU408 GBU410
V
RRM
V
RMS
V
DC
I
(AV)
50
30
50
100
70
100
200
140
200
400
280
400
4.0
2.4
150
1.1
10.0
500
93
45
2.2
-55 to +150
-55 to +150
600
420
600
800
560
800
1000
700
1000
UNIT
V
V
V
A
I
FSM
V
F
I
R
I
2
t
C
J
R
θJC
T
J
T
STG
A
V
uA
A
2
s
pF
℃/W
℃
℃
NOTES: 1.Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
2.Device mounted on 50mm*50mm*1.6mm cu plate heatsink.
~ 299 ~

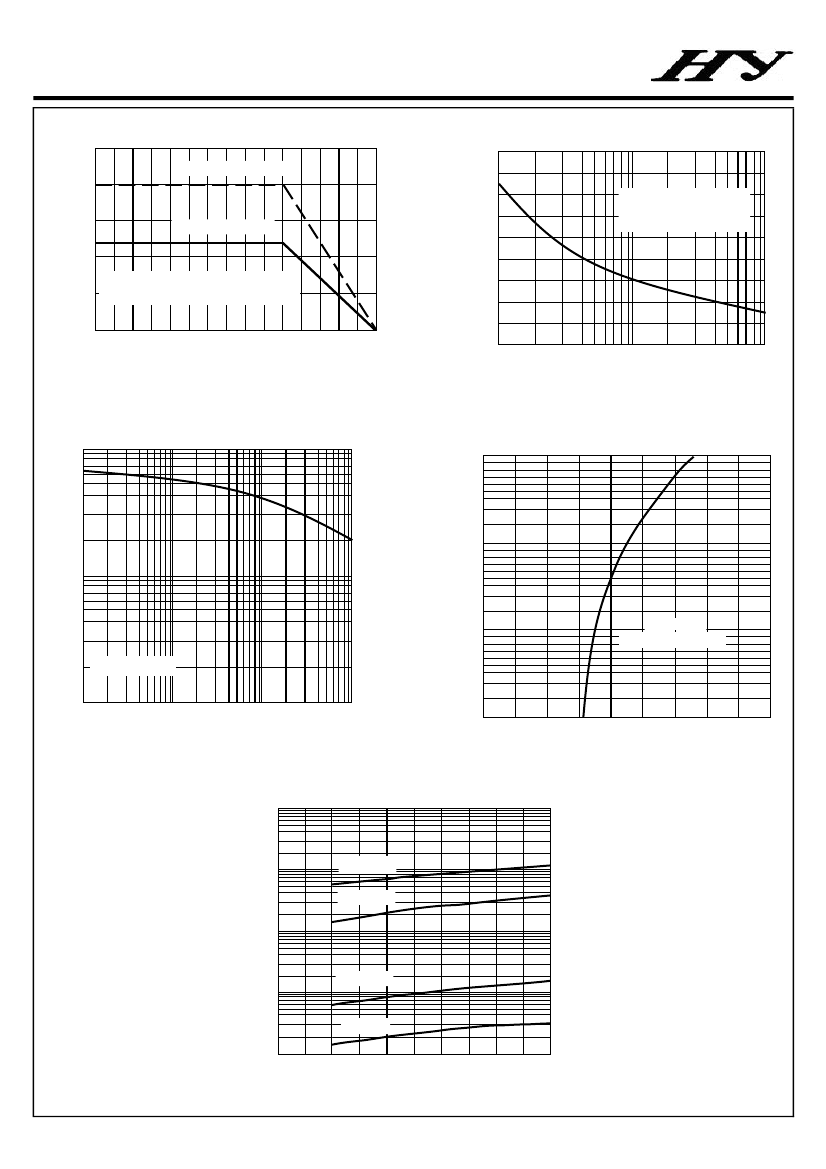

RATING AND CHARACTERTIC CURVES
GBU4005 thru GBU410 SERIES
FIG.1-FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT
AMPERES
5.0
PEAK FORWARD SURGE CURRENT,
AMPERES
WITH HEATSINK
FIG.2-MAXIMUM NON-REPETITIVE SURGE CURRENT
180
160
PULSE WIDTH 8.3ms
SINGLE HALF-SINE-WAVE
(JEDEC METHOD)
4.0
3.0
2.0
1.0
0.00
SINGLE PHASE HALF WAVE 60Hz
RESISTIVE OR INDUCTIVE LOAD
120
WITHOUT HEATSINK
80
40
0.1
0
20
40
60
80
100
120
140
0
0
2
5
10
20
50
100
NUMBER OF CYCLETS AT 60Hz
CASE TEMPERATURE,
°C
FIG.3-TYPICAL JUNCTION CAPACITANCE
100
10
INSTANTANEOUS FORWARD CURRENT,
(A)
FIG.4-TYPICAL FORWARD CHARACTERISTICS
CAPACITANCE,(pF)
1.0
10
0.1
T
J
= 25°C
PULSE WIDTH 300us
T
J
=25
℃
,f=1MH
Z
1.0
0.1
1.0
10.0
100
REVERSE VOLTAGE,(VOLTS)
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
FIG.5-TYPICAL REVERSE CHARACTERISTICS
1000
INSTANTANEOUS REVERSE CURRENT ,(uA)
100
T
J
=125℃
T
J
=100℃
10
T
J
=50℃
1.0
T
J
=25℃
0.1
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
